Project Context
Design the lighting around how the venue is actually used.
High-quality sports lighting is a system result. Geometry, source positions, optics, controls, environmental limits and commissioning all influence the final experience.
Football projects range from municipal training grounds to televised professional fields. The playing area may be similar, but mounting height, setbacks, surrounding homes, spectator areas and camera use can change the lighting solution substantially.
A practical field review should include the touchlines, goal lines, safety run-off, technical areas, adjacent training strips, spectator routes and any property boundaries. The goalkeeper’s upward viewing direction and long diagonal player sightlines deserve specific glare review because they frequently face pole groups.
For community or school fields near homes, the off-site assessment may be as important as the target lux. Pole location, aiming, beam distribution, visor use and curfew scenes should be designed together.
ZC project approach: use the actual site drawing and target criteria to select products, optics, quantity, aiming and compatible controls. Product wattage is an input to the calculation—not the starting answer.
Geometry, Mounting & Aiming
Source position and beam direction determine the quality of the installation.
The same luminaire can perform very differently when pole height, setback, aiming angle or observer direction changes.

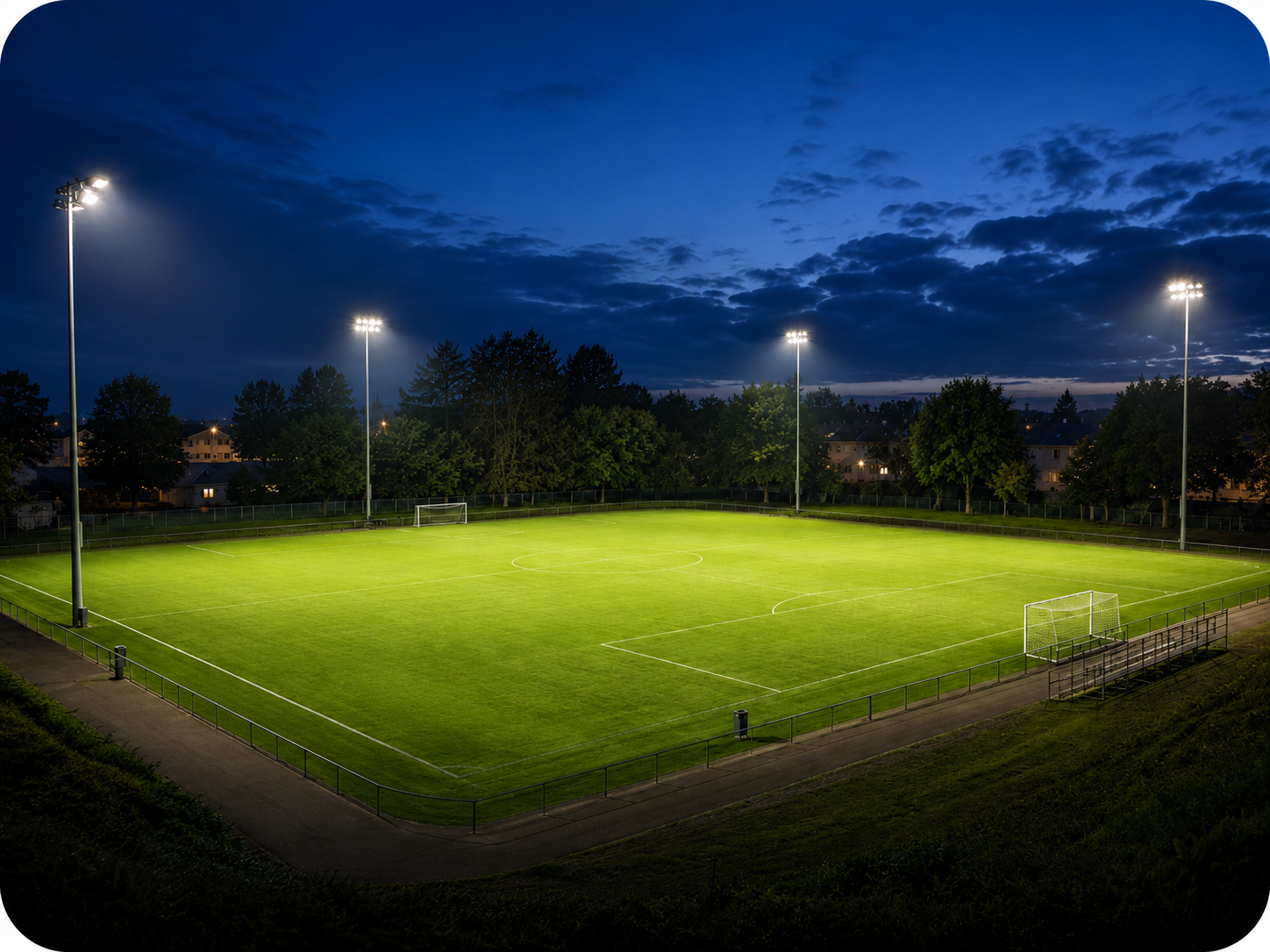

Training / community football field with perimeter poles, controlled field coverage and nearby residential context.

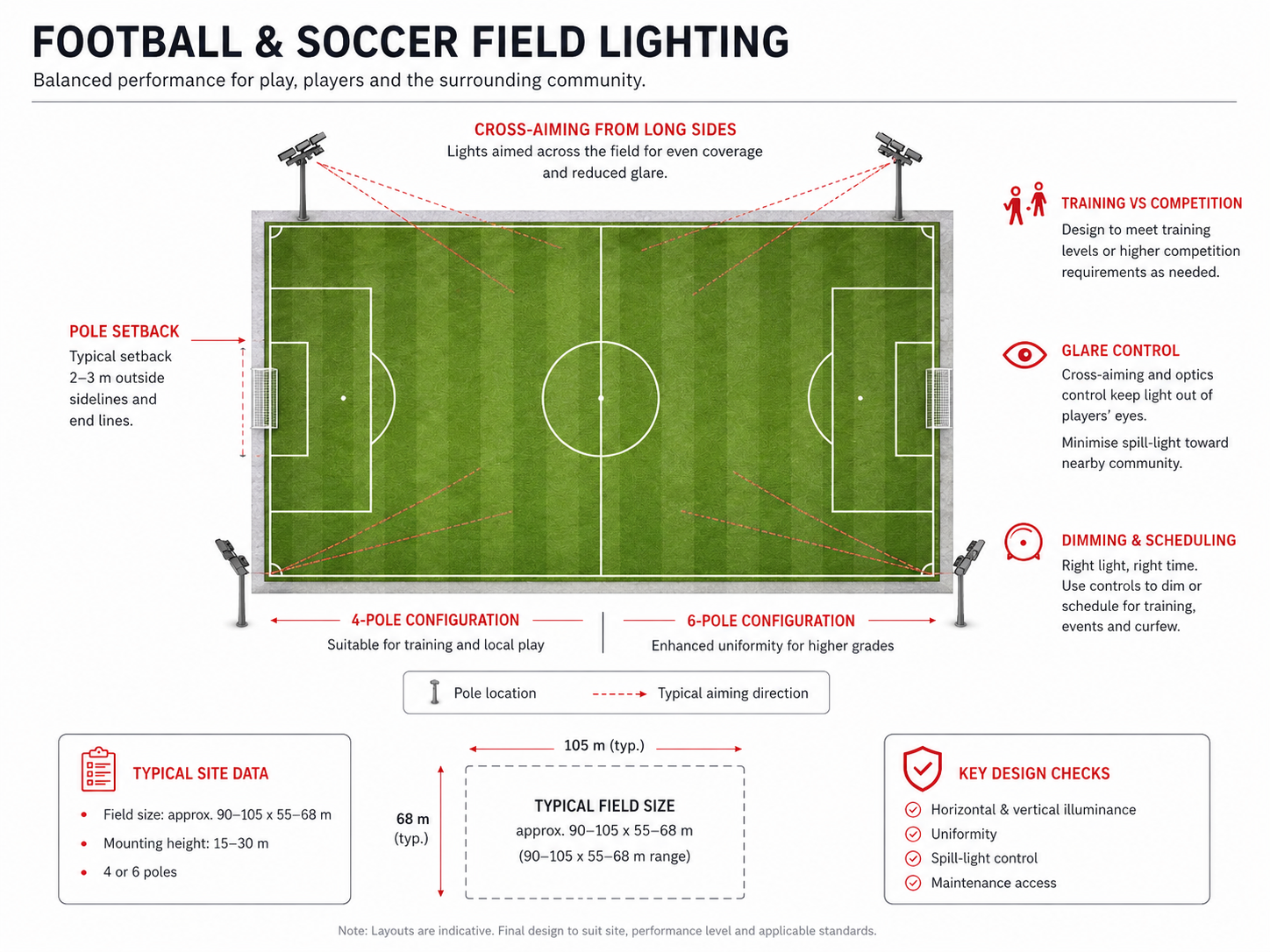

Typical 4- or 6-pole arrangement with cross-aiming from the long sides. Pole height and setback vary by field size and target performance.
Typical reference only. Final pole quantity, mounting height, aiming
angles, optical distribution and fixture quantity should be confirmed by photometric
calculation, structural conditions and the applicable project requirements.
Six- or multi-pole layouts
Useful when lower pole heights, higher performance or tighter spill-light control require more distributed source positions.
Existing poles
Check mast condition, headframe, existing quantity, circuit capacity and the distance from pole to field before choosing replacement wattage.
Goal-area aiming
Avoid excessive concentration behind goal lines; balance diagonal cross-lighting so goalkeepers can see the ball without facing dominant source groups.
Lighting Performance
Review more than average horizontal lux.
A complete review considers playability, visual adaptation, camera or spectator needs and the effect of the lighting outside the venue.
Horizontal illuminance
Primary playing-surface visibility for lines, ball and player movement.
Measure across the entire playable field and required run-off.
Uniformity
Reduces bright/dark adaptation as play moves from one zone to another.
Review local gradients as well as minimum/average ratios.
Vertical visibility
Important for player recognition, ball tracking and camera use.
More important as competition and recording requirements increase.
Glare
Review goalkeeper, corner, midfield and spectator viewpoints.
Pole position and aiming often matter more than luminaire wattage.
Spill light
Check property boundaries and nearby windows, roads or pedestrian routes.
Use calculation plus post-installation verification.
Color/flicker
Confirm if the field will be filmed or used for higher-level events.
Specify driver/color configuration accordingly.
Have a target standard, league brief or photometric specification?Send it with your site drawing →
