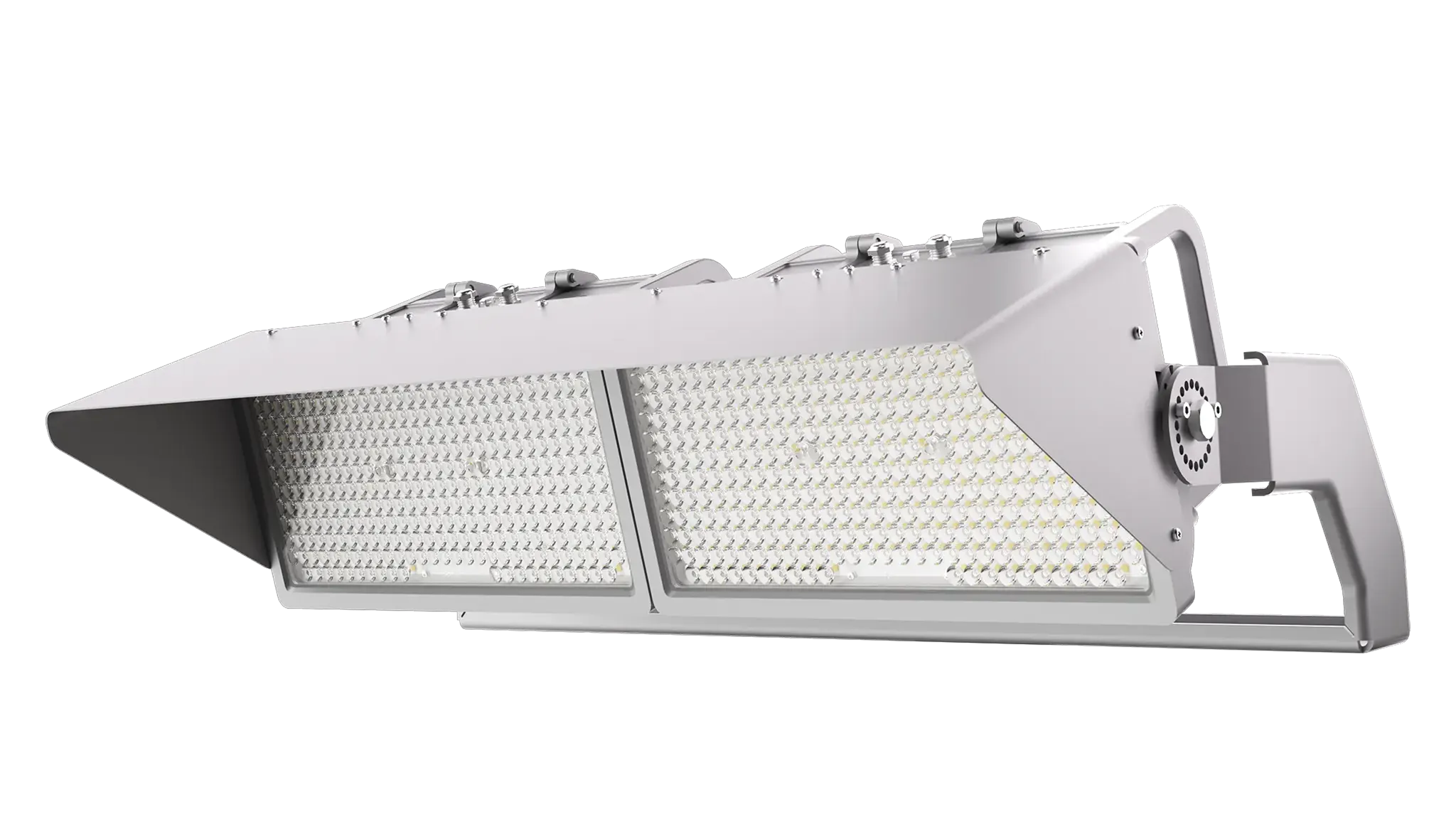

A high-power modular LED stadium lighting system engineered for large outdoor venues and high-mast installations. Flexible module combinations, precise aiming control, and uninterrupted operation minimize maintenance downtime and maximize coverage performance.
The FL07 Series supports scalable configurations from 400W to 3200W, delivering up to 496,000 lm for stadiums, airports, seaports, and large outdoor sports facilities.
Each module operates independently with parallel wiring to ensure reliable performance and continuous operation during maintenance.
Adjustable aiming for both individual modules and the complete fixture enables precise light distribution across complex field layouts.
A heavy-duty die-cast U-bracket and corrosion-resistant powder coating ensure stable performance in coastal and harsh outdoor environments.
Optional PC-only or PC+tempered glass optical fronts simplify stocking and extend long-term optical clarity.
400W–3200W power range, suitable for stadium & high-mast applications.
Independent module operation ensures no full shutdown during maintenance.
Module-level and fixture-level aiming adjustment for precise illumination.
High luminous output up to 496,000 lm, efficiency up to 185 lm/W.

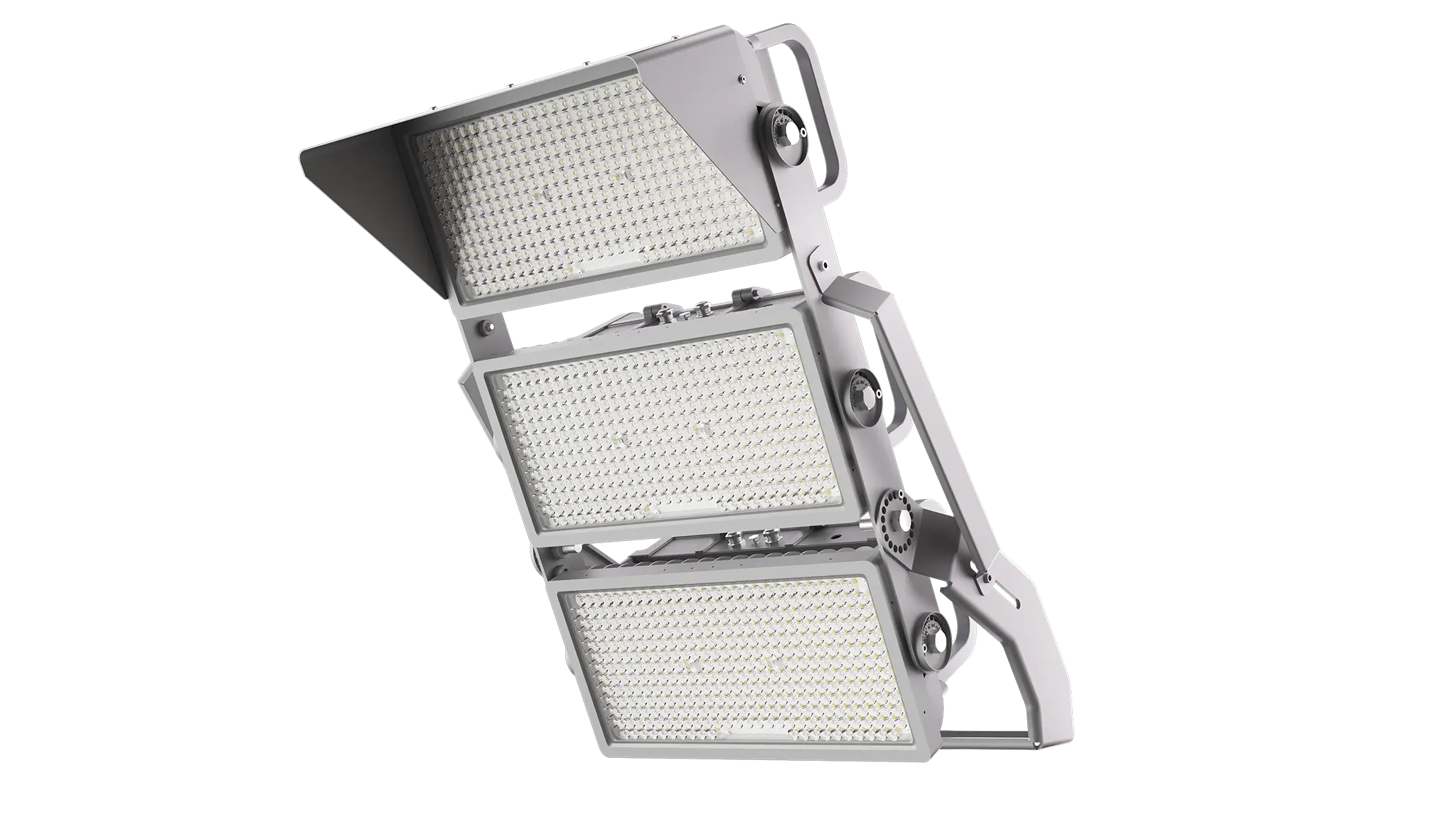

Modular configurations: 1 / 2 / 3 / 4-module assemblies.
Optional accessories: Visor / Laser aimer.

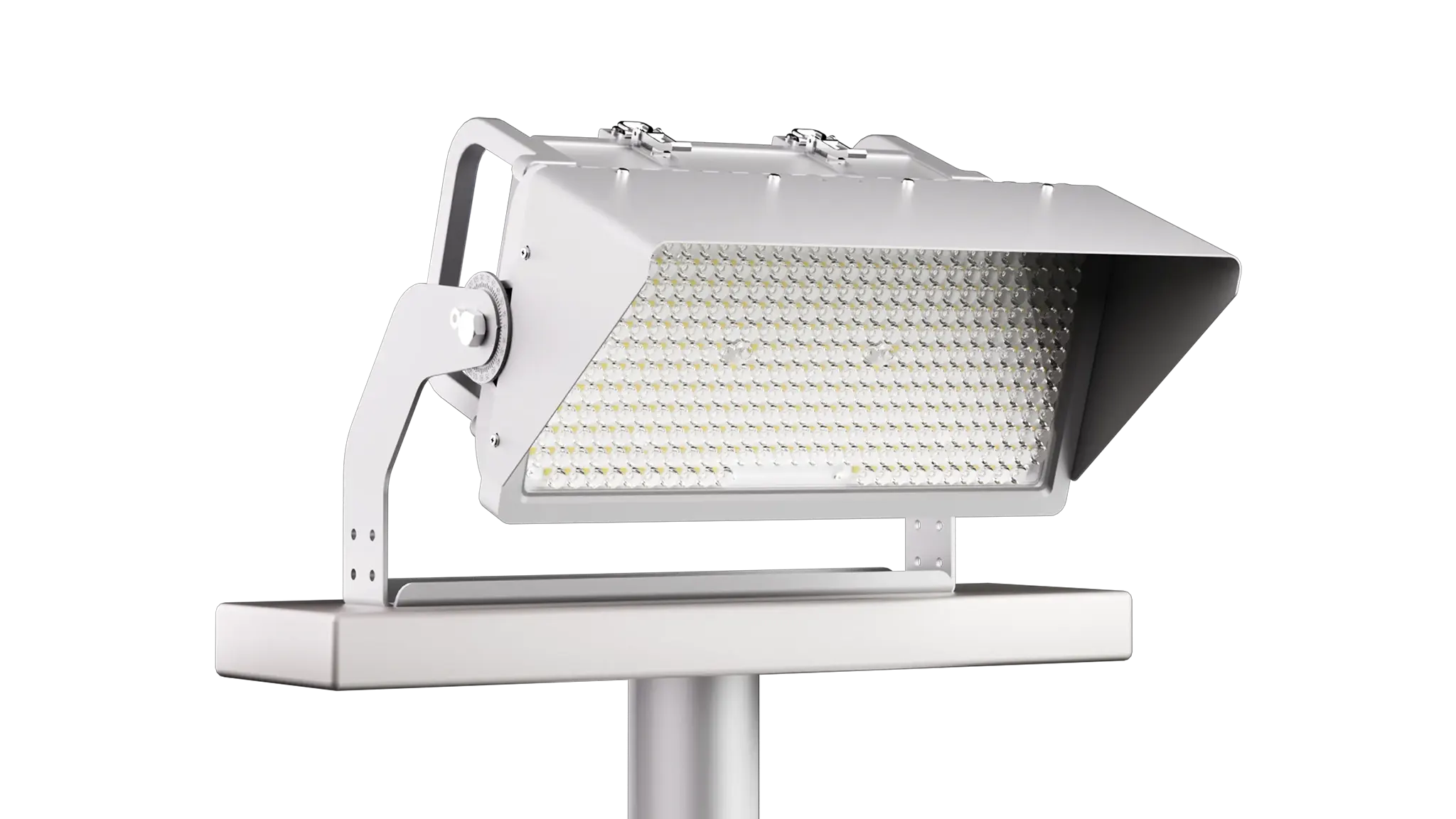

Die-cast U-bracket with reinforced ribs, anti-UV corrosion-resistant finish.
Driver box positioned for airflow + tool-free service + integrated handle.
Optical front options: PC Lens (cost-effective), PC Lens + Tempered Glass (UV & corrosion protection).
Available beam patterns (3 types) for stadium & high-pole distribution.
IP66 weather protection for rain, dust, and coastal conditions.
| Parameter | FL07A-400W~800W | FL07B-800W~1600W | FL07C-1200W~2400W | FL07D-800W~1600W | ||||
| Power (W) | 400W/500W/600W/800W | 800W/1000W/1200W/1600W | 1200W/1500W/1800W/2400W | 800W/1000W/1200W/1600W | ||||
| Input Voltage | AC100-277V | |||||||
| Luminous Efficacy | 185Lm/W / 180Lm/W / 175Lm/W / 165Lm/W | |||||||
| Luminous Flux | 74000LM / 90000LM / 105000LM / 132000LM | 148000LM / 180000LM / 210000LM / 264000LM | 222000LM / 270000LM / 315000LM / 396000LM | 148000LM / 180000LM / 210000LM / 264000LMm | ||||
| Beam Angle | 25 °, 30 °, 45 ° | |||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | |||||||
| CRI | Ra70, Ra80, Ra90, TLCI90 Optional | |||||||
| SDCM | 6 | |||||||
| Power Factor | ≥0.95 | |||||||
| THD | <15% | |||||||
| Percent Flicker | <1% | |||||||
| Parameter | FL07A-400W~800W | FL07B-800W~1600W | FL07C-1200W~2400W | FL07D-800W~1600W | ||||
| Structure Material | Die-cast Heat sink / ADC12 Aluminum Alloy | |||||||
| Surface Finish | Powder coating (Black) | |||||||
| Lens | PC Lens + Tempered Glass | |||||||
| Bracket | Steel Metal U-Bracket / SPCC | |||||||
| Aiming | Aiming 180° rotation; 5° scale | |||||||
| Parameter | FL07A-400W~800W | FL07B-800W~1600W | FL07C-1200W~2400W | FL07D-800W~1600W | ||||
| IP Rating | IP66 | |||||||
| IK Rating | IK08 | |||||||
| Protection Class | Class I | |||||||
| Operating Temperature | -40°C ~ +50°C (-40°F ~ +122°F) | |||||||
| Lifetime | 50,000 hours (L70) | |||||||
| Warranty | 5 years | |||||||
| Surge Protection | 10kV, 20kV optional | |||||||
| EPA(ft²） | 0.71 | 1.53 | 2.34 | 3.15 | ||||
| Parameter | FL07A-400W~800W | FL07B-800W~1600W | FL07C-1200W~2400W | FL07D-800W~1600W | ||||
| Intelligent Control | DMX512, DALI 2.0 | |||||||
| Certifications | CE, RoHS, ENEC | |||||||
| Accessories | Visor, Laser Aimer | |||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the FL07 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
