Compact design, 3-in-1 adjustable power & CCT, and unbeatable value for bulk deployment.
The HB10 Series delivers exceptional value through its ultra-thin die-cast structure, integrated driver, and high luminous efficiency.
Featuring a built-in DIP switch for 3-step power and CCT adjustment, it provides flexible configuration for various environments while keeping costs minimal.
Its compact housing reduces packaging volume, cutting freight and tariff expenses – making it the perfect solution for distributors, contractors, and OEM markets demanding reliable yet economical lighting.

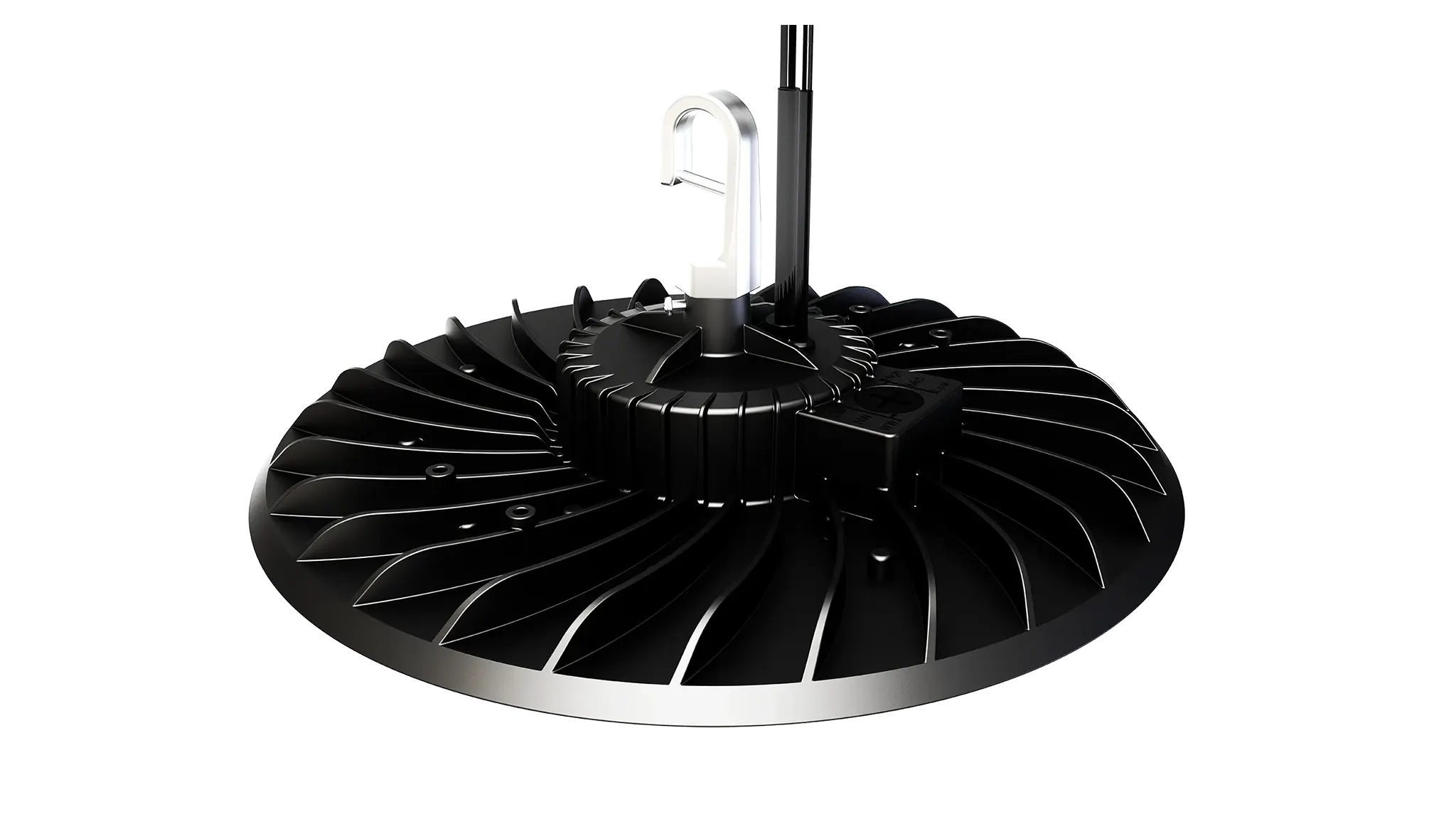

Ultra-Thin Integrated Design - Driver and heat sink cast as one, reducing components and cost.
Encapsulated Driver - Potting design ensures safety and reliability.

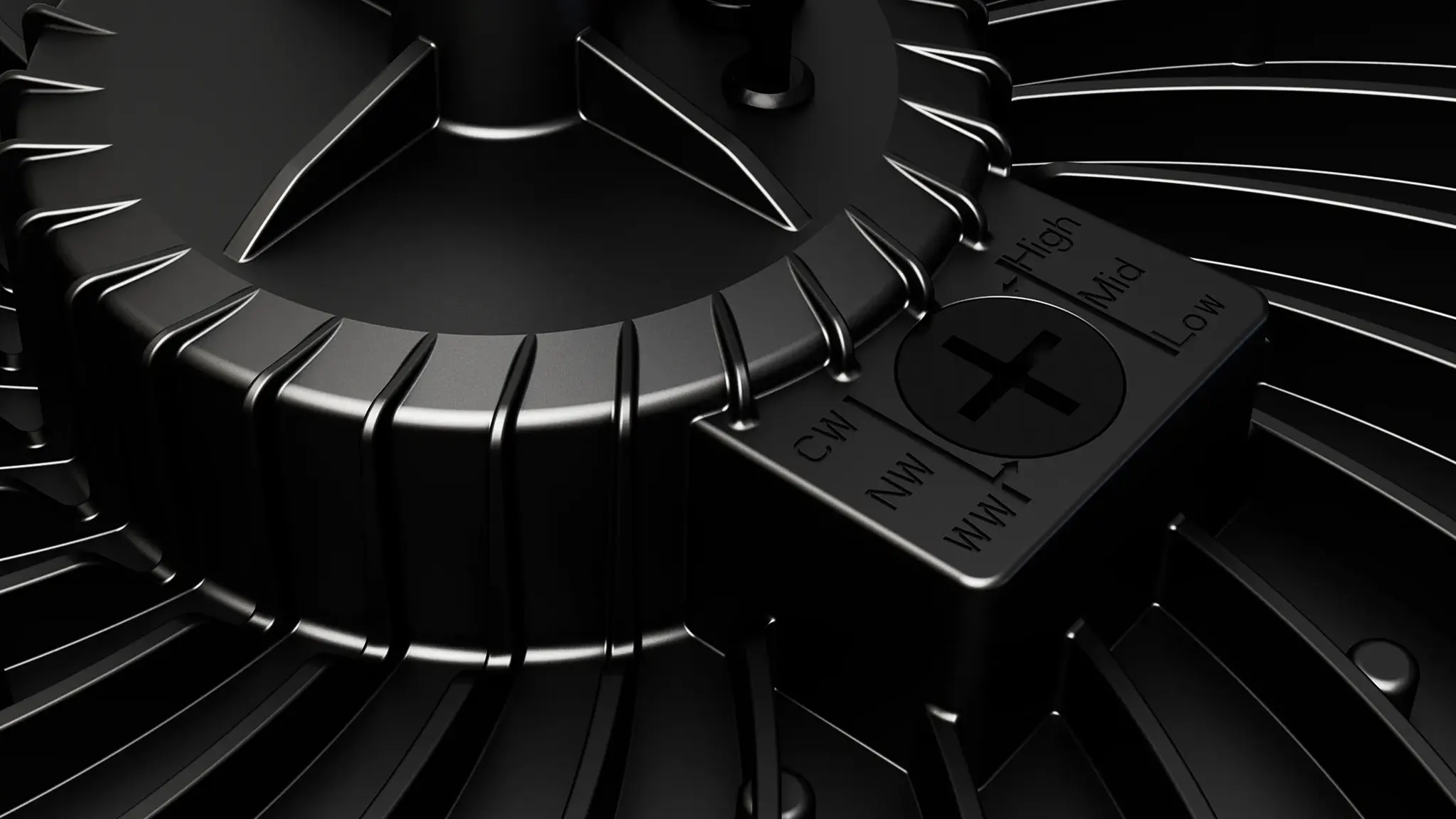

3-in-1 Adjustable Power & CCT - DIP switch with 3-step wattage and color temperature settings.
Compact Size, Reduced Freight Costs - Smaller volume, easier transport, lower tariffs.
High-Transmittance Ring Lens - Uniform illumination and minimal light loss.

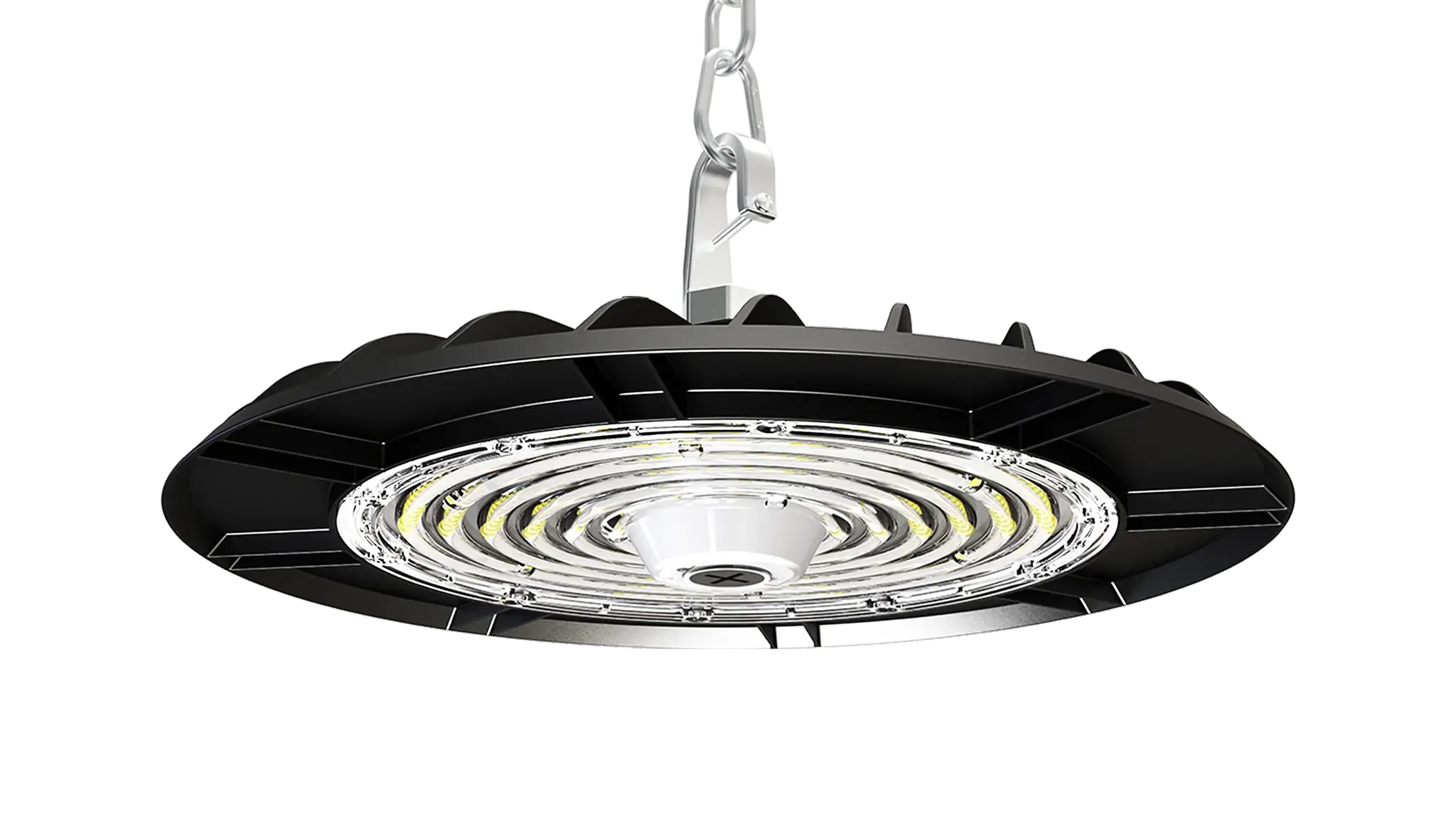

Sensor-Ready Interface - Plug-and-play for PIR, microwave, infrared sensors.

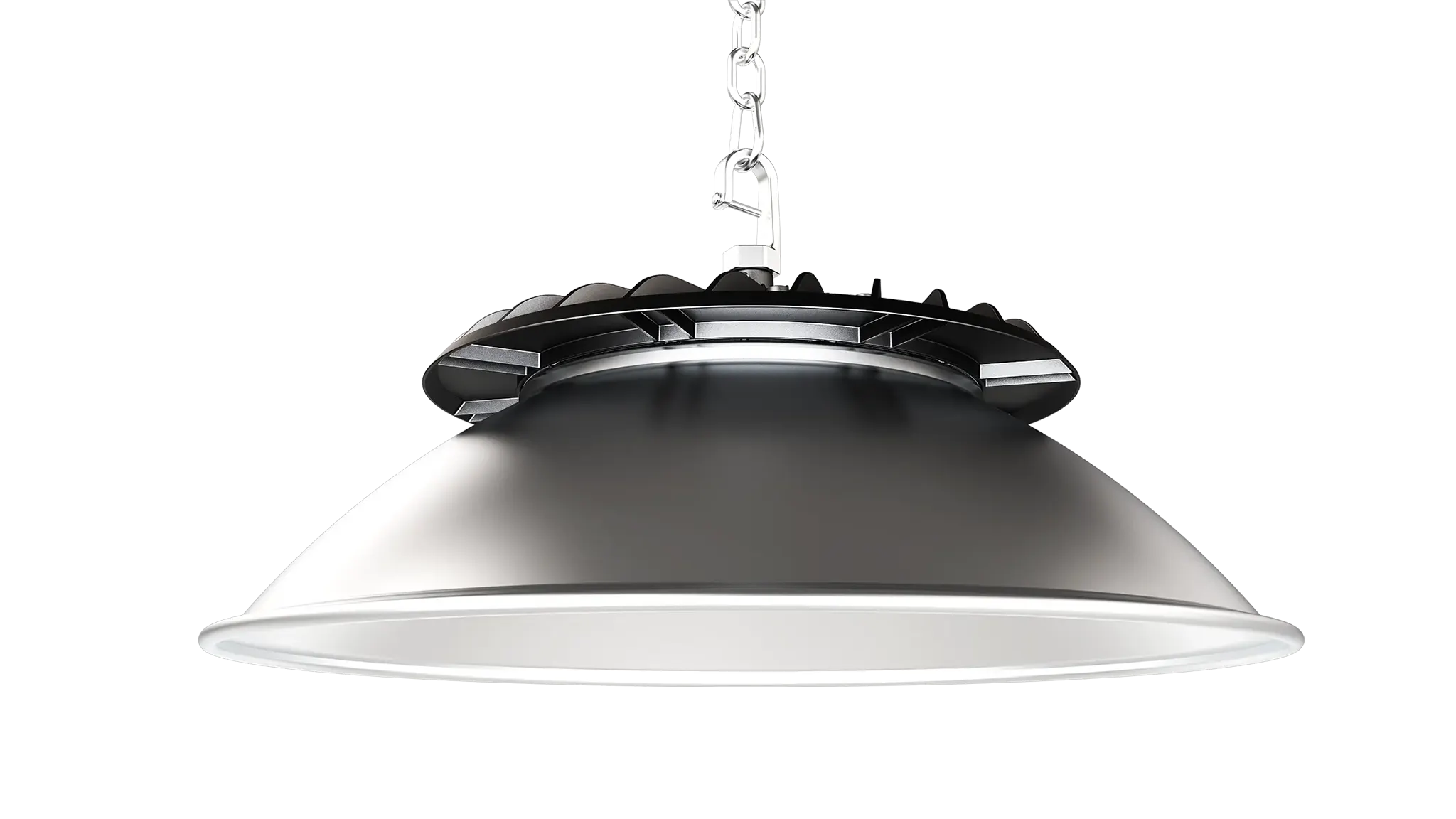

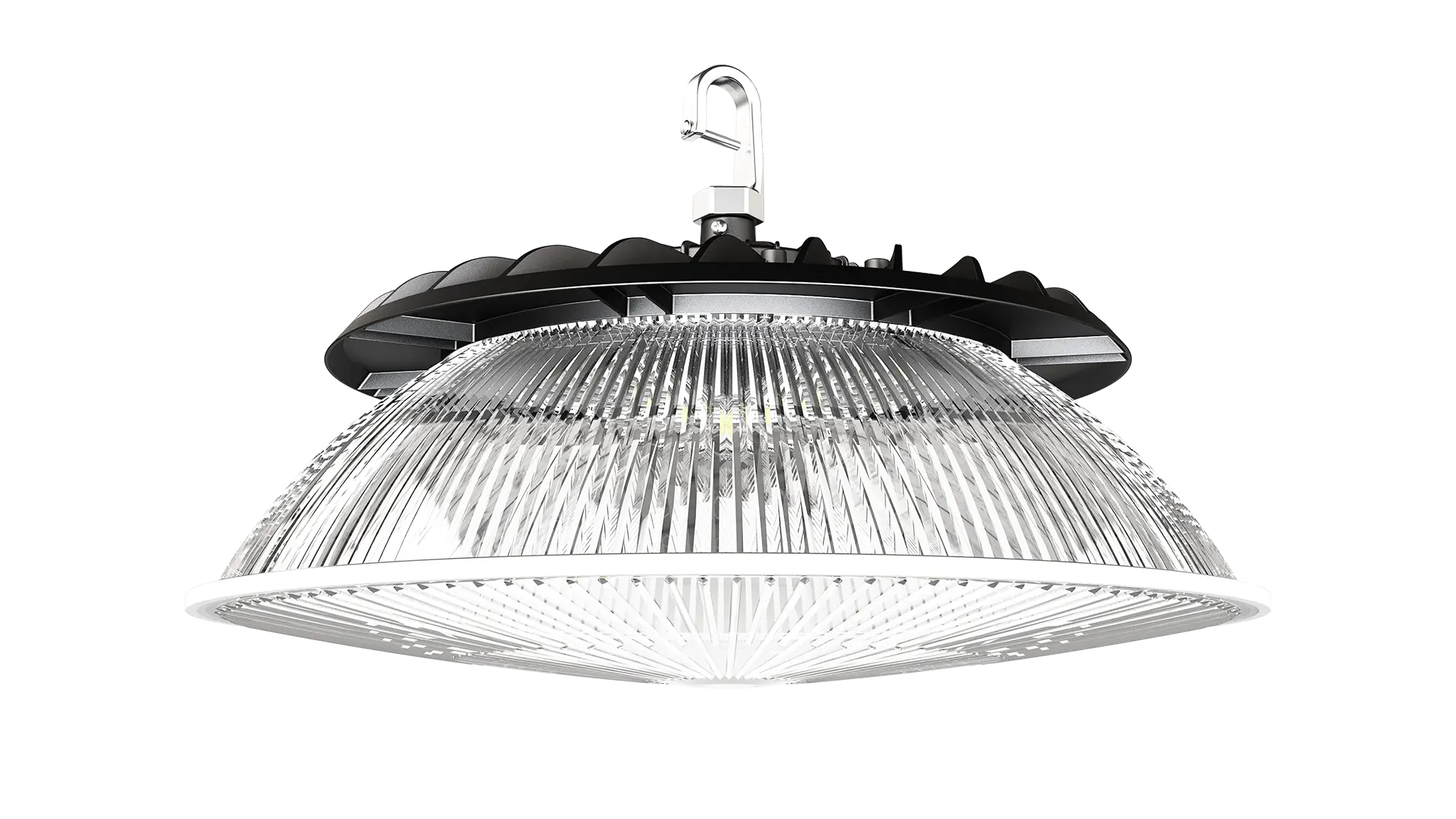

Multiple Reflector Options - PC or Aluminum; 60° / 90° / 120° beam angles.
High Efficiency up to 160 lm/W - Stable, energy-saving performance.
IP65 / IK10 Protection - Designed for humid or impact-prone environments.
| Parameter | HB10-100W | HB10-150W | HB10-200W | ||||||
| Power (W) | 100W (100%/80%/60% Tunable) | 150W（100%/80%/60% tunable） | 200W（100%/80%/60% tunable） | ||||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-160Lm/W | ||||||||
| Luminous Flux | 14,000Lm-16,000Lm | 21,000Lm-24,000Lm | 28,000Lm-32,000Lm | ||||||
| Beam Angle | 60°, 90°, 120° | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB10-100W | HB10-150W | HB10-200W | ||||||
| Structure Material | ADC12 die-casting aluminum | ||||||||
| Surface Finish | Powder coating (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB10-100W | HB10-150W | HB10-200W | ||||||
| IP Rating | IP65 | ||||||||
| IK Rating | IK10 | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-22°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Parameter | HB10-100W | HB10-150W | HB10-200W | ||||||
| Intelligent Control | Microwave sensor, PIR sensor | ||||||||
| Certifications | CE, RoHS, ENEC, ERP | ||||||||
Products may be updated or upgraded to meet market needs. Contact your ZC Lighting sales representative for the latest confirmed specifications.
Certification availability depends on product model, wattage, electrical
configuration, and destination market.
Contact ZC Lighting for the current certificate and test report package for your configuration.
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB10 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
