Power, CCT, and beam angle can all be tuned instantly via built-in DIP switch, making HB13 the ultimate all-in-one solution for industrial and commercial lighting.
The HB13 Series combines adjustable wattage, color temperature, and beam angle within a single fixture.
With built-in DIP switch control and optional smart sensor integration, it enables rapid, tool-free configuration for diverse lighting environments – from factories and warehouses to indoor sports halls and retail areas.
This all-in-one design minimizes SKU complexity, reduces inventory pressure, and maximizes supply chain efficiency for distributors and contractors alike.
3-in-1 Tunability - Integrated DIP switch for 3-step power, 3-step CCT, and 3-step beam angle (60°/90°/120°) adjustments; compatible with 0-10V / 1-10V / DALI dimming.
Inventory Optimization - One model covers multiple lighting configurations, helping distributors cut SKUs, reduce stock, and enhance flexibility.
Die-Cast Aluminum Heat Sink - High thermal conductivity ADC12 structure ensures reliable heat dissipation and long-term stability.

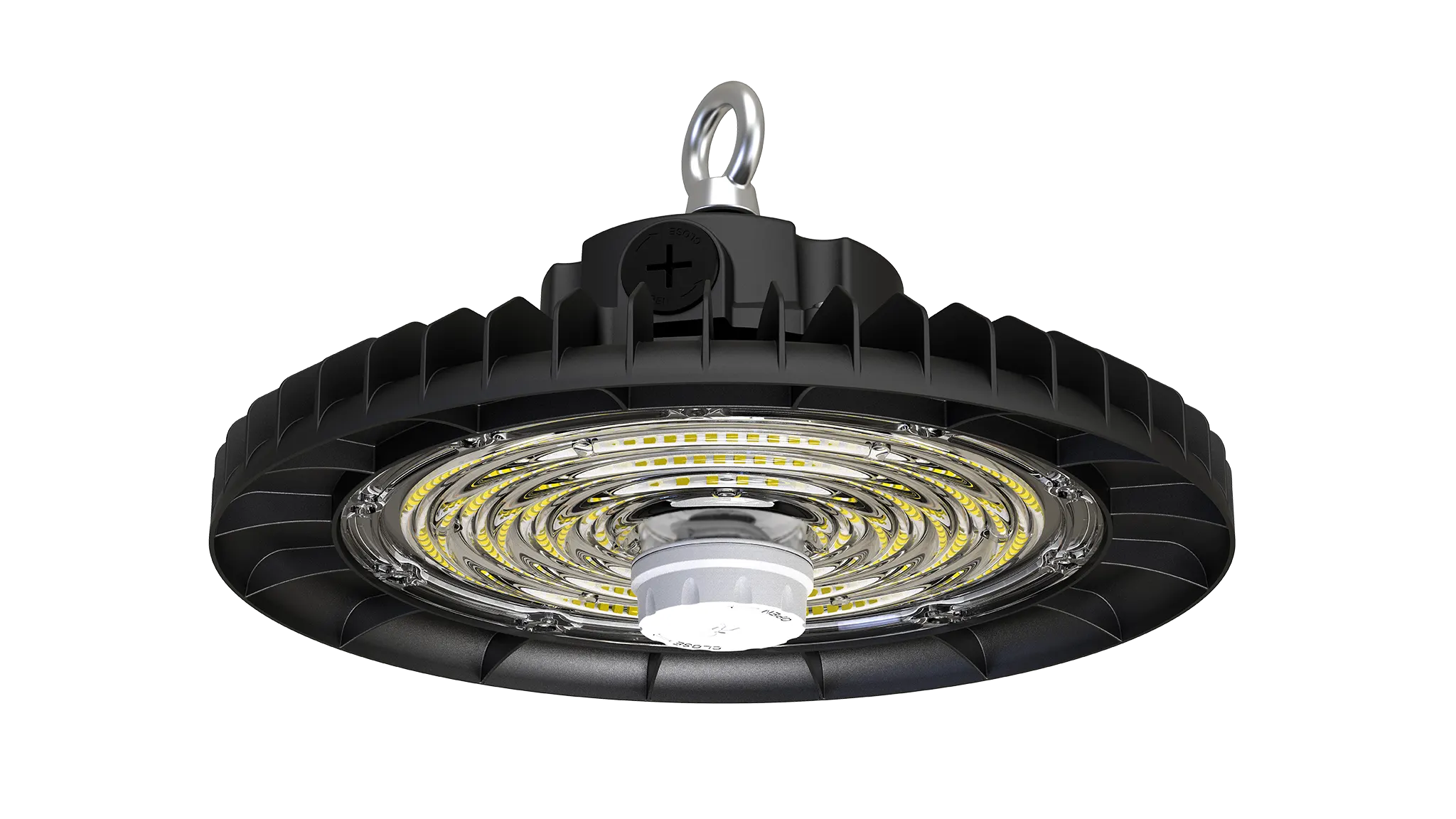

Sensor-Ready Port - Central interface supports PIR, microwave, daylight, or motion sensors, enabling plug-and-play smart upgrades.
Thermally Isolated Driver Design - Power supply positioned away from the LED module to avoid heat interference and extend service life.

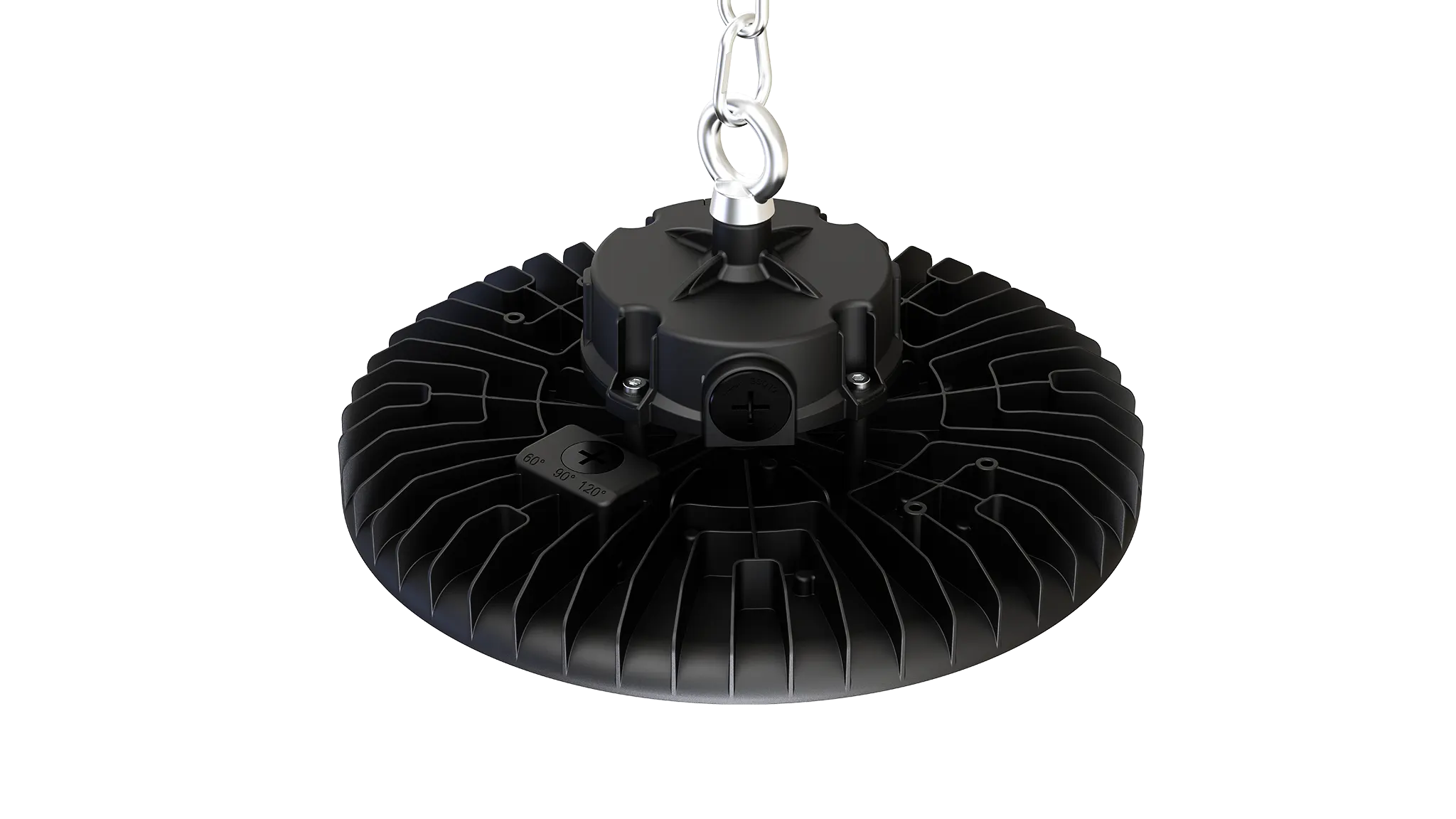

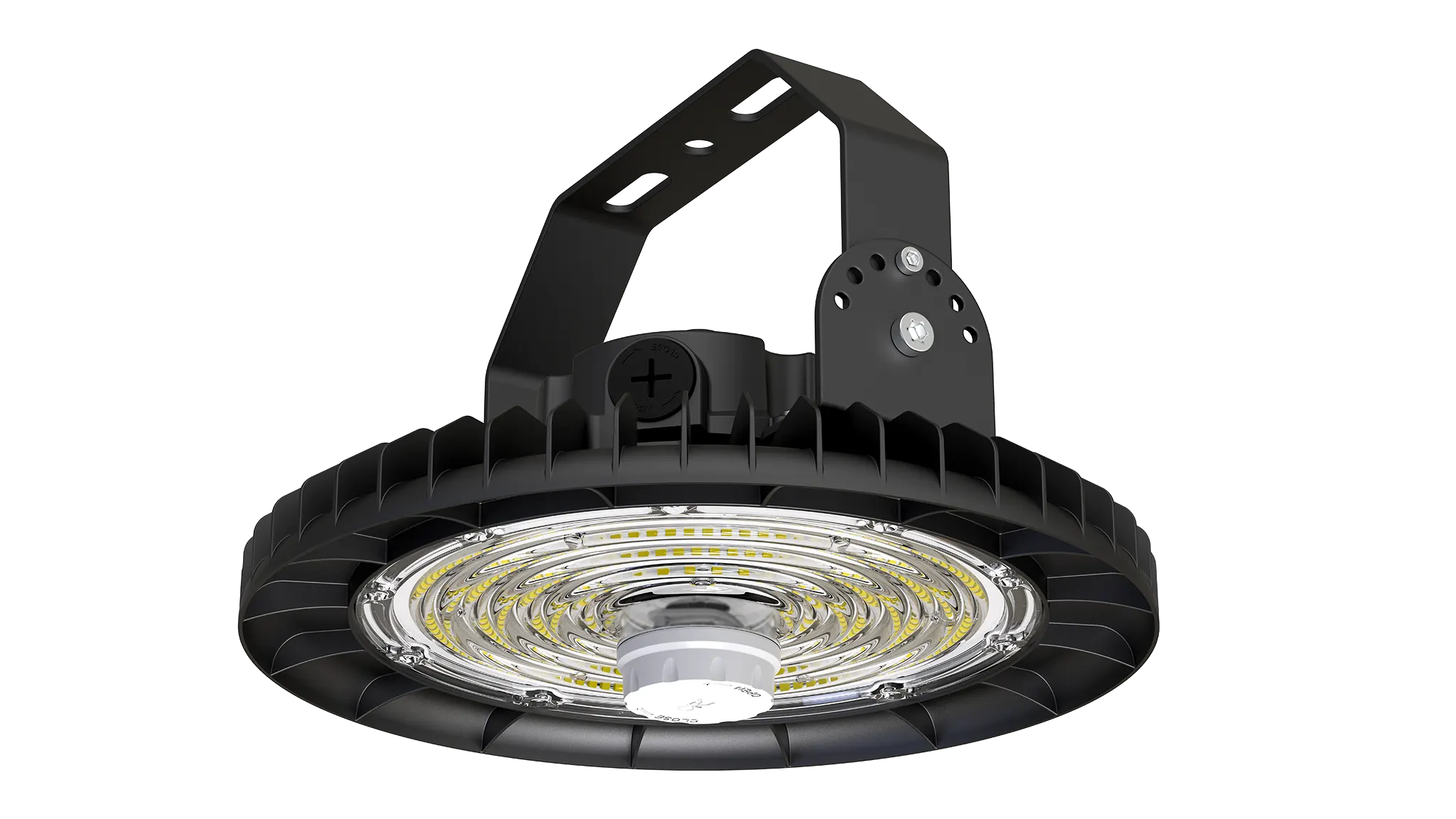

Flexible Installation - Supports hook/chain suspension and ±90° rotatable U-bracket mounting for all installation conditions.
Wide Power Range (60W-240W) - Four housing sizes suitable for industrial, commercial, and sports environments.
High Efficacy up to 170 lm/W - Delivers uniform brightness with significant energy savings.
IP65 & IK10 Rated - Withstands moisture, dust, and impact, ideal for harsh environments.
Multiple Reflector Options - PC (60°/90°/120°) or Aluminum (60°/90°) reflectors for precise light control.
| Parameter | HB13-100W | HB13-150W | HB13-200W | HB13-240W | |||||
| Power (W) | 100W (100%/80%/60% Tunable) | 150W（100%/80%/60% tunable） | 200W（100%/80%/60% tunable） | 240W（100%/80%/60% tunable） | |||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-200Lm/W | ||||||||
| Luminous Flux | 14,000Lm-20,000Lm | 21,000Lm-30,000Lm | 28,000Lm-40,000Lm | 33,600Lm-48,000Lm | |||||
| Beam Angle | 60°, 90 °,120 ° | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB13-100W | HB13-150W | HB13-200W | HB13-240W | |||||
| Structure Material | ADC12 die-casting aluminum | ||||||||
| Surface Finish | Powder coating (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB13-100W | HB13-150W | HB13-200W | HB13-240W | |||||
| IP Rating | IP65 | ||||||||
| IK Rating | IK10 | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-22°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Parameter | HB13-100W | HB13-150W | HB13-200W | HB13-240W | |||||
| Intelligent Control | 0–10V / 1-10V Dimming, PWM Dimming | ||||||||
| Certifications | CE, RoHS, ENEC, ERP | ||||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB13 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
