HM01-S LED High-Mast Light
Ultra-lightweight design meets extreme environment reliability
A drop-in replacement for traditional HPS fixtures, engineered for extreme environments and deployable in airports, seaports, highways, and stadiums with 20m+ poles. HM01S combines ultra-lightweight design (17.5kg) with modular cost-saving architecture and 360° adjustable coverage.
Design
60% lighter than HID fixtures
Temperature
-40°C to +50°C operation
Savings
60-80% cost reduction vs HID
Maintenance
70% faster servicing at height
Precision Photometric Control & Beam Patterns
Professional-grade optical design with 8 beam angle options including symmetric (15°/26°/30°/45°/60°/90°/120°) and asymmetric (P45°). All photometric data tested per LM-79 standards for airports, seaports, highways, and industrial applications.
Photometric Distribution Curve
📐 Measured Beam Performance
AVERAGE BEAM ANGLE(50%): 15°
Available Beam Angles
Select the optimal beam angle based on your pole height, field dimensions, and lighting requirements.
Key Optical Features
- Beam Type: Symmetric Narrow
- Application: Airport runways, taxiways - ultra-focused illumination
- Coverage Area: ~35m diameter at 30m height
- Description: Runway threshold precision for airport applications
Advanced Features & Performance
Engineered for reliability in the most demanding high-mast environments
Premium LED Package
High-flux 3030/5050 SMD LEDs with 150-155 lm/W efficacy. LM-80 certified for 50,000+ hour lifespan (L70).
IP66/IK08 Protection
Military-grade weatherproofing against saltwater corrosion, sand, dust. Survives extreme coastal and industrial conditions.
Wide Temperature Range
Operates reliably from -40°C to +50°C ambient. Arctic-certified cold-start and desert-proven heat dissipation.
Aerodynamic Design
Low wind resistance structure reduces pole stress. Tested to withstand Category 5 hurricane conditions.
Smart Control Ready
Optional 0-10V dimming, DALI, DMX512 protocols. IoT-ready for remote monitoring and scheduling systems.
Modular Architecture

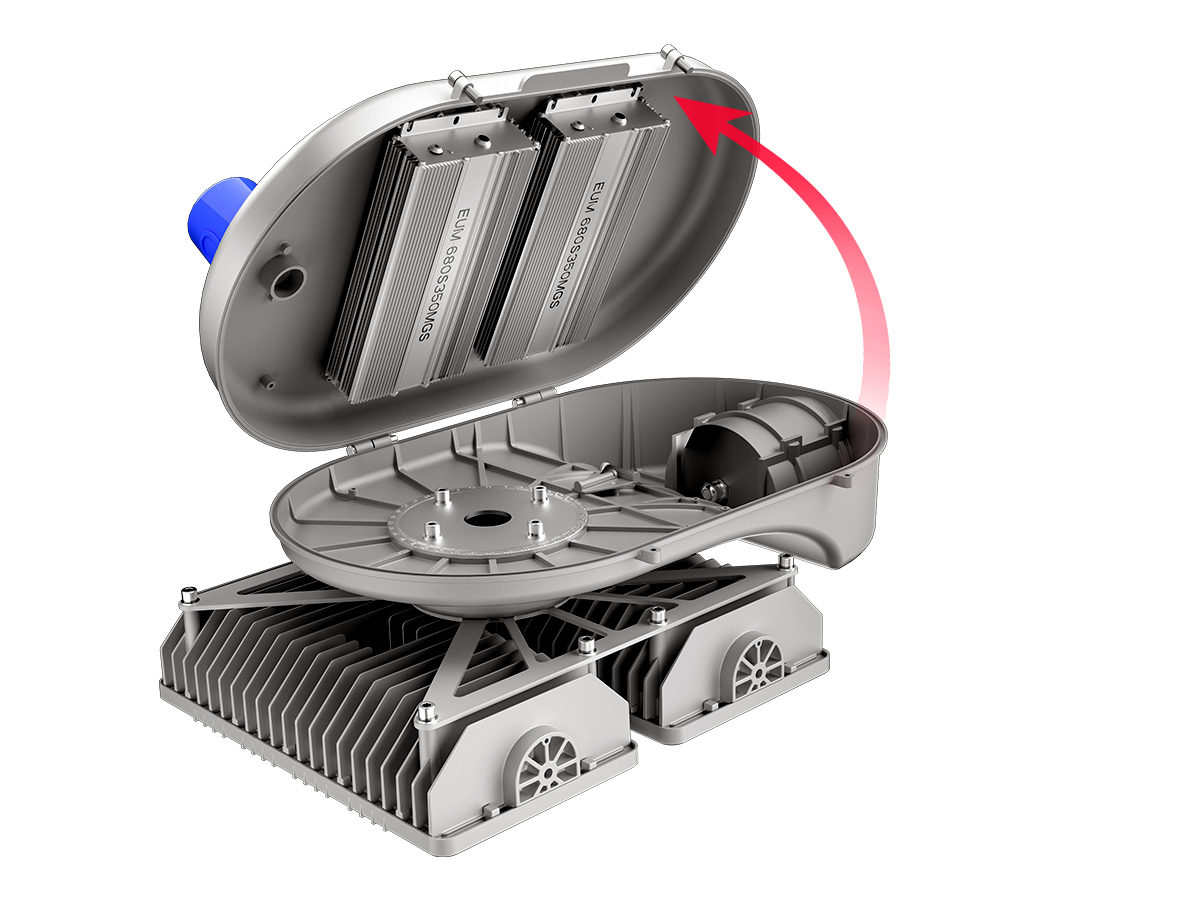

Field-replaceable LED modules and drivers. 70% faster maintenance with 40% lower spare parts inventory.
Superior Engineering for Mission-Critical Applications
Every component engineered for maximum reliability and performance in extreme high-mast environments

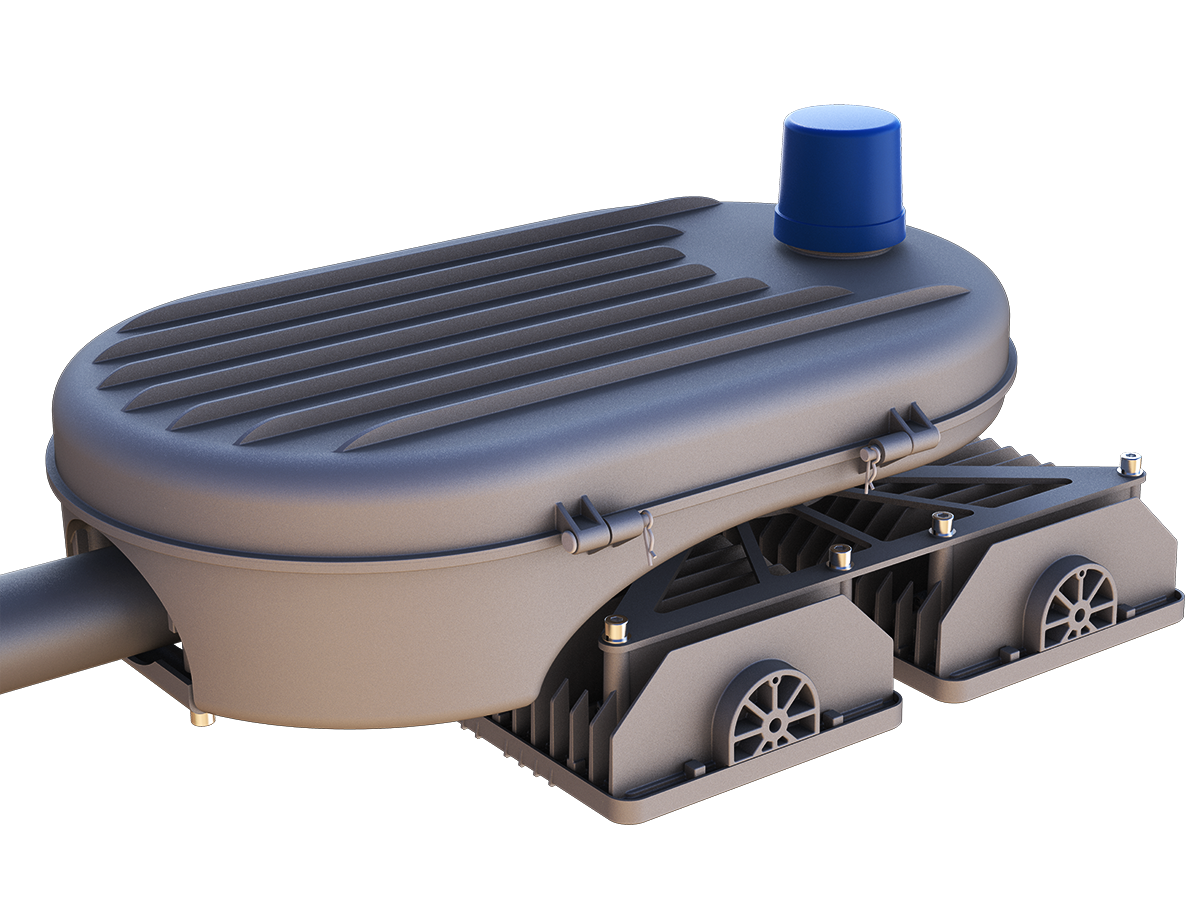

Military-Grade Die-Cast Aluminum Housing
ADC12 precision die-casting with 3mm wall thickness provides structural integrity for 20m+ installations.
CNC-machined mounting interfaces ensure perfect alignment. Marine-grade anodizing + powder coating creates corrosion resistance >3,000 hours salt-spray (ASTM B117).
High-Density Fin Array Thermal Management
Patented vertical fin array maximizes convection surface area (2.5m² effective), maintaining junction temp <85°C at 50°C ambient without active cooling. Computational fluid dynamics (CFD) optimized for 30% better heat dissipation vs conventional designs.
Premium Anti-UV Silicone Gasket Sealing
High-grade silicone foam gaskets with Shore A 25-35 hardness maintain IP66 integrity through 10+ years of UV/temperature cycling. Compression-set resistance <10% after 5,000 hours @ 150°C ensures permanent seal under vibration and thermal stress.

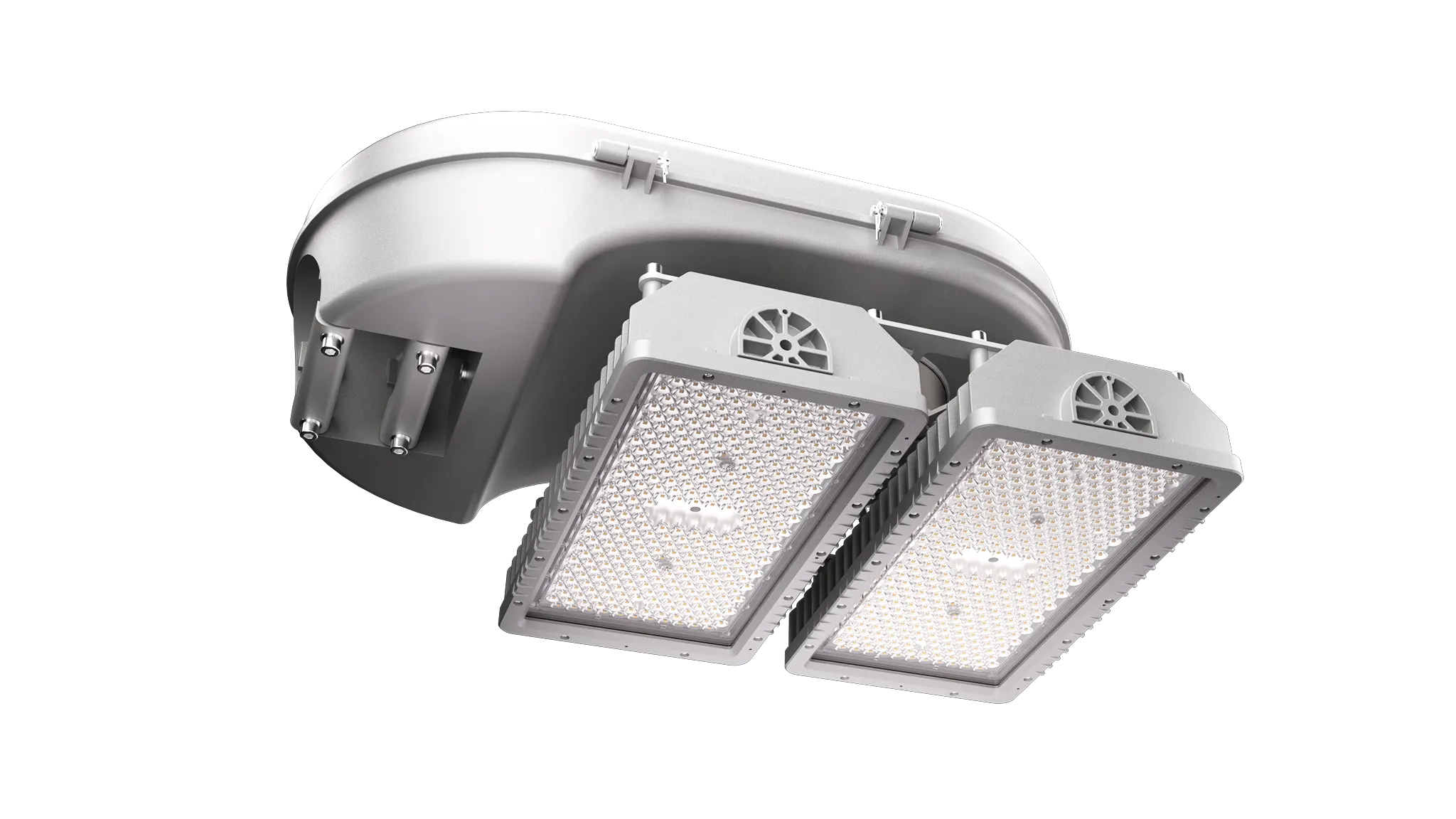

Ultra-Lightweight Modular LED Assembly

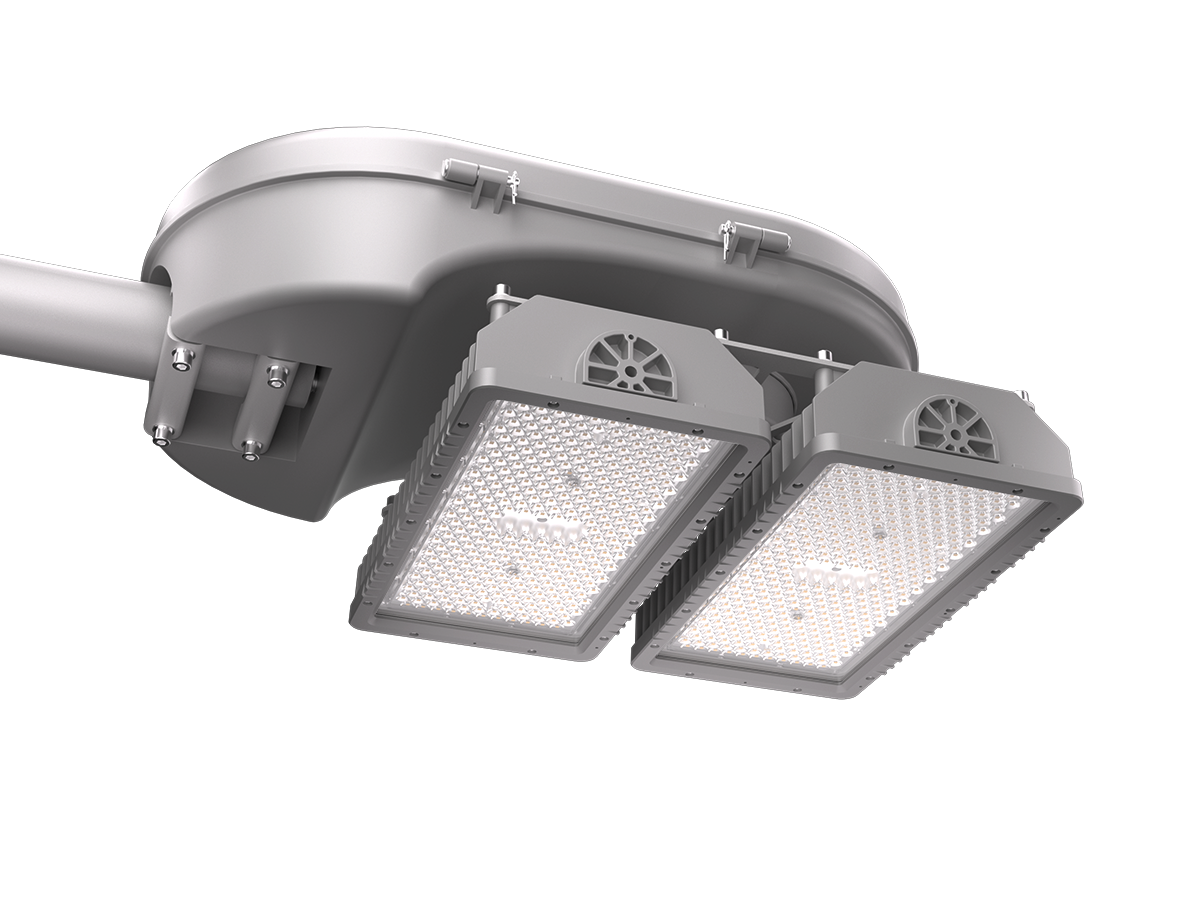

Four independent 200W-250W LED modules (total 800W-1000W) reduce shipping costs by 40% and enable field replacement in <5 minutes per module. Quick-connect harnesses with IP67 waterproof aviation connectors eliminate installation errors.

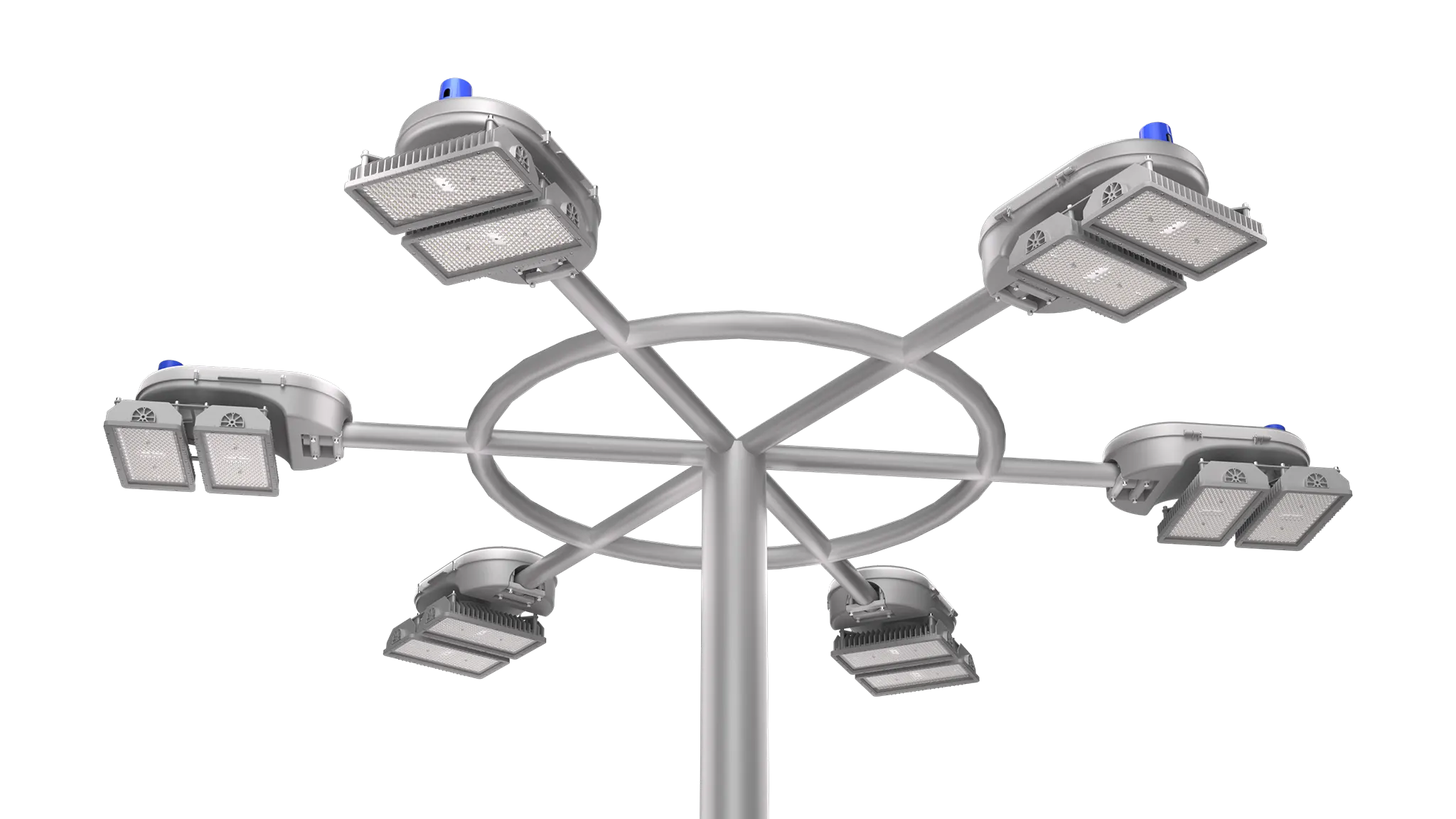

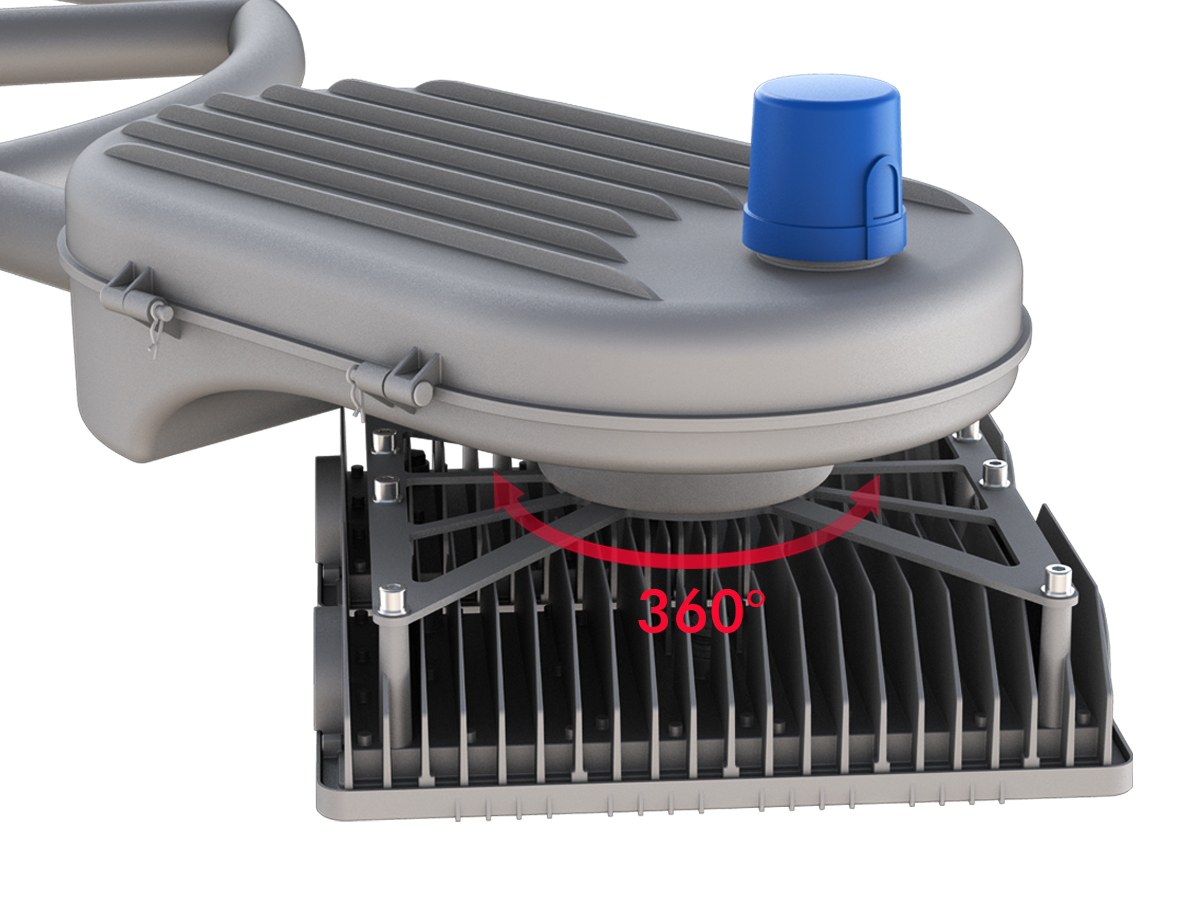

360° Adjustable Lighting System
Horizontal 360° continuous rotation with precision locking mechanism enables exact field aiming without crane repositioning. Combines with multi-angle beam options (15°-120°) for optimal coverage of asymmetric areas. Aviation warning light integration available for FAA compliance.
Applications
PL08 delivers acceptance-ready lighting for tennis courts and multi-sport facilities requiring precise uniformity and glare control
Sports Stadiums
Airports
Ports
Broadcast Venues
Training Facilities
Industrial Sites
Technical Specifications
Comprehensive technical data for engineering and procurement
Optical Performance
Electrical Specs
Environmental
Physical Specs
LED & Driver
Certifications
