Featuring a 120° rotary lens system for sub-degree beam accuracy and 3-in-1 power/CCT tuning, HB17 adapts to complex lighting needs while minimizing distributor SKUs and logistics cost.

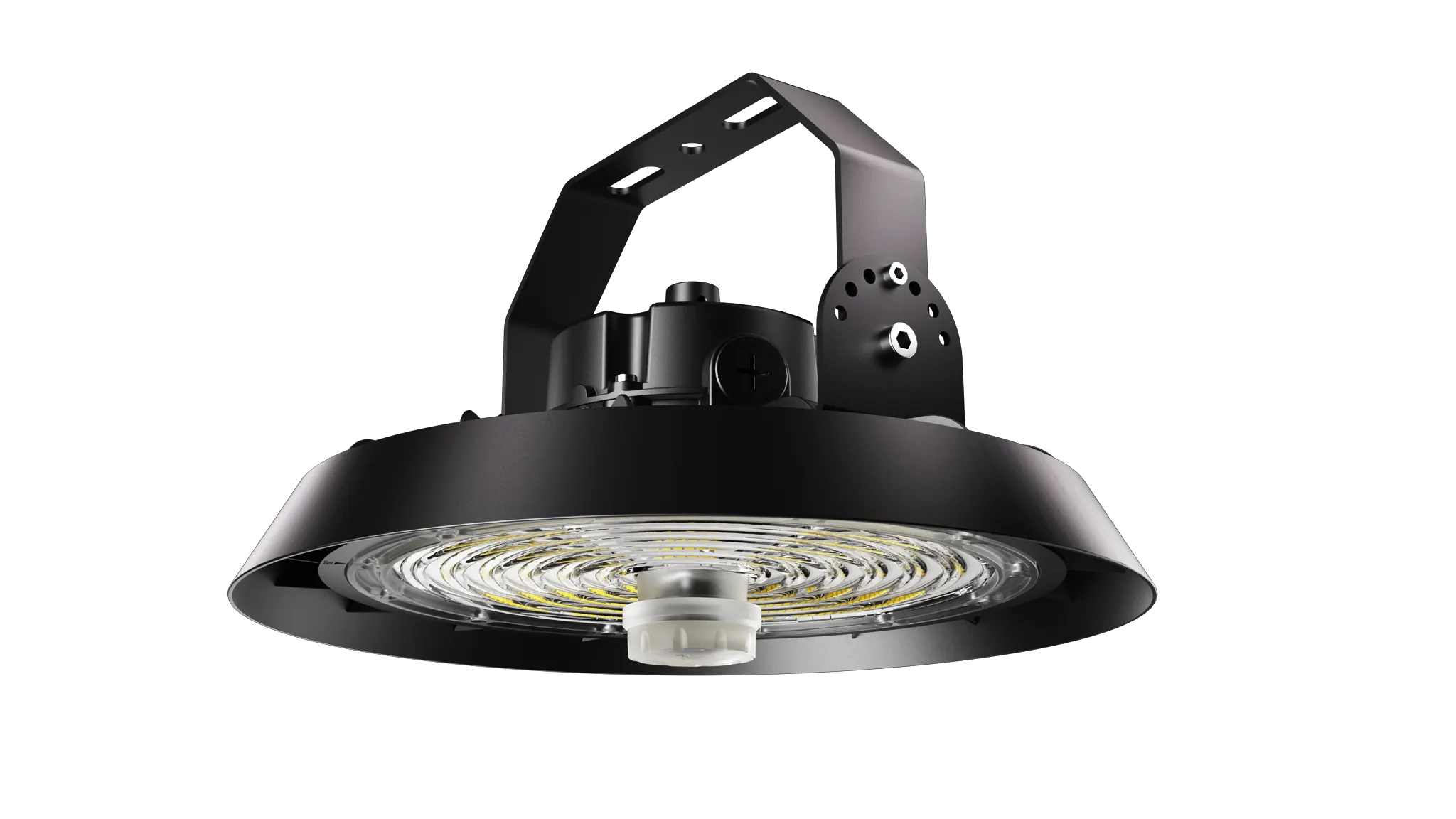

The HB17 Series by ZC Lighting represents a new generation of precision-adjustable LED high bays engineered for industrial and commercial applications that demand flexibility, accuracy, and efficiency.
With its unique rotary lens system, users can effortlessly switch between three beam angles (60°/90°/120°) by simply loosening and rotating the integrated optical module – achieving <1° deviation for precision lighting control.
Combined with 3-in-1 power adjustment, 3-in-1 CCT tuning, and broad sensor compatibility, the HB17 dramatically simplifies inventory management while enhancing adaptability for diverse lighting environments such as factories, warehouses, and large retail spaces.
Precision optics meets intelligent flexibility – one fixture for every need.
Precision Optical Control: Rotary triple-lens design enables 3-step beam adjustment (60° / 90° / 120°) without changing components.
Sub-Degree Accuracy: Mechanical alignment system guarantees ±0.5° beam precision, eliminating drift common in electronic tuning.
Sensor-Ready Interface: Compatible with PIR, microwave, daylight, and Bluetooth sensors; 3-pin and Zhaga Book 18 supported.
Optical Efficiency: High-grade PC lens provides >94% transmittance, ensuring uniform light distribution for 5–20m ceiling heights.
3-in-1 Power Adjustment: 100% / 80% / 60% selectable via built-in DIP switch.

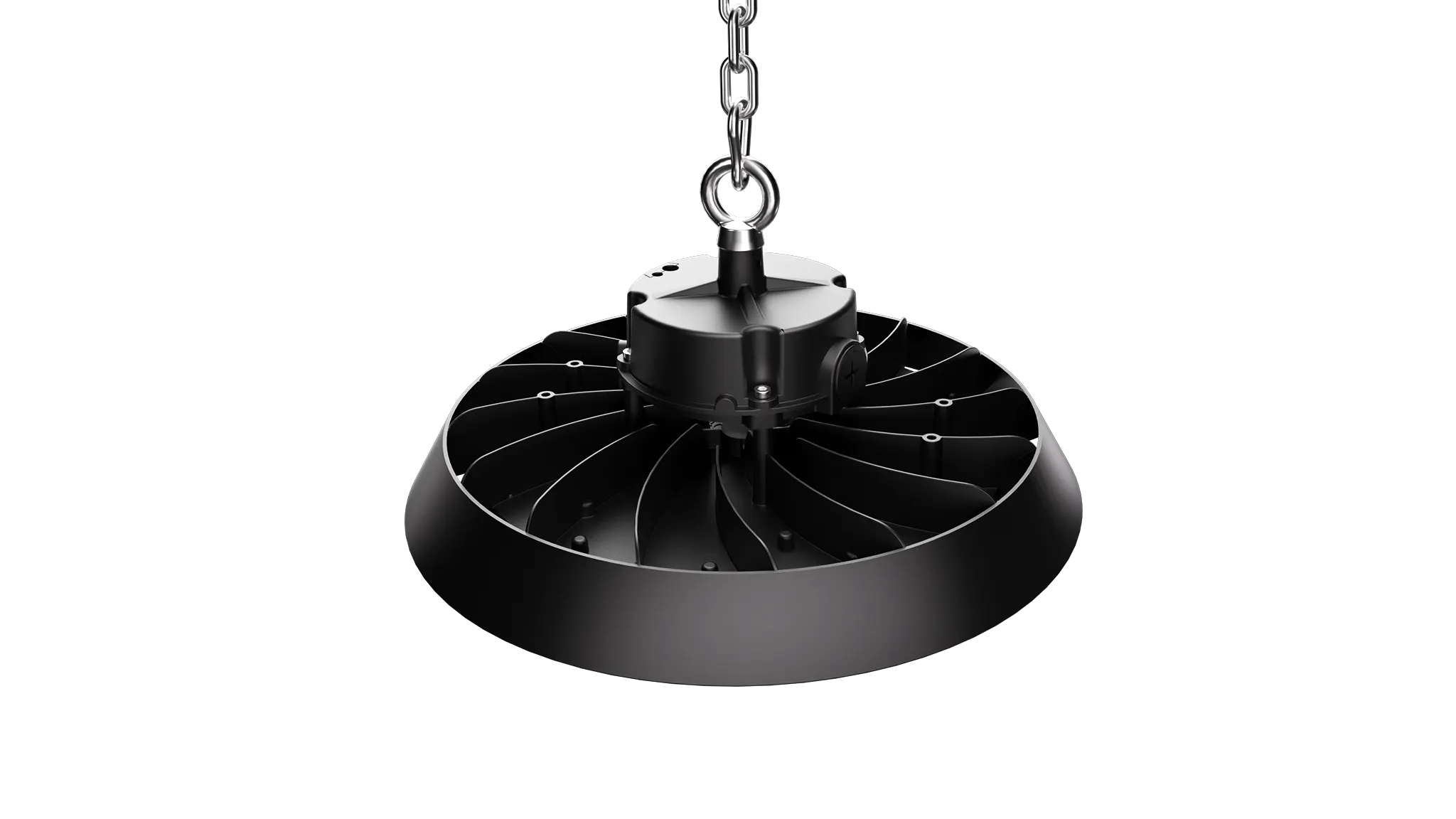

Flexible Installation: Supports pendant mounting (hook, chain, rope) and surface mounting with 180° rotatable U-bracket.
3-in-1 CCT Tuning: Linear color temperature control with auto midpoint calculation (e.g., 3000K → 4000K → 5000K).
Rapid Delivery: 200W in stock for fast fulfillment; 100W/150W available under quick-turn production (MOQ ≥1000 pcs).
Application Range: Factories, warehouses, logistics centers, precision workshops, supermarkets.
| Parameter | HB17-100W | HB17-150W | HB17-200W | HB17-240W | |||||
| Power (W) | 100W | 150W | 200W | 240W | |||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-200Lm/W | ||||||||
| Luminous Flux | 14,000Lm – 20,000Lm | 21,000Lm – 30,000Lm | 28,000Lm – 40,000Lm | 33,600Lm – 45,600Lm | |||||
| Beam Angle | 60°, 90°, 120° (3-in-1 Lens) | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB17-100W | HB17-150W | HB17-200W | HB17-240W | |||||
| Structure Material | ADC12 die-cast aluminum | ||||||||
| Surface Finish | Powder coated (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB17-100W | HB17-150W | HB17-200W | HB17-240W | |||||
| IP Rating | IP66 | ||||||||
| IK Rating | IK08, IK10 optional | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-86°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Surge Protection | 10kV | ||||||||
| Parameter | HB17-100W | HB17-150W | HB17-200W | HB17-240W | |||||
| Intelligent Control | 0–10V | ||||||||
| Certifications | CE, RoHS, ENEC | ||||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB17 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
