FL16 Modular LED Stadium Light - Performance that Pays Off

FL16 Series Modular LED Stadium Light
Cost-Effective Modular Solution

FL16 Series LED Stadium Light

High Power · High Efficiency · High Value

The FL16 Series from ZC Lighting is a cost-effective, high-performance semi-modular LED sports light, designed for both professional stadiums and large outdoor areas. Featuring modular LED components (PCB + LEDs + Lens) with a one-piece integrated shovel-fin heat sink and flexible 1-3 module configurations, it delivers excellent heat dissipation, high lumen output, and unmatched installation flexibility-making it the perfect balance of performance and value.

Modular LED components with integrated heat sink (1-3 modules, 500W-1800W)
Chimney-effect cooling for superior heat dissipation
94% light transmission with optical-grade PC lens
Expandable glass cover option reduces SKU complexity
170
lm/W Efficacy
288,000
Max Lumen Output
94%
Light Transmission
CE/RoHS Certified
IP66 / IK08
5-Year Warranty
Global Shipping
Request Quote Download Specs
EPA Rated

Low Wind Load

Optimized for high-mast safety

One-Piece

Shovel-Fin Heat Sink

Extrusion for superior cooling

IP66/IK08

Robust Protection

All-weather durability

50,000h

Long Lifetime

L90B10 verified @ Ta=25°C

Beam Performance & Light Distribution

Professional-grade optical design with multiple beam angle options to match your specific venue requirements

Photometric Distribution Curve

10°
IES Certified
FL16 beam distribution
Polar Coordinates
C0-C180 Vertical Plane
C90-C270 Horizontal Plane

📐 Measured Beam Performance

AVERAGE BEAM ANGLE(50%): 10.7 DEG

Laboratory Verified

Available Beam Angles

Select the optimal beam angle based on your pole height, field dimensions, and lighting requirements

Key Optical Features

  • 6 professional beam angles for stadium applications
  • Tempered glass + PC lens dual protection system
  • 94% optical transmission efficiency
  • Reduced light decay through UV-protective glass cover
150m+
Max Throw Distance
<5%
Spill Light
94%
Optical Efficiency
0.7-0.9
Uniformity (Emin/Emax)

Product Features

FL16 combines semi-modular design with professional-grade performance. Chimney-effect thermal architecture, expandable glass cover option, and smart control capabilities make it the ideal choice for stadium and large-area lighting projects seeking both quality and value.

Semi-Modular Design

1-3 module configuration for cost-effective scalability

Chimney-Effect Cooling

Natural air convection for superior heat dissipation

Expandable Glass Cover

Seamlessly upgrade without redesign or separate models

High Efficiency 170 lm/W

Reduced energy consumption and faster ROI

94% Light Transmission

Optical-grade PC lens maximizes luminous output

Lightweight Structure

Optimized weight for easier high-mast installation

Precision Aiming

5° scale knob + 360° rotation with laser aimer option

Heavy-Duty Bracket

65m/s wind resistance with IP66/IK08 protection

Smart Control Ready

DALI 2.0, DMX512, NTC compatible systems

Separated Power Supply

Improved reliability and extended lifespan

Advanced Engineering Features

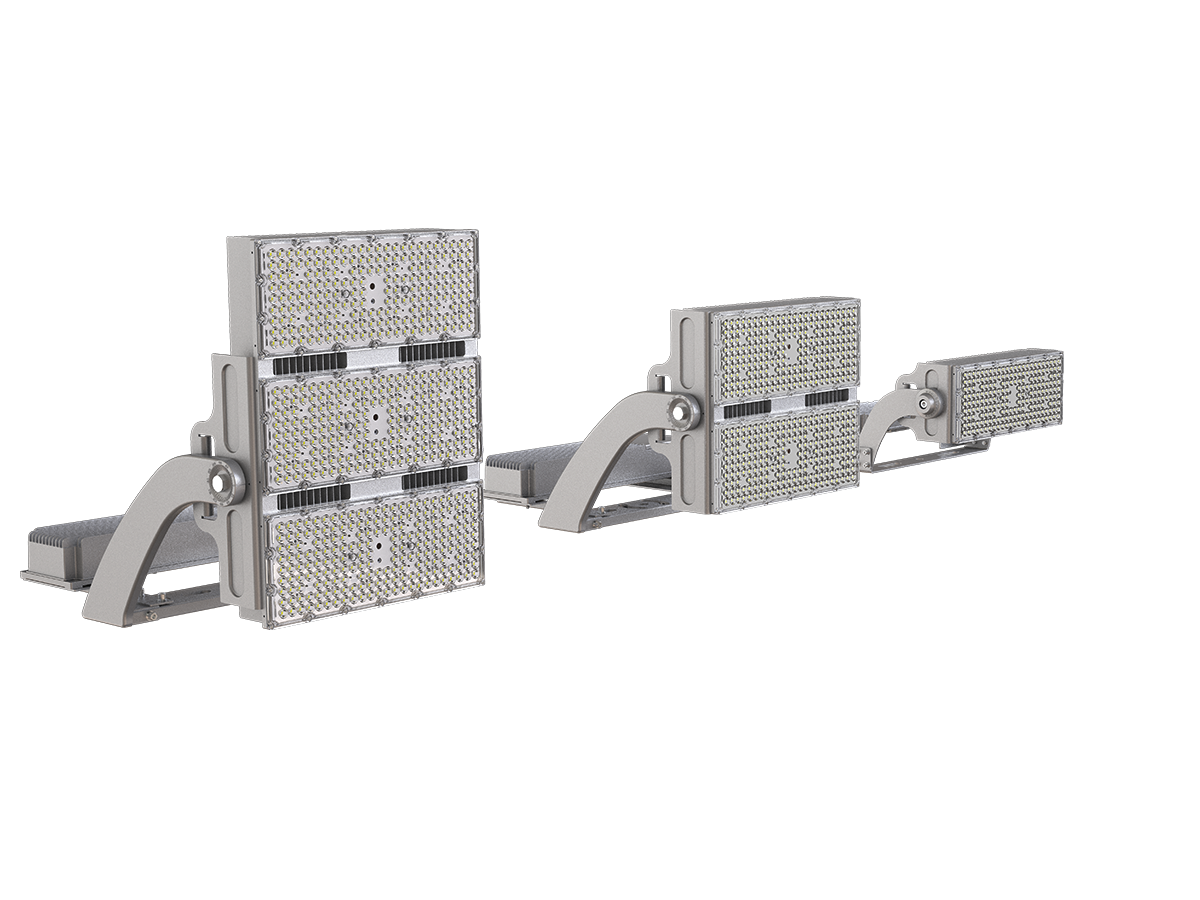

FL19 5° tilted light surface detail

Semi-Modular Design – Cost-Effective Scalability

The FL16 adopts a semi-modular concept featuring modular LED components (PCB + LEDs + Lens assemblies) paired with a one-piece integrated shovel-fin aluminum heat sink. This design allows flexible 1-3 module configurations (500W-1800W) while the unified extrusion heat sink maximizes thermal conductivity and material efficiency, reducing overall cost. The modular LED assemblies can be independently configured with different beam angles and color temperatures for diverse stadium and area lighting needs, allowing precise power matching without paying for unused capacity.

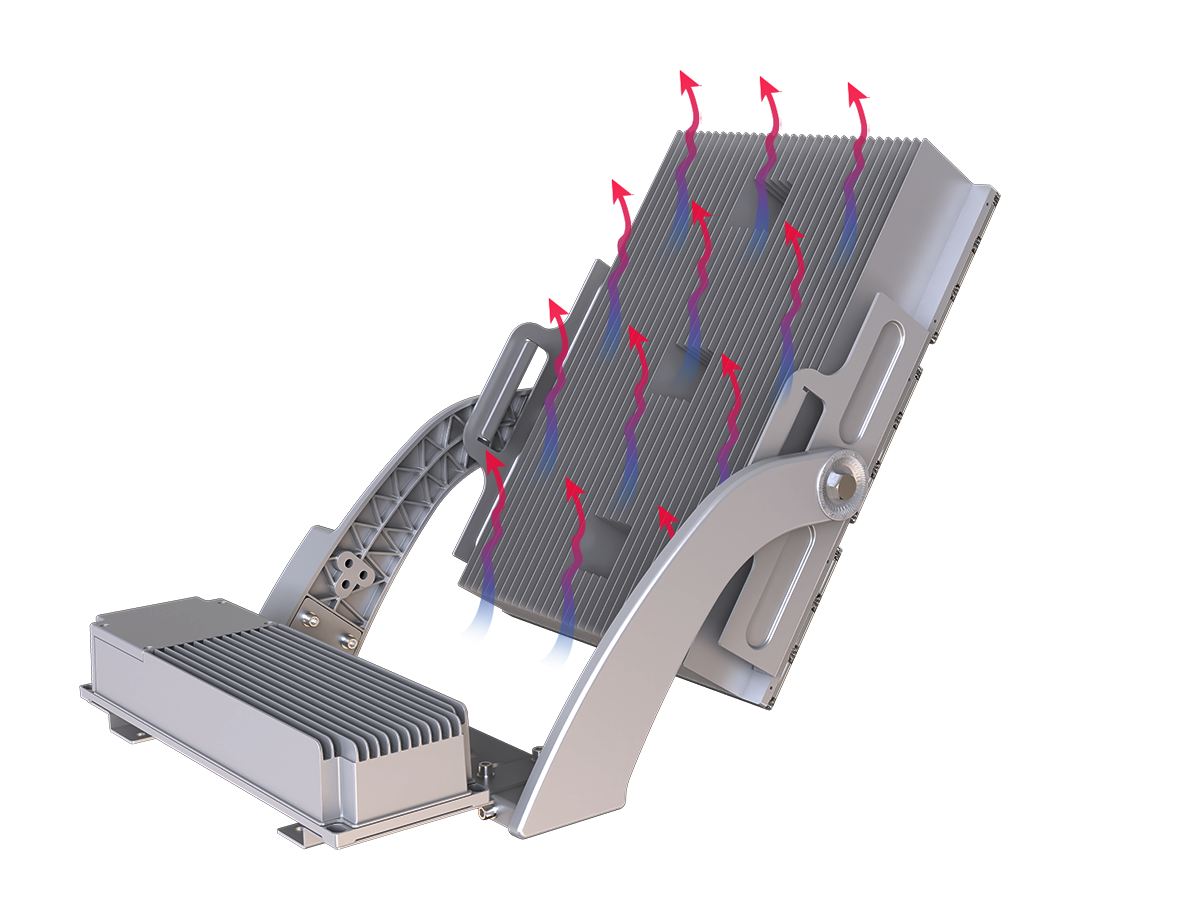

FL19 vertical fin heat sink

Advanced Thermal Management – Chimney-Effect Cooling

The shovel-fin heat sink structure maximizes surface area while maintaining lightweight strength. Vent gaps between modules create a natural chimney effect, accelerating air convection and ensuring faster heat dissipation under high load. This passive cooling system extends LED lifespan and maintains consistent performance even during sustained operation in extreme temperatures (-43°C to +50°C), reducing maintenance requirements and total cost of ownership.

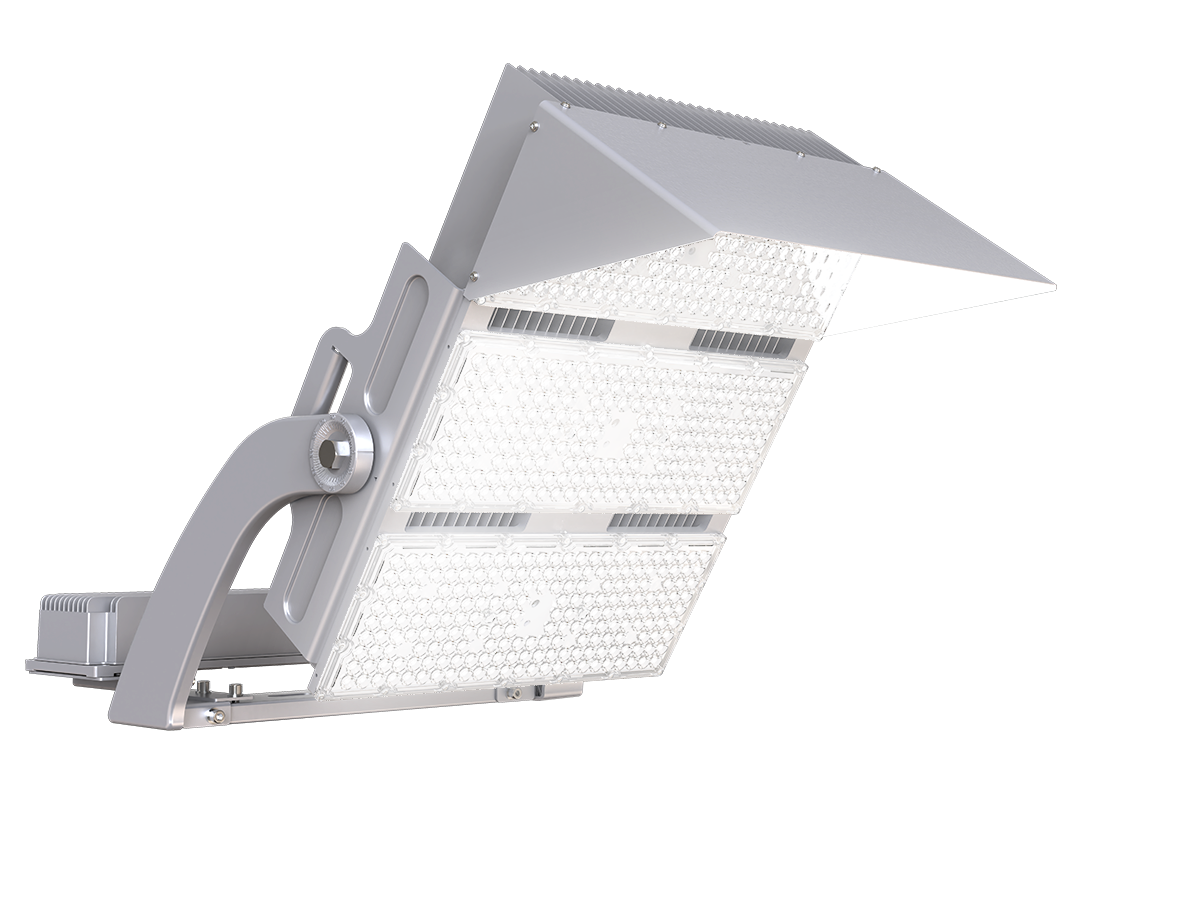

FL19 dual-layer optical system

High Transmission Optics – 94% Efficiency

FL16 uses optical-grade polycarbonate lenses with 94% transmittance, meaning only 6% of light is lost through the optics. This maximizes luminous output per watt, improving overall system efficiency. Combined with 170 lm/W LED efficacy, FL16 delivers exceptional light levels while minimizing energy consumption and operating costs. The precise beam control ensures optimal field coverage with minimal wasted light.

FL19 precision aiming system

Expandable Glass Cover Option – More Flexibility, Less Inventory

The FL16 Series offers an expandable glass cover solution that can be seamlessly integrated into the existing housing design. With a simple addition of a front frame and tempered glass, customers can easily upgrade to a glass-covered version without redesigning or stocking separate models. This flexibility helps reduce SKU complexity, lighten inventory pressure, and enhance customization options for different market needs or environmental conditions (e.g., coastal areas requiring extra protection).

FL19 horizontal rotation system

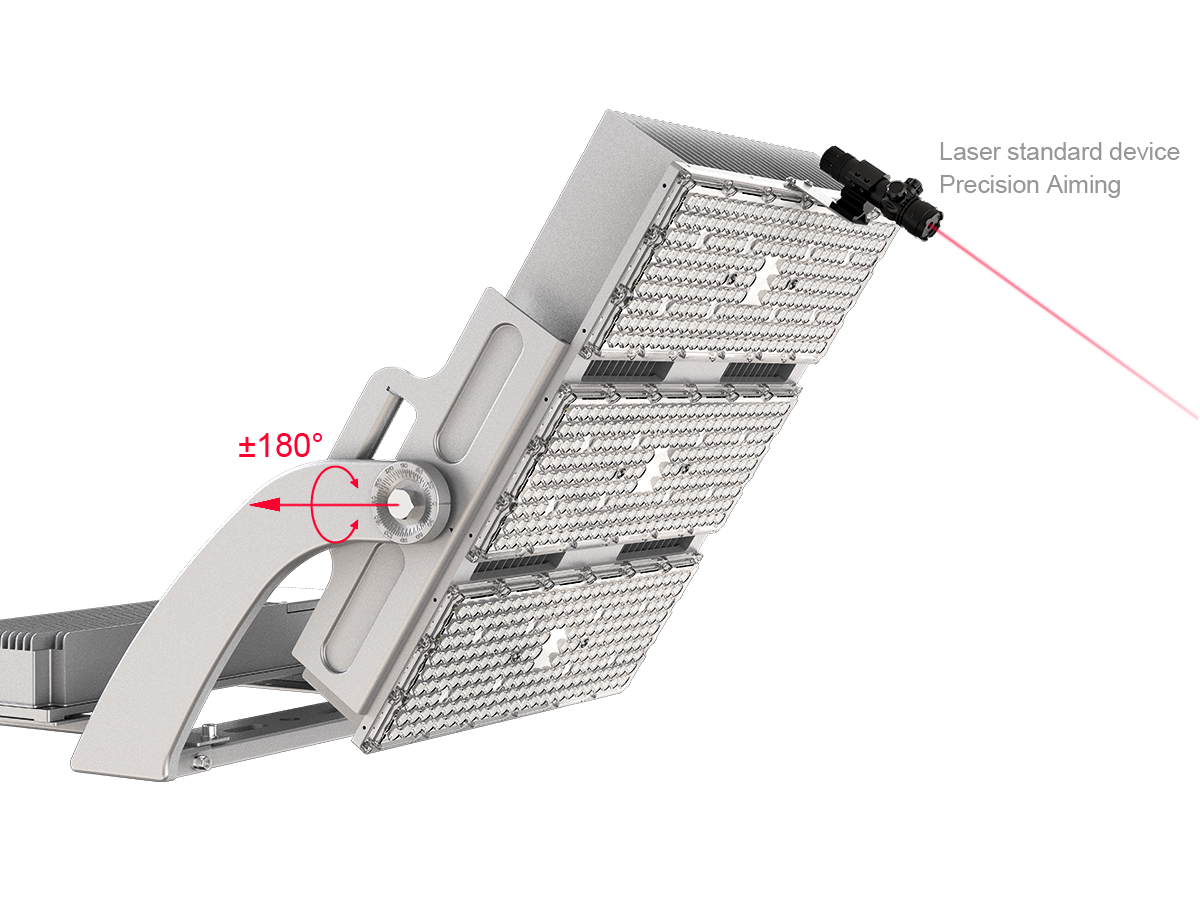

Precision Aiming & Easy Installation

FL16 features precision aiming with 5° scale knob and 360° rotation bracket. Optional laser aimer provides exact beam targeting during installation, ensuring optimal field coverage and minimizing wasted light. The precision scale system allows installers to replicate aiming angles across multiple fixtures, maintaining uniform illumination across the entire stadium. Quick-lock mechanism enables tool-free angle adjustments for faster installation and maintenance.

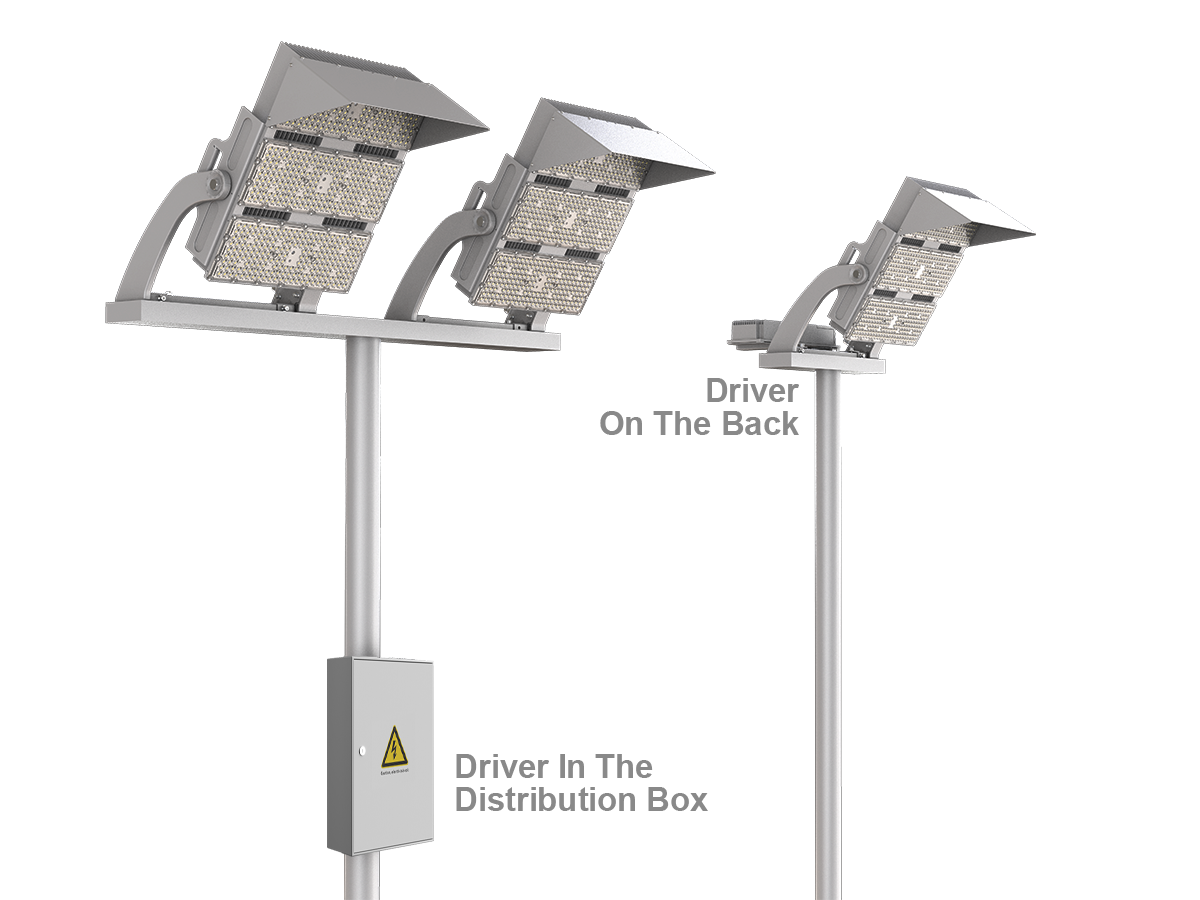

FL19 flexible driver mounting

Separated Power Supply – Enhanced Reliability

FL16 supports separated power supply design where the driver is isolated from the heat source, extending lifespan and improving overall reliability. This decoupled driver design accommodates legacy pole infrastructure, reduces installation costs, and enables future maintenance without disrupting the optical assembly. The system is compatible with drivers from Inventronics, Moso, Sosen, and Meanwell, ensuring flexibility and global availability.

Professional Accessories: Enhance Your Lighting System

FL09 Ares offers a comprehensive range of optional accessories for specialized requirements and enhanced functionality. From light pollution control to precision installation tools, each accessory is designed to optimize performance and installation efficiency while maintaining IP66 weatherproof integrity.

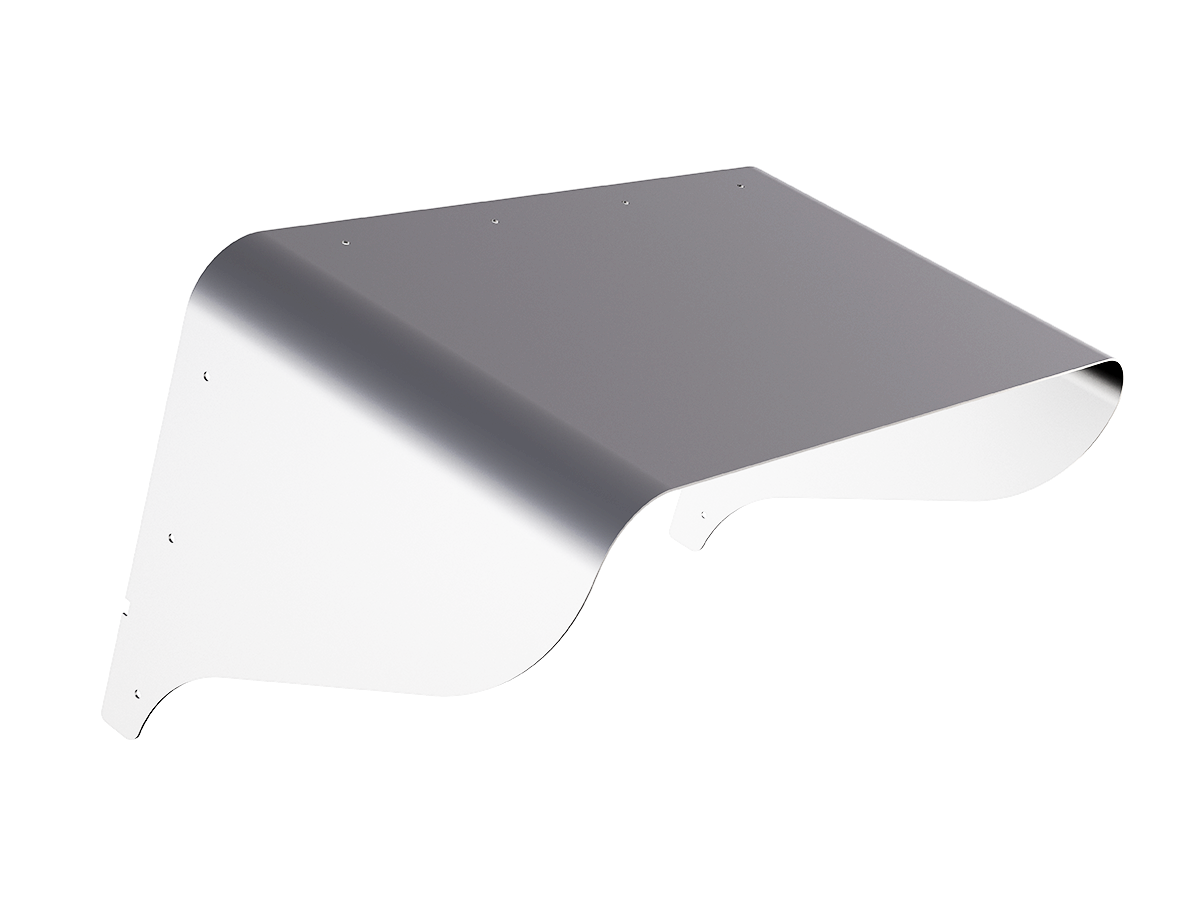

FL09 Ares visor accessory

Visor

Enhanced spill-light control for dark-sky compliance and residential-adjacent stadiums. Aluminum construction with tool-free installation.

  • Reduces uplight to <2% for dark-sky compliance
  • Available in front and back configurations
  • Tool-free installation maintains IP66 integrity
  • Lightweight aluminum construction

Applications

FL16 Plus is engineered for professional large-area lighting applications requiring high performance, durability, and cost-effectiveness

Sports Stadiums

Airports

Ports

Plazas

Parking Areas

Industrial Sites

Technical Specifications

Comprehensive technical data for engineering and procurement

Frequently Asked Questions

Common questions about FL16 Semi-Modular LED Stadium Light

Ready to Upgrade Your Stadium Lighting?

Get a customized solution and competitive quote within 48 hours

Contact Us Now
Download Brochure

Request a Quote

FL16 Modular LED Stadium Light – Performance that Pays Off

Fill in your details and our team will get back to you within 24 hours with a customized quote.

By submitting this form, you agree to our privacy policy.
Questions? Contact us at info@zcled.com

Download Specifications
