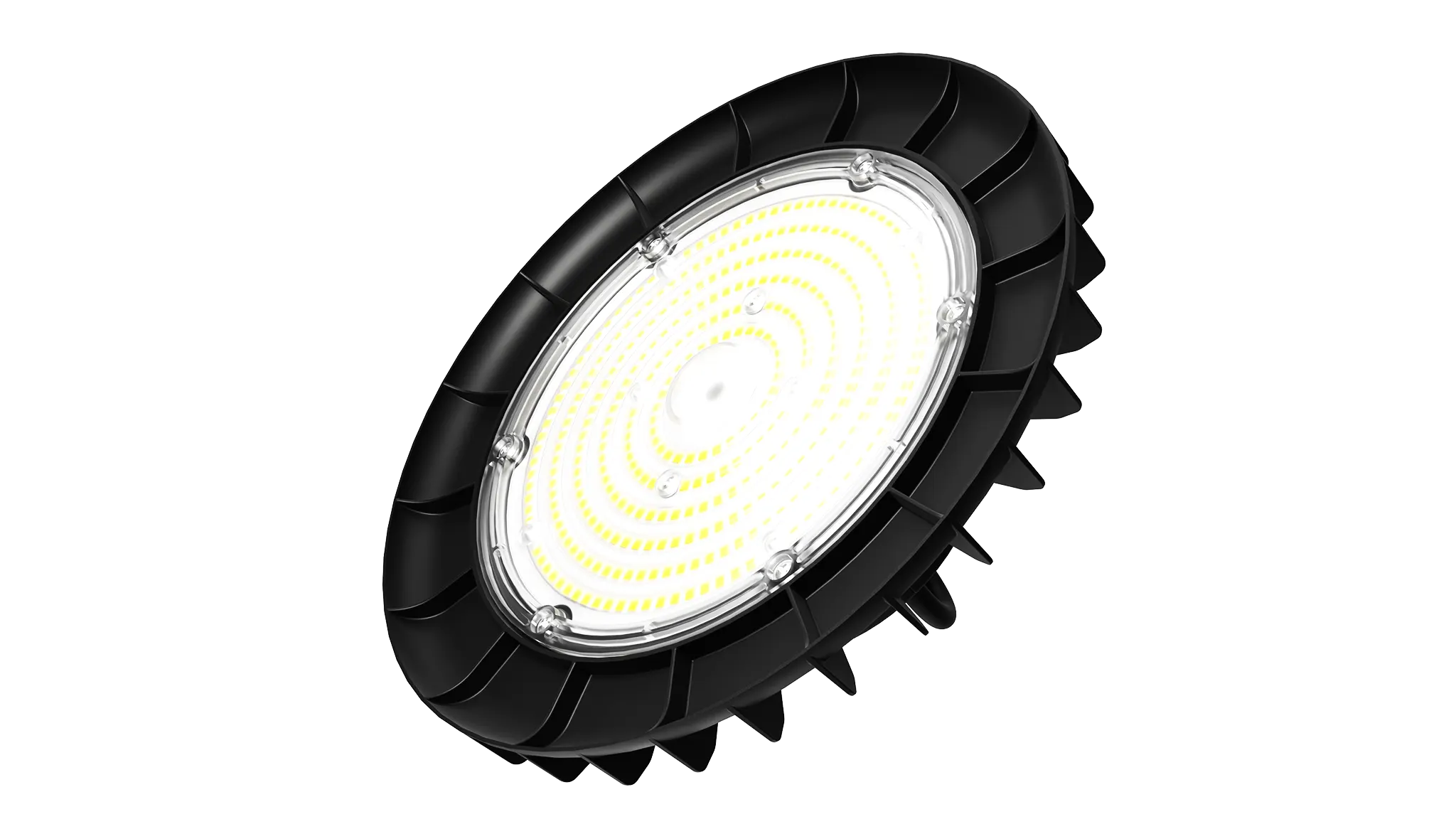

A practical and flexible industrial high bay light designed for warehouses, workshops, and commercial facilities. One model supports three wattage levels, simplifying stocking while maintaining reliable performance and uniform illumination.
The HB15 Series features 3-in-1 adjustable wattage, a high-transmittance circular lens, and a durable die-cast aluminum heat sink, delivering strong optical efficiency and dependable thermal stability.
A single model can support different illumination levels for various heights and environments-ideal for distributors, contractors, and multi-project operations requiring reduced SKU complexity and stable supply.
Reduces Inventory Complexity: One model replaces multiple SKUs, improving stocking efficiency and reducing capital pressure.
3-in-1 Adjustable Power Output: One fixture supports three wattage settings (100% / 80% / 60%) to fit different height and brightness requirements.
High-Transmittance Ring Lens: Circular optical layout + frosted center for uniform, glare-controlled illumination.
Die-Cast Aluminum Heat Sink: ADC12 integrated radiator with umbrella-shaped fins for fast & stable heat dissipation.
Multiple Reflector Options: PC Reflector: lightweight, cost-effective.

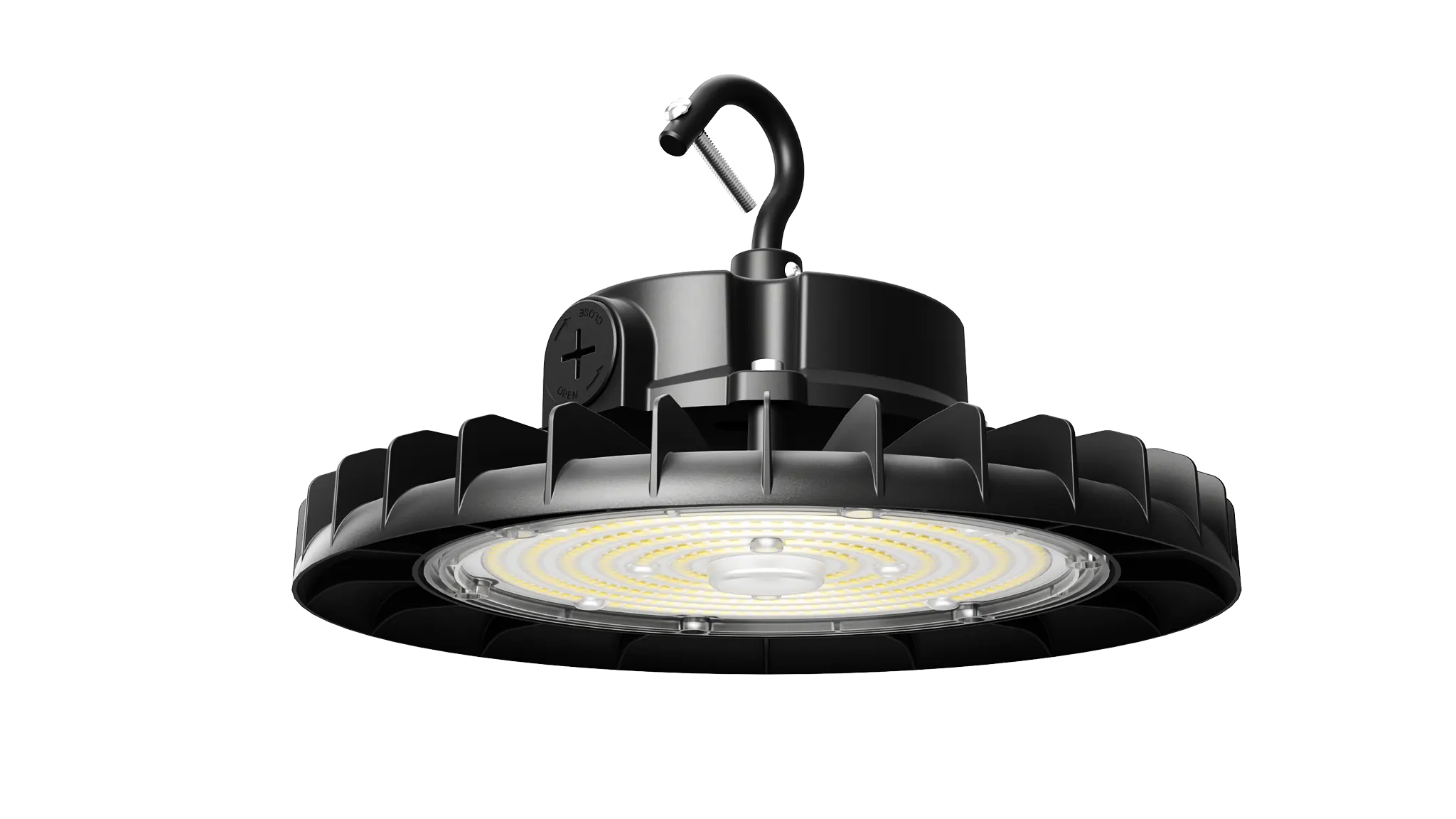

Flexible Mounting Options: Supports hook / ring suspension with chain or cable.
Outdoor-Ready Design: IP65 weather protection for industrial & semi-outdoor usage.
Aluminum Reflector: lower glare, cleaner cutoff.
| Parameter | HB15-100W | HB15-150W | HB15-200W | ||||||
| Power (W) | 100W(（100%/80%/60% tunable） | 150W（100%/80%/60% tunable） | 200W（100%/80%/60% tunable） | ||||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-170Lm/W | ||||||||
| Luminous Flux | 14,000Lm-17,000Lm | 21,000Lm-25,500Lm | 28,000Lm-34,000Lm | ||||||
| Beam Angle | 90°, 120° | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB15-100W | HB15-150W | HB15-200W | ||||||
| Structure Material | ADC12 die-casting aluminum | ||||||||
| Surface Finish | Powder coating (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB15-100W | HB15-150W | HB15-200W | ||||||
| IP Rating | IP65 | ||||||||
| IK Rating | IK10 | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-86°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Surge Protection | 6kV, 10kV | ||||||||
| Parameter | HB15-100W | HB15-150W | HB15-200W | ||||||
| Intelligent Control | 0–10V Dimming | ||||||||
| Certifications | CE, RoHS, ENEC, ERP | ||||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB15 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
