Power and CCT adjustable in one fixture – designed to simplify inventory and maximize ROI.
The HB12 Series delivers adjustable wattage and color temperature through its built-in DIP switch, offering simple, tool-free configuration for multiple environments.

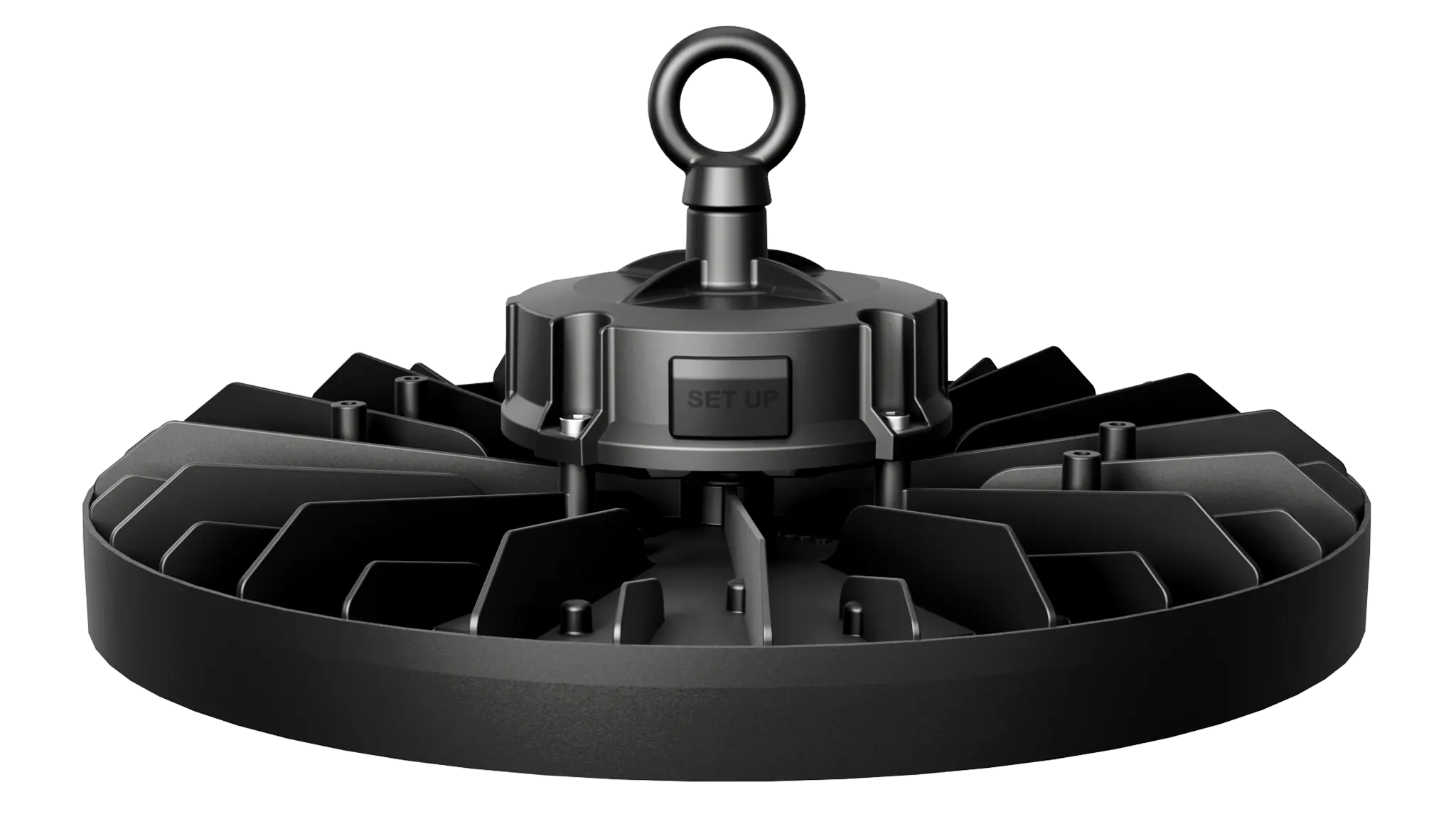

Featuring a die-cast aluminum heat sink with convection vents, it ensures fast heat dissipation and stable performance.
With an integrated sensor-ready interface, HB12 supports various smart lighting options such as motion, microwave, and daylight control.
Engineered for factories, warehouses, and large indoor venues, it provides a cost-effective yet professional lighting solution.
3-in-1 Adjustable Power & CCT via DIP Switch (100%/80%/60%; 3000K-5700K range).
Simplified Inventory Management - One model fits multiple site needs.
Convective Die-Cast Heat Sink - Rapid thermal discharge with air channels.
High Efficiency up to 200 lm/W - Reduces energy costs while improving brightness.

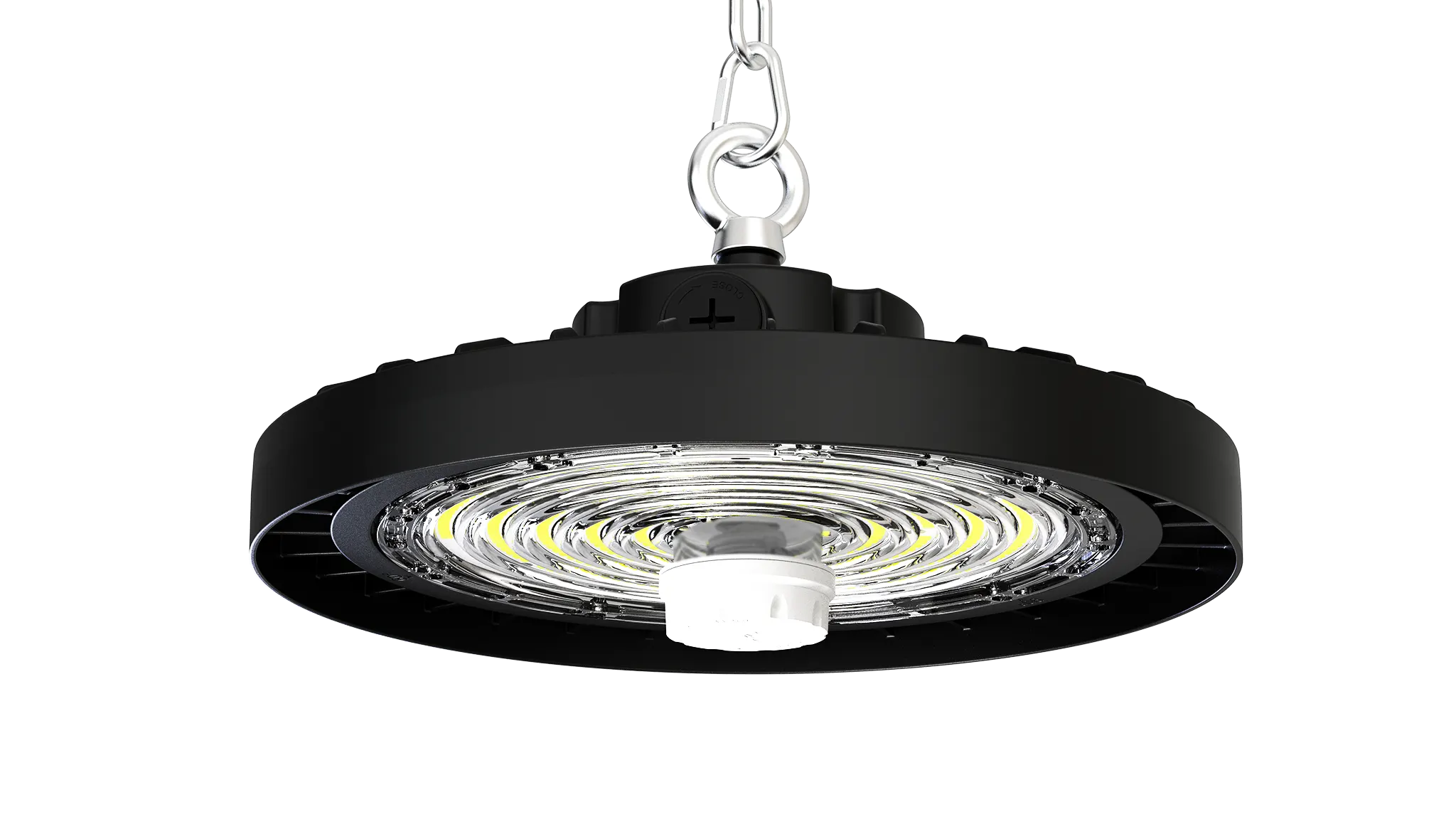

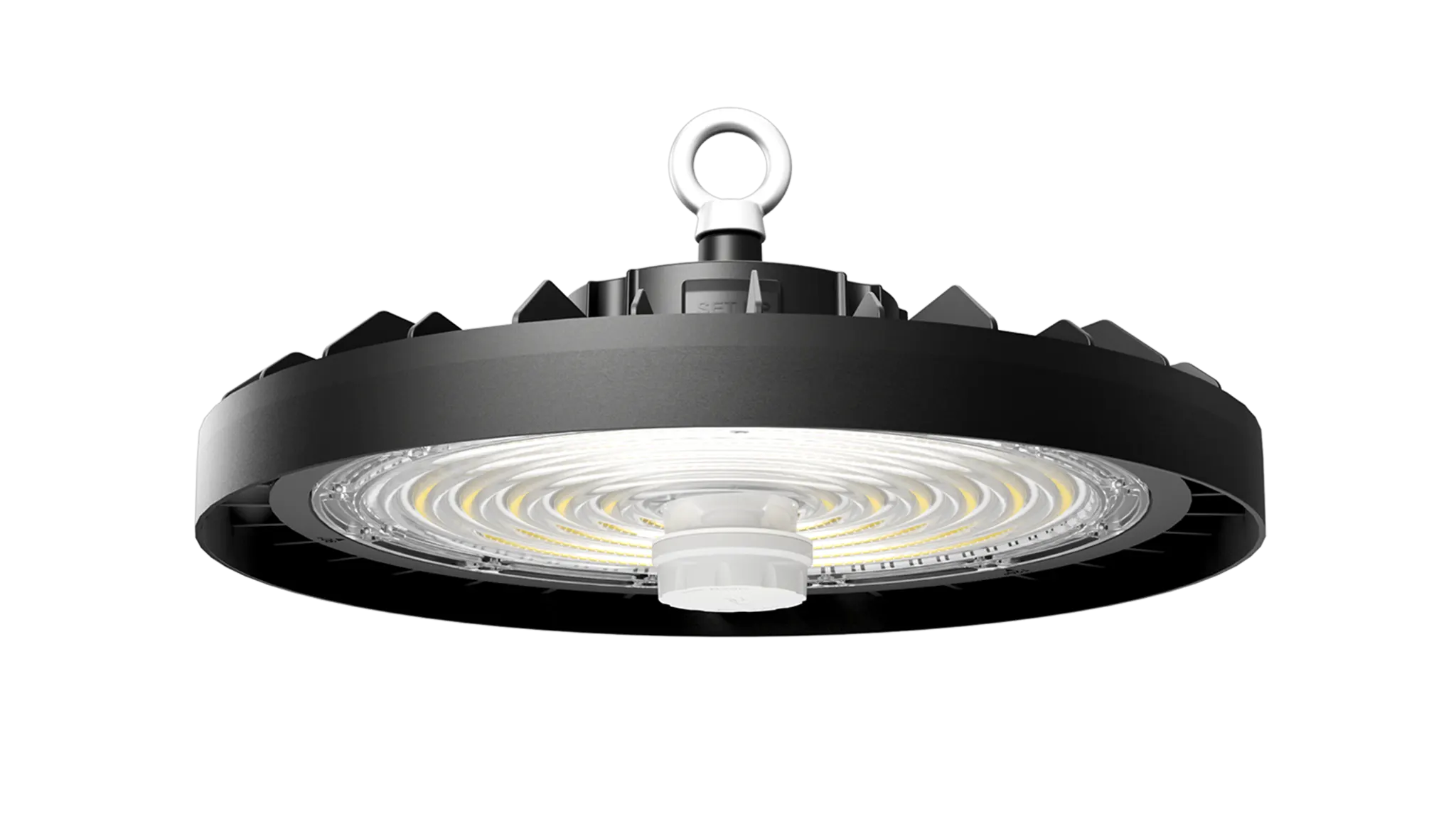

Sensor-Ready Port - Compatible with PIR / Microwave / Daylight sensors.
Mounting Options - Hook/chain pendant or ±90° U-bracket mounting.
IP65 & IK10 Protection - For damp, dusty, or impact-prone areas.
| Parameter | HB12-100W | HB12-150W | HB12-200W | HB12-240W | |||||
| Power (W) | 100W (100%/80%/60% Tunable) | 150W（100%/80%/60% tunable） | 200W（100%/80%/60% tunable） | 240W（100%/80%/60% tunable） | |||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-200Lm/W | ||||||||
| Luminous Flux | 14,000Lm-20,000Lm | 21,000Lm-30,000Lm | 28,000Lm-40,000Lm | 33,600Lm-48,000Lm | |||||
| Beam Angle | 60°, 90°, 120° (3-in-1 Lens) | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB12-100W | HB12-150W | HB12-200W | HB12-240W | |||||
| Structure Material | ADC12 die-casting aluminum | ||||||||
| Surface Finish | Powder coating (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB12-100W | HB12-150W | HB12-200W | HB12-240W | |||||
| IP Rating | IP65 | ||||||||
| IK Rating | IK10 | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-22°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Parameter | HB12-100W | HB12-150W | HB12-200W | HB12-240W | |||||
| Intelligent Control | 0–10V / 1-10V Dimming, PWM Dimming | ||||||||
| Certifications | CE, RoHS, ENEC, ERP | ||||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB12 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
