3-in-1 Watt Tunable · 3/4-in-1 Beam Angle Tunable · 300W–1800W

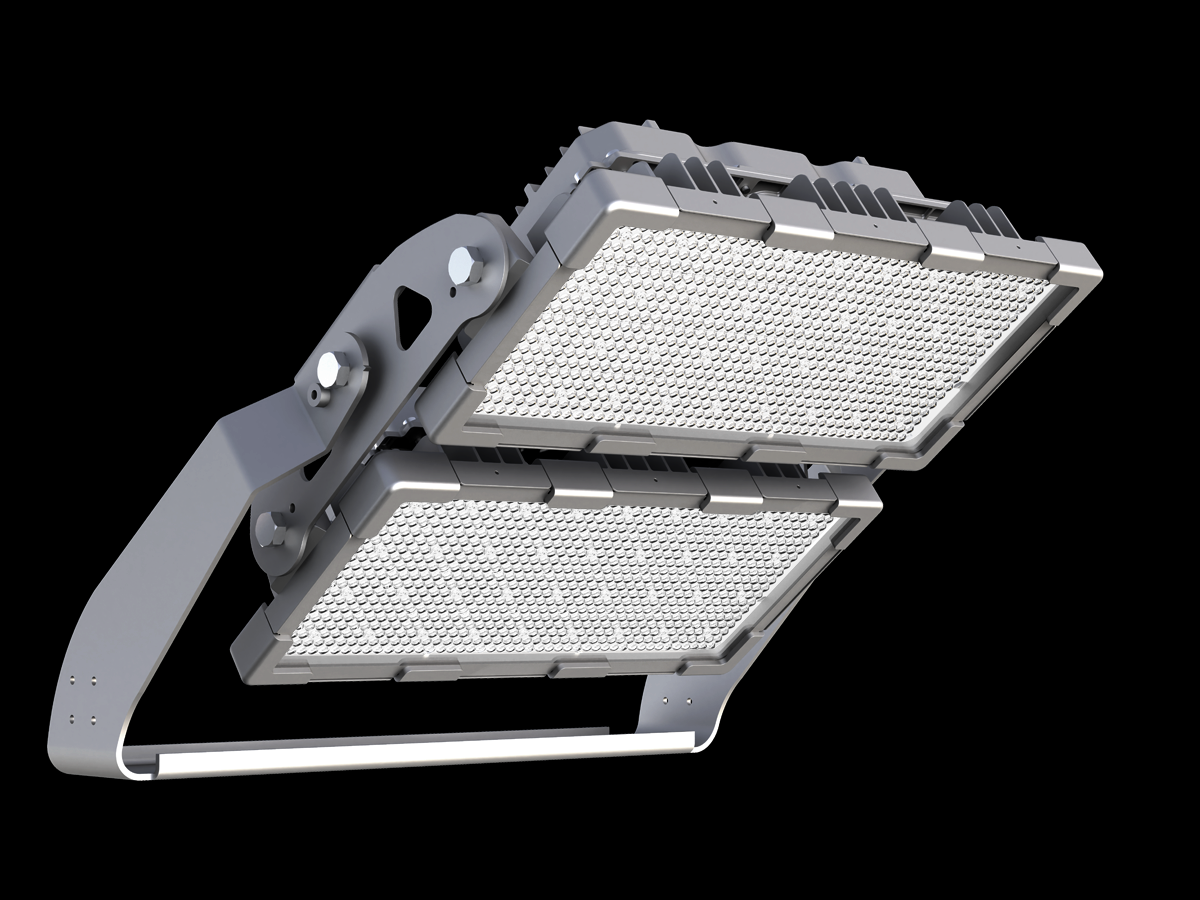

FL26 is a compact, high-output sports floodlight built for projects that demand flexibility without complexity. A 3-in-1 watt tunable DIP switch sets 100%, 80%, or 60% output on site, while 3-in-1 or 4-in-1 beam angle tunable optical groups help match different pole heights and field layouts without changing the fixture body.
Peak Efficacy
Max Output
L70 Lifetime
Adjust wattage AND beam angle without changing fixtures
Up to 50% energy saving vs. metal halide
Dust-tight, rain-proof, impact-resistant
Single-module to triple-module from one compact modular family
Watch how FL26 delivers professional stadium lighting performance with powerful output, precise optics and flexible control options.
Official distribution diagrams are arranged as 10°, 15°, 20°, 30°, 45°, 60°, 90°, and 120° symmetric beams, followed by 45°×105°, 70°×100°, 80°×145°, 80°×152°, and 120°×148° asymmetric beams.
Measurement
Symmetric beam distribution — 10°
Ultra-narrow long-throw sports lighting for tall poles and precise aiming.
Ultra-narrow long-throw sports lighting for tall poles and precise aiming.
Narrow long-throw coverage for football pitches and large training fields.
Narrow flood distribution for side-mast or corner-mast layouts.
Medium-narrow beam for club fields and multi-sport grounds.
Standard medium beam for general outdoor sports lighting.
Wide flood beam for courts, school grounds, and lower mounting heights.
Wide-area flood distribution for compact courts and recreational spaces.
Very wide coverage for short setback and close-mounted installations.
Asymmetric control for perimeter poles and reduced spill behind the fixture.
Balanced asymmetric spread for enclosed courts and multi-use sports areas.
Wide asymmetric throw for large side-pole layouts with controlled backlight.
Extra-wide asymmetric spread for football fields and multi-head pole systems.
Very wide asymmetric coverage for low or close-set poles around courts.
FL26 is built around the practical decisions that affect project cost: module count, wattage setting, beam-angle selection, aiming, driver access, long-term optical stability, and RGBW venue use.
FL26 uses 1, 2, or 3 light modules to cover 300W–1800W from the same compact fixture family. Peak efficacy reaches 170 lm/W, with up to 279,000 lm from the 1800W version. For contractors and distributors, that means fewer housings to stock, faster substitutions during design changes, lower logistics cost, and a stronger return on investment across court, school, club, and training-field projects.
The two adjustments are specified separately. A DIP switch sets wattage to 100%, 80%, or 60% of rated output on site. Beam angle tuning is configured as a 3-in-1 or 4-in-1 optical group based on pole height, setback, and target illuminance, reducing re-order risk when the project layout changes.
For stadiums and community venues that need more than white sports lighting, FL26 can be specified with RGBW LEDs for team-color scenes, opening ceremonies, entertainment events, and branded lighting moments. DMX512 and wireless control compatibility allow operators to switch between compliant white-light play mode and dynamic RGBW scenes.
FL26 adds a tempered glass shield in front of the inner PC lens — blocking UV degradation and locking in long-term lumen output.
The bracket features a laser-engraved 5° increment scale and ±30° vertical tilt range so every fixture lands where the photometric model says it should.
FL26 supports built-in compact mounting, bracket-mounted thermal separation, and remote pole-box mounting for safer ground-level maintenance.
Anti-Glare Visor
Minimizes spill light at field boundaries.
Driver Mounting Bracket
Separates the driver from the heat sink.
Laser Aiming Sight
Attaches to the bracket for precision high-altitude aiming.
Tempered Glass Shield
Additional front glass protection for UV resistance.
Waterproof Junction Box
IP66-rated cable entry for remote driver configurations.
Silver-Grey
Standard finish. RAL 7040 equivalent.
Matte Black
Optional finish. RAL 9005.
RGBW Available
RGBW LED configuration for dynamic color effects, branding illumination, and entertainment-grade lighting scenes. Compatible with DMX512 and wireless control systems.

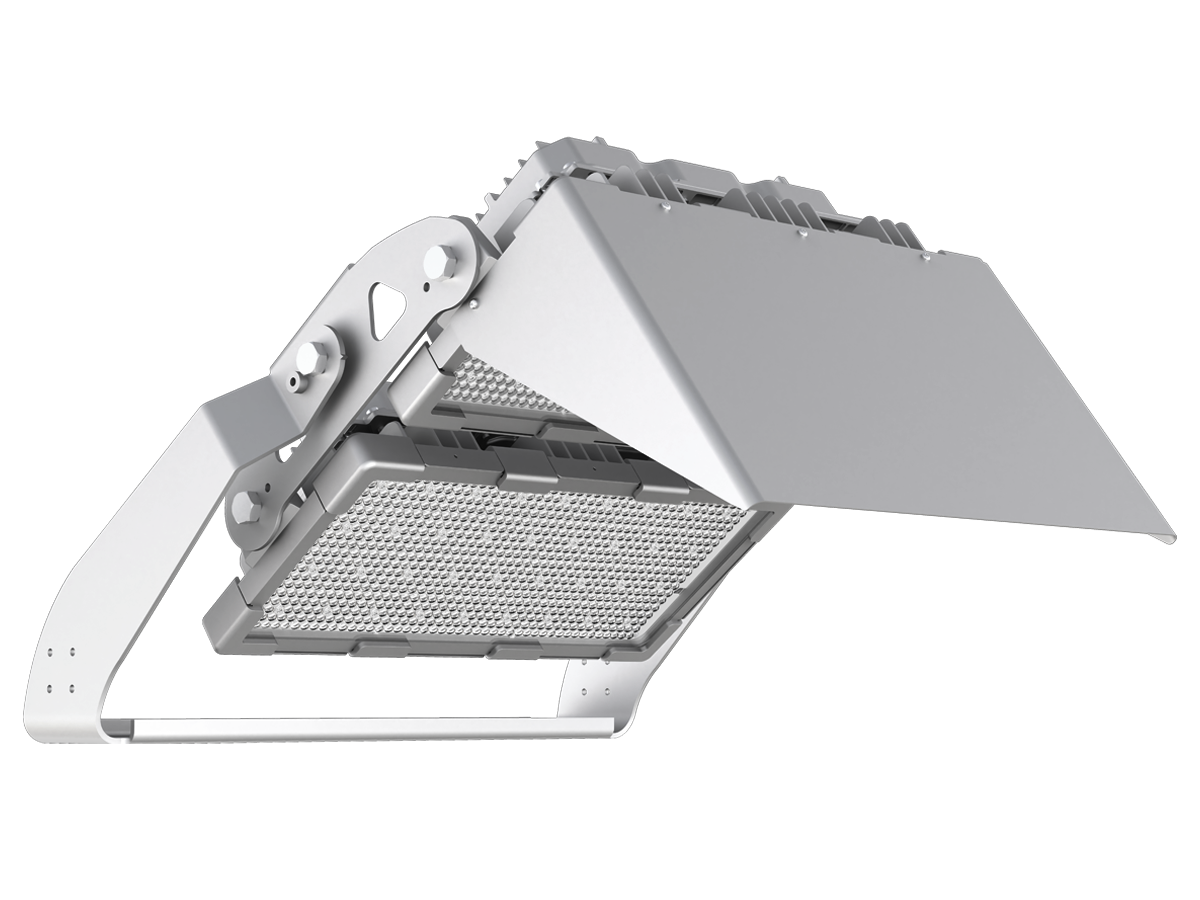

With Anti-Glare Visor
Fitted visor for neighbor-friendly operation
From local basketball courts to club-level football stadiums — FL26 covers the full range of outdoor sports lighting projects with a compact modular fixture family.
EN 12193Club and professional-level pitches. Narrow or medium beam selections suit 15–30 m pole heights.
FIBA
Compatible28×15 m standard courts. 3-in-1 wide flood groups support low mounting heights.
ITF Levels
1–4Individual beam angles for precise, shadow-free coverage across 23.77×10.97 m playing areas.
Community-Ready3-in-1 wattage tuning matches school operating hours and energy budgets.
Neighbor-FriendlyAsymmetric beam options contain light within the court boundary.
Multi-VenueHigh-mast triple-module arrays for large training complexes.
Comprehensive technical data for engineering, procurement, and photometric design
Common specification and installation questions for FL26
FL26 separates two configuration choices: 3-in-1 watt tunable output via DIP switch, and 3-in-1 or 4-in-1 beam angle tunable optics selected for the project.
PC-only lenses degrade under UV and outdoor weathering. FL26 adds tempered glass to protect the inner PC lens and maintain optical stability.
Built-in is best for simple projects. Bracket-mounted improves thermal separation. Remote pole-box is ideal for multi-head mast systems.
10° to 120° symmetric options plus 45°×105°, 70°×100°, 80°×145°, 80°×152°, and 120°×148° asymmetric options.
Yes. Depending on wattage and mounting configuration, FL26 installations can meet EN 12193 Class II and Class III requirements.
