FL16 Plus Series - Modular LED Stadium & Area Lighting Solution

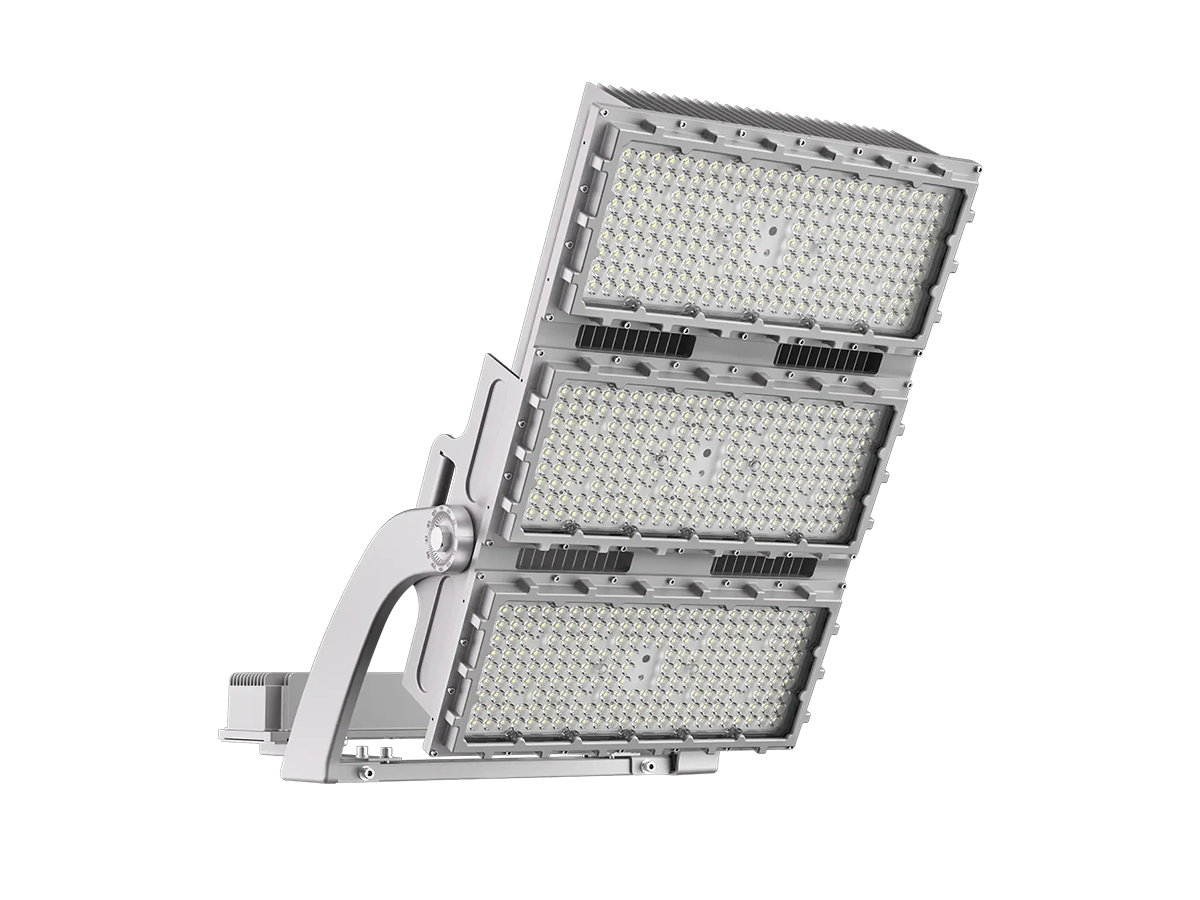

FL16 Plus Series Modular LED Stadium Light
Enhanced Modular Solution

FL16 Plus Series LED Stadium Light

High-Efficiency Modular LED Stadium Light

The FL16 Plus Series is an enhanced evolution of ZC Lighting's proven FL16 platform, engineered for high-performance stadium and large-area lighting with elevated durability and optical stability. With flexible 1–3 module configurations (500W–1800W), high-efficiency optical output, and rapid installation features, FL16 Plus provides the ideal balance of performance, reliability, and project cost optimization.

Semi-modular architecture: 500W–1800W scalable output
Glass + Lens dual protection for reduced light decay
Integrated fin-type heat sink with chimney-effect cooling
94% optical transmission efficiency
Driver separation design for extended lifespan
1800W
Max Power
150
lm/W Efficacy
IP66
Weather Protection
IP66 / IK08 Rated
5-Year Warranty
DLC Premium
Smart Control Ready
Request Quote Download Specs
1-3 Modules

Modular Light Engine

Integrated heat sink

Glass + Lens

Ultra-High Efficiency

Industry-leading performance

Optimized

Chimney Cooling

Natural convection

50,000h+

Long Lifespan

L90B10 rated

Beam Performance & Light Distribution

FL16 Plus offers multiple beam angles for optimized coverage across different mounting heights and application requirements.

Photometric Distribution Curve

10°
IES Certified
FL16 Plus beam distribution
Polar Coordinates
C0-C180 Vertical Plane
C90-C270 Horizontal Plane

📐 Measured Beam Performance

AVERAGE BEAM ANGLE(50%): 10.7 DEG

Laboratory Verified

Available Beam Angles

Select the optimal beam angle based on your mounting height, venue size, and lighting requirements

Key Optical Features

  • 6 professional beam angles for stadium applications
  • Tempered glass + PC lens dual protection system
  • 94% optical transmission efficiency
  • Reduced light decay through UV-protective glass cover

Product Features

FL16 Plus combines modular flexibility with advanced thermal management and optical protection for superior long-term performance.

Semi-Modular Architecture

1-3 module configurations for scalable power output

Chimney-Effect Cooling

Natural convection between modules for efficient heat dissipation

Dual Optical Protection

Glass + lens system reduces light decay over time

High Transmission

94% optical efficiency for maximum light output

Precision Aiming

5° increment scale with optional laser aimer

Driver Separation

Extended lifespan with thermal management

Typhoon-Grade Durability

IP66/IK08 protection, 65m/s wind resistance

Smart Control Ready

DALI 2.0 / DMX-512 / NTC compatible

High Efficacy

Up to 150 lm/W luminous efficiency

Integrated Heat Sink

Shovel-Fin Heat Sink design

Advanced Engineering Features

FL19 5° tilted light surface detail

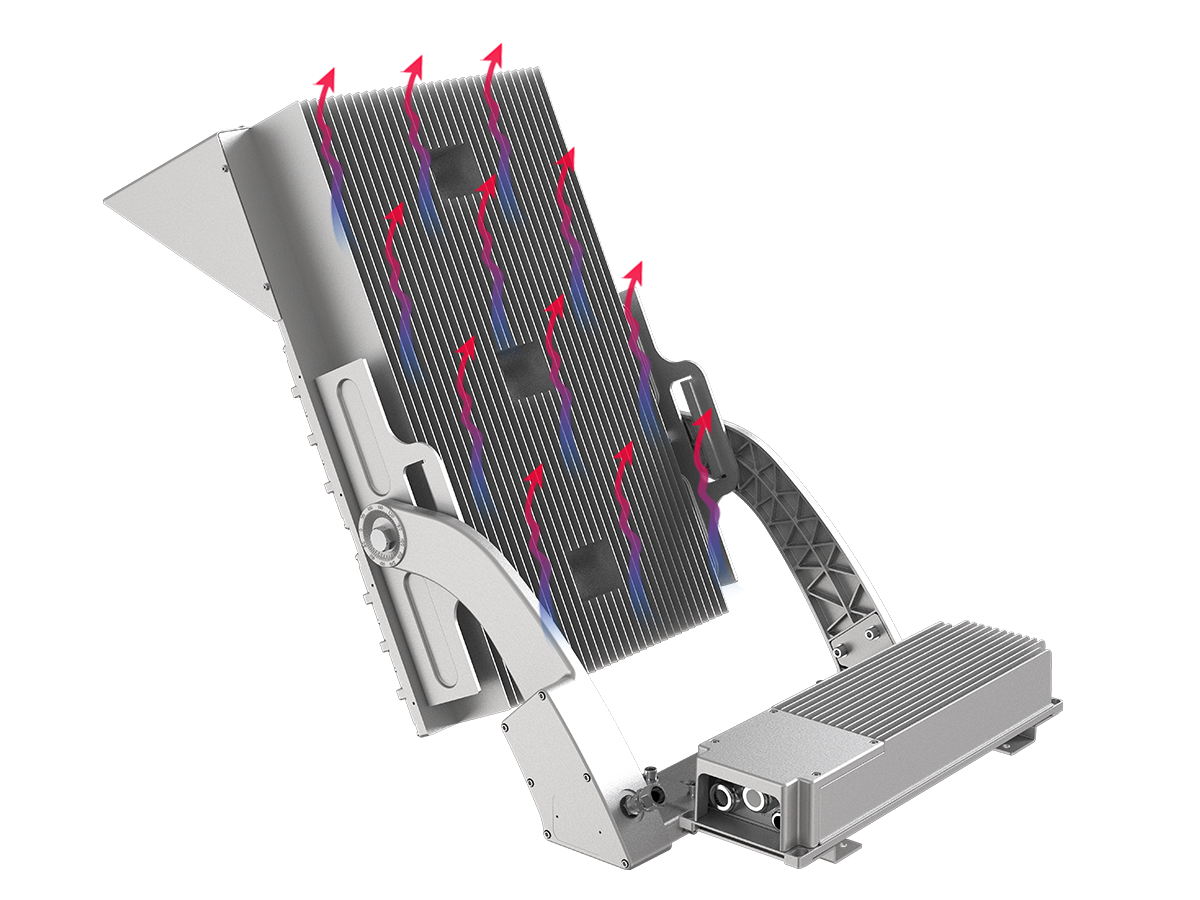

Thermal Management

Integrated Fin-Type Heat Sink with Chimney-Effect Cooling

The integrated extrusion heat sink maximizes structural strength and thermal conduction, while vent spacing between modules accelerates vertical airflow for faster heat dissipation under high load operation.

This natural "chimney effect" enables stable performance even at maximum power output, ensuring consistent light output and extended component lifespan across all environmental conditions.

  • Shovel-Fin Heat Sink design for maximum thermal conductivity
  • Natural convection airflow between modules reduces operating temperature
  • Operating range: -40°C to +50°C ambient temperature
FL19 vertical fin heat sink

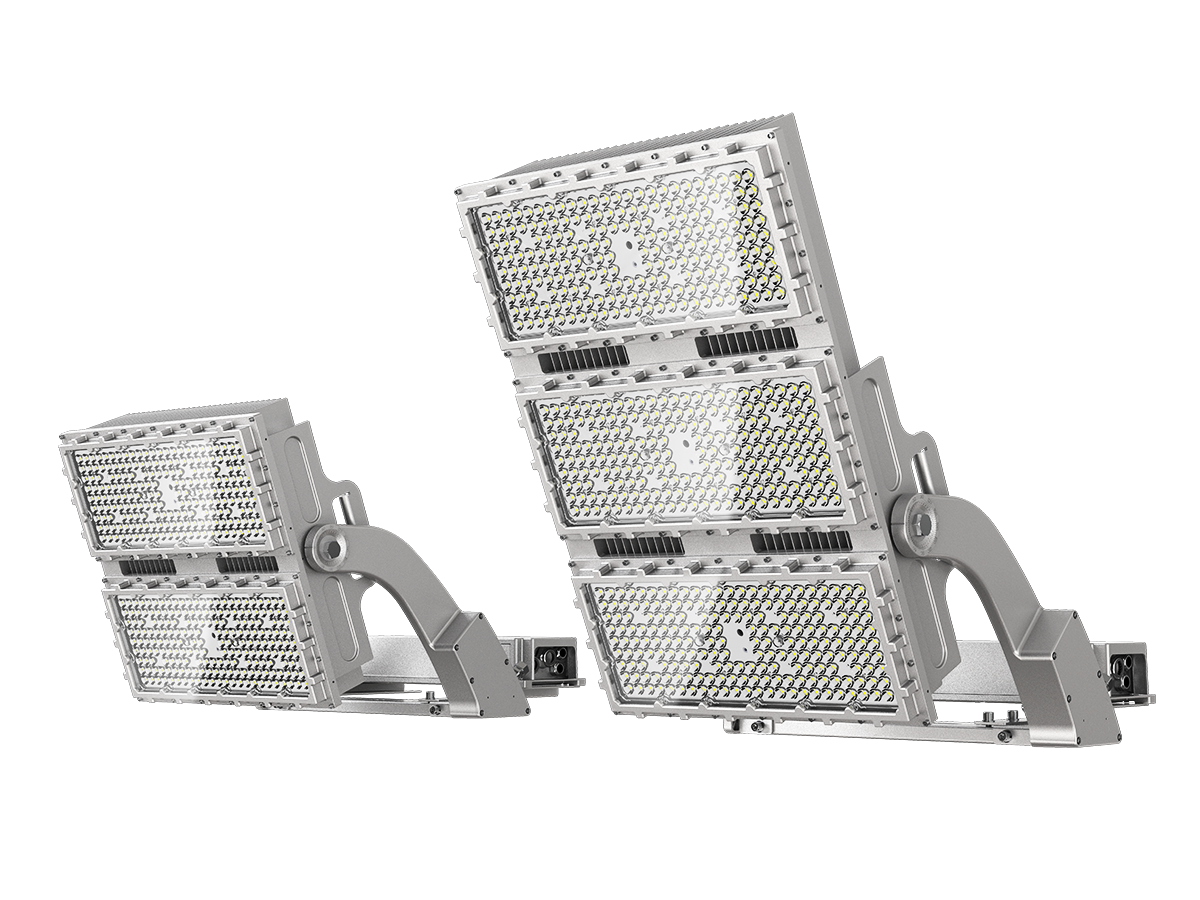

Optical System

Tempered Glass + PC Lens Dual Protection System

FL16 Plus features a premium dual-layer optical protection system: a tempered glass front cover shields the precision-molded PC optical lenses from UV radiation, dust, and environmental wear. This architectural separation significantly reduces light decay compared to standard single-lens systems, preserving luminous performance over the fixture's lifetime.

The tempered glass acts as a UV barrier and sacrificial outer layer, protecting the delicate optical lenses from degradation. Meanwhile, the inner PC lenses maintain precision beam control with 94% optical transmission efficiency. This dual-layer approach extends operational lifespan while ensuring consistent illumination quality across harsh outdoor environments.

  • Tempered glass front cover blocks UV radiation and environmental exposure
  • Optical-grade PC lenses maintain precision beam distribution
  • 94% optical transmission rate for maximum luminous output
  • Reduced light decay and extended performance stability
FL19 dual-layer optical system

Precision Installation

±180° Aiming Range with Scale Indicators

The die-cast U-bracket features precision 5° increment aiming scales for accurate beam positioning during installation. ±180° adjustment range accommodates various pole configurations and mounting orientations, ensuring optimal light distribution across the playing field.

Optional laser sight accessory further accelerates installation for high-mast projects, reducing commissioning time by up to 40% while maintaining uniform illumination targets across multiple fixtures.

  • ±180° horizontal adjustment for flexible positioning
  • 5° increment scale indicators for precise aiming
  • Optional laser sight for high-mast installations
FL19 precision aiming system

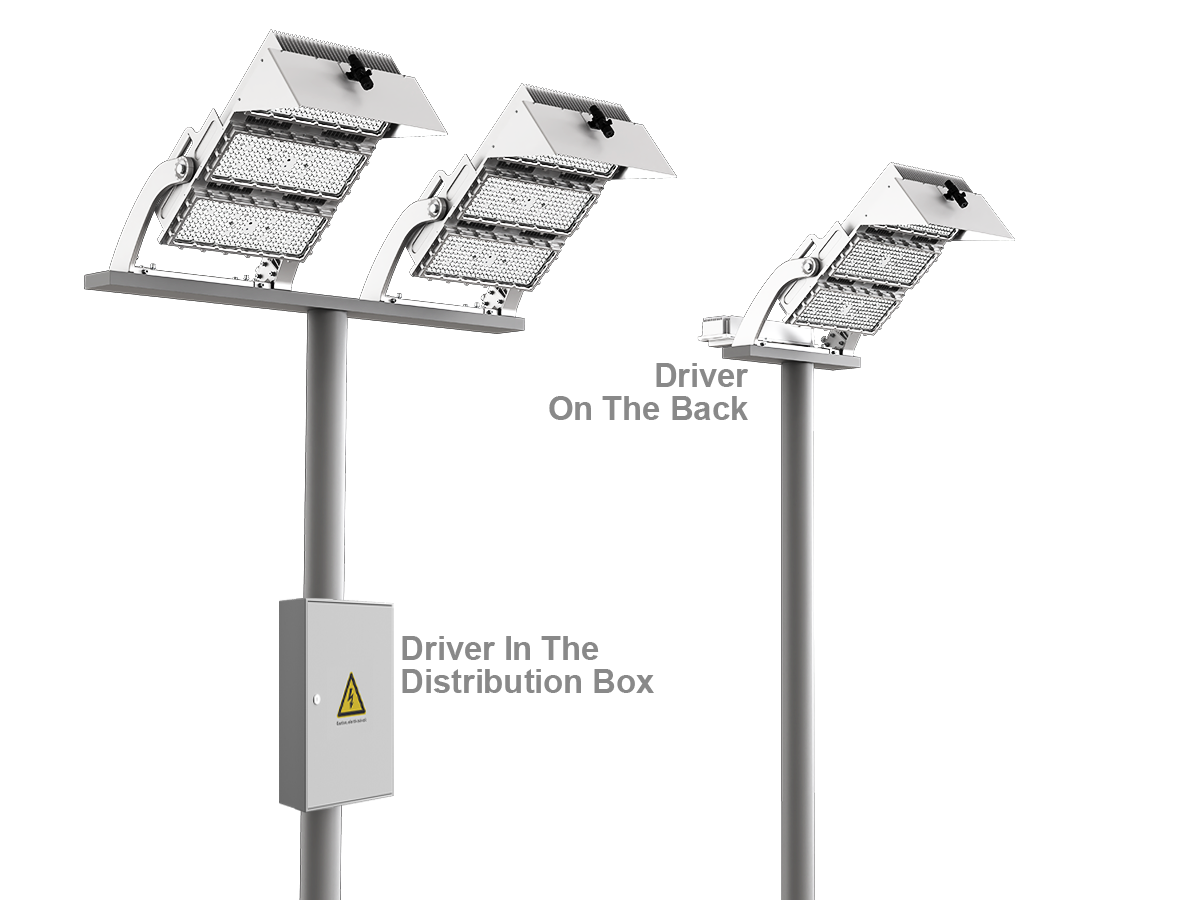

Power Management

Separated Driver Design for Extended Lifespan

FL16 Plus supports separated power supply design where the IP67-rated driver can be mounted on the fixture back or housed in a remote distribution box. This thermal isolation extends driver lifespan and improves overall system reliability by keeping power electronics away from heat-generating LED modules.

The decoupled driver design also accommodates legacy pole infrastructure, reduces installation costs, and enables future maintenance without disrupting the optical assembly. Compatible with Inventronics, Moso, Sosen, and Meanwell drivers for global availability and procurement flexibility.

  • Driver on fixture back or remote distribution box options
  • IP67-rated driver with thermal isolation for extended life
  • Compatible with multiple premium driver brands

Professional Accessories: Visor, Laser Sight & Cable Protection

FL16 Plus offers essential accessories for specialized installation requirements. Visors provide enhanced spill-light control (<2% uplight) for dark-sky compliance. The precision laser sight accelerates beam alignment for high-mast projects, reducing installation time by 40%. Anaconda conduit cable offers robust protection against environmental stress and bird damage in outdoor installations.

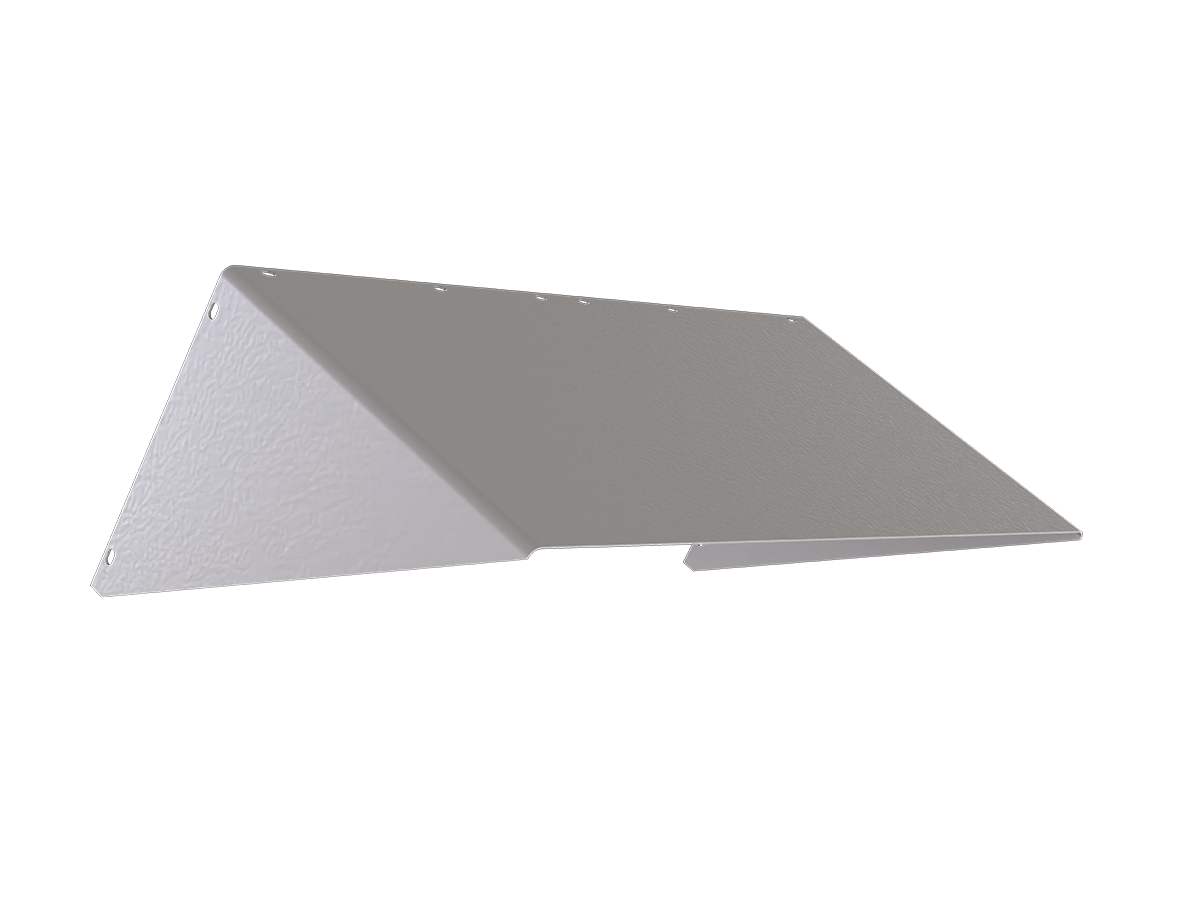

FL09 Ares visor accessory

Visor

Enhanced spill-light control for dark-sky compliance and residential-adjacent stadiums. Aluminum construction with tool-free installation.

  • Reduces uplight to <2% for dark-sky compliance
  • Available in front and back configurations
  • Tool-free installation maintains IP66 integrity
  • Lightweight aluminum construction

Applications

FL16 Plus delivers enhanced protection and performance for demanding professional environments

Sports Stadiums

Airports

Ports

Plazas

Parking Areas

Industrial Sites

Technical Specifications

Comprehensive technical data for engineering and procurement
