Durable, efficient, and compatible with Zhaga & Audio-Jack smart control systems.
The HB09 Series combines cost-efficiency, industrial durability, and smart control flexibility.
Featuring IP65 waterproof and IK08 impact-resistant construction, it ensures reliable operation in demanding environments.
With Zhaga and Audio-Jack interfaces, HB09 supports multiple plug-and-play control options including PIR, microwave, and Casambi wireless sensors – enabling energy savings and intelligent lighting management.

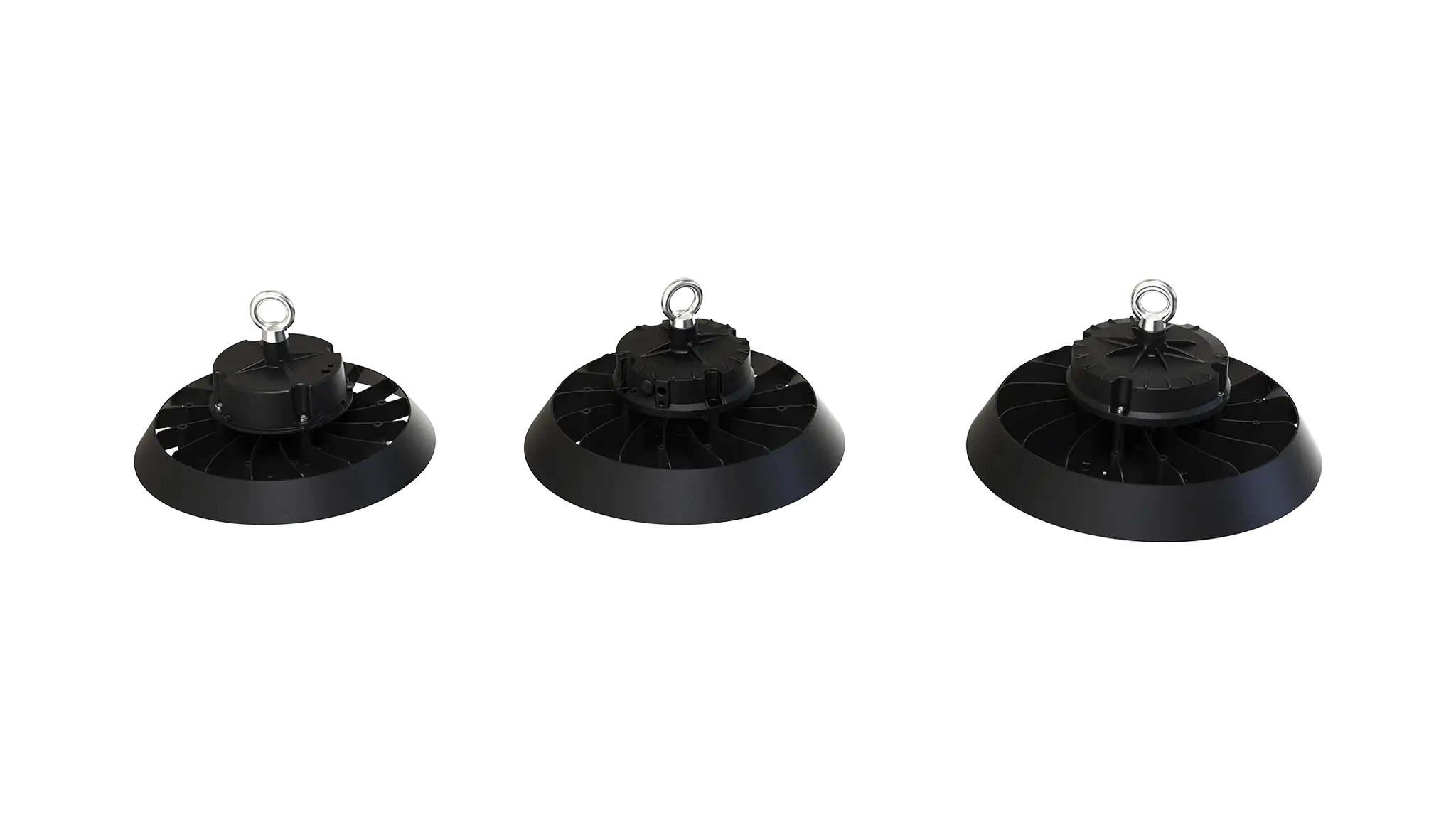

Available in three sizes (100W-200W), it suits factories, warehouses, sports arenas, and commercial venues requiring adaptable and durable illumination.
Power Range 100W-200W - Three housing sizes for flexible deployment.
High Efficiency up to 170 lm/W - Bright and energy-saving.
ADC12 Die-Cast Heat Sink - Convective vent design ensures fast cooling.
Stable Thermal Separation - Power driver isolated from LEDs for long lifespan.
IP65 / IK08 Protection - Built to last in humid or high-impact environments.

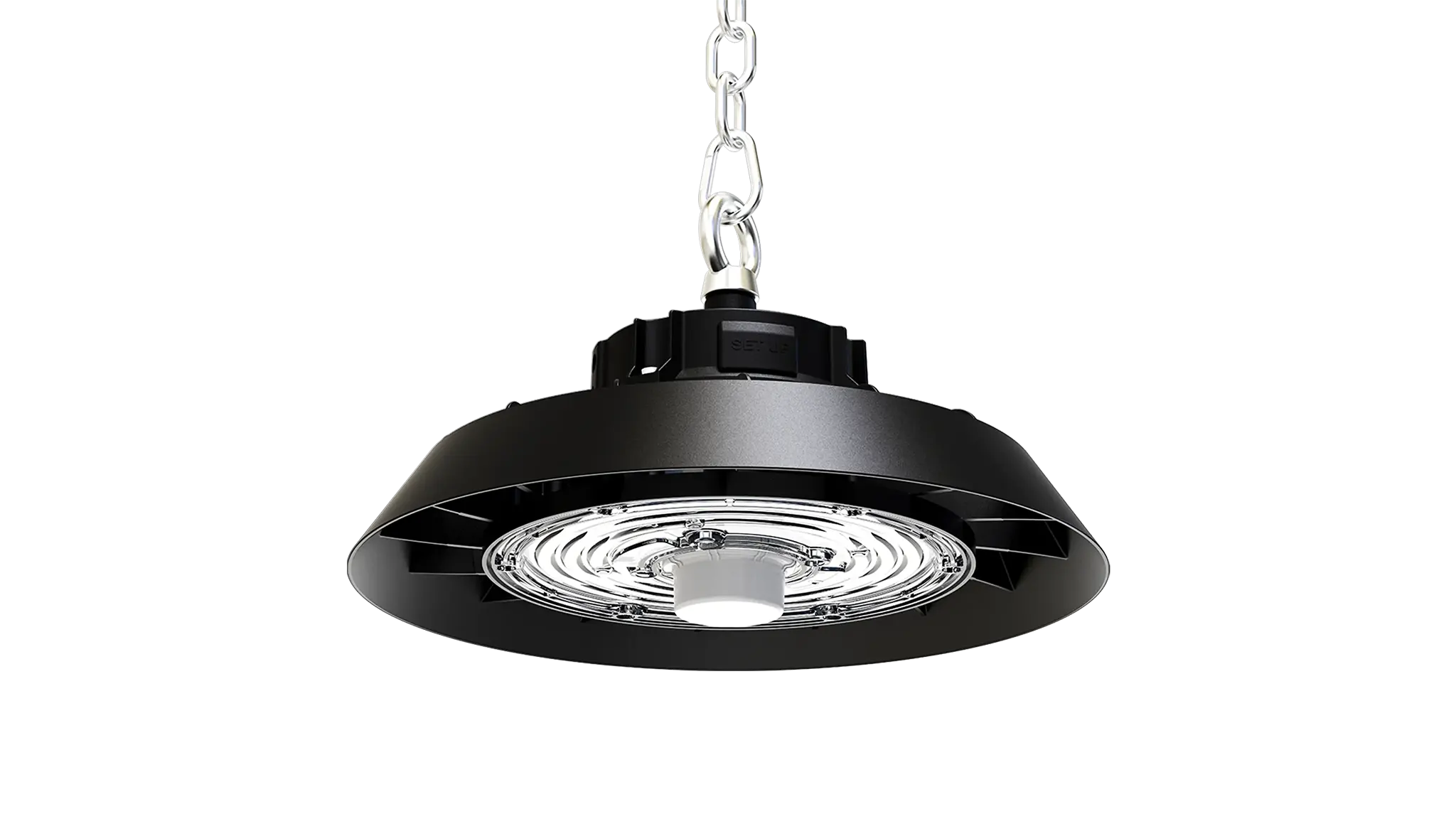

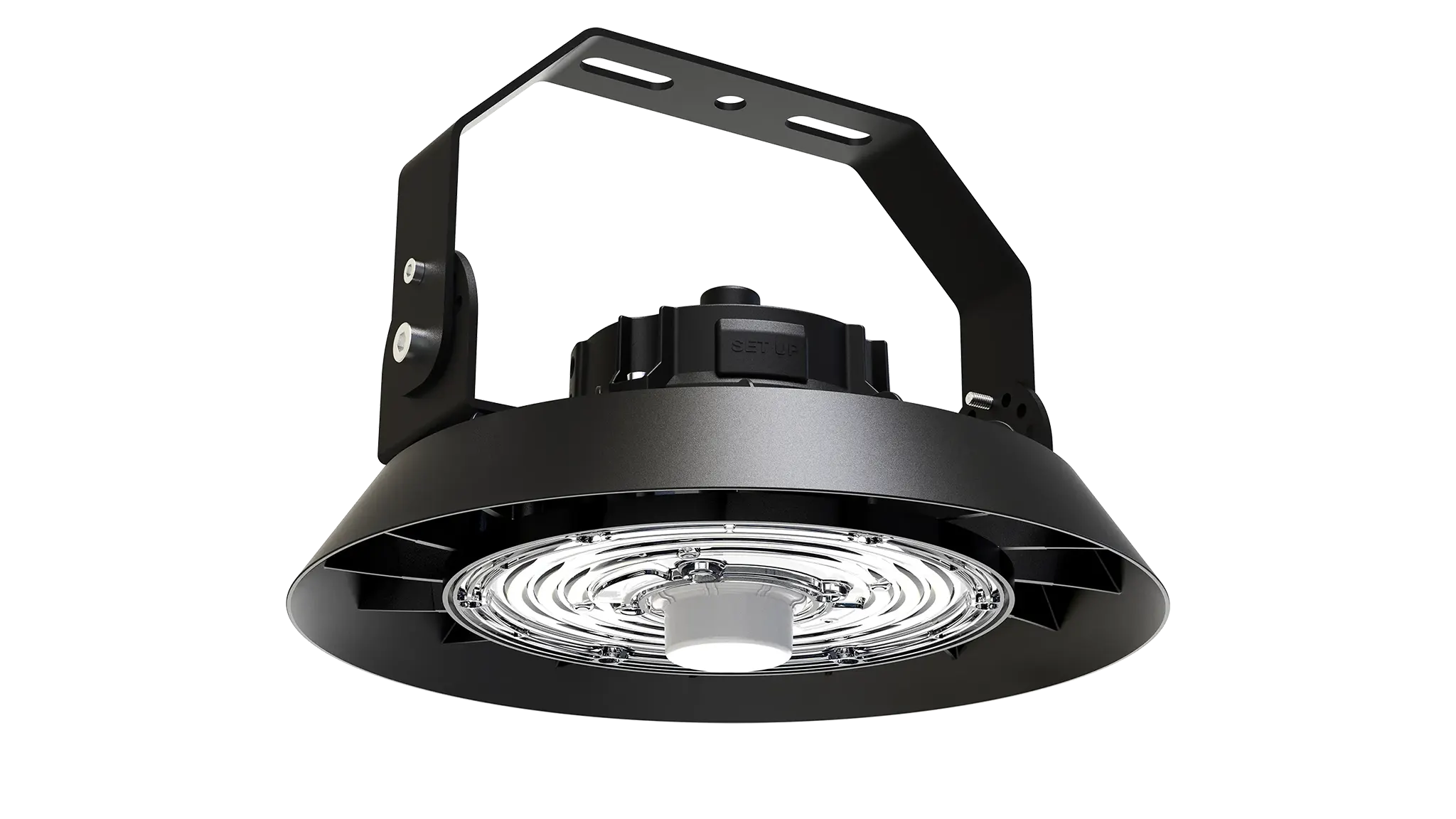

Flexible Mounting - Hook/chain or ±90° rotatable U-bracket options.
Smart & Expandable Control Interface - Built-in Zhaga and Audio-Jack sockets for standard sensors, plus an external connector supporting additional PIR, microwave, daylight, or Casambi wireless modules.

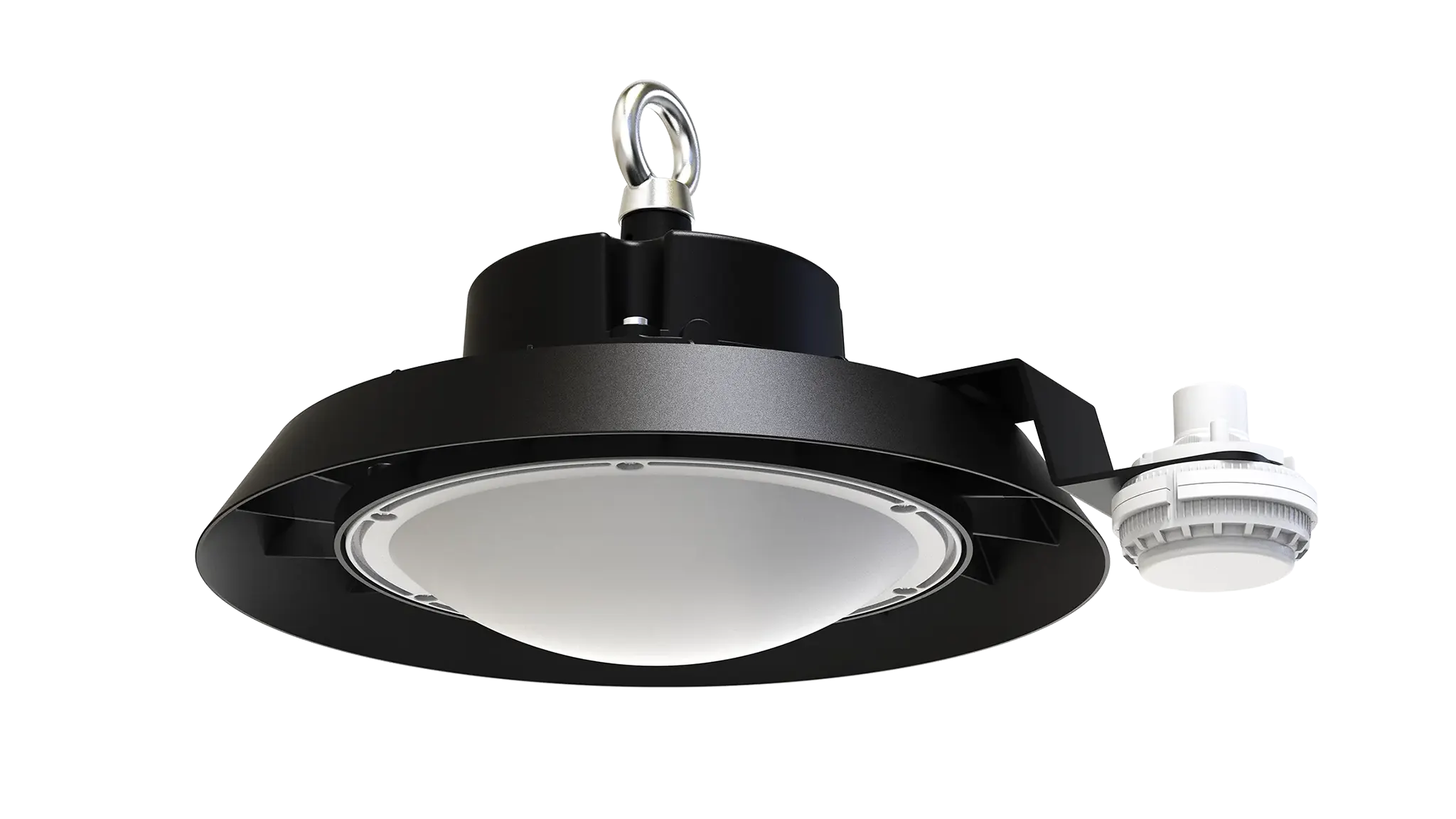

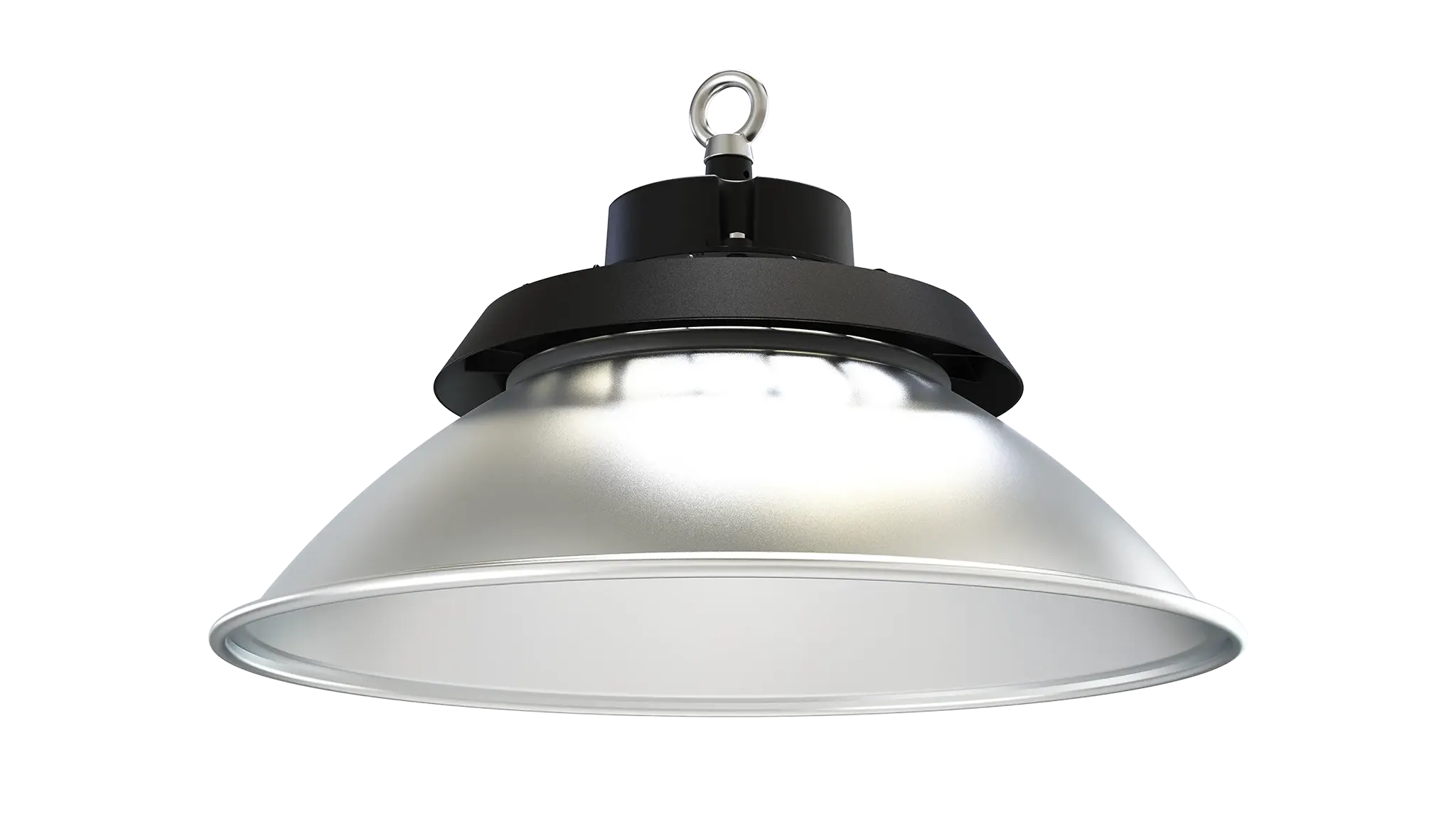

Optical Flexibility - AL & PC reflectors (60°/90°) and spherical diffuser for low-glare applications.
| Parameter | HB09-100W | HB09-150W | HB09-200W | HB09-240W | |||||
| Power (W) | 100W | 150W | 200W | 240W | |||||
| Input Voltage | AC100-277V/AC220-240V | ||||||||
| Luminous Efficacy | 140-170Lm/W | ||||||||
| Luminous Flux | 14,000Lm-17,000Lm | 21,000Lm-22,500Lm | 28,000Lm-34,000Lm | 33,600Lm-40,800Lm | |||||
| Beam Angle | 60°, 90°, 120° | ||||||||
| CCT | 3000K / 4000K / 5000K / 5700K / 6500K | ||||||||
| CRI | 70, 80 | ||||||||
| SDCM | 6 | ||||||||
| Power Factor | 0.9 | ||||||||
| THD | <15% | ||||||||
| Percent Flicker | <1% | ||||||||
| Parameter | HB09-100W | HB09-150W | HB09-200W | HB09-240W | |||||
| Structure Material | Die-casting Heat sink / ADC12 Aluminum Alloy | ||||||||
| Surface Finish | Powder coating (Black) | ||||||||
| Lens | PC Lens | ||||||||
| Parameter | HB09-100W | HB09-150W | HB09-200W | HB09-240W | |||||
| IP Rating | IP65 | ||||||||
| IK Rating | IK10 | ||||||||
| Protection Class | Class I | ||||||||
| Operating Temperature | -30°C ~ +45°C (-22°F ~ +113°F) | ||||||||
| Lifetime | 50,000 hours (L70) | ||||||||
| Warranty | 5 years | ||||||||
| Surge Protection | 6kV | ||||||||
| Parameter | HB09-100W | HB09-150W | HB09-200W | HB09-240W | |||||
| Intelligent Control | 0-10V Dimming, DALI-2 | ||||||||
| Certifications | CE, RoHS, ENEC, ERP | ||||||||
Minimizes upward spill and light pollution.
Assists installers in quick and precise light alignment.
Provides extra protection for sports environments.
Discover how the HB09 Series delivers exceptional performance, energy savings, and visual comfort for every arena.
For the fastest pricing, include model, quantity, application, and installation height.
