PL08 - LED Tennis Court Light

FL18 GameAres LED Stadium Floodlight
Flagship Performance Solution

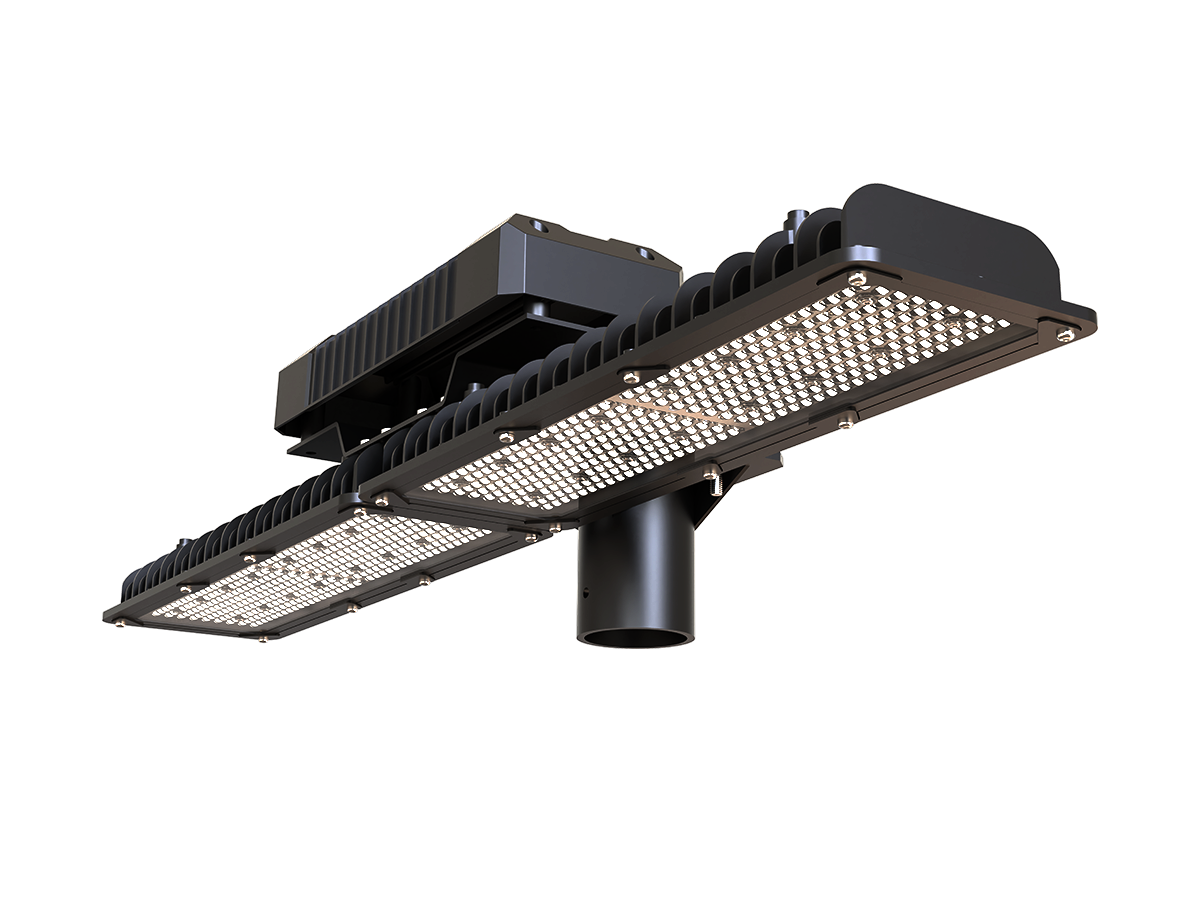

PL08 LED Tennis Court Light

Uniformity Control • Glare Management • Acceptance-Ready

Tennis-optimized LED lighting designed for playability, visual comfort, and regulatory compliance. PL08 delivers acceptance-ready results with court-optimized optics, spill-light control, and flexible mounting-perfect for single or multi-court installations requiring professional lighting standards.

LTA/ITF compliant optics
Spill-light control visor options
8 beam angle configurations
Simulation support included
165 lm/W
High Efficiency
240-500W
Power Range
IP66
Protection
CE/ENEC Certified
IP66 Rated
5-Year Warranty
Broadcast Certified
Request Quote Download Specs
Class-based

Uniformity

PPA/TPA target compliance

Player-friendly

Glare Control

Optimized visual comfort

Managed

Spill-Light

Neighbor-friendly design

Ready

Acceptance

Simulation-backed results

Beam Performance & Light Distribution

PL08 offers 8 beam angle options including white-only and RGBW configurations to match your specific venue requirements

Photometric Distribution Curve

10°
IES Certified
FL18 beam distribution
Polar Coordinates
C0-C180 Vertical Plane
C90-C270 Horizontal Plane

📐 Measured Beam Performance

AVERAGE BEAM ANGLE(50%): 10°

Laboratory Verified

Available Beam Angles

Select the optimal beam angle based on your pole height, field dimensions, and lighting requirements. RGBW options available for multifunctional venues.

Key Optical Features

  • Radial heat sink design reduces weight by 30%
  • PC lens + tempered glass: 94% light transmission
  • Monolithic lens eliminates hot spots
  • UGR<20 glare control for broadcast compatibility
120m+
Max Throw Distance
SDCM 6
Color Consistency
94%
Optical Efficiency
UGR<20
Glare Control

Product Features

PL08 combines tennis-specific optics with flexible installation and acceptance-ready deliverables. Multiple beam patterns, spill-light control, and simulation support make it ideal for demanding court projects.

Court-Optimized Optics

Symmetric and asymmetric options for different layouts

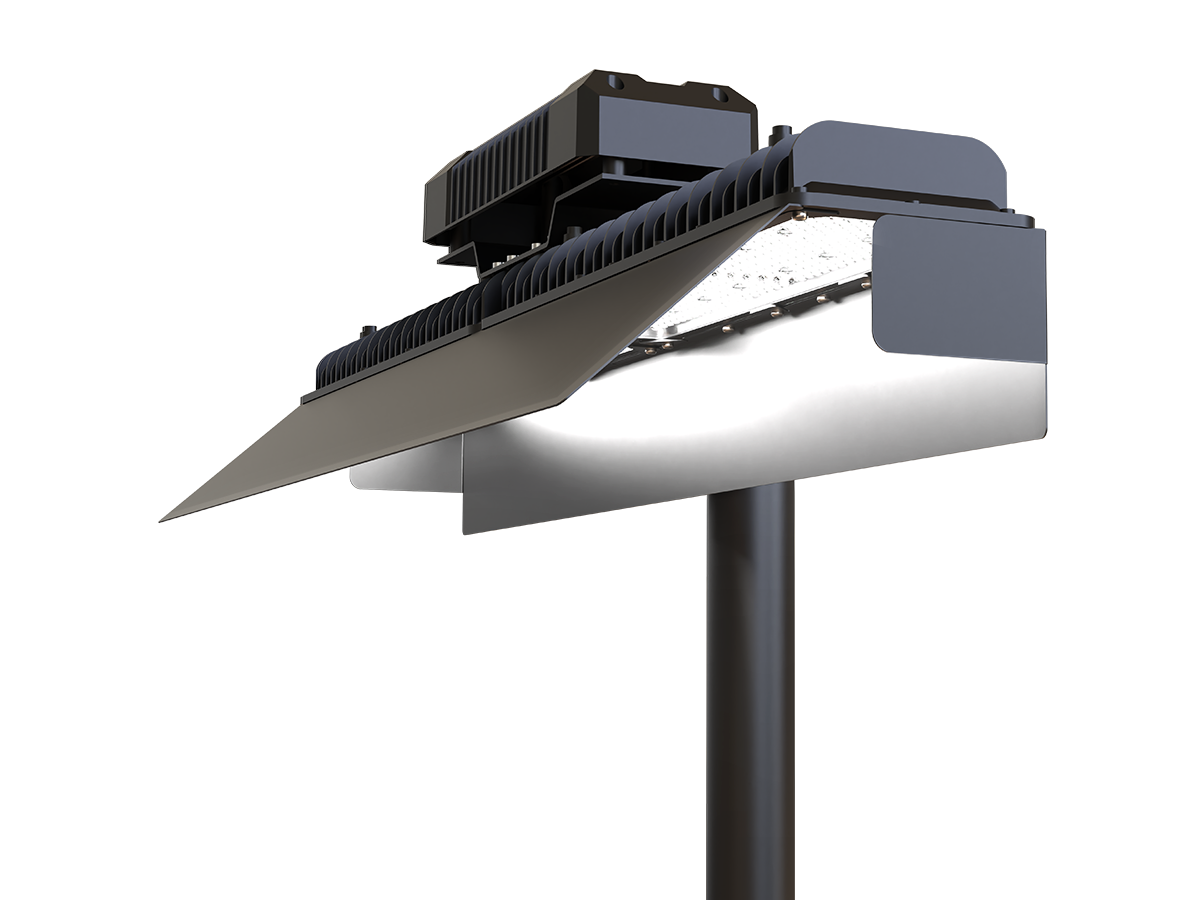

Optional Visors

Front/back spill-light and backlight control

Die-Cast Thermal Platform

Proven heat management for long-hour operation

PC + Glass Protection

Dual-layer durability for harsh conditions

IP66 & IK08 Rated

All-weather outdoor protection

±180° Wide Aiming

Dual mounting with flexible adjustment

Retrofit-Friendly

Works with existing poles, minimal downtime

Camera-Ready

Optional flicker-friendly drivers available

Smart Control Options

0-10V/DALI dimming for scene switching

Coastal-Ready

Optional C4/C5-M anti-corrosion upgrade

Advanced Engineering Features

FL19 5° tilted light surface detail
Designed Specifically for Tennis Court Applications

Tennis-Focused High-Performance LED System

PL08 is tennis-focused: 150-165 lm/W luminous efficacy, 240-500W power range, multiple optics configurations including symmetric and asymmetric beam patterns for single or multi-court layouts. Engineered to meet professional tennis court lighting standards with optimized uniformity, glare control, and spill-light management.

FL18 vertical fin heat sink
Court-Optimized Optics (Symmetric / Asymmetric)

Light Quality & Control

Multiple optics help match court size, pole layout and mounting height-reducing redesign iterations. Front and back visor options support projects with stricter environmental constraints, particularly in residential or school-adjacent installations.

FL18 dual-layer optical system

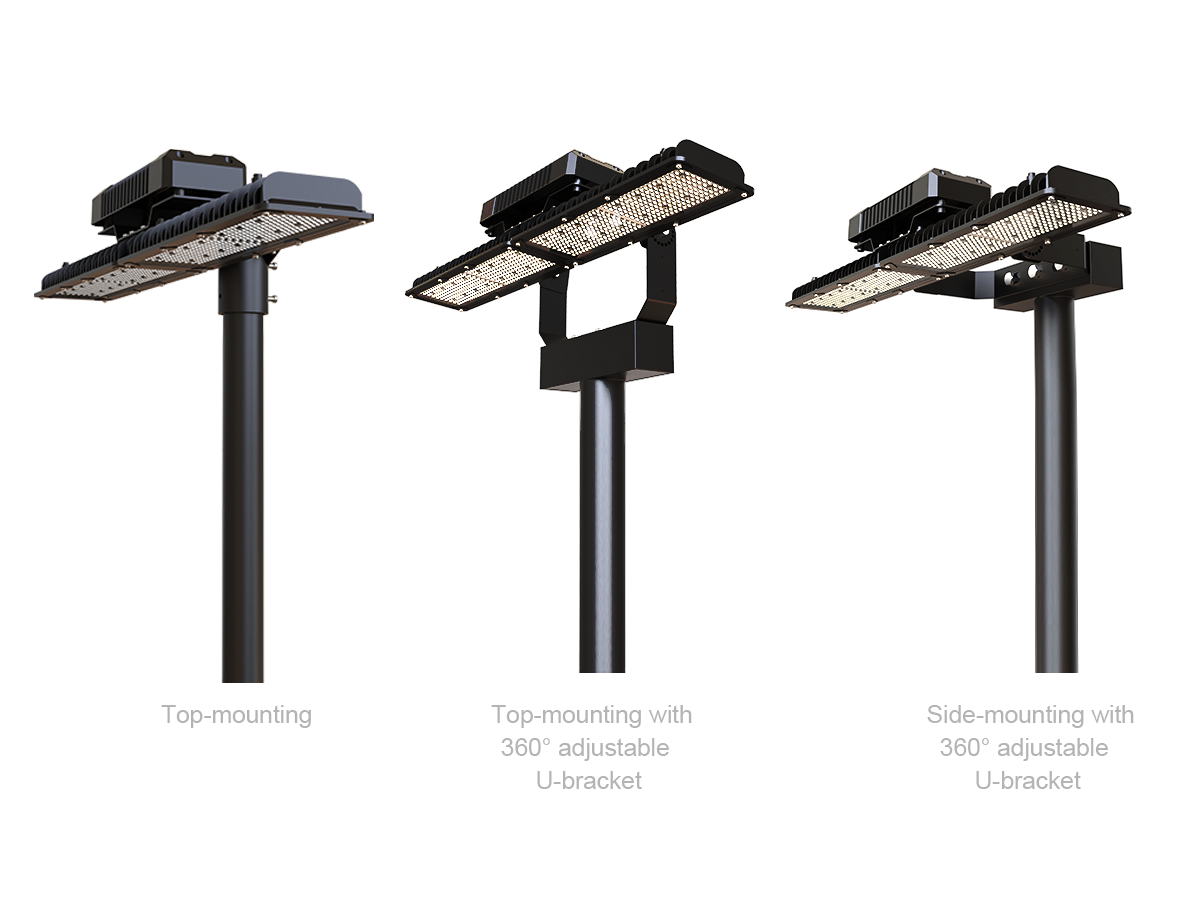

Dual Mounting + ±180° Wide Aiming

Flexible Mounting & Precision Aiming

Top mount and adjustable U-bracket configurations fit varied pole types and aiming requirements. The ±180° adjustment range provides exceptional flexibility for retrofit projects, allowing precise beam placement without replacing existing infrastructure.

Optional Accessories & Professional Installation Tools

Professional accessories for enhanced installation flexibility, light control, and long-term performance.

FL09 Ares visor accessory

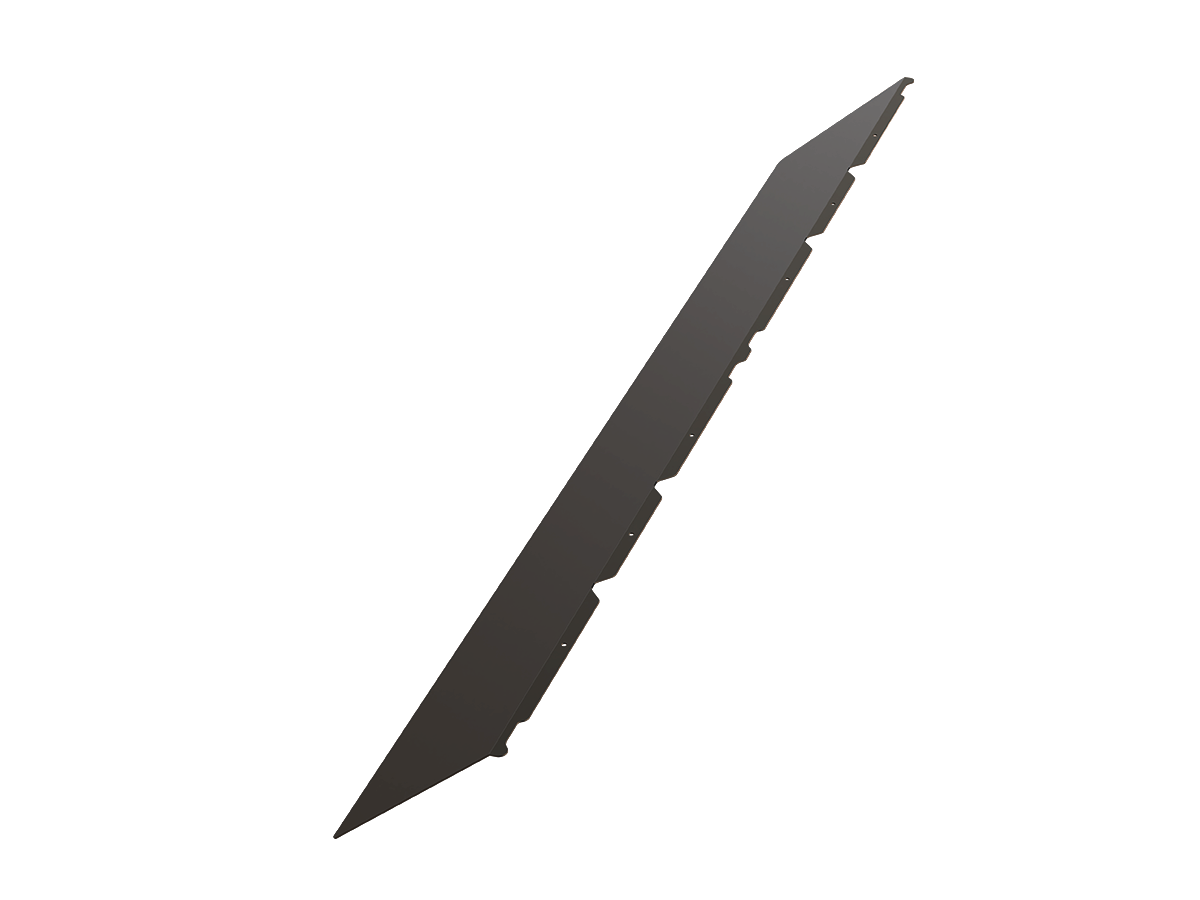

Spill-Light Control Visor

Optional front visor attachment for enhanced spill-light control in residential-adjacent installations

  • Reduces light trespass
  • Neighbor-friendly design
  • Easy installation
  • Durable construction

Applications

PL08 delivers acceptance-ready lighting for tennis courts and multi-sport facilities requiring precise uniformity and glare control

Sports Stadiums

Airports

Ports

Broadcast Venues

Training Facilities

Industrial Sites

Technical Specifications

Comprehensive technical data for engineering

Download Full Datasheet (PDF)
