SP02 - High-Efficiency Radial LED Stadium Floodlight

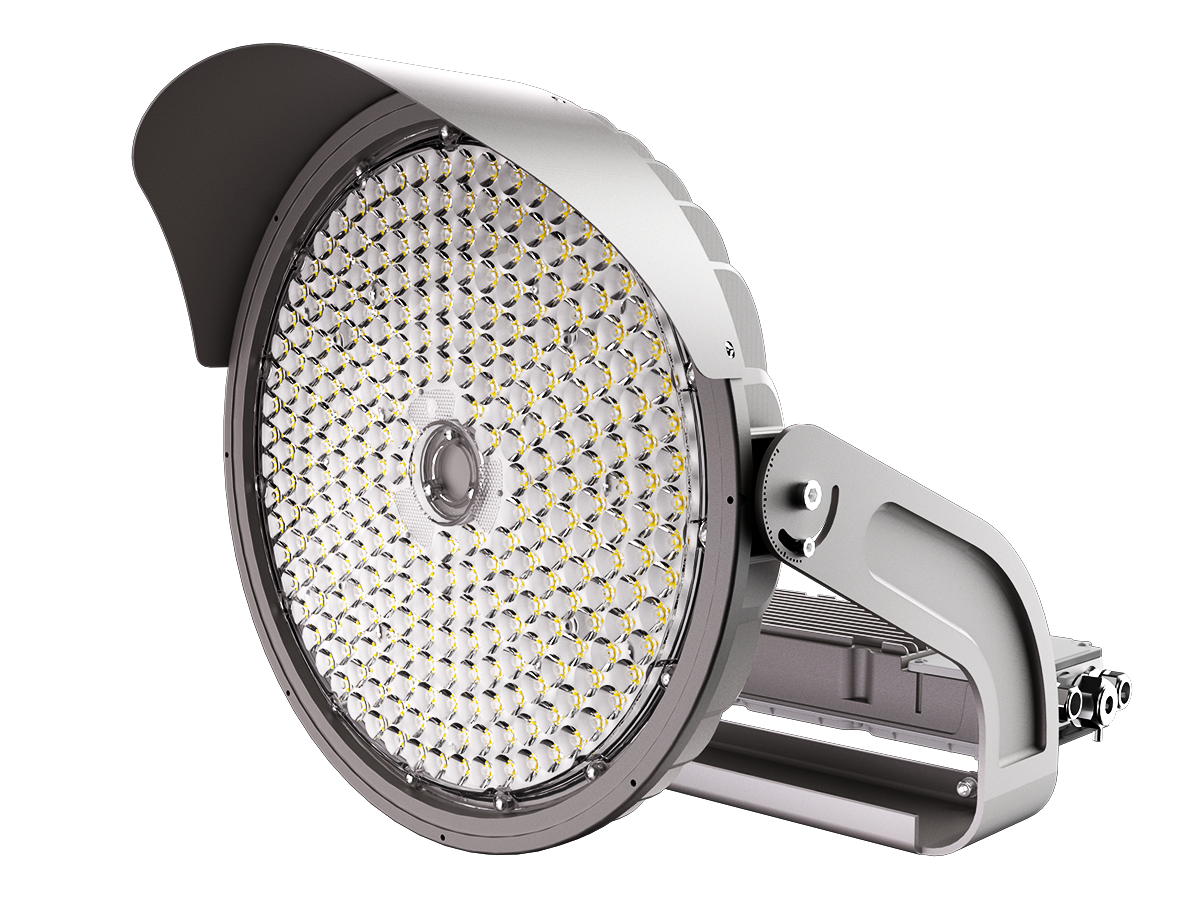

SP02 Radial Stadium LED Floodlight
Lightweight • Flexible • High-Performance

SP02 Radial Stadium LED Floodlight

500W-1200W • Up to 175 lm/W • Ultra-Lightweight Design

SP02 is a high-efficiency radial stadium LED floodlight engineered for maximum versatility and cost optimization. Features wide power range (500W-1200W adjustable), ultra-lightweight construction (from 8.5kg), and 4 flexible driver installation options. Perfect for soccer fields, rugby tracks, sports centers, outdoor arenas, and professional training facilities requiring adaptable lighting solutions.

Wide power range: 500W-1200W with adjustable options
Ultra-lightweight: 8.5kg-23kg (30% lighter than HID)
4 driver installation options: bracket/back/pole/distribution box
Smart control ready: 0-10V, DALI-2, DMX512, RGB/RGBW
60%
Energy Savings
3-in-1
CCT & Wattage Adjustable
IP66
Weather Protection
EN 12193 Class III
IP66 / IK10
5-Year Warranty
Global Shipping
Request Quote Download Specs
1:1

HID Replacement

For legacy 2000W+ fixtures

175

Efficacy

lm/W maximum

Max

ROI

Maximized ROI

4 Ways

Installation

Driver mounting

Beam Performance & Light Distribution

Four IESNA-certified beam distributions for perfect stadium coverage

Photometric Distribution Curve

12°
IES Certified
SP02 beam distribution
Polar Coordinates
C0-C180Vertical Plane
C90-C270Horizontal Plane

📐 Measured Beam Performance

AVERAGE BEAM ANGLE(50%): 15°

Laboratory Verified

Available Beam Angles

Select the optimal beam angle based on your pole height, field dimensions, and lighting requirements

Key Optical Features

  • Radial heat sink design reduces weight by 30%
  • PC lens + tempered glass: 94% light transmission
  • Monolithic lens eliminates hot spots
  • UGR<20 glare control for broadcast compatibility
120m+
Max Throw Distance
SDCM 6
Color Consistency
94%
Optical Efficiency
UGR<20
Glare Control

Product Features

SP02 combines cost-optimized design with professional-grade performance. Tournament-ready illumination meets smart affordability.

Cost-Optimized Design

60% energy savings vs. 2000W HID systems

Advanced Thermal Control

IP66 chambers with isolated driver cooling

Tournament-Ready

EN 12193 Class III compliant

High Optical Efficiency

94% light transmission with premium PC lenses

3-in-1 CCT & Wattage

CCT & power adjustable via selector

Flexible Maintenance

Tool-free driver swap with ergonomic handles

Precision Aiming

U-bracket mounting with adjustable angle

Lightweight Design

30% shipping savings vs. legacy fixtures

Broadcast-Ready

Optional CRI90/TLCI90 for 4K cameras

Flexible Configuration

Lens-only or Lens+Glass protection options

Advanced Engineering Features

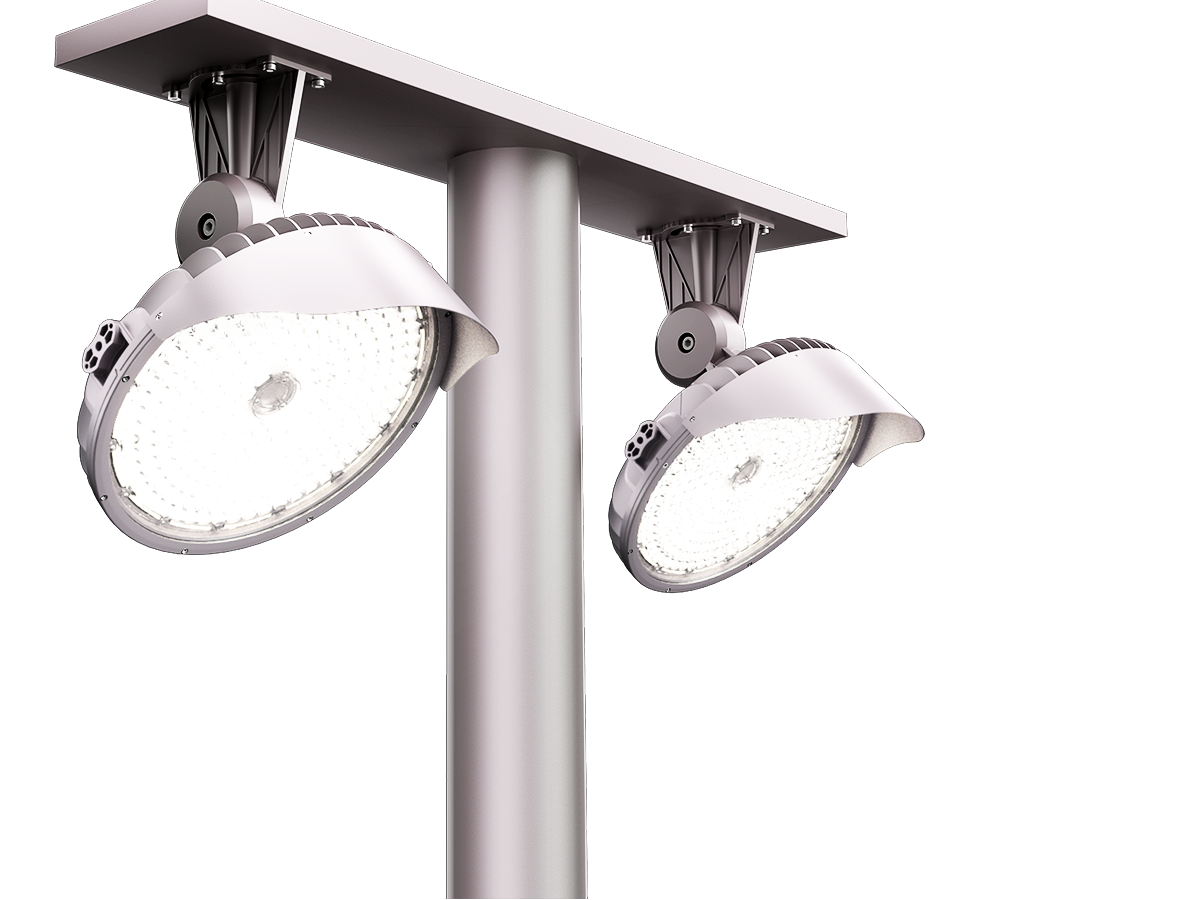

Precision Optics

Precision Optics & Tournament-Ready Beam Uniformity

Four IESNA-certified beam distributions (15°/25°/40°/60°) deliver seamless coverage for installations from 15m to 40m+ pole heights. Monolithic lens design combined with premium Osram/Lumileds LEDs achieves professional uniformity meeting EN 12193 Class III requirements. PC lens + tempered glass option provides 94% light transmission with IK08/IK10 impact resistance, perfect for high-performance sports facilities and broadcast events.

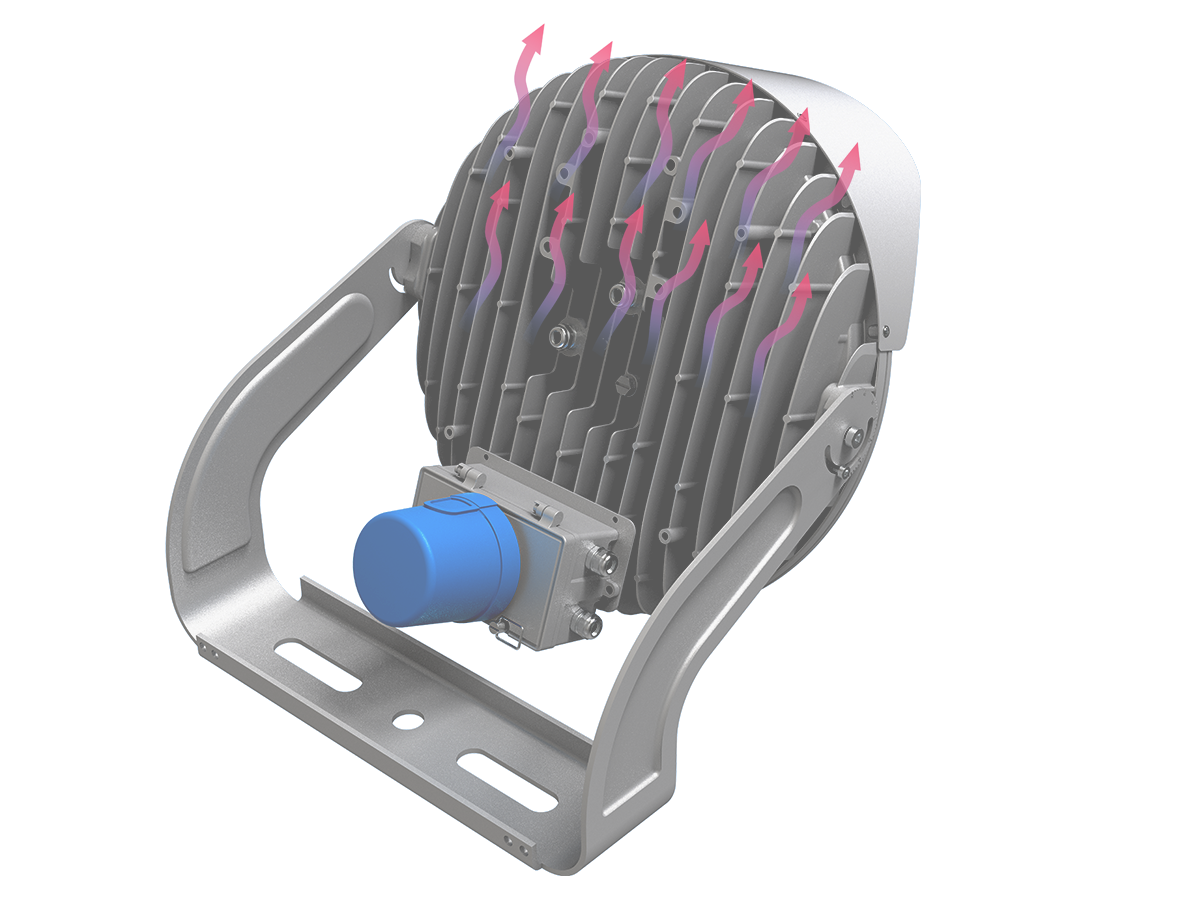

Thermal Control

Unshakeable Thermal Control for 24/7 Operation

Integrated die-cast ADC12 aluminum heat sink with radial fin architecture leverages natural airflow to accelerate heat dissipation while maintaining ultra-lightweight construction. Advanced photoelectric separation design isolates driver from LED heat stress, ensuring stable operation in -40°C to +50°C environments. This optimized thermal management guarantees 50,000+ hours L90B10 performance-critical for tournament venues with continuous lighting demands.

CCT Adjustment

3-in-1 CCT & Power Adjustment for Maximum Flexibility

Switch between 3000K/4000K/5000K/5700K/6500K CCT options via internal selector-no fixture replacement needed. Power adjustment enables scene-based dimming across wide range: 600W model adjusts to 500W/400W; 1000W model to 800W/600W. This eliminates SKU complexity, enables training vs. match mode switching, and future-proofs installations against evolving project requirements and energy regulations.

Dual Lens

Dual-Lens Protection System: Flexibility Meets Economics

Choose between PC Lens + Tempered Glass for maximum IK10 impact resistance and anti-yellowing shield, or PC Lens-Only Economy Option for high-clarity optics at optimized price. Both configurations share identical die-cast housing, simplifying distributor stocking and inventory management. Premium PC optical lenses deliver 94% light transmission with minimal lumen depreciation over 50,000+ hour lifetime.

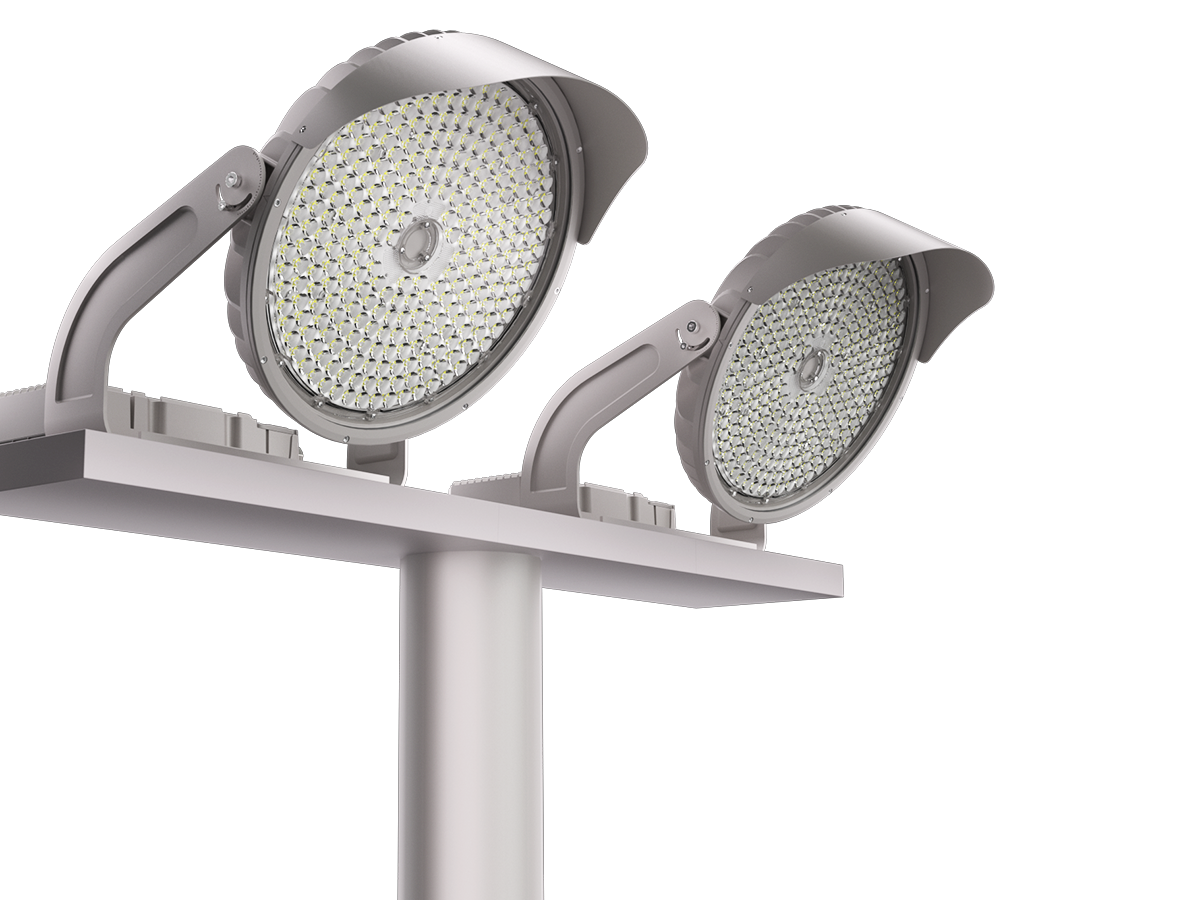

Lightweight

Lightweight Compact Design for Installation Efficiency

SP02 weighs from 8.5kg to 23kg depending on configuration-30% lighter than equivalent HID fixtures, dramatically reducing shipping costs and installation time. The compact radial form factor fits existing U-bracket mounting systems without modifications, while the lightweight construction enables safer high-mast work. Reduced weight also lowers structural load on poles, enabling retrofits on weight-limited infrastructure.

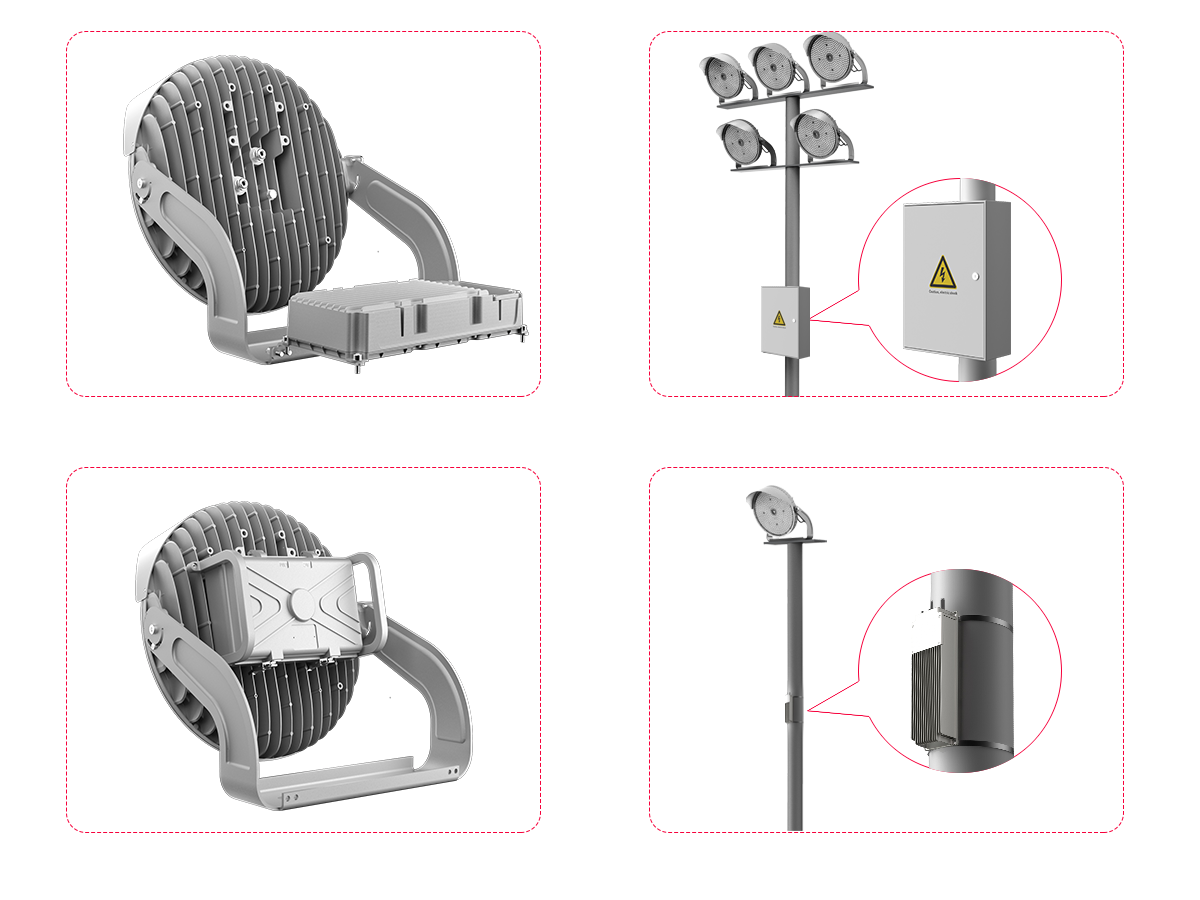

Driver Mounting

Decoupled Driver Mounting: Retrofit-Friendly Architecture

Four installation options provide unmatched flexibility: 1) Driver on Bracket (balanced weight distribution), 2) Driver on Back (all-in-one compact design), 3) Driver on Poles (separated thermal management), 4) Driver in Distribution Box (centralized power management). This decoupled design accommodates legacy electrical layouts without rewiring, while die-cast driver housing includes 10kV/20kV surge protection-reducing external protection costs.

Professional Accessories & Optional Add-ons

SP02 offers a comprehensive range of optional accessories for specialized requirements. The universal ADC12 U-bracket is compatible with both SP02 and FL09 series for simplified inventory management. Light control visors provide enhanced spill-light control (<2% uplight), essential for dark-sky compliance. Tempered glass shields protect PC lenses from UV degradation and harsh environmental conditions. Ergonomic safety handles enable OSHA-compliant high-mast installation efficiency.

Applications

SP02 is designed for specialized sports court lighting with optimized performance for professional and recreational facilities

Sports Stadiums

Airports

Ports

Plazas

Training Grounds

Industrial Areas

Technical Specifications

Comprehensive technical data for engineering and procurement

Download Full Datasheet (PDF)
