Aviation-Grade Lighting

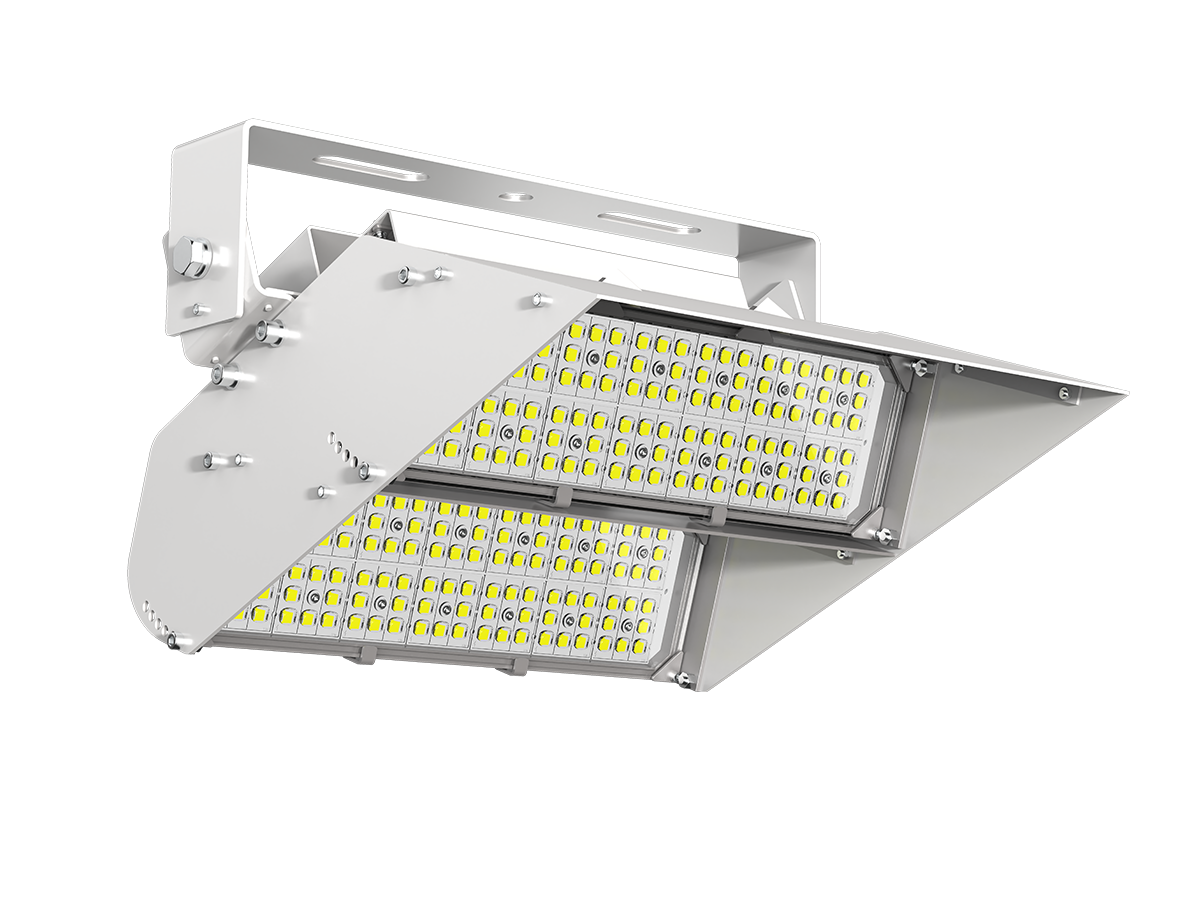

FL20 Full-Cutoff Modular Floodlight

200W-1200W•0%Uplight•Airport Apron Specialist

FL20 is specifically engineered for airport apron lighting with full-cutoff optical shielding delivering absolute zero upward light(0%uplight).The advanced modular design provides flexible power options from 200W to 1200W,while multiple beam distributions(30°-90°,T1-T5 road patterns,P45 asymmetric)ensure optimal coverage for aviation,sports fields,roadway,and plaza lighting applications.

Full-cutoff design:0%uplight for airport compliance

Versatile beams:30°-90°symmetric+T1-T5 road patterns

Modular scalability:200W to 1200W(1-4 modules)

Aviation certified:FAA/ICAO compliant zero uplight

Uplight(Full Cutoff)

1-4

Module Options

10+

Beam Patterns

FAA/ICAO Certified

IP66/IK08

5-Year Warranty

Aviation Grade

Request Quote Download Specs

Full Cutoff

Absolute zero uplight

1-4

Modular Design

Scalable modules

Aviation-Grade

Vibration tested

200-1200W

Power Range

Flexible scaling

Product Features

FL20 combines full-cutoff optical shielding with modular scalability for aviation, sports, and large-area outdoor lighting applications.

Full-Cutoff Design

0% uplight for absolute dark-sky compliance

Modular Design

2-module configuration (200W-1200W)

Aviation-Grade Build

3G vibration test, IP66/IK08

High Efficiency LEDs

Lumileds premium chips

Versatile Beam Options

10 distributions: symmetric, asymmetric, road

Superior Thermal Design

Die-cast ADC12 aluminum

360° Rotation

Complete directional freedom

Storm-Resistant

12-grade typhoon tested

Smart Control Ready

DALI/DMX/0-10V support

Flexible Power Supply

Multiple driver mounting options

Advanced Engineering Features

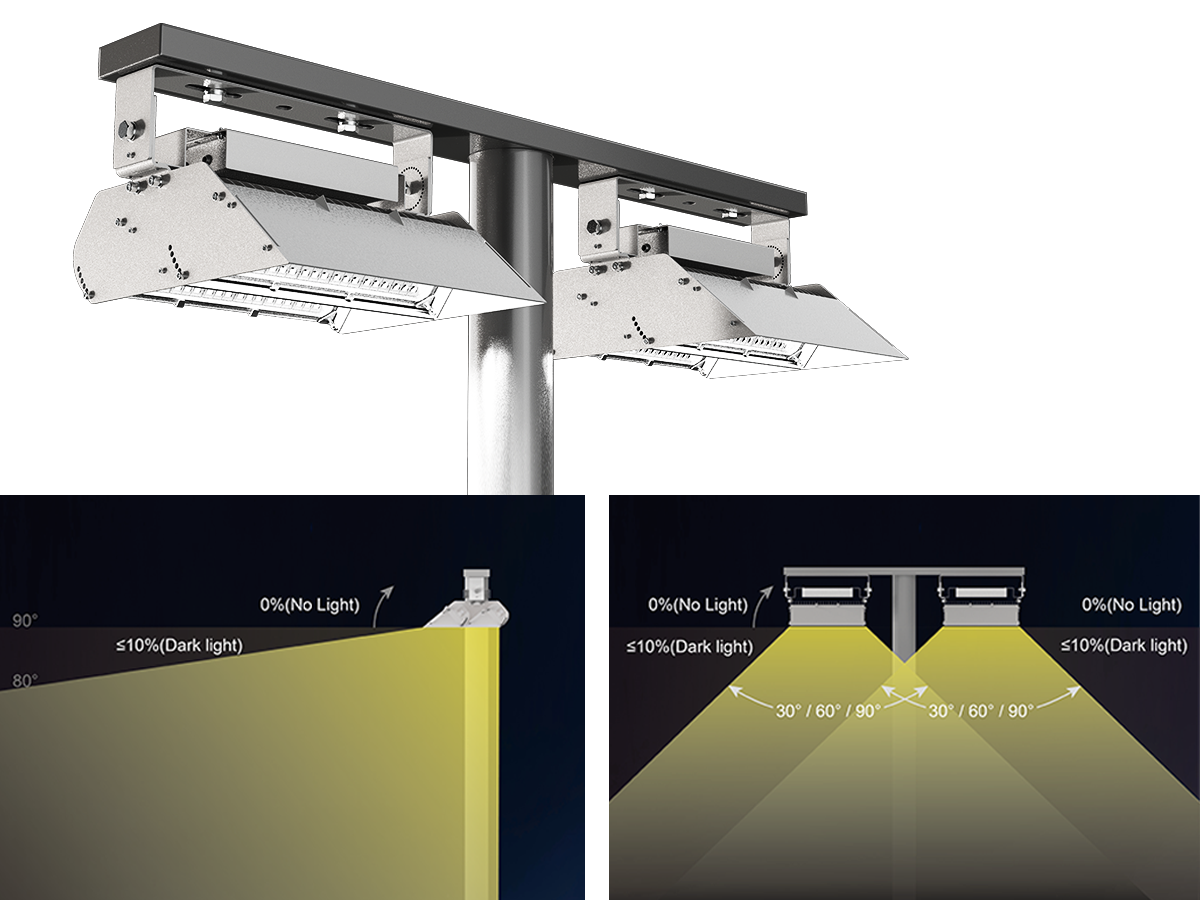

FL20 Full-Cutoff Optical Design - 0% Uplight for Airport Compliance

Optical Excellence

Full-Cutoff Optical Shielding (0% Uplight)

FL20 features aviation-grade full-cutoff optical design delivering absolute zero upward light emission. The precision-engineered optical shielding system ensures 100% of light output is directed downward, meeting the strictest dark-sky compliance requirements for airport apron lighting and environmentally sensitive installations.

This full-cutoff architecture eliminates sky glow, reduces light pollution, and prevents aviation navigation interference-critical for airport operations. The optical system maintains 94% transmission efficiency while achieving complete uplight control, making FL20 ideal for airports, sports facilities near residential areas, and nature preserves.

0% uplight emission for dark-sky certification
Aviation-grade optical shielding system
Prevents navigation interference and sky glow

Precision Installation

Dual-Level Precision Aiming System

FL20 features an advanced dual-level aiming mechanism providing both horizontal and vertical precision adjustment. The horizontal rotation offers 360° continuous positioning for optimal directional alignment, while the vertical tilt mechanism provides ±45° adjustment range with precision-marked increments for accurate beam placement.

This dual-axis precision system enables installers to achieve exact beam positioning during installation, ensuring optimal coverage patterns across airport aprons, sports fields, and large outdoor areas. The gear-driven locking mechanism maintains stable positioning even under extreme wind loads and vibration conditions. Precision scales allow replication of exact angles across multiple fixtures for uniform illumination.

360° horizontal rotation for complete directional freedom
±45° vertical adjustment with precision scale markings
Gear-driven locking for stable beam positioning

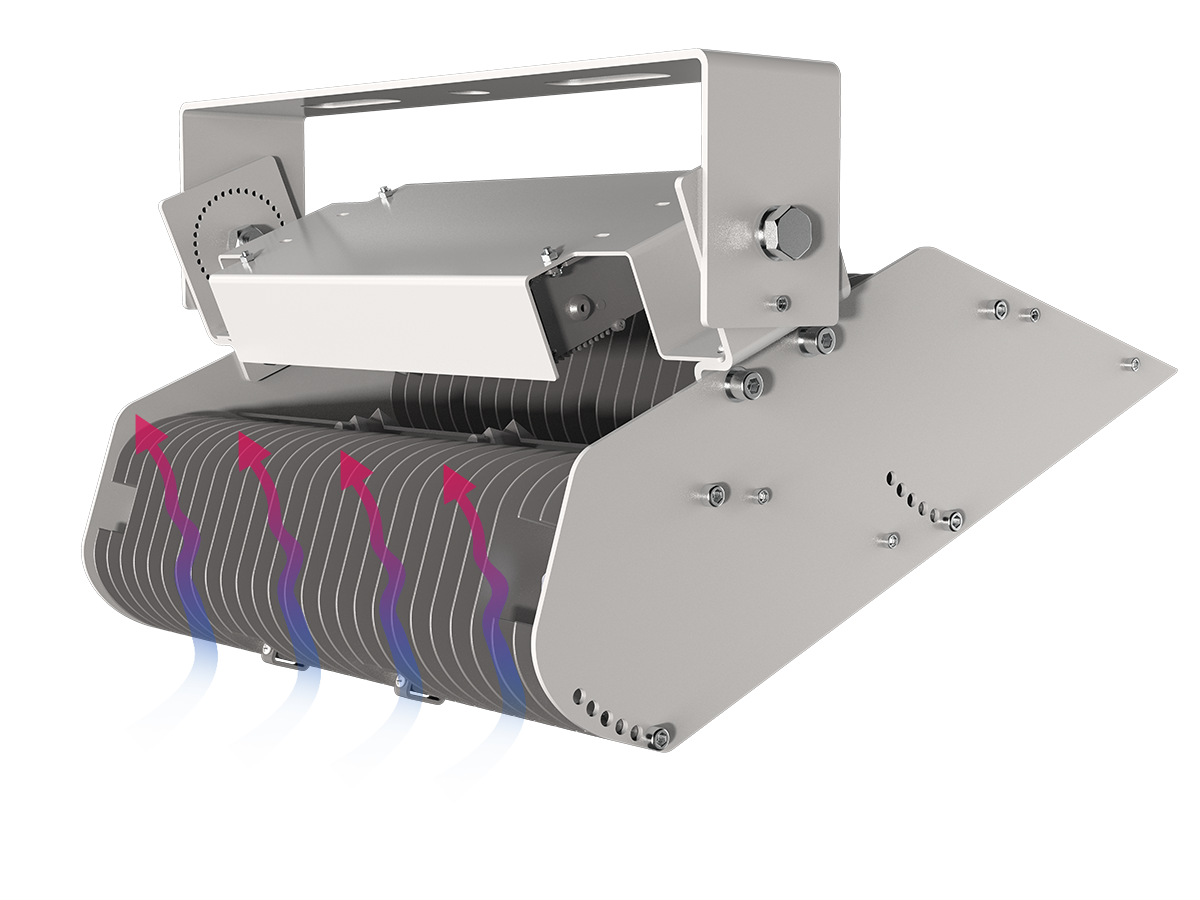

FL20 Aviation-Grade Construction - 3G Vibration Test IP66 IK08

Durability & Protection

Aviation-Grade Build Quality (3G Vibration + IP66/IK08)

FL20 exceeds aviation industry standards with 3G vibration testing certification-three times gravitational force-ensuring stable operation in high-vibration airport environments including jet blast zones and high-wind coastal locations. The fixture maintains optical alignment and electrical integrity under extreme mechanical stress.

IP66 ingress protection guards against powerful water jets and complete dust intrusion, while IK08 impact rating withstands mechanical impacts from ground service equipment. Die-cast ADC12 aluminum construction with SPCC steel brackets provides industrial-grade structural integrity, passing 12-grade typhoon wind-load testing.

3G vibration certification for aviation applications
IP66 weatherproof + IK08 impact resistant
12-grade typhoon wind resistance

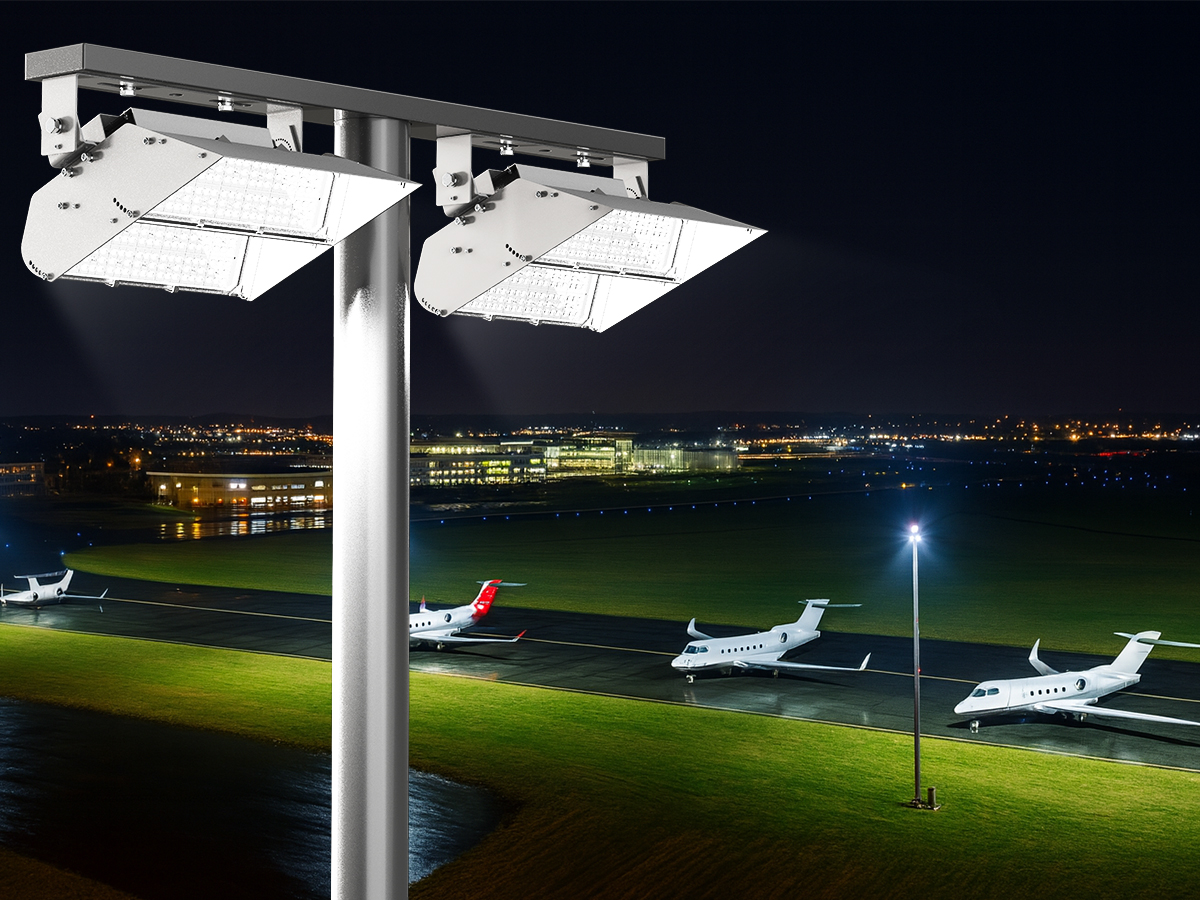

Visual Comfort & Quality

Low-Glare & High Uniformity

FL20's full-cutoff optical design combined with precision-engineered beam distributions delivers exceptional visual comfort with minimal glare. The advanced reflector system and lens combinations achieve high uniformity ratios across the illuminated area, reducing harsh shadows and creating comfortable working environments for airport ground crews and athletes.

The multi-beam distribution options (30°-90° symmetric, T1-T5 road patterns, P45 asymmetric) enable designers to select the optimal pattern for specific applications, ensuring uniform light distribution tailored to airport aprons, sports fields, roadways, and plazas. The full-cutoff design inherently reduces glare by eliminating upward light that would reflect into eyes.

Flicker-Free Driver Technology

FL20 utilizes premium flicker-free LED drivers that eliminate visible flicker and reduce invisible high-frequency flicker below IEEE 1789 recommended levels. This flicker-free performance is critical for airport operations requiring visual precision and for sports venues with high-speed camera systems. The constant-current driver maintains stable output across the full voltage range (AC 100-277V / 198-440V), ensuring consistent illumination without strobing effects.

High uniformity ratios for comfortable illumination
Flicker-free drivers meeting IEEE 1789 standards
Optimized for high-speed cameras and visual tasks

Applications

FL20 excels in aviation, sports, and large-area outdoor lighting requiring zero uplight
