Roof vs. high-mast mounting
Roof-edge systems can reduce pole clutter but introduce structural, access and cable-routing constraints. High-mast systems provide clear aiming positions but require foundation, wind-load and headframe review.
Sports & Venue Lighting
Professional Stadium Lighting
Broadcast-aware lighting for major stadiums, elite competition venues and large camera-facing sports facilities.
Venue TypeProfessional stadium / elite
competition venue
Typical GeometryFull-size field plus
stands, camera positions and possible roof structures
MountingHigh-mast towers, roof edges or
mixed structural positions
Critical ReviewHorizontal + vertical
light, glare, flicker, broadcast views and off-site impact
Project Context
Design the lighting around how the venue is actually used.
High-quality sports lighting is a system result. Geometry, source positions, optics, controls, environmental limits and commissioning all influence the final experience.
A professional stadium is not simply a 105 × 68 m rectangle. The photometric model should include the real field, safety run-off, any athletics track, team areas, advertising positions, stands, roof edges, scoreboards and the principal camera locations. When the lower seating bowl, roof or event configuration changes, the lighting design may also need to accommodate more than one operating geometry.
At this level, the design should be developed from observer positions as well as measurement grids. Players look upward toward high luminous sources, spectators face different mast groups from different stands, and broadcast cameras require vertical information from specific directions. These viewpoints can drive a different aiming solution even when two stadiums have similar field dimensions.
The project brief should therefore define competition level, broadcast expectations, event use, maintenance strategy and surrounding environmental limits before fixture quantity is discussed.
ZC project approach: use the actual site drawing and target criteria to select products, optics, quantity, aiming and compatible controls. Product wattage is an input to the calculation—not the starting answer.
Geometry, Mounting & Aiming
Source position and beam direction determine the quality of the installation.
The same luminaire can perform very differently when pole height, setback, aiming angle or observer direction changes.

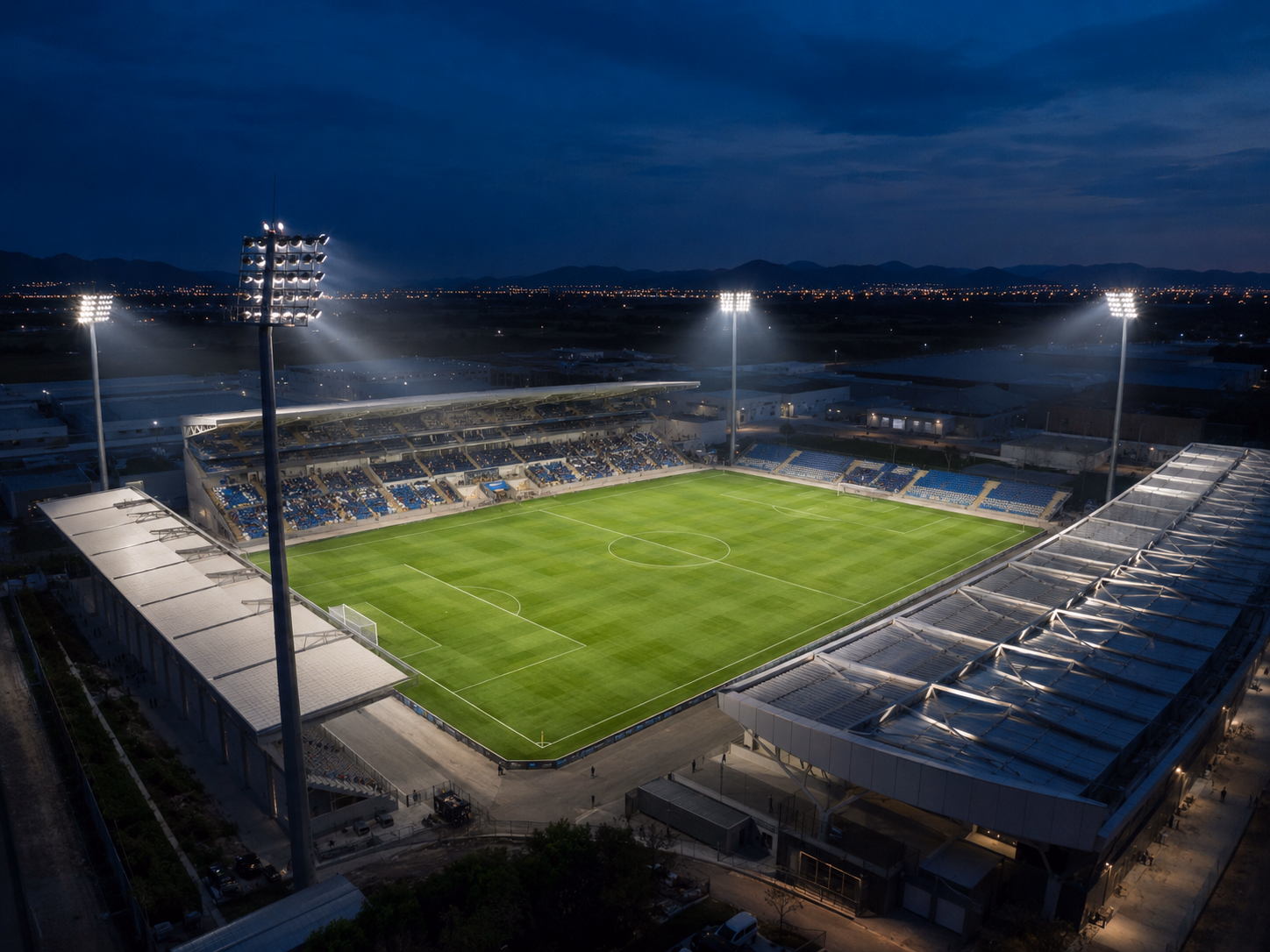

Large stadium reference showing high-mast positions, long-throw coverage and camera-facing venue geometry.

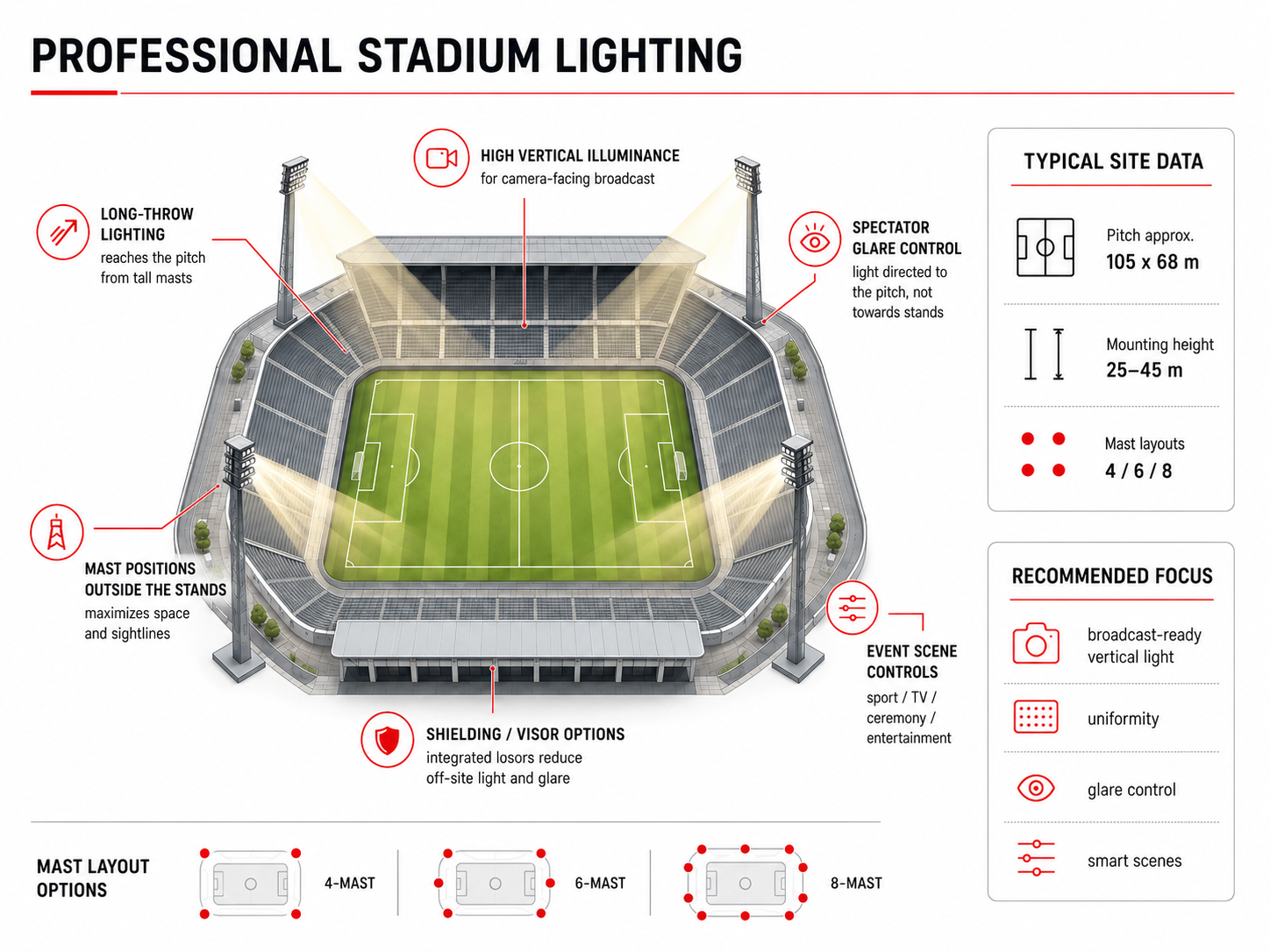

Illustrative mast-layout logic for cross-field coverage, vertical light and glare review. Final mast quantity and aiming must follow the actual venue.
Typical reference only. Final pole quantity, mounting height, aiming
angles, optical distribution and fixture quantity should be confirmed by photometric
calculation, structural conditions and the applicable project requirements.
Cross-aiming rather than centre aiming
Use multiple target zones and overlapping beam groups. Aiming every fixture toward the centre usually increases hotspots, reduces vertical balance and can worsen glare.
Camera-facing design
Primary and secondary camera positions should be marked in the calculation so vertical illuminance and source visibility can be reviewed from realistic directions.
Event configuration
If the venue also hosts concerts or ceremonies, keep the compliant white sports-lighting scene separate from entertainment or RGB/RGBW effects.
Lighting Performance
Review more than average horizontal lux.
A complete review considers playability, visual adaptation, camera or spectator needs and the effect of the lighting outside the venue.
Horizontal illuminance
Defines the playing-surface visibility and should be checked across the full
field and run-off areas.
Set by league, broadcaster, client or applicable standard.
Vertical illuminance
Critical for player recognition and camera exposure. Review from the actual
camera and observer directions.
Do not rely on horizontal lux alone.
Uniformity
Controls visual adaptation and tracking of fast action across the field.
Review average/minimum relationships and local gradients.
Glare
Evaluate visible source brightness from player, goalkeeper, spectator and camera
positions.
Luminaire specification alone cannot guarantee a low-glare installation.
Color & flicker
Higher color quality and low-flicker operation may be required for HD/high-speed
capture.
Confirm CRI/TLCI, CCT and driver configuration for the project.
Off-site impact
Check spill light, backlight and visible source brightness at property
boundaries, windows, roads and sensitive surroundings.
Shielding and aiming must be coordinated with the layout.
Have a target standard, league brief or photometric specification?Send it with your site drawing →
Controls & Operating Scenes
Light when needed, at the level the venue actually needs.
Scene planning can reduce operating hours and energy use, but the control architecture must match the selected driver/product configuration. ZC can coordinate compatible luminaire interfaces; final system integration should follow the project control design.
Full project-approved sports scene.
Reduced-output operation where the calculated performance remains acceptable.
Intermediate scene before full competition output.
Local or reduced output for non-sport operation.
DMX/RGB/RGBW or other event functionality only where the chosen product and control design support it; keep separate from the compliant sports scene.
Accessories & Special Conditions
Use accessories to solve defined engineering issues.
Shielding, brackets, drivers and electrical accessories should be selected because the project needs them—not added as generic decoration.
Precision aiming brackets / scales
Visors or shields where calculation shows a measurable benefit
Remote-driver or cabinet strategy where service access requires it
Surge protection and outdoor electrical coordination
Structural review of bracket, headframe, weight and EPA
Aiming schedule and fixture identification labels for commissioning
New Build & Retrofit
Existing infrastructure can be valuable, but it must be verified.
LED retrofit decisions should combine structural, electrical, optical and operational review.
Existing stadium poles or roof beams can often be retained, but an LED
retrofit should not be designed as a watt-for-watt substitution. Confirm structure, fixture
weight/EPA, bracket spacing, electrical circuits, access, old aiming directions and the new
photometric target. Where cable capacity or roof loading is limited, the electrical and mounting
strategy may be as important as luminous output.
Retrofitting existing poles or roof positions?Send
pole height, fixture photos and existing layout →
Recommended Products
Products worth evaluating for this application.
These are project starting points, not universal specifications. Final product, power, optics, accessories and controls should follow photometric calculation and installation conditions. Confirm the latest product configuration with ZC Lighting before specification.

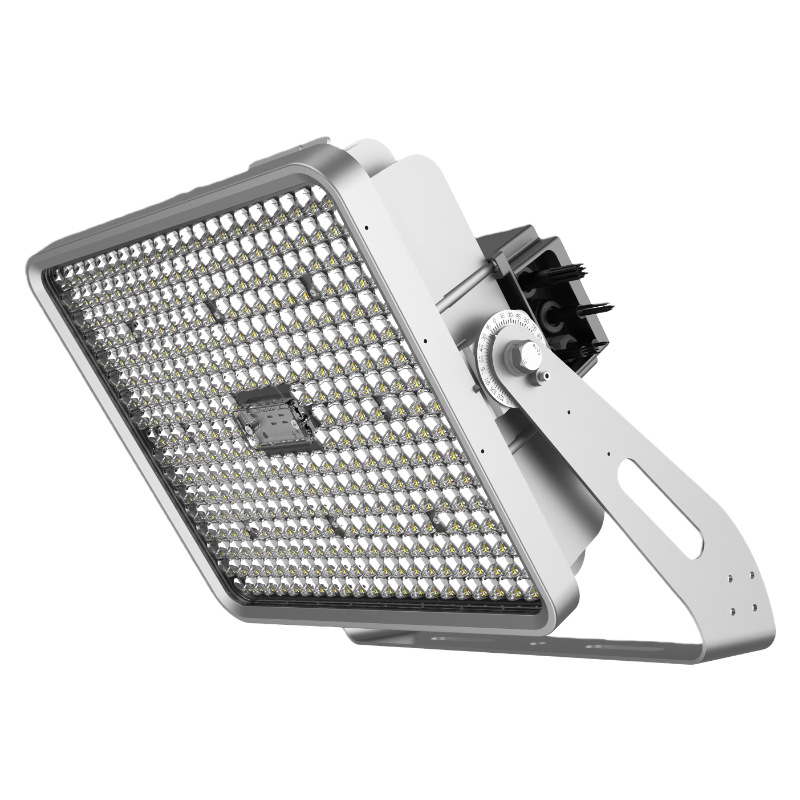

FL18
GameAres FL18
High-output integrated sports floodlight with multiple power, optical and color-quality configurations for professional stadium and long-throw projects.
Why evaluate it here: Primary professional-stadium option when
high output, multiple power levels, color-quality choices and sports controls are
required.
View
product→

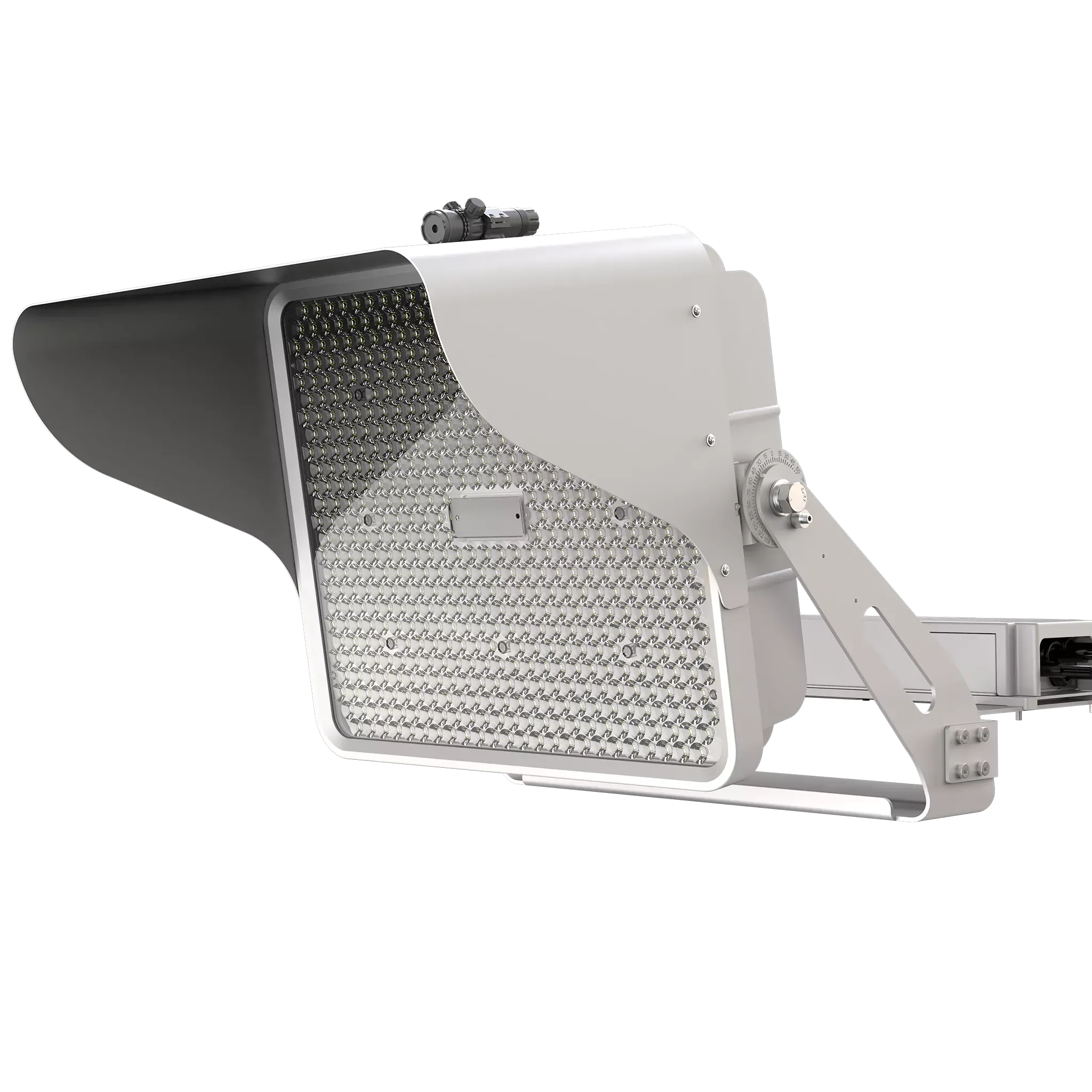

FL09
Ares FL09
Professional long-throw sports luminaire for high mounting positions, large fields and projects requiring precise beam selection and camera-oriented light quality options.
Why evaluate it here: Strong long-throw option for high mounting
positions and narrow optical work.
View
product→

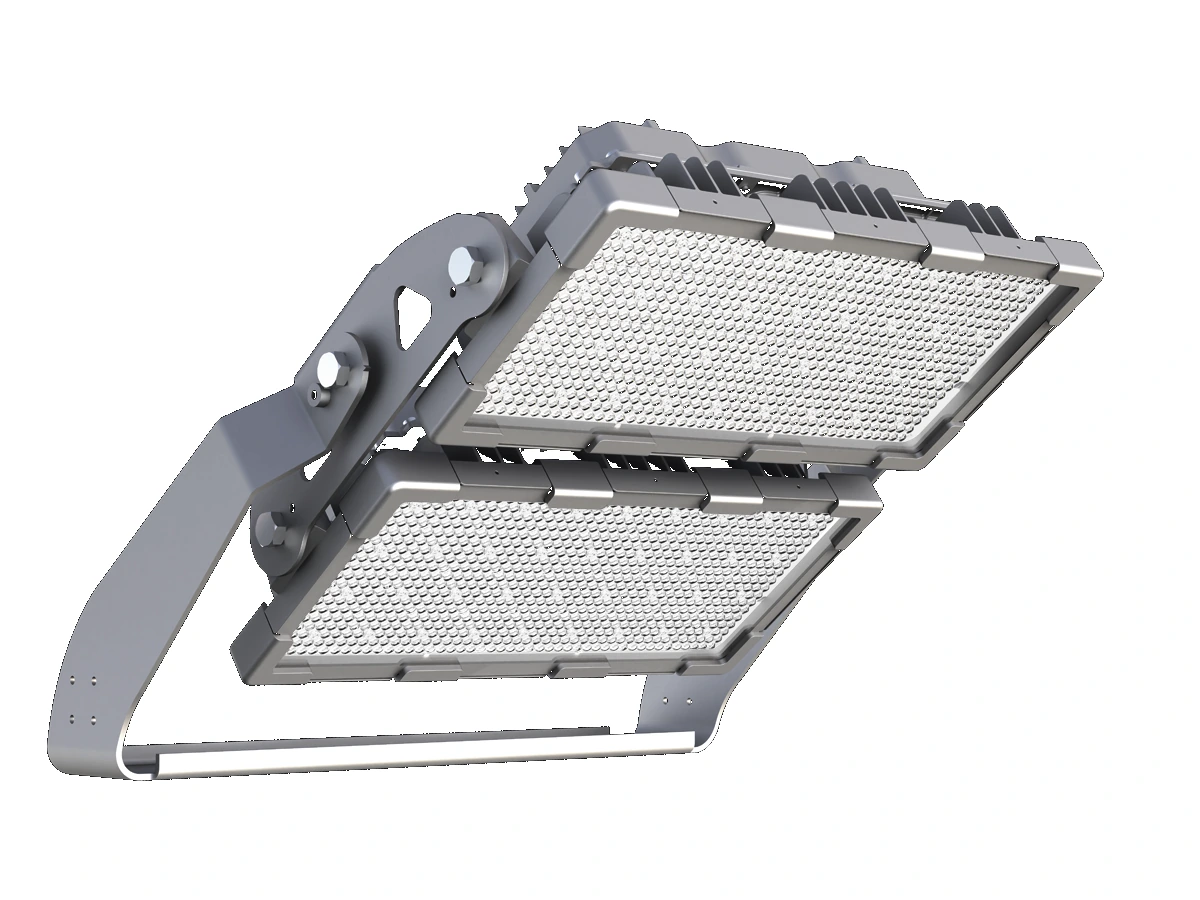

FL26
FL26 Scalable Stadium Floodlight
Modular sports floodlight with a broad power and optical range, useful where one project needs several beam distributions or phased fixture quantities.
Why evaluate it here: Useful where one venue needs several
optics, modular power levels or a scalable fixture family.
View
product→

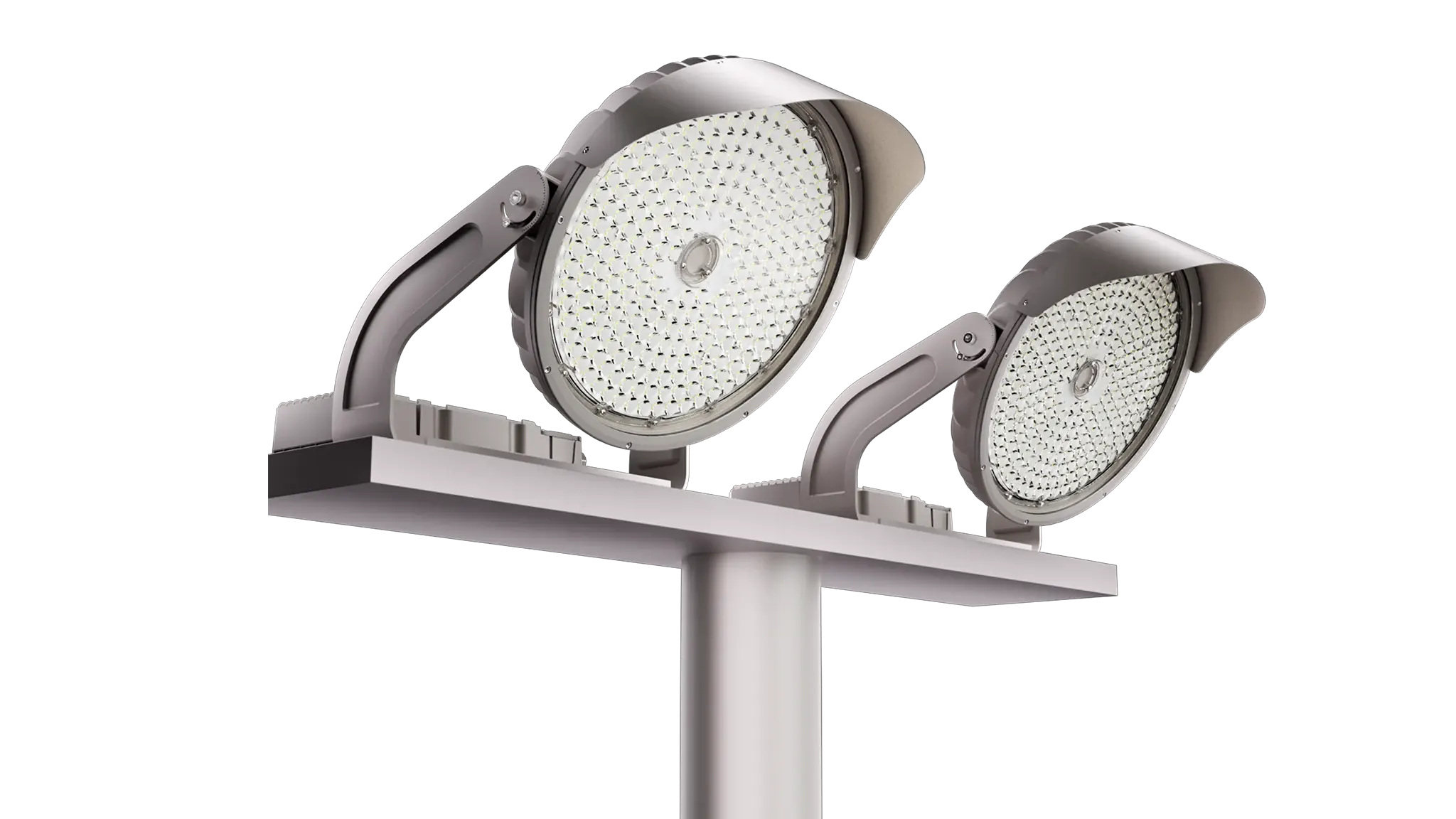

SP02
SP02 Pro Stadium Floodlight
High-power sports floodlight for large-area and event-oriented venues, with multiple optical and control configurations depending on the selected version.
Why evaluate it here: Consider for high-power event-oriented
sports applications and projects needing compatible control configurations.
View
product→Installation & Commissioning
A good calculation still needs a disciplined site handover.
Fixture orientation, aiming, control grouping and verification should be treated as part of the lighting design—not left to visual adjustment after installation.
Confirm every fixture code matches the aiming schedule.
Verify bracket rotation/tilt before energizing.
Measure the agreed horizontal and vertical grids after installation.
Review glare-sensitive observer positions at night.
Confirm each operating scene and control group.
Record final aiming changes and retain an as-built schedule for maintenance.
Project Input Checklist
What to send for a faster technical review.
Better input data reduces redesign, narrows the right product/optic combination and makes the first proposal more useful.
01
CAD/PDF venue plan with dimensions
02
Pitch, track and spectator geometry
03
Pole / roof positions and mounting heights
04
Camera locations and broadcast expectations
05
Competition level or target performance criteria
06
Control scenes and electrical interface
07
Existing fixture schedule for retrofit projects
08
Boundary, road and residential constraints
CAD or PDF available?Attach it with the enquiry
for a faster photometric review →
Frequently Asked Questions
Questions to resolve before final product selection.
These answers are practical engineering guidance. Final performance should be confirmed against the project requirements and applicable local or sport-specific standards.
How many floodlights does a professional stadium need?
There is no reliable fixture count without venue geometry, mounting height, optics, target performance and camera requirements. Quantity should come from a photometric model rather than a wattage rule.
Should all stadium luminaires aim toward the field centre?
No. Professional layouts typically use several target zones and cross-aiming so horizontal and vertical requirements can be balanced while controlling glare.
Can existing HID poles be reused?
Often yes, but structure, EPA, headframe geometry, electrical compatibility and the new aiming design should be reviewed first.
Do I need special controls for a professional venue?
Not always, but separate competition, training and maintenance scenes usually improve operation. Broadcast or event venues may also require compatible dimming or entertainment interfaces.
What should be checked after installation?
Verify orientation, aiming, scene operation, illuminance, camera-sensitive viewpoints, boundary light and any project-specific acceptance measurements.
