Why this application needs its own lighting approach
Interchanges require long-distance visual guidance across ramps, merges and conflict points where multiple road elevations and directions can make conventional roadside lighting difficult.

Interchanges require long-distance visual guidance across ramps, merges and conflict points where multiple road elevations and directions can make conventional roadside lighting difficult.
Map mainline lanes, ramps, gore areas, bridges, elevation changes, barriers and available mast islands.
Interchanges require long-distance visual guidance across ramps, merges and conflict points where multiple road elevations and directions can make conventional roadside lighting difficult.
Send interchange geometry, mast locations / heights, road authority requirements and existing system data.
High masts can reduce pole count and place equipment away from vehicle edges. Mast locations should serve several ramp segments while controlling light beyond the interchange.

Map mainline lanes, ramps, gore areas, bridges, elevation changes, barriers and available mast islands.

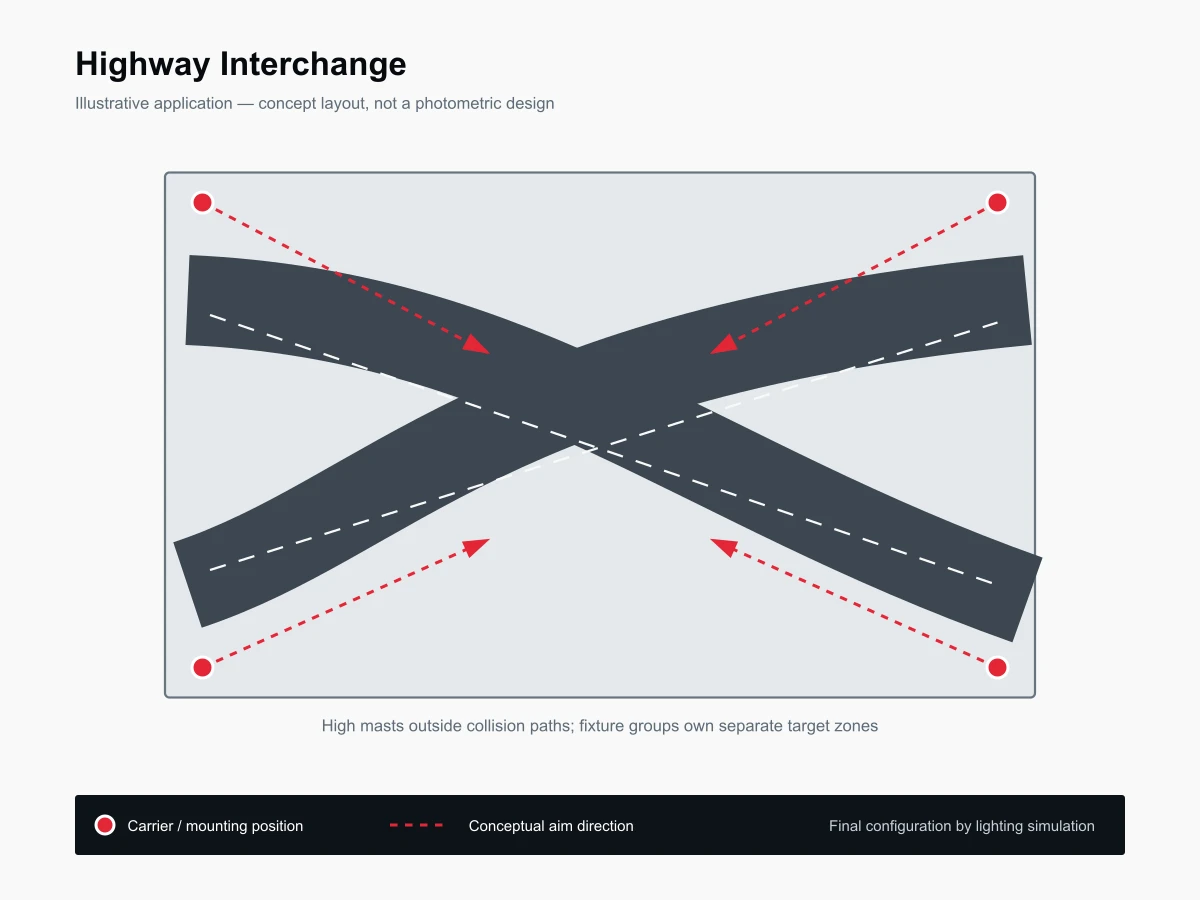

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Prioritize lane continuity, merge visibility, uniform adaptation and glare control for drivers approaching from different directions.
Dimming schedules can follow traffic demand where road authority requirements permit. Control cabinets should remain accessible without entering live traffic lanes where possible.
Review wind, mast foundations, access for lowering / maintenance, barriers and environmental boundaries.
Review wind, mast foundations, access for lowering / maintenance, barriers and environmental boundaries.
Legacy high-mast HID systems can often be upgraded, but headframe structural capacity, cable systems and old mast condition must be reviewed.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.

Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Send interchange geometry, mast locations / heights, road authority requirements and existing system data.
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
These answers are general engineering guidance. Project-specific requirements should always take priority.
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
