From elite stadiums to high‑temperature industrial halls, explore application‑specific guidance, recommended product series, and design tips aligned with international standards.

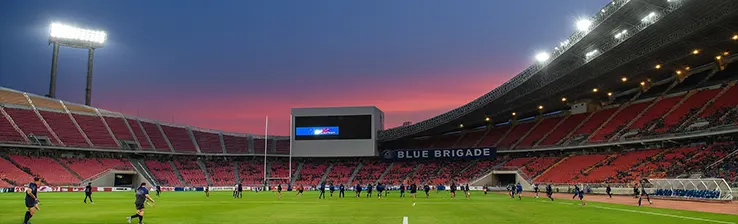

Precision optics and glare control for professional competitions and broadcast. Typical mounting height 30-45 m; uniformity U0 ≥ 0.6; UGR < 22 for player comfort and TV cameras.

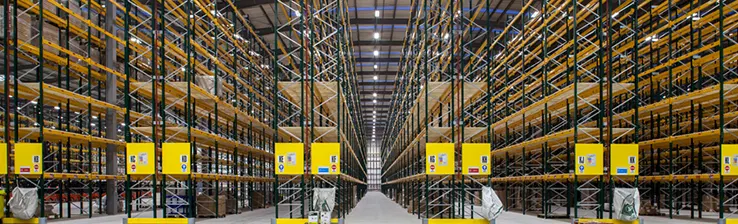

Robust fixtures for steelworks, glass and ceramic plants, logistics hubs. Focus on thermal management, corrosion resistance, and low‑glare productivity lighting.
Wide‑area illumination with balanced spill light and skyglow control. Typical mounting height 25–45 m with mixed optics for uniform yard coverage.

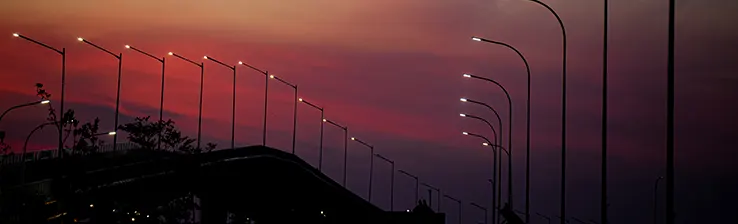

Roadway photometrics for ME/SE classes, uniform visibility, and reduced glare. Lumen maintenance and surge protection ensure long service life.

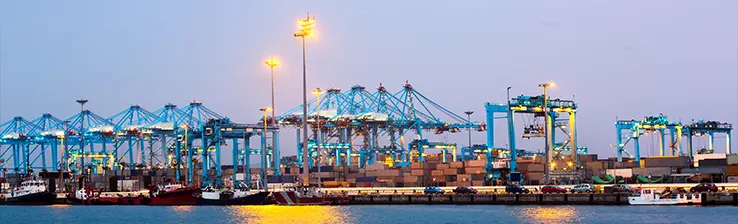

High‑output floodlighting for aprons and container yards with strict glare limits and vertical illuminance requirements for safety and CCTV.

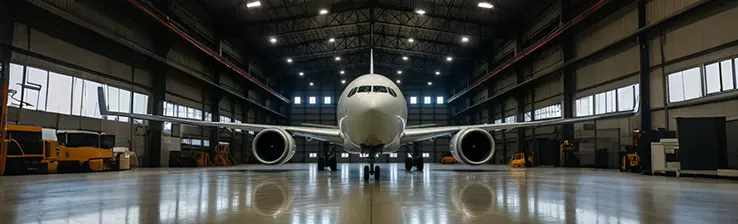

For extreme heat, dust, and corrosive atmospheres‑like foundries, glass plants, and ultra‑large halls‑prioritizing reliability, UGR control, and maintainability.
Use this matrix as a quick reference. Final designs follow photometric calculations and on‑site constraints.
| Application | Mounting Height | Avg Lux | UGR | Recommended Models | Controls |
| Sports & Stadium | 30-45 m | 800-2500 lux | / | FL18 / FL10 / FL09 | DMX, DALI |
| Practice & Field | 16-22 m | 75-300 lux | / | FL16 / FL15 / FL10 / FL09 | DMX, DALI |
| Small Court | 8-12 m | 200-500 lux | / | FL08 / FL16 | DMX, DALI |
| High‑mast & Area | 25-45 m | 30-50 lux | / | HM01R / HM01S | DALI |
| Airport & Port | 25-40 m | 20-30 lux | Strict glare control | FL18 / FL10 / FL09 | DALI, schedules |
| Industrial | 8-20 m | 300-500 lux | < 25 | HB06 / HB09 / HB12 | 0–10V, DALI |
| Street & Road | 8-12 m | 200-400 lux | ME/SE class | SL05 / SL04 / SL03 / SL02 | NEMA/Zhaga CMS |
| Special Environments | 10-25 m | 300-600 | / | HB20 / HB19 / HM01R / HM01S | 0-10V, DALI |
Share your application, mounting height, power range, and lux target. Our team will provide a tailored layout and photometric report.
For the fastest pricing, include model, quantity, application, and installation height.
