Warehouses and commercial buildings can often be illuminated with standard LED fixtures. But ports, airport aprons, high-temperature process plants and very large hangars are different. They impose extreme demands on luminaires: salt-laden air, high winds, 24/7 duty cycles, high ambient temperatures and very long throw distances. In these environments, special-purpose LED luminaires are not a luxury – they are a technical requirement.
Most LED luminaires perform well in temperature-controlled warehouses, logistics centres and indoor production areas. The key questions are usually about efficiency, glare and payback time. In extreme environments, the situation changes completely. Ports, airport aprons, steelworks and very large hangars introduce factors that standard products were never designed for:
In these cases, it is not enough to increase wattage or choose a higher lumen package. The luminaire itself must be engineered for the specific environment. This is where special-purpose product platforms such as HB20, HB19, HM01R, SP02 and FL16 Plus are applied.

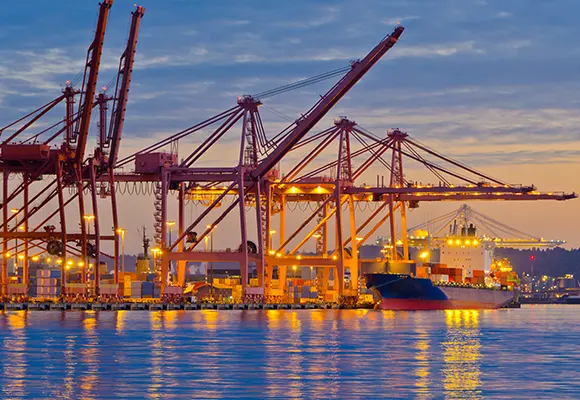

Container terminals and bulk cargo ports typically rely on high-mast systems in the 25–50 m range, sometimes higher. Luminaires are exposed to marine air, salt spray, humidity and strong winds. Operations run through the night and in all weather conditions. The main lighting challenges are straightforward but demanding:
For ports and terminals, ZC Lighting leverages three special-purpose platforms:
Engineered for tall masts and harsh outdoor conditions.
Ideal as main high-mast luminaires for container yards, quay areas and port access roads.
For very long throw distances and wide port operations.
Suited to illuminate container stacks, quay cranes and large apron areas with long throw requirements.
For mid-height poles, transition zones and mixed-use areas, FL16 Plus offers a wide power and optic range.
Typical use cases: port access roads, loading bays, parking areas and infrastructure around the main terminal.

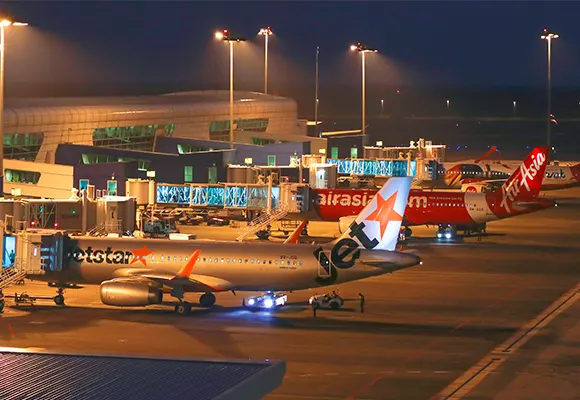

Airport apron lighting must provide high horizontal and vertical illuminance over large open areas while controlling glare for pilots, ground staff and tower personnel. Typical mounting heights are in the 25-45 m range, with luminaires installed on high masts positioned around the apron.
Here, the same high-mast platforms used in ports can be applied with different optics and aiming strategies: HM01R and SP02 deliver the required
lumens and beam control for apron and airside roads,while FL16 Plus can support landside and service areas.

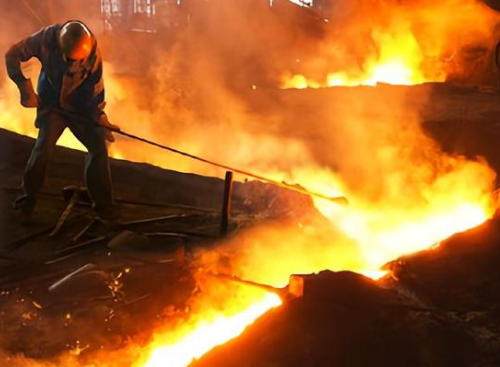

Steelworks, forging shops, glass plants and paper mills often have zones where ambient temperatures remain far above typical warehouse conditions. In these areas, a standard LED high bay may switch on and work for a time, but lifetime drops sharply as components are subjected to sustained thermal stress.
HB20 is ZC Lighting’s high-temperature LED high-bay platform designed specifically for these conditions.
Instead of trying to push a standard high bay into a hot area, HB20 offers a platform built around realistic thermal conditions. This reduces unplanned outages, lowers the risk of early driver failures and provides a more predictable maintenance plan for high-temperature lines.
Aircraft hangars, shipbuilding halls and large logistics hubs share one key feature: extremely tall ceilings and very large volumes. Mounting heights of 18–35 m are common, and objects in the space – aircraft, hulls, tall racking – can block or absorb light.
In such spaces, adding more low-wattage luminaires at high mounting heights is rarely efficient. Instead, high-power luminaires such as HB19 are used to deliver enough light from each point and reduce the total number of fixtures.
With HB19, operators can design lighting systems for tall spaces with fewer luminaires, better long-throw performance and a more manageable maintenance strategy over the life of the building.
Special-purpose industrial luminaires differ from general-purpose fixtures not only in wattage, but in how they address the real operating environment:
Together, these elements form a toolkit that can be adapted to ports, airports, hot plants and large-volume spaces without forcing general-purpose products into environments where they are likely to fail.
| Model | Primary application | Power range | Optics | Lumen range | Protection | Notes |
|---|---|---|---|---|---|---|
| HB20 | High-temperature industrial zones (steel, glass, paper) | High-temperature high-bay platform | Project-specific | Designed for stable output at elevated ambient temperatures | Ta 70 °C, L70 @ 5000 h / 70 °C | For hot zones where standard fixtures age too quickly. |
| HB19 | Large hangars, shipbuilding halls, tall logistics hubs | 400–600 W | 12°/25°/40°/60° | High-power, 160–175 lm/W | Industrial-grade construction | For 18–35 m mounting heights with fewer fixtures. |
| HM01R | Ports, airport aprons, high-mast areas | 200–1000 W | 30°/60°/90°/P45/40×130/T1–T5 | Approx. 35,000–150,000 lm | IP66, IK10, C5 marine optional, EPA 2.69 | High-mast luminaire for tall poles and marine environments. |
| SP02 | High-mast and long-throw area lighting | 500–1200 W | 12°/25°/40°/60° | Approx. 85,000–180,000 lm | IP66, IK10, C5 marine optional, EPA 2.69 | For container yards, cranes and large open areas. |
| FL16 Plus | Sports, infrastructure and mixed outdoor areas | 500–1800 W | 10°/15°/20°/30°/60°/P50 | Approx. 77,500–261,000 lm | IP66, IK10, C5 marine optional, EPA 1.24–3.62 | Versatile high-power floodlight for poles and structures. |
Airport apron lighting must provide high horizontal and vertical illuminance over large open areas while controlling glare for pilots, ground staff and tower personnel. Typical mounting heights are in the 25-45 m range, with luminaires installed on high masts positioned around the apron.
A typical port layout combines high-mast luminaires on tall poles with flexible floodlights for secondary and transition areas:
Where ambient temperatures can reach up to 70 °C and remain elevated for long periods, HB20 is the primary platform:
Apron lighting focuses on high vertical illuminance, low glare and reliable coverage:
For very tall ceilings and large volumes, reducing luminaire count and planning access are key:
Whether you are working on a port terminal, airport apron, high-temperature plant or large hangar, our team can help match your application to the right combination of HB20, HB19, HM01R, SP02 and FL16 Plus luminaires. Share a few details and we will respond with practical suggestions.
