Why this application needs its own lighting approach
Overflow container or vehicle yards need flexible large-area lighting for temporary stacking patterns, changing traffic routes and marine exposure.
High-Mast & Large-Area Lighting
Port Overflow Yard Lighting
Overflow container or vehicle yards need flexible large-area lighting for temporary stacking patterns, changing traffic routes and marine exposure.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map yard boundaries, temporary stack zones, gates, quay interfaces, roads and neighboring terminals. Operational geometry may change seasonally.
Key project inputs
Send yard plan, mast positions, stack heights, marine exposure and operating scenarios.
Layout & mounting
Use the real site first, then validate the layout.

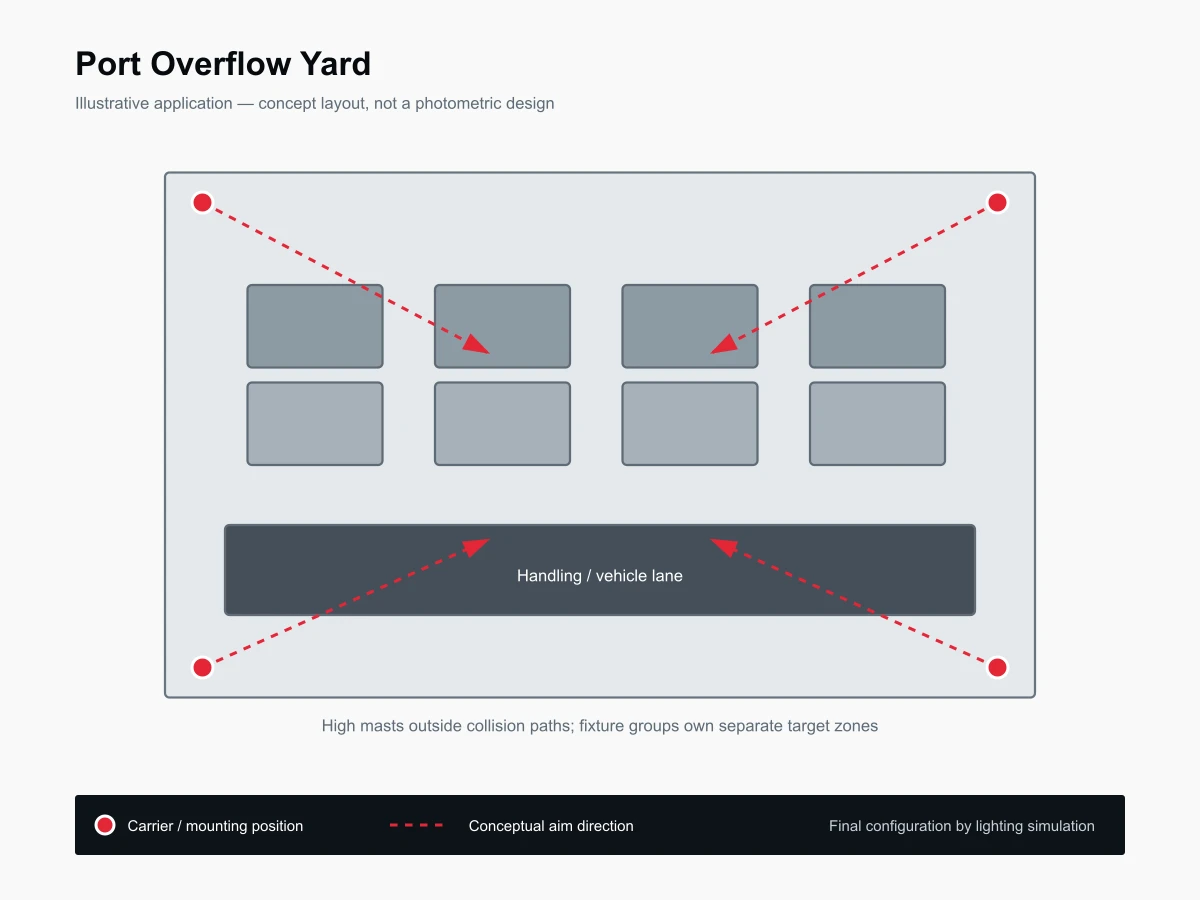

Perimeter or island high masts provide flexible coverage without filling the yard with poles. Use mixed optics to accommodate changing stack positions.
Map yard boundaries, temporary stack zones, gates, quay interfaces, roads and neighboring terminals. Operational geometry may change seasonally.
Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Prioritize container / vehicle recognition, safe maneuvering, low glare toward operators and controlled spill toward water or adjacent sites.
Primary visual taskPrioritize container / vehicle recognition,
safe maneuvering, low glare toward operators and controlled spill toward water or
adjacent sites.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityMarine corrosion, wind, salt spray,
surge and difficult maintenance access should be considered from the start.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone blocks so inactive overflow areas can remain at setback levels while gates and active lanes stay brighter.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Marine corrosion, wind, salt spray, surge and difficult maintenance access should be considered from the start.
Special project checks
Marine corrosion, wind, salt spray, surge and difficult maintenance access should be considered from the start.
New build vs retrofit
Existing port masts may be reusable after checking corrosion, headframe condition, cable systems and wind loading.
Recommended Products
Products commonly evaluated for this application.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
HM01R
Heavy-duty high-mast floodlight
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
HM01S
Lightweight high-mast floodlight
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
SP02
Integrated high-output floodlight
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Project information
What to send for a faster engineering review.
Send yard plan, mast positions, stack heights, marine exposure and operating scenarios.
01Site / floor plan with dimensions and operating zones.
02Mounting positions, heights, pole / bracket / roof structure
information.
03Target task, performance requirement and operating
schedule.
04Existing fixture data, photos and environmental conditions for
retrofit projects.
Need a project-specific lighting proposal?
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
Common questions
Before finalizing the application design.
These answers are general engineering guidance. Project-specific requirements should always take priority.
How should the lighting layout for port overflow yard lighting be determined?
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Can existing poles, brackets or mounting points be reused?
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Should controls be specified at the same time as the luminaires?
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
What information is most useful for an initial proposal?
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
Are the typical layouts shown on this page fixed designs?
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
