Why this application needs its own lighting approach
Bulk-material yards combine stockpiles, conveyors, loaders and dust. Lighting must remain useful as pile geometry changes and surfaces absorb or reflect light differently.
High-Mast & Large-Area Lighting
Bulk Material Yard Lighting
Bulk-material yards combine stockpiles, conveyors, loaders and dust. Lighting must remain useful as pile geometry changes and surfaces absorb or reflect light differently.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map pile zones, conveyor routes, stacker / reclaimer paths, loading points and haul roads. Maximum pile height is a key input.
Key project inputs
Send yard dimensions, pile heights, machinery routes, mast data and dust / environmental conditions.
Layout & mounting
Use the real site first, then validate the layout.
Position high masts outside machinery envelopes and use beam mixes that reach both pile faces and vehicle routes.
Map pile zones, conveyor routes, stacker / reclaimer paths, loading points and haul roads. Maximum pile height is a key input.

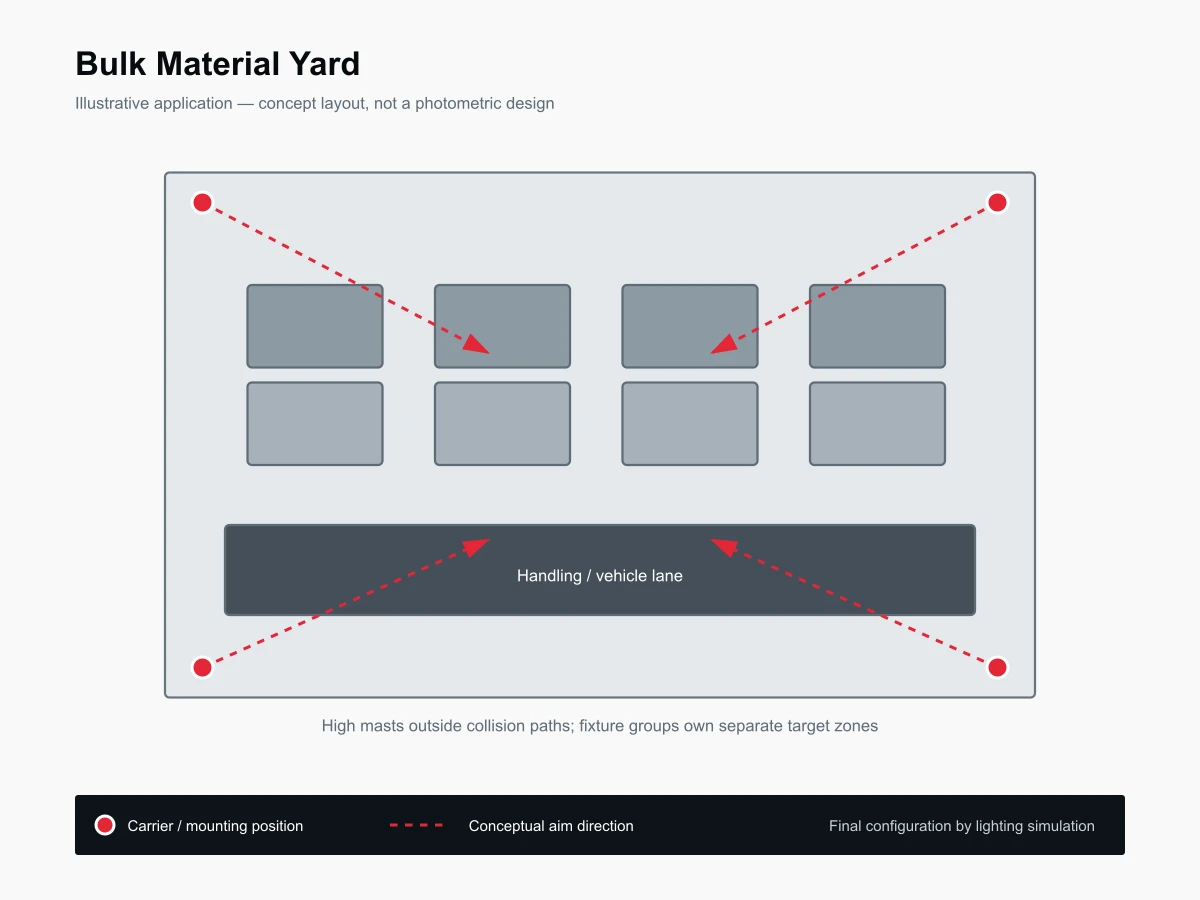

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Review vertical illumination on pile faces, haul-route uniformity, operator glare and deep shadow areas behind stockpiles.
Primary visual taskReview vertical illumination on pile faces,
haul-route uniformity, operator glare and deep shadow areas behind stockpiles.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityDust, wind, vibration, corrosion and
surge protection are important for exposed masts and fixtures.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Separate conveyor, loading and inactive storage zones. Keep safety routes continuously visible where required.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Dust, wind, vibration, corrosion and surge protection are important for exposed masts and fixtures.
Special project checks
Dust, wind, vibration, corrosion and surge protection are important for exposed masts and fixtures.
New build vs retrofit
Recalculate aiming if pile areas or conveyor routes have changed since the original mast design.
