FL15 Series - Modular LED Sports & Outdoor Floodlighting System

FL20 Full-Cutoff Modular Floodlight
Modular & Scalable Solution

FL15 Modular LED Sports Light

Flexible Configuration · Lower Maintenance · Smarter Inventory

A fully modular LED sports lighting platform designed for distributors, multi-project contractors, and outdoor venue operators seeking flexible configuration and efficient maintenance. Each module operates independently-if one module requires service, the remaining modules continue running without affecting field lighting.

1-4 module scalability (400-2000W total power)
Independent module operation for zero-downtime maintenance
Shippable as separate components to reduce logistics costs
Individual module angle adjustment (0°-30°)
150Lm/W
Max Efficacy
1-4
Module Options
30°
Angle Adjustment
CE Certified
IP66 Rated
5-Year Warranty
Global Shipping
Request Quote Download Specs
0%

Full Cutoff

Absolute zero uplight

1-4

Modular Design

Scalable modules

3G

Aviation-Grade

Vibration tested

200-1200W

Power Range

Flexible scaling

Beam Performance & Light Distribution

Seven beam angle options providing maximum flexibility for diverse field dimensions and mounting heights

Photometric Distribution Curve

15°
IES Certified
FL20 beam distribution
Polar Coordinates
C0-C180 Vertical Plane
C90-C270 Horizontal Plane

🛫 Aviation Compliance

AVERAGE BEAM ANGLE(50%): 18-22°

FAA/ICAO Verified

Available Beam Patterns

Select the optimal beam angle based on your pole height, field dimensions, and lighting requirements

Key Optical Features

  • Precision PC lens with optical-grade transparency
  • Optional tempered glass for UV protection
  • Minimal light spill (<5%) for efficient illumination
  • 7 beam angles cover all outdoor applications
120m+
Max Throw Distance
<5%
Spill Light
92%
Optical Efficiency
0.7+
Uniformity (Emin/Emax)

Product Features

Comprehensive features designed for distributors, contractors, and venue operators seeking flexible, cost-effective sports lighting solutions

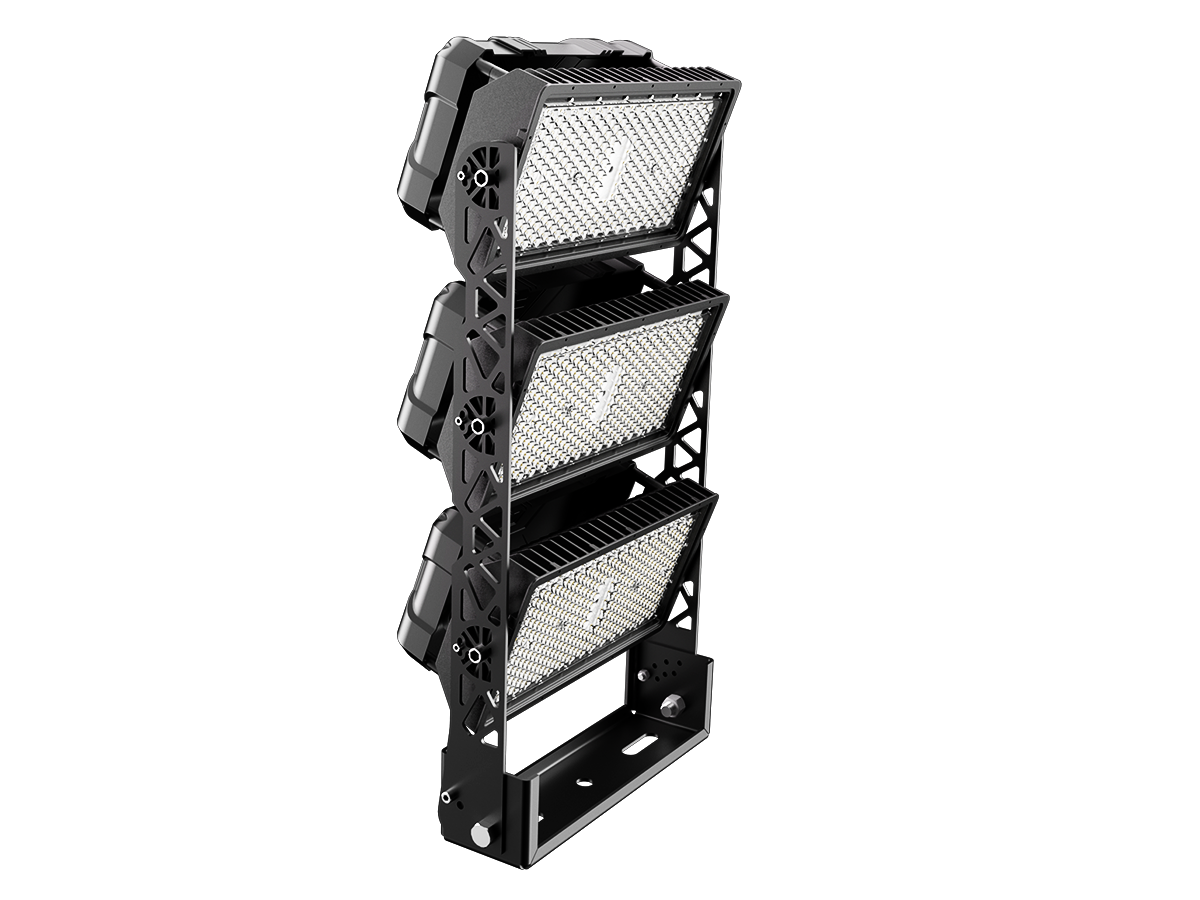

Fully Modular Architecture

1-4 modules cover small training fields to large outdoor stadiums, simplifying project selection and reducing SKU count.

Independent Module Operation

If one module requires service, others remain operational—preventing field blackouts and reducing downtime.

Adjustable Module Angles (0°-30°)

Ideal for venues requiring precise aiming to achieve uniform illumination across irregular field layouts.

Shippable as Separate Components

Modules and brackets can be packed separately, reducing carton volume and improving container utilization.

Two Mounting Kit Options

Sheet metal bracket kit for lightweight applications or integrated bracket with die-cast frame for high wind-load environments.

Flexible Driver Placement

Driver can be mounted behind module, on bracket, on pole, or inside cabinet-supporting diverse field conditions.

Dual Optical Front Options

PC Lens (cost-effective) or PC Lens + Tempered Glass (UV protection, reduced light decay).

Vertical Fin Design

Optimized thermal flow with vertical fins for faster heat dissipation and minimal water accumulation.

Low Inventory Pressure

Unified distribution network and inter-regional deployment simplified

Flexible Configuration

Lens-only or Lens+Glass protection options

Advanced Engineering Features

FL20 Full-Cutoff Optical Design - 0% Uplight for Airport Compliance
FLEXIBLE CONFIGURATION

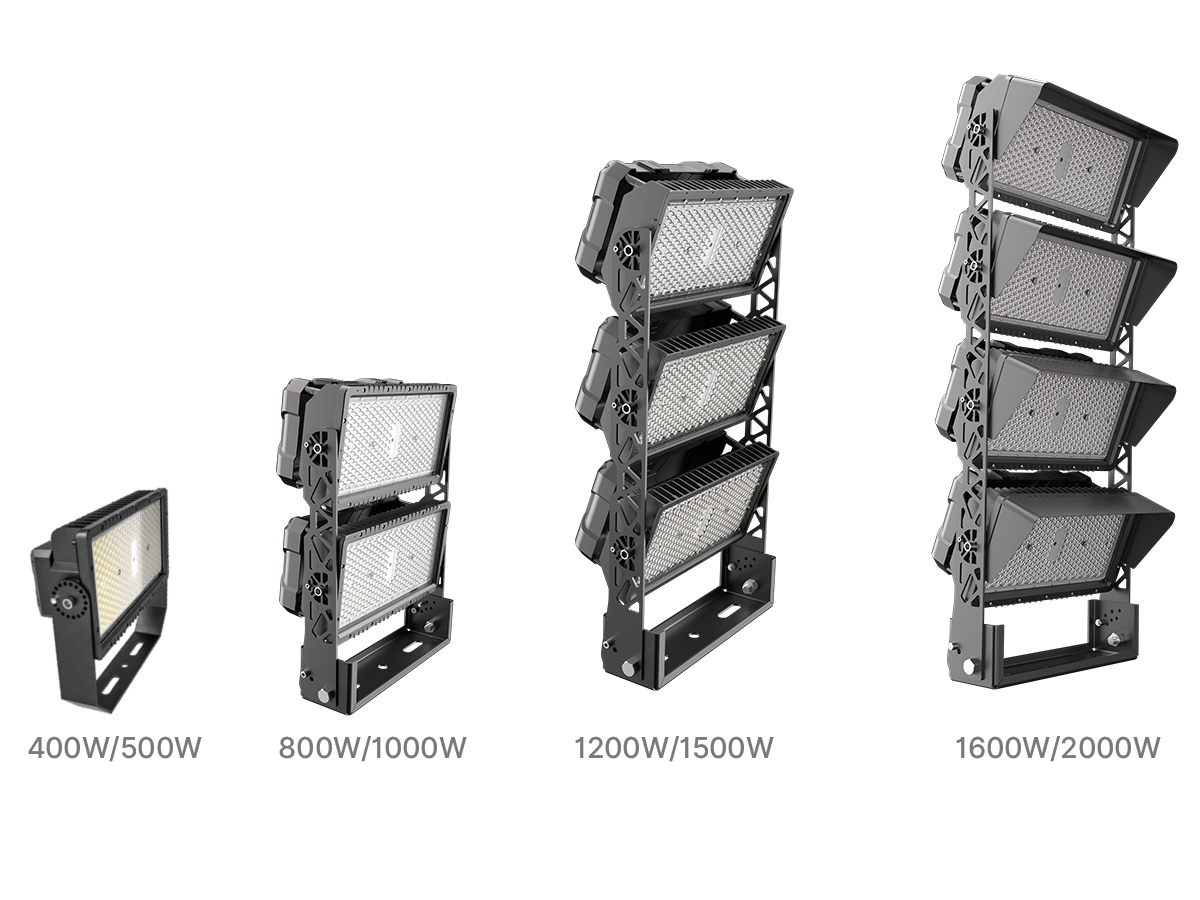

1-4 Module Scalability for Any Venue Size

One series covers small training fields to large outdoor stadiums. Whether you need 400W for a small court or 2000W for a professional stadium, FL15's modular design simplifies project selection and inventory management.

Shippable as Separate Components to Reduce Costs

Modules and brackets can be packed separately, reducing carton volume and improving container utilization. This lowers shipping costs, import duties, warehouse storage pressure, and eases distributor inventory burden.

  • 1-4 modules cover all venue sizes
  • Up to 40% reduction in shipping volume
  • Lower import duties and warehouse costs
FL20 Dual-Level Precision Aiming System - Horizontal and Vertical Adjustment
PRECISION AIMING & MAINTENANCE

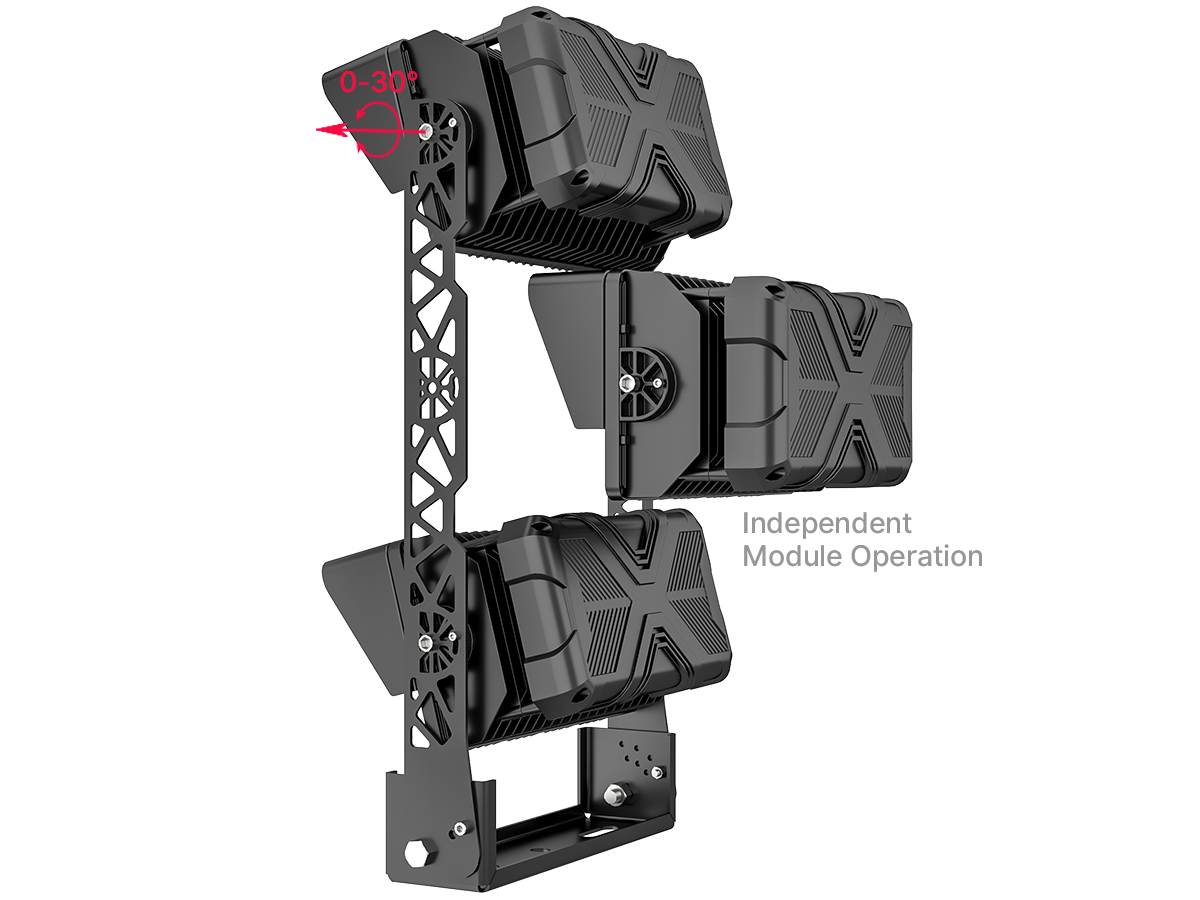

Adjustable Module Angles (0°–30°)

Ideal for venues requiring precise aiming to achieve uniform illumination across irregular field layouts. Each module can be independently adjusted for optimal light distribution.

Independent Module Operation for Lower Maintenance Costs

If one module requires service, the others remain operational, preventing field blackouts and reducing downtime. Quick replacement without special tools minimizes service interruption.

  • 0°-30° individual module adjustment
  • Zero field blackouts during maintenance
  • Fast module replacement, lower downtime
FL20 Aviation-Grade Construction - 3G Vibration Test IP66 IK08
LIGHT DECAY CONTROL

Dual Optical Front Options to Control Light Decay

Choose between PC Lens for cost-effective lightweight solution, or PC Lens + Tempered Glass for UV protection and reduced long-term light decay-ensuring stable lumen output throughout the fixture's lifespan.

  • PC Lens: cost-effective and lightweight
  • PC Lens + Tempered Glass: UV protection
  • Reduced long-term light decay
FL20 Low-Glare High Uniformity Flicker-Free Driver Technology
MOUNTING FLEXIBILITY

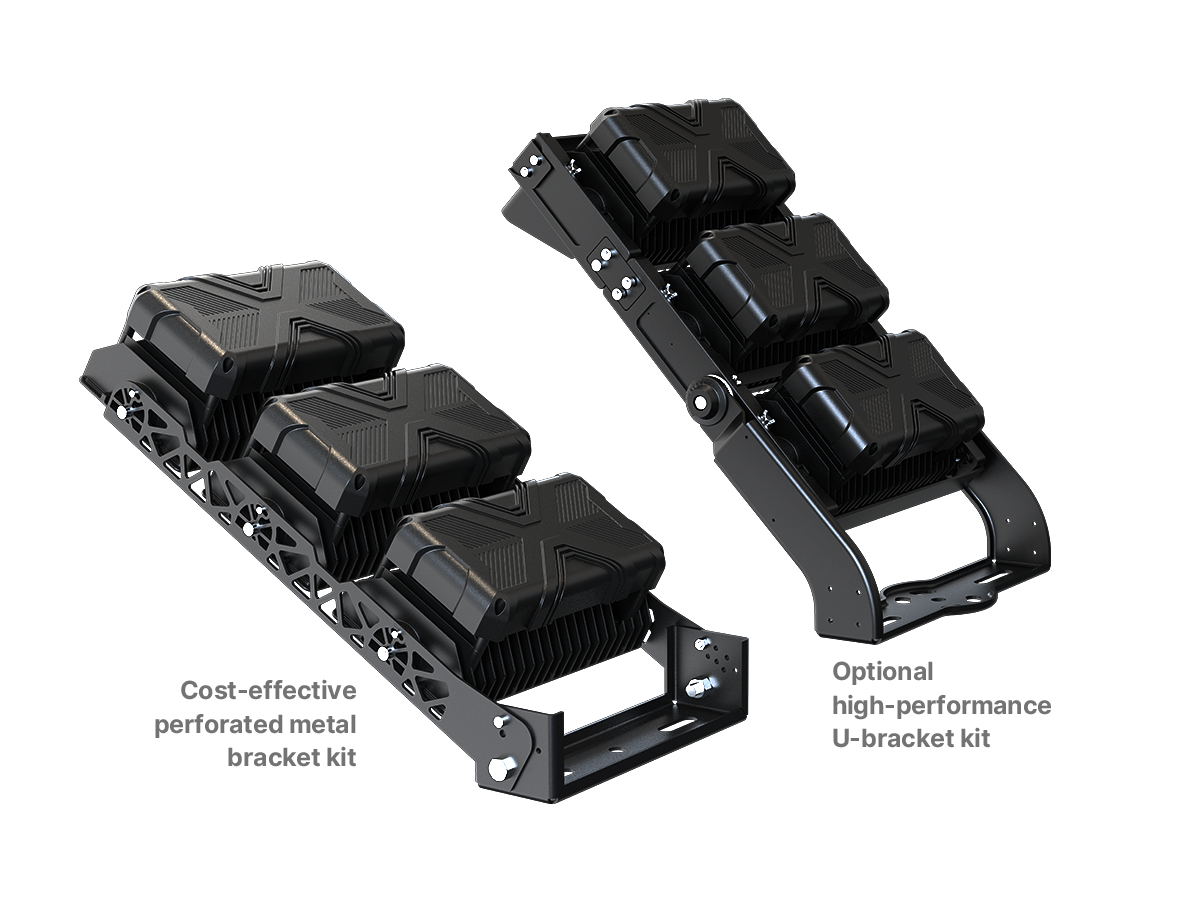

Two Mounting Kit Options

Vertical heat sink design accelerates heat dissipation and minimizes water accumulation-ensuring faster cooling and longer operational life. Combined with IP66 weatherproof rating for all-weather outdoor durability.

  • Faster heat dissipation
  • Reduced water accumulation
  • IP66 weatherproof protection
FL20 Aviation-Grade Construction - 3G Vibration Test IP66 IK08
OPTIMIZED THERMAL FLOW

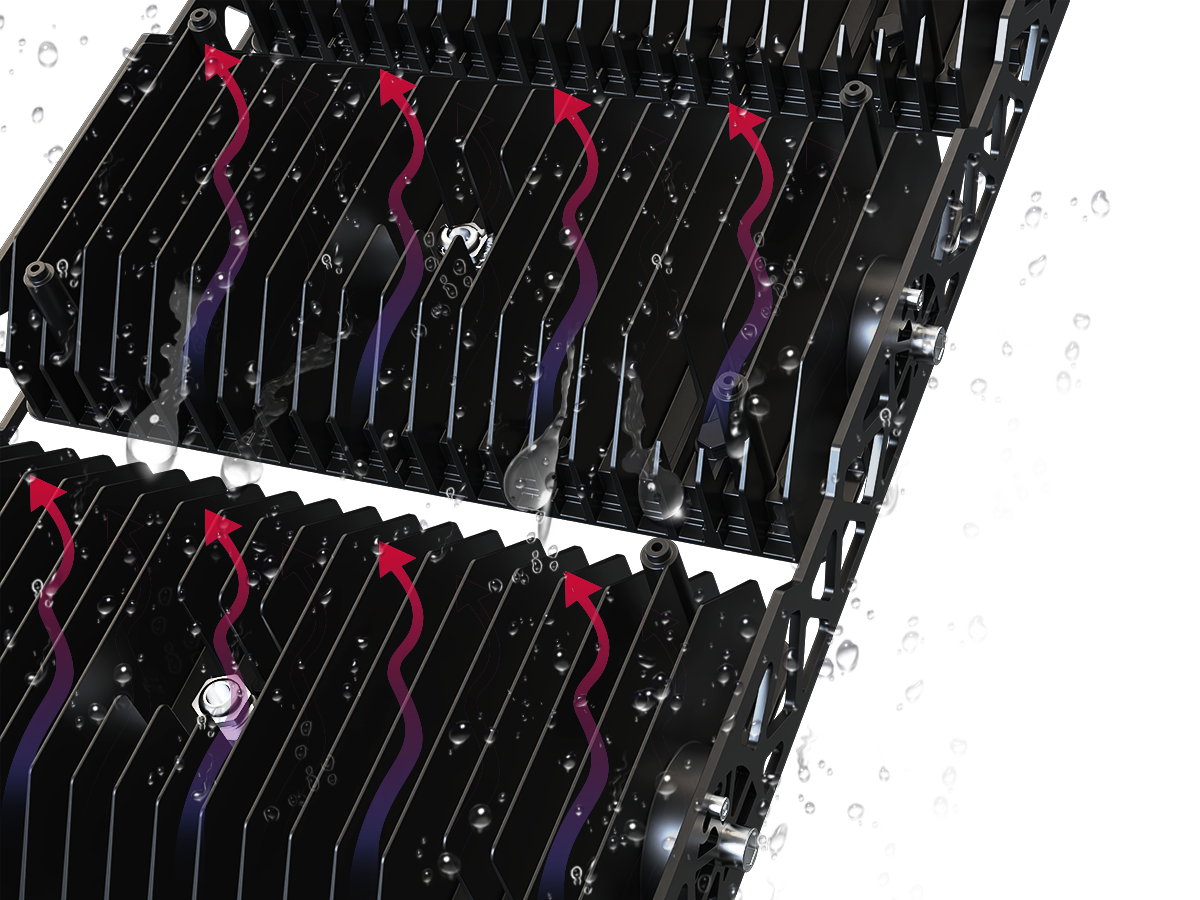

Vertical Fin Direction + Optimized Thermal Flow

Driver can be mounted behind module, on bracket, on pole, or inside cabinet-supporting diverse field conditions and service patterns. Remote mounting from heat source extends driver lifespan and simplifies maintenance access.

  • Multiple mounting locations available
  • Heat isolation for extended lifespan
  • Easy maintenance access
FL20 Low-Glare High Uniformity Flicker-Free Driver Technology
INSTALLATION FLEXIBILITY

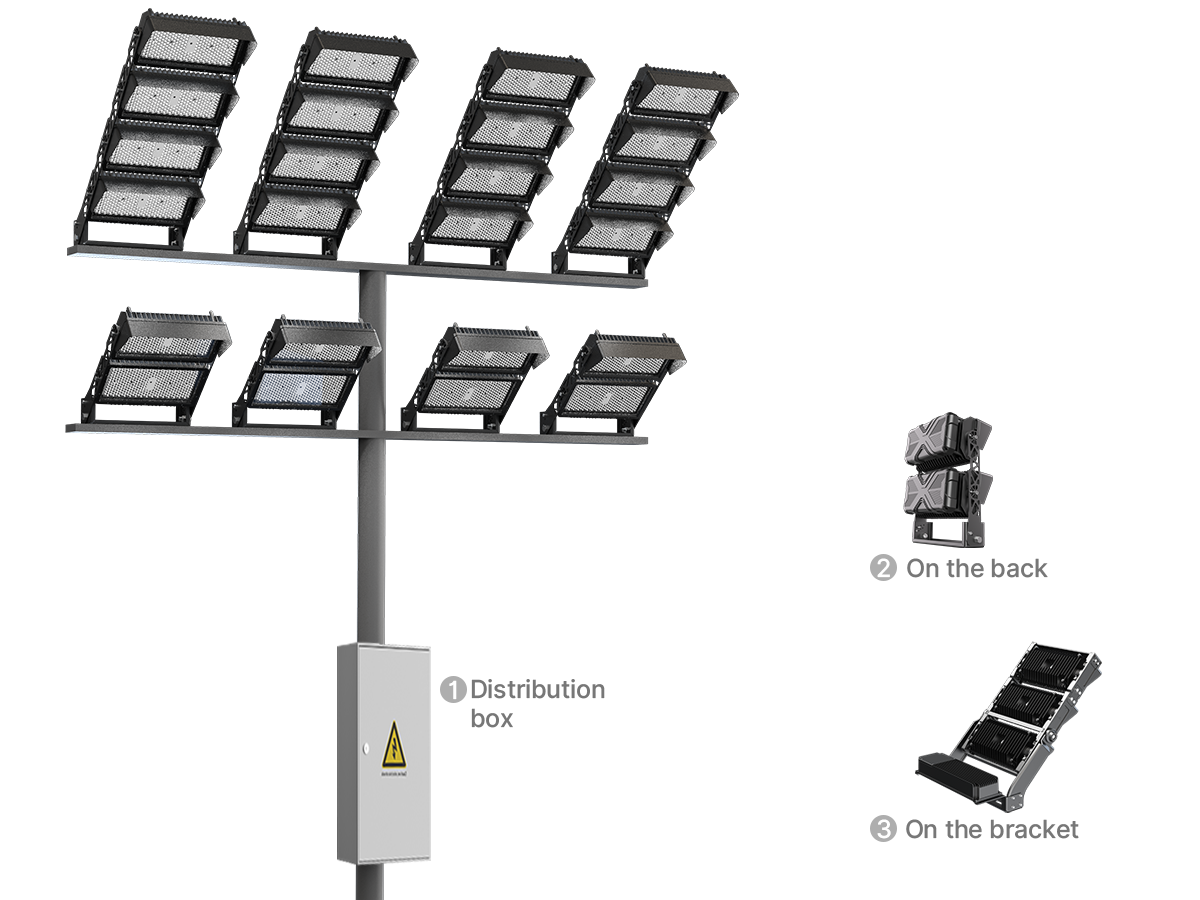

Flexible Driver Placement Options

Driver can be mounted behind module, on bracket, on pole, or inside cabinet-supporting diverse field conditions and service patterns. Remote mounting from heat source extends driver lifespan and simplifies maintenance access.

  • Multiple mounting locations available
  • Heat isolation for extended lifespan
  • Easy maintenance access

Applications

FL15 is designed for stadiums, school fields, parks, outdoor plazas, and renovation projects requiring flexible configuration and efficient maintenance

Airport Aprons

Sports Stadiums

Roadways

Plazas

Ports & Docks

Industrial Areas

Technical Specifications

Comprehensive technical data for aviation and sports applications
