FL08 Series - Modular LED Sports & Outdoor Floodlight

Name: FL08 Series Modular LED Sports Floodlight
Brand: ZC Lighting
Availability: InStock

Flexible · Reliable · Low Inventory · ROI-Driven

A cost-effective modular LED sports and outdoor lighting platform designed for training fields, outdoor courts, and multi-purpose public spaces. Its scalable 1-4 module architecture allows one series to cover multiple project sizes, simplifying inventory and project planning.

Scalable 1-4 module design covers multiple venue sizes

Independent module operation - zero downtime maintenance

Shippable as separate components for lower logistics costs

Optional RGBW for multifunctional lighting scenarios

1-4

Module Scalability

160,000

Max Lumen Output

±180°

Bracket Adjustment

CE/CB Certified

IP66 Rated

5-Year Warranty

Global Shipping

Request Quote Download Specs

1-4 Modules

Modular Design

Scalable architecture

Zero Downtime

Independent Operation

Isolated module faults

Lower Cost

Component Shipping

Reduced logistics expenses

50,000h

Long Lifetime

L70 verified performance

Product Features

FL08 combines modular flexibility with professional-grade reliability. Independent module operation, component shipping capability, and optional RGBW make it the ideal choice for training fields and outdoor court lighting projects.

Scalable Modular Architecture (1–4 Modules)

One series covers small, medium, and large outdoor fields, reducing SKU count and inventory pressure

Independent Module Operation

Faults isolated to single module - one-to-one replacement ensures zero downtime

Shippable as Separate Components

Higher container loading efficiency, lower shipping costs and import duties

Flexible U-Bracket System

Durable sheet-metal construction with ±180° adjustment, optional angled bracket for complex mounting

Die-Cast Aluminum Heat Sink

Fast heat conduction and excellent thermal dissipation for stable performance

Independent Driver Per Module

Enhanced electrical safety and supports replacement without dismantling fixture

Dual Optical Protection

PC lens + tempered glass shields against UV and corrosive air

Multiple Beam Patterns

Narrow, medium, asymmetric distributions with optional RGBW capability

RGBW Color Changing

6 beam options support full RGBW capability for events, celebrations, and dynamic lighting effects

Low Inventory Pressure

Unified distribution network and inter-regional deployment simplified

Advanced Engineering Features

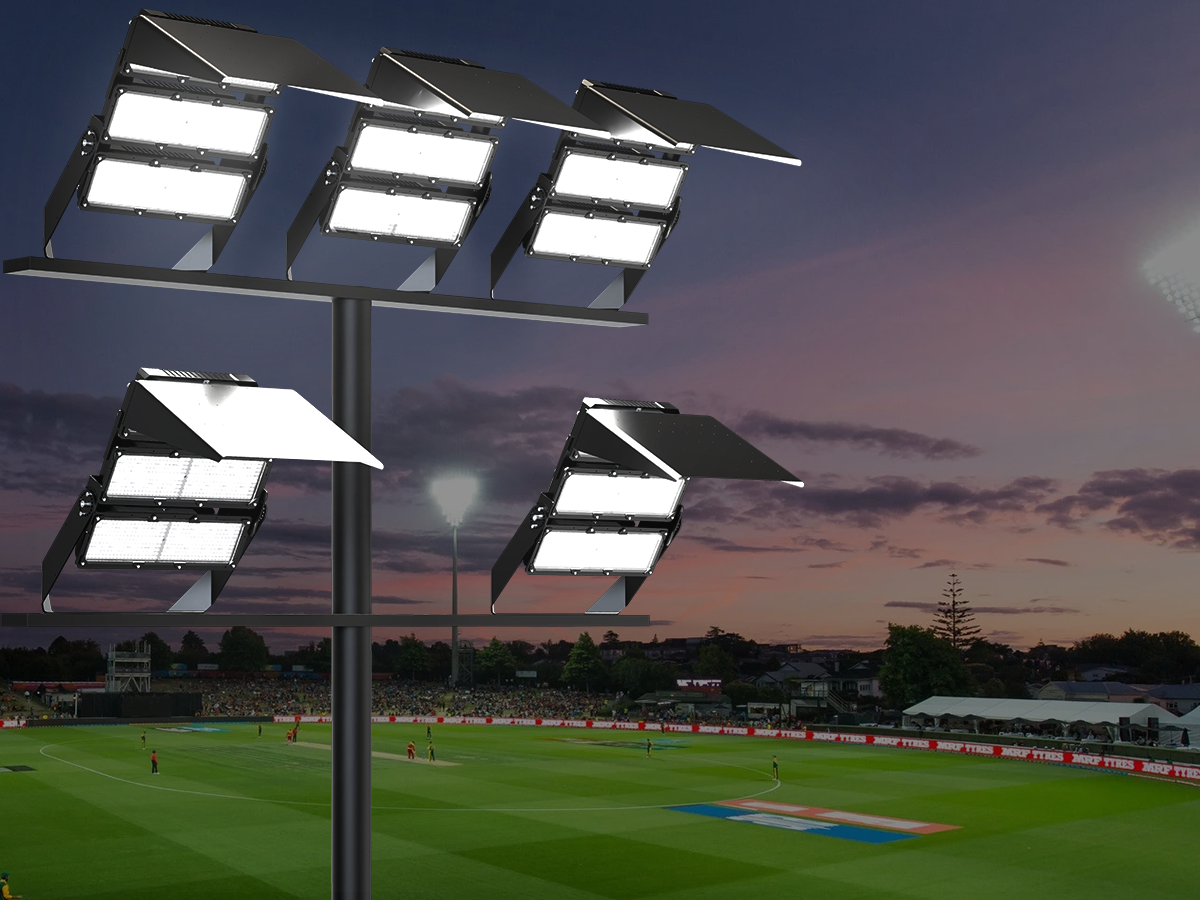

FL08 LED sports floodlight installed on stadium pole showing high-efficiency illumination

High Efficacy & Dual Optical Protection

FL08 achieves up to 165 lm/W luminous efficacy, delivering maximum light output with minimal energy consumption. The dual-layer optical protection system combines high-transparency PC lenses with tempered glass shields—the glass protects the PC lens from UV radiation and corrosive air, delaying lumen degradation and ensuring long-term brightness stability. This dual protection maintains optical clarity for 50,000+ hours in harsh outdoor environments.

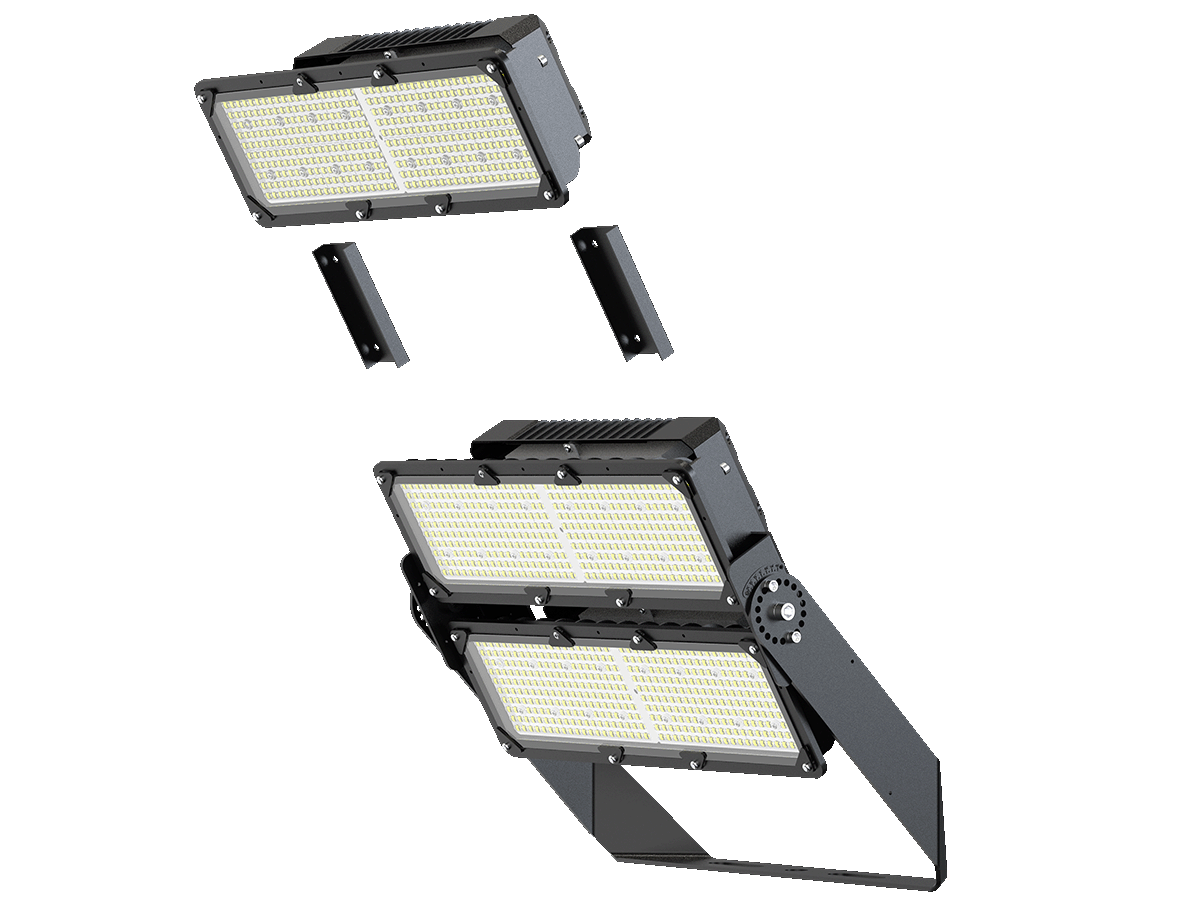

FL08 modular LED floodlight showing 1-2 module configurations

Scalable Modular Architecture (1–4 Modules) & Component Shipping

One FL08 series supports small, medium, and large outdoor fields through its 1-4 module scalability, reducing SKU count and lowering inventory pressure. Modules and mounting brackets can be shipped separately for higher container loading efficiency, better warehouse turnover, and simplified unified distribution networks. This flexible approach enables inter-regional deployment with significantly reduced logistics costs.

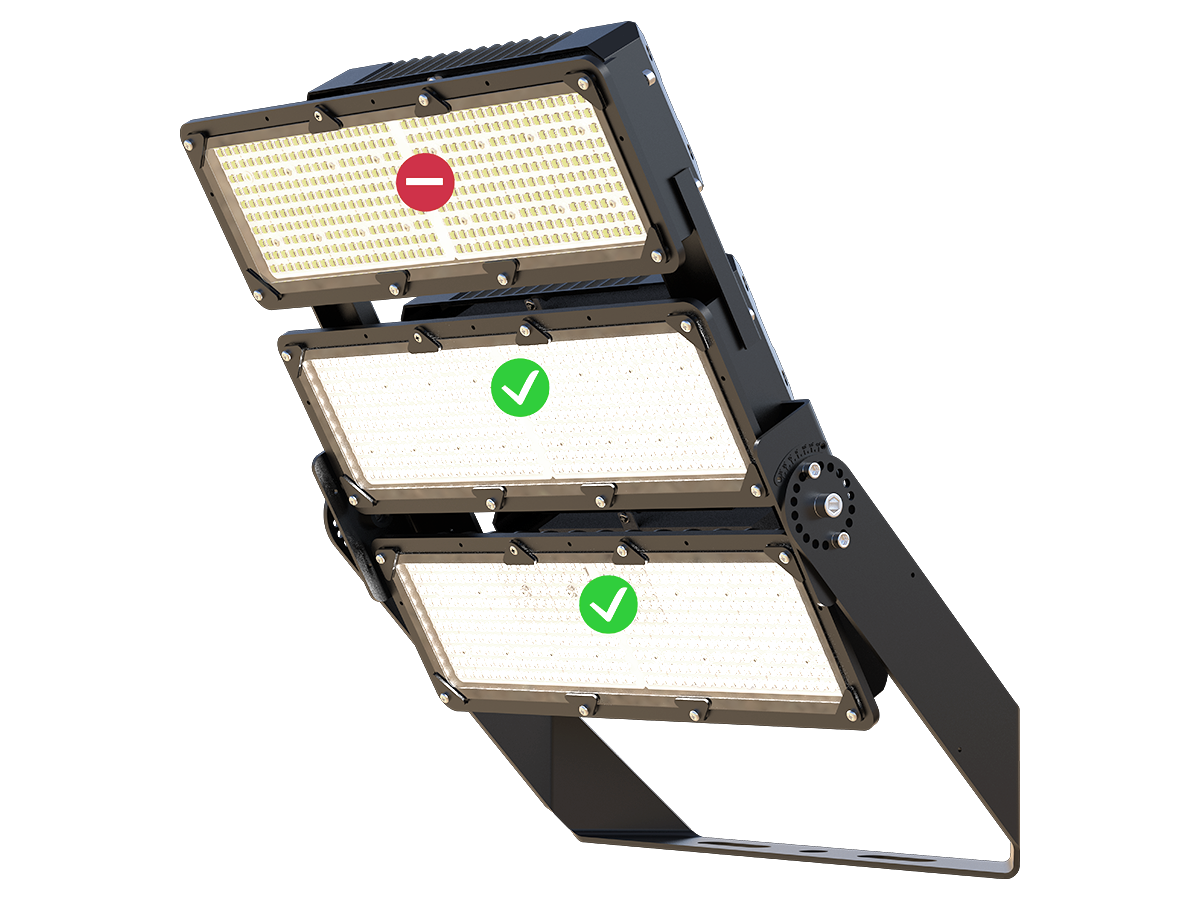

FL08 3-module configuration showing independent module operation with fault isolation

Independent Module Operation - Zero Downtime Maintenance

Each FL08 module operates independently with its own dedicated driver. Faults are isolated to a single module—if one module fails, the others continue functioning normally. This one-to-one replacement capability ensures zero downtime lighting, uninterrupted games, and continuous field usage. Maintenance crews can replace individual modules without taking the entire fixture offline, dramatically reducing service disruptions.

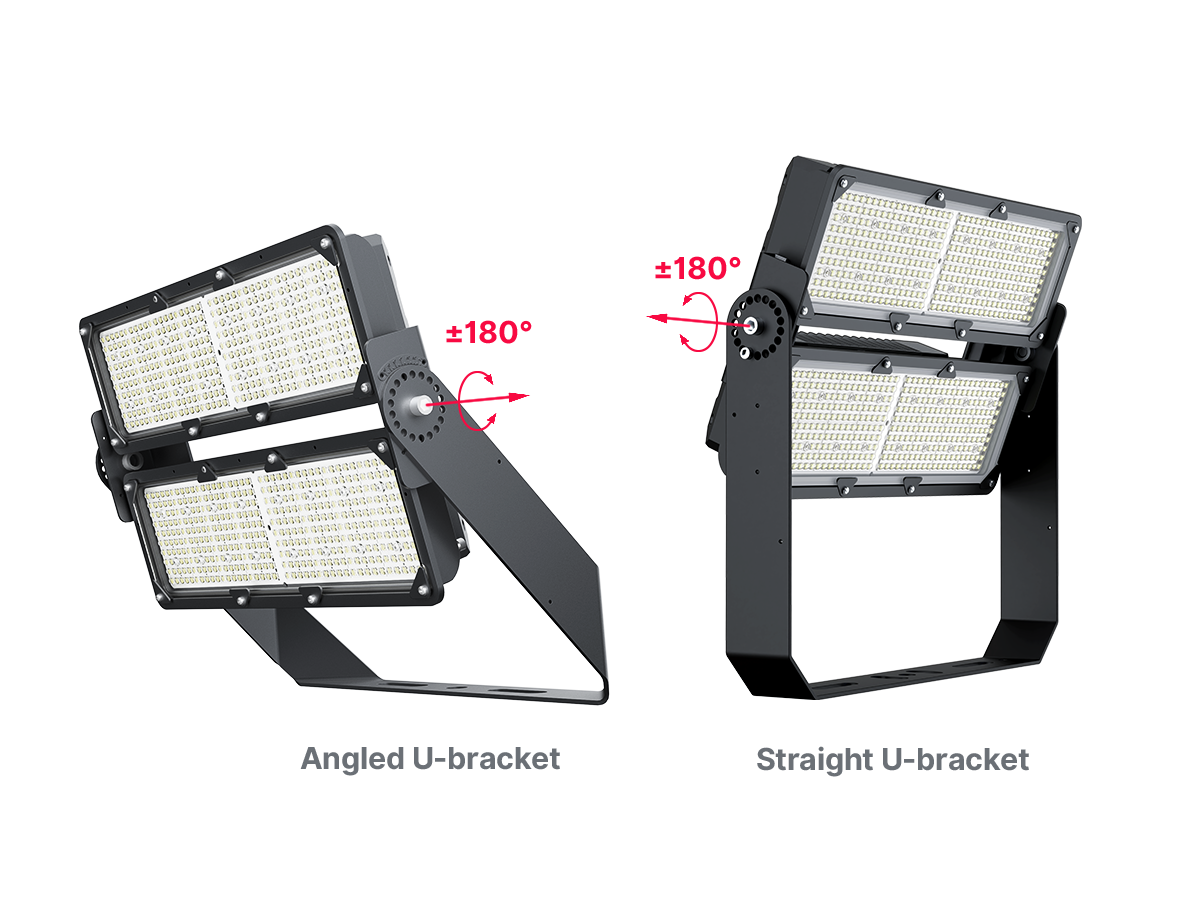

FL08 U-bracket comparison showing angled and straight bracket options with ±180° adjustment

Durable Sheet-Metal U-Bracket with Wide Installation Space

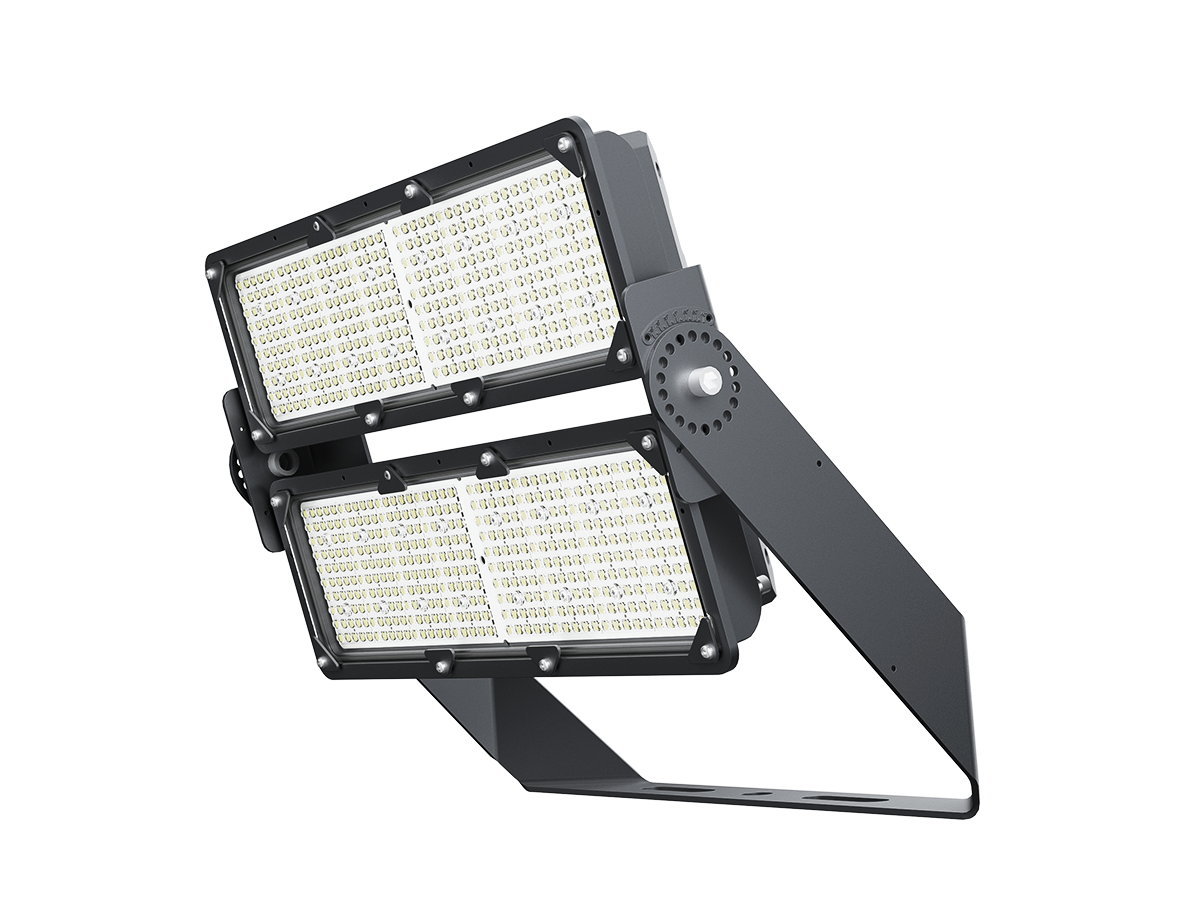

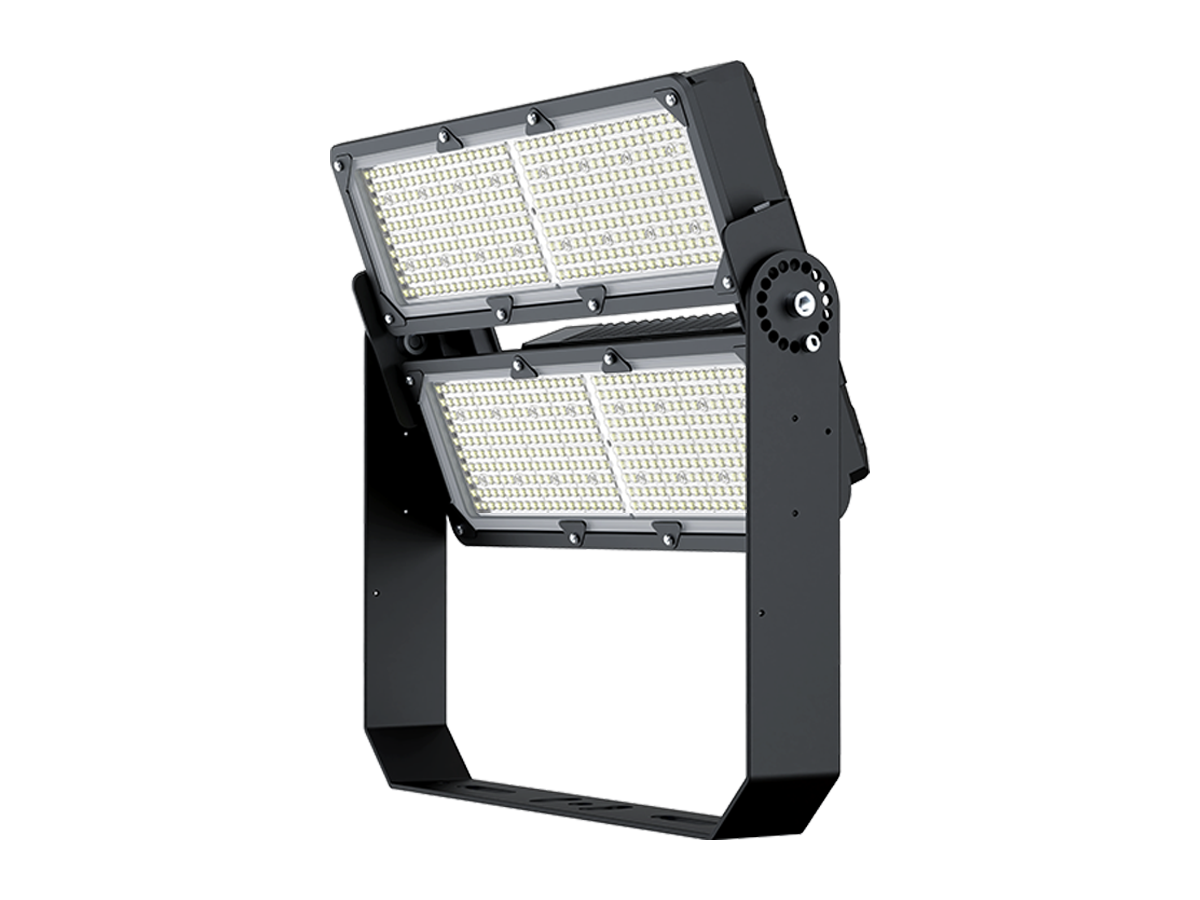

The durable sheet-metal U-bracket features wide installation clearance for easy mounting on various pole sizes. ±180° aiming adjustment in 30° increments enables precise beam positioning. Compatible with both standard straight U-bracket and optional angled U-bracket designs, FL08 adapts to complex pole, truss, and cross-arm mounting conditions. High strength, excellent toughness, and wind-resistant performance ensure long-term stability.

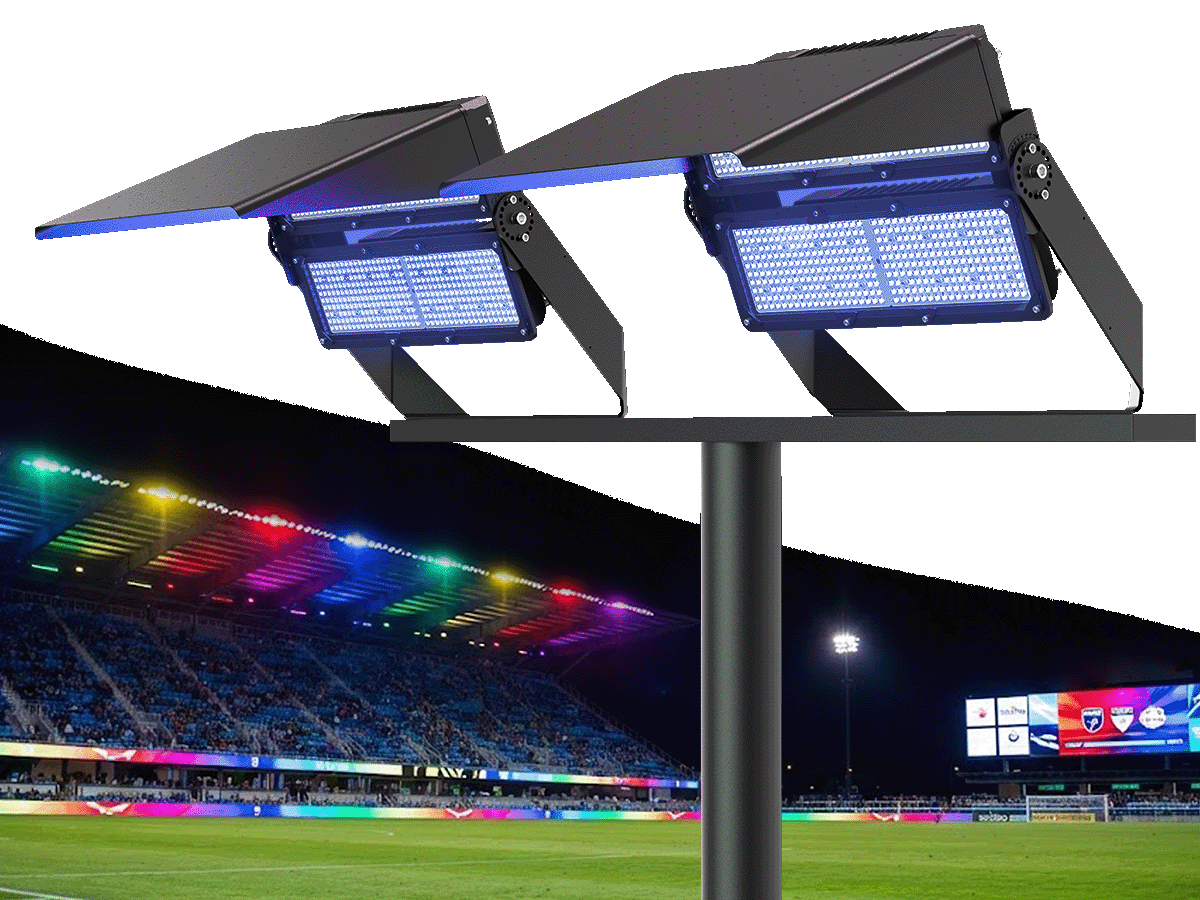

FL08 RGBW LED floodlight showing colorful stadium lighting for events and celebrations

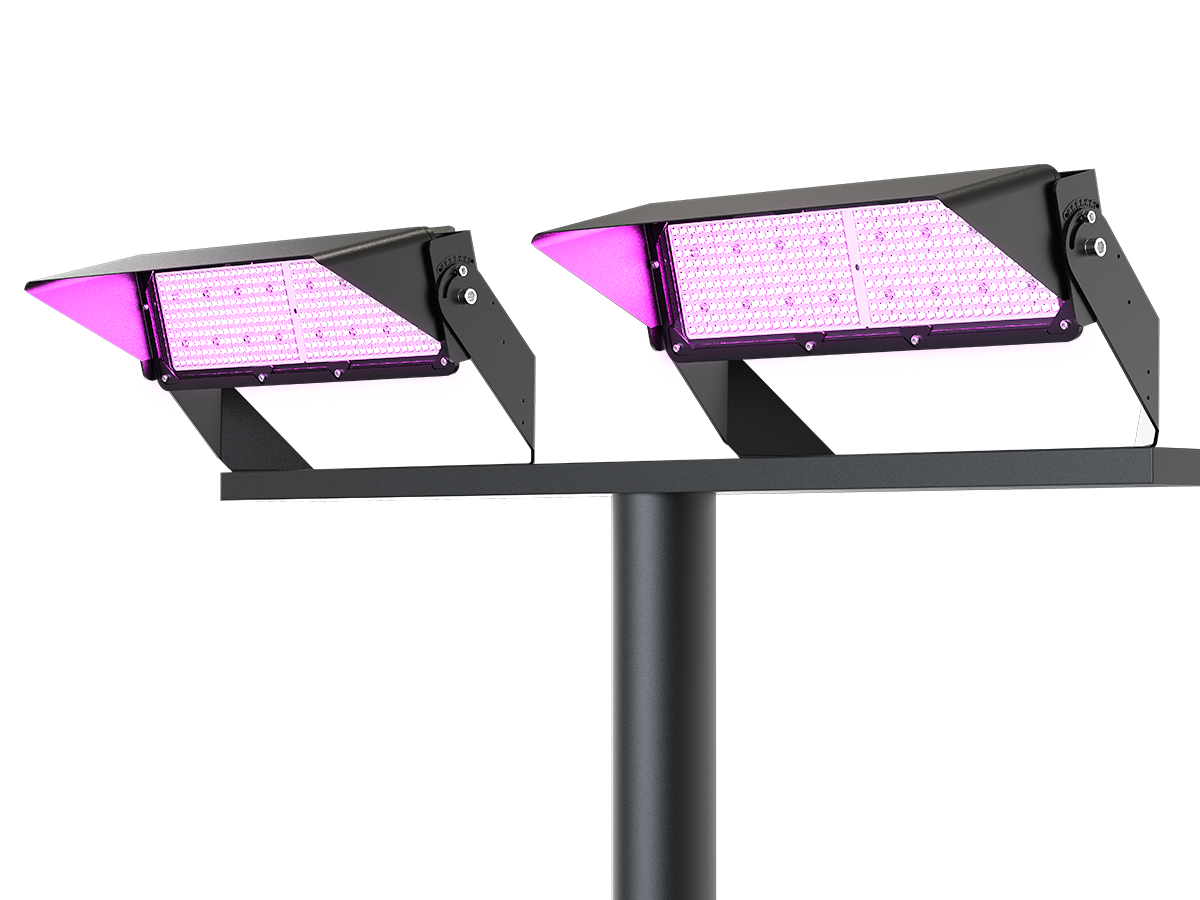

Optional RGBW Configuration for Multifunctional Lighting

The optional RGBW configuration adds red, green, blue, and white LED capability, transforming FL08 into a multifunctional lighting platform. Perfect for decorative lighting, event atmospheres, and dynamic light shows. Venues can seamlessly switch between high-performance white sports lighting and vibrant colored lighting for ceremonies, concerts, and community celebrations—maximizing venue utilization and revenue potential.

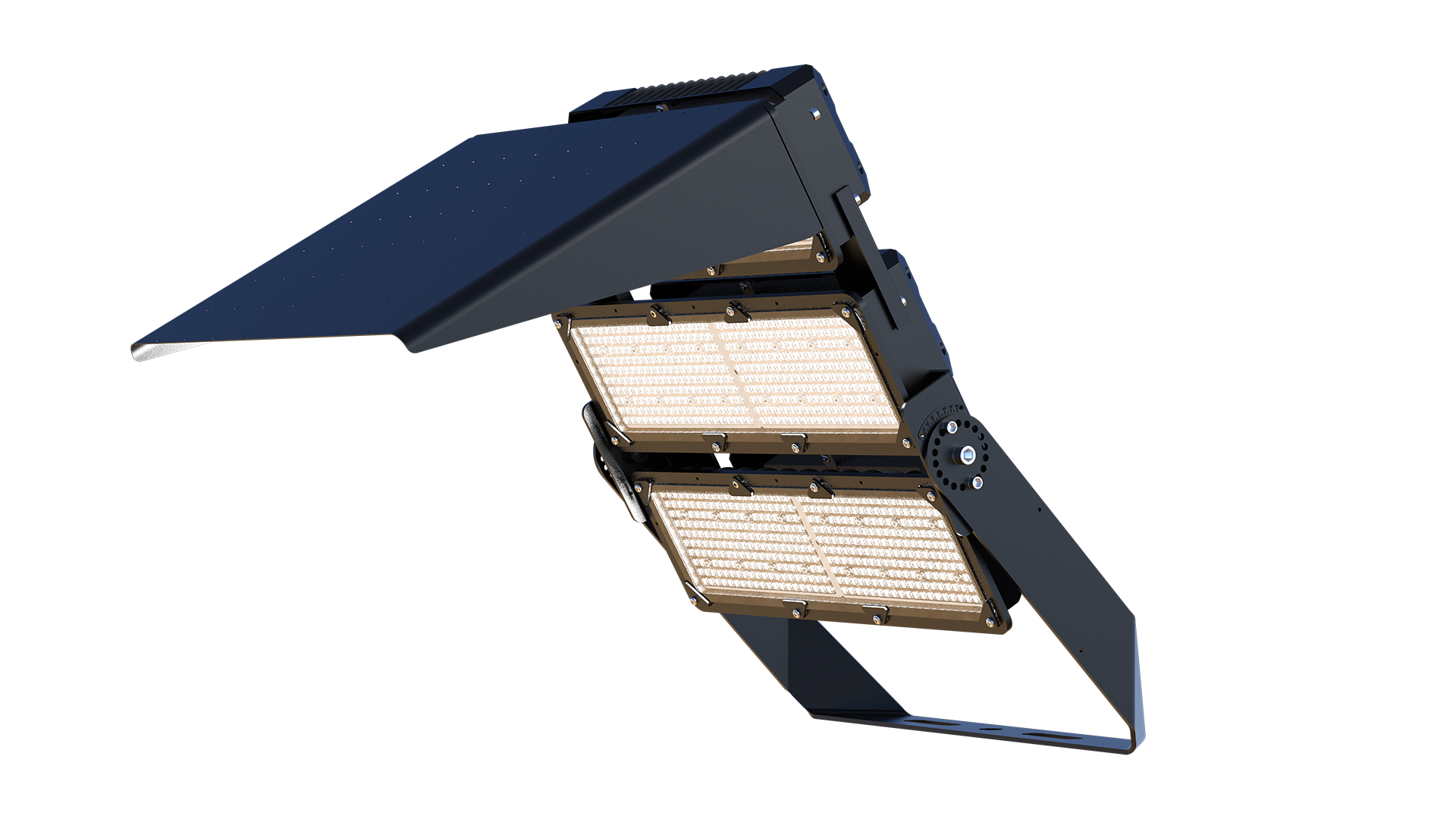

Professional Accessories: Visors & Mounting Brackets

FL08 offers a comprehensive range of optional accessories for specialized requirements. Short and long visors provide enhanced spill-light control, essential for dark-sky compliance and residential-adjacent venues. Angled and straight U-brackets adapt to various mounting conditions—from standard poles to complex truss structures. All accessories install easily and maintain IP66 weatherproof integrity.

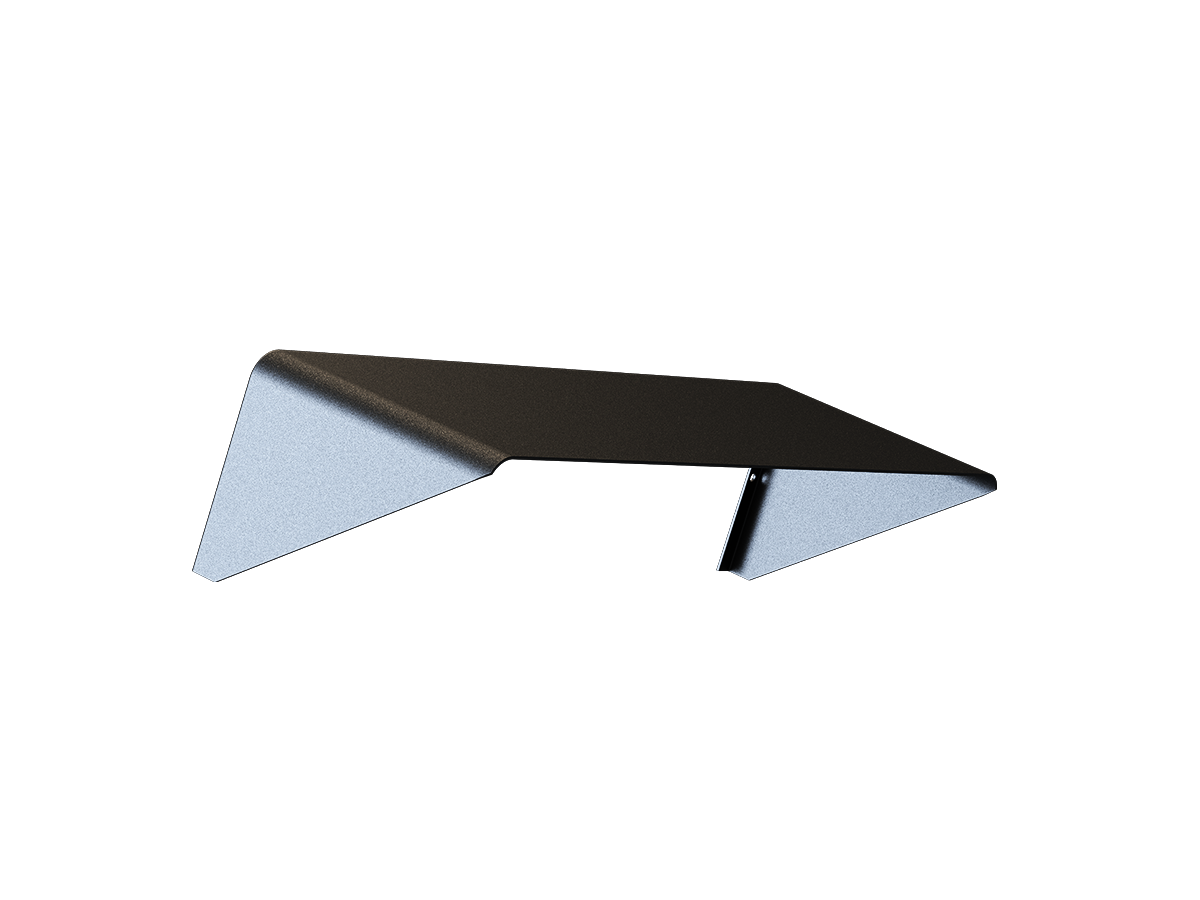

Short Visor

Compact visor for moderate spill-light control in training fields and outdoor courts. Aluminum construction with tool-free installation.

Dual variant options: with or without tempered glass
Tempered glass guards against UV/chemical degradation
Maintains optical clarity for 50,000+ hours
Tool-free installation maintains IP66 integrity

Applications

FL08 is designed for training fields, outdoor courts, and multi-purpose spaces requiring flexible, cost-effective lighting solutions

Training Fields

Soccer, rugby, and multi-sport training facilities

Outdoor Courts

Basketball, tennis, and recreational courts

Public Spaces

Parks, plazas, and community areas

Parking Facilities

Large parking areas and lots

Event Venues

Outdoor event spaces with RGBW capability

Multi-Purpose Areas

Flexible outdoor zones

Technical Specifications

Comprehensive technical data for engineering and procurement

💡 Specification (All White)

Power & Electrical

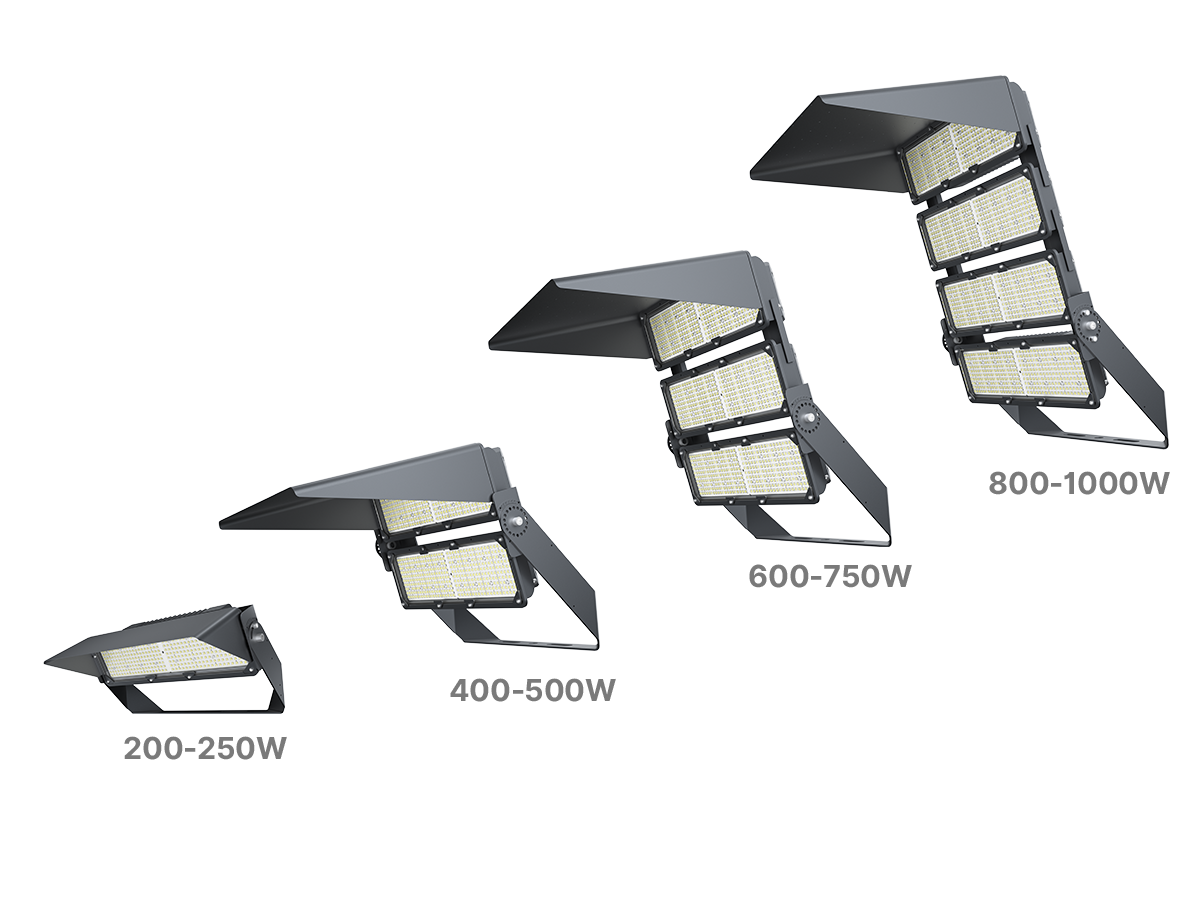

Model Number: ZC-FL08-200W/250W, 400W/500W, 600W/750W, 800W/1000W
Power Options: 200W/250W, 400W/500W, 600W/750W, 800W/1000W
Input Voltage: AC100-277V / AC230-240V
Luminous Efficacy: 160-165Lm/W (@50000h)
Luminous Flux: 33,000-40,000Lm (250W), 66,000-80,000Lm (500W), 66,000-80,000Lm (750W), 66,000-90,000Lm (1000W)

Optical Performance

Beam Angle: 25° / 45° / 60° / 90° / 90° / +152° / 80° / +145° / 120° / +148° / 45° / +105°
CCT Options: 3000K / 4000K / 5000K / 5700K / 6500K
CRI: 70, 80, 90, TL/CRI90 optional
SDCM: <6
Power Factor (PF): ≥0.95
THD: <15% (@480Vac/60Hz; 25℃, full load)

Protection & Durability

Flicker (%): <1%
Surge Protection (SPD): 10KV or 20KV external SPD optional
Electrical Protection: Class I
IP Rating: IP66 / Wet Location
IK Rating: IK08
Operating Temp.: -40℃ ~ +50℃
Lifetime (L70): 50,000Hours

Control & Certifications

Control Protocol: 0-10V DMX512, DALI-2
Certifications: CE, RoHS, CB
LED Brand: Lumileds / Sanan
Driver Brand: Inventronics / Moso / Sosen / Lifud

Construction

Housing Material & Finish: Die-casting Heat Sink / ADC12 / Powder coating, Sheet Metal U-Bracket / SPCC / Powder Coating
Optics: PC Lens+Glass
Housing Color: Black
FPA(Max): 0.71ft² (250W), 1.53ft² (500W), 2.34ft² (750W), 3.15ft² (1000W)
Net Weight: 4.5kg(Without Visor), 8.5kg(Without Visor), 13kg(Without Visor), 17kg(Without Visor)
Warranty: 5 years

🎨

Specification (RGBW)

Power & Electrical (RGBW)

Model Number: ZC-FL08RGBW-250W, 500W, 750W, 1000W
Power Options: 250W, 500W, 750W, 1000W
Input Voltage: AC100-277V / 220-240V
Beam Angle: 30° / 60° / 90° / 80° / +152° / 80° / +145° / 120° / +148°
Power Factor (PF): ≥0.95
THD: <15%

Protection & Control (RGBW)

Surge Protection (SPD): 10KV or 20KV external SPD optional
Electrical Protection: Class I
IP Rating: IP66 / Wet Location
IK Rating: IK08
Operating Temp.: -30℃ ~ +50℃
Lifetime (L70): 50,000Hours
Control Protocol: DMX512
Certifications: CE, RoHS, CB

Construction (RGBW)

LED Brand: Lighting5050
Driver Brand: uPowerTek
Housing Color: Black
Net Weight: 4kg, 8kg(Without Visor), 12.5kg(Without Visor), 16.5kg(Without Visor)
Warranty: 5 years
