Why this application needs its own lighting approach
Roadway lighting must support drivers, cyclists and pedestrians by revealing lane geometry, obstacles and conflict points while controlling glare and light outside the road corridor.

Roadway lighting must support drivers, cyclists and pedestrians by revealing lane geometry, obstacles and conflict points while controlling glare and light outside the road corridor.
Road width, lane count, median, shoulder, curvature, intersection spacing, pole setback and mounting height determine the optical distribution. The design should follow the actual carriageway rather than use a generic pole spacing.
Roadway lighting must support drivers, cyclists and pedestrians by revealing lane geometry, obstacles and conflict points while controlling glare and light outside the road corridor.
Send road width, lane count, pole spacing / height, outreach, intersection details and target road class.
Single-sided, staggered, opposite or median-mounted layouts can be used depending on road width and classification. Pole outreach and luminaire tilt should keep the principal beam on the roadway.

Road width, lane count, median, shoulder, curvature, intersection spacing, pole setback and mounting height determine the optical distribution. The design should follow the actual carriageway rather than use a generic pole spacing.

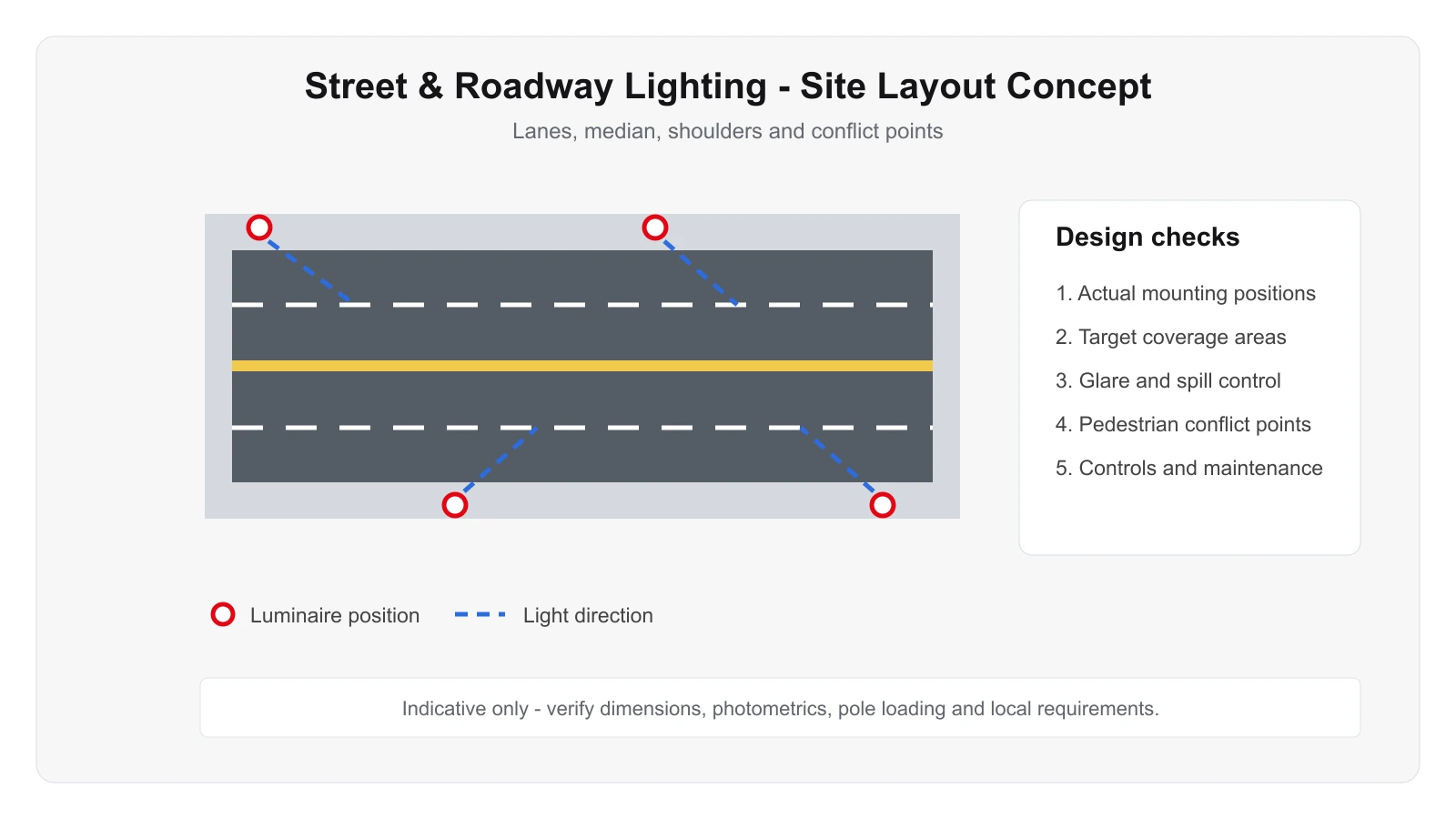

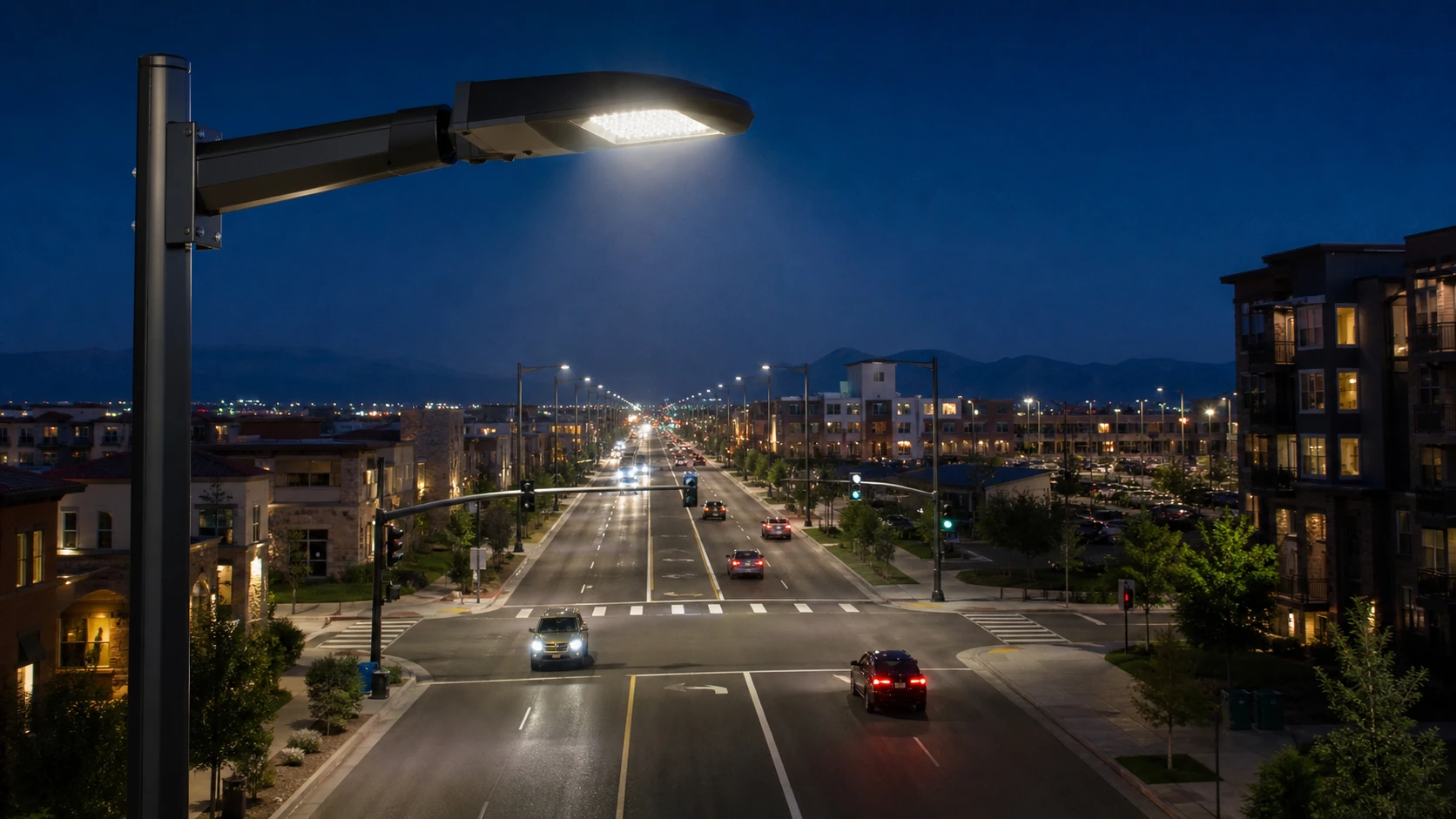

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Review road luminance / illuminance, longitudinal uniformity, overall uniformity, threshold effects, glare and visibility at junctions or crossings.
Photocell, astronomical scheduling, network dimming and traffic-based profiles can reduce output during low-demand periods where local policy allows.
Consider property-line spill, dark-sky requirements, trees, utility lines, pole collision risk and maintenance access.
Consider property-line spill, dark-sky requirements, trees, utility lines, pole collision risk and maintenance access.
When reusing poles, verify spacing, outreach, mounting height and old wiring. LED optics can often improve distribution, but poor legacy spacing may still limit performance.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
