Why this application needs its own lighting approach
Bus terminals mix vehicle lanes, passenger products, boarding areas, canopies and pedestrian crossings. Lighting must support both driver recognition and passenger comfort.
Street, Parking & Public Area Lighting
Bus Terminal Lighting
Bus terminals mix vehicle lanes, passenger products, boarding areas, canopies and pedestrian crossings. Lighting must support both driver recognition and passenger comfort.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map bus bays, product edges, canopy heights, crossings, signs, waiting areas and access roads.
Key project inputs
Provide terminal plan, bay geometry, canopy heights, bus routes, passenger areas and operating schedule.
Layout & mounting
Use the real site first, then validate the layout.
Use canopy lighting for boarding zones and roadway / area lighting for bus circulation. Avoid glare into driver sightlines when buses approach products.
Map bus bays, product edges, canopy heights, crossings, signs, waiting areas and access roads.

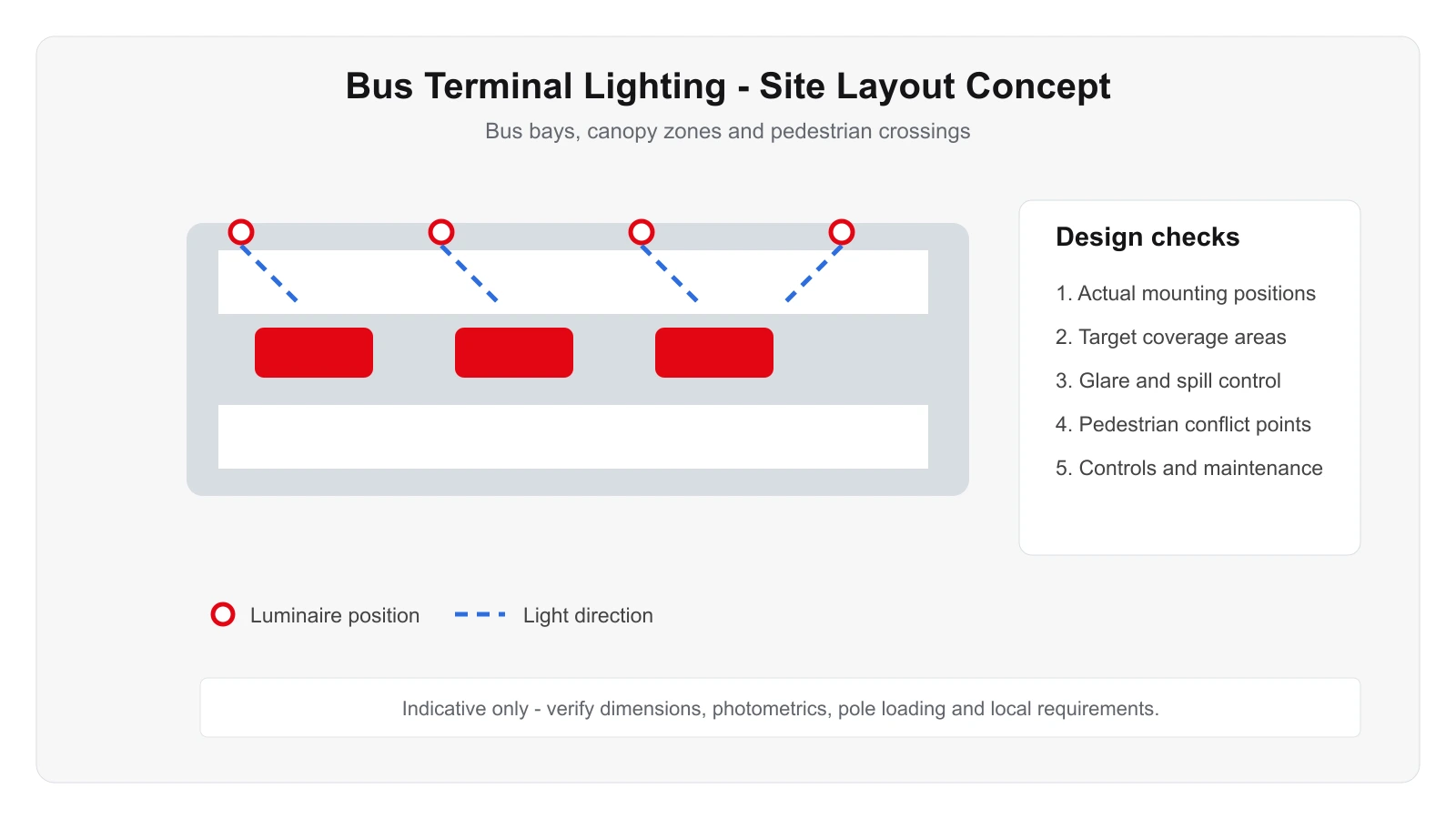

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Prioritize vertical visibility of passengers, product-edge recognition, vehicle maneuvering and clear signage.
Primary visual taskPrioritize vertical visibility of passengers,
product-edge recognition, vehicle maneuvering and clear signage.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityReview CCTV, emergency systems, wet
surfaces, signage and maintenance access above canopies.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone passenger areas, bus lanes, back-of-house and low-use sections according to service schedules.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Review CCTV, emergency systems, wet surfaces, signage and maintenance access above canopies.
Special project checks
Review CCTV, emergency systems, wet surfaces, signage and maintenance access above canopies.
New build vs retrofit
Check whether existing canopy fixtures create dark vehicle-side faces or bright pools on the floor.
Recommended Products
Products commonly evaluated for this application.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
SL05
Smart street lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
AL01
Area and parking lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →AL03
High-output area lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Project information
What to send for a faster engineering review.
Provide terminal plan, bay geometry, canopy heights, bus routes, passenger areas and operating schedule.
01Site / floor plan with dimensions and operating zones.
02Mounting positions, heights, pole / bracket / roof structure
information.
03Target task, performance requirement and operating
schedule.
04Existing fixture data, photos and environmental conditions for
retrofit projects.
Need a project-specific lighting proposal?
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
Common questions
Before finalizing the application design.
These answers are general engineering guidance. Project-specific requirements should always take priority.
How should the lighting layout for bus terminal lighting be determined?
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Can existing poles, brackets or mounting points be reused?
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Should controls be specified at the same time as the luminaires?
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
What information is most useful for an initial proposal?
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
Are the typical layouts shown on this page fixed designs?
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
