Intermodal Yard Lighting
Intermodal yards combine rail tracks, containers, trucks, reach stackers and transfer equipment, creating complex shadows and mixed movement patterns.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map rail groups, container blocks, truck lanes, transfer cranes, gates and mast positions. Overhead rail infrastructure can restrict mounting options.
Key project inputs
Provide yard plan, rail / container zones, mast locations, overhead-line information and operating profile.
Layout & mounting
Use the real site first, then validate the layout.
High masts or tall floodlight structures should stay outside track and crane envelopes. Mixed optics can cover rail, stack and vehicle zones from the same mast group.
Map rail groups, container blocks, truck lanes, transfer cranes, gates and mast positions. Overhead rail infrastructure can restrict mounting options.

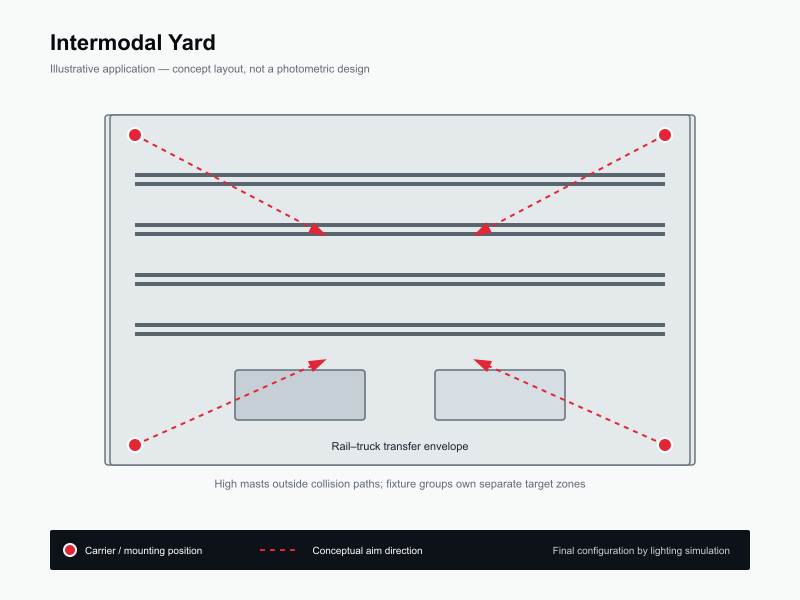

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Prioritize vertical container / vehicle recognition, switch / track visibility, truck maneuvering and glare control.
Primary visual taskPrioritize vertical container / vehicle
recognition, switch / track visibility, truck maneuvering and glare control.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityReview overhead electrical lines,
vibration, dust, wind, surge and maintenance access.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone rail-transfer, storage and gate areas according to operational schedules.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Review overhead electrical lines, vibration, dust, wind, surge and maintenance access.
Special project checks
Review overhead electrical lines, vibration, dust, wind, surge and maintenance access.
New build vs retrofit
Check structural clearances and existing mast condition before replacing HID fixtures.
