Why this application needs its own lighting approach
Inspection zones require clear visual recognition of vehicles, cargo seals, documents and personnel while supporting cameras and security processes.
Airport, Port & Transport Infrastructure
Customs Inspection Zone Lighting
Inspection zones require clear visual recognition of vehicles, cargo seals, documents and personnel while supporting cameras and security processes.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map inspection bays, canopies, vehicle queues, pedestrian routes, camera positions and controlled-access boundaries.
Key project inputs
Send bay layout, canopy height, camera locations, vehicle lanes and security requirements.
Layout & mounting
Use the real site first, then validate the layout.
Use canopy / overhead lighting for detailed inspection and area lighting for approach lanes. Keep bright sources outside direct camera and officer sightlines.
Map inspection bays, canopies, vehicle queues, pedestrian routes, camera positions and controlled-access boundaries.

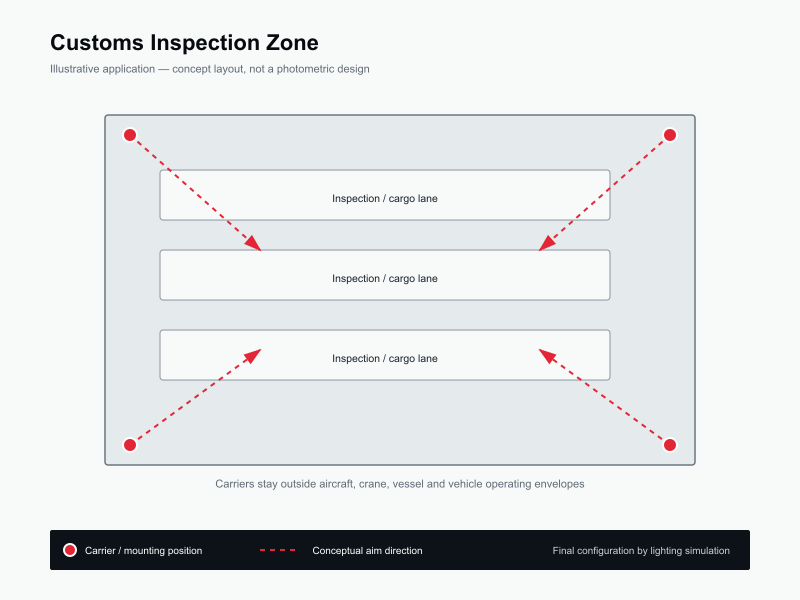

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Prioritize vertical visibility, color / detail recognition, camera support, uniform bay lighting and low glare.
Primary visual taskPrioritize vertical visibility, color / detail
recognition, camera support, uniform bay lighting and low glare.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityCoordinate with CCTV, automatic
number-plate recognition, barriers, scanners and emergency systems.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone active inspection bays independently and allow secure setback levels in waiting or unused areas.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Coordinate with CCTV, automatic number-plate recognition, barriers, scanners and emergency systems.
Special project checks
Coordinate with CCTV, automatic number-plate recognition, barriers, scanners and emergency systems.
New build vs retrofit
Evaluate camera exposure and reflective vehicle surfaces when upgrading from older fixtures.
Recommended Products
Products commonly evaluated for this application.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
FL20
Full-cutoff apron / area floodlighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
SP02
High-output large-area floodlight
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
HM01S
Lightweight high-mast floodlight
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Project information
What to send for a faster engineering review.
Send bay layout, canopy height, camera locations, vehicle lanes and security requirements.
01Site / floor plan with dimensions and operating zones.
02Mounting positions, heights, pole / bracket / roof structure
information.
03Target task, performance requirement and operating
schedule.
04Existing fixture data, photos and environmental conditions for
retrofit projects.
Need a project-specific lighting proposal?
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
Common questions
Before finalizing the application design.
These answers are general engineering guidance. Project-specific requirements should always take priority.
How should the lighting layout for customs inspection zone lighting be determined?
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Can existing poles, brackets or mounting points be reused?
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Should controls be specified at the same time as the luminaires?
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
What information is most useful for an initial proposal?
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
Are the typical layouts shown on this page fixed designs?
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
