Why this application needs its own lighting approach
Pathway lighting is primarily about comfortable orientation, obstacle recognition and facial visibility at human scale. Excessive brightness can reduce adaptation and create dark surroundings.
Street, Parking & Public Area Lighting
Pedestrian Pathway Lighting
Pathway lighting is primarily about comfortable orientation, obstacle recognition and facial visibility at human scale. Excessive brightness can reduce adaptation and create dark surroundings.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Path width, curves, steps, crossings, landscaping and adjacent properties determine pole / bollard spacing and mounting height.
Key project inputs
Provide path width, mounting preference, nearby buildings, trees, steps / crossings and operating hours.
Layout & mounting
Use the real site first, then validate the layout.
Use lower mounting heights and controlled distributions that follow the path. Avoid bright points directly at eye level and excessive upward light.
Path width, curves, steps, crossings, landscaping and adjacent properties determine pole / bollard spacing and mounting height.

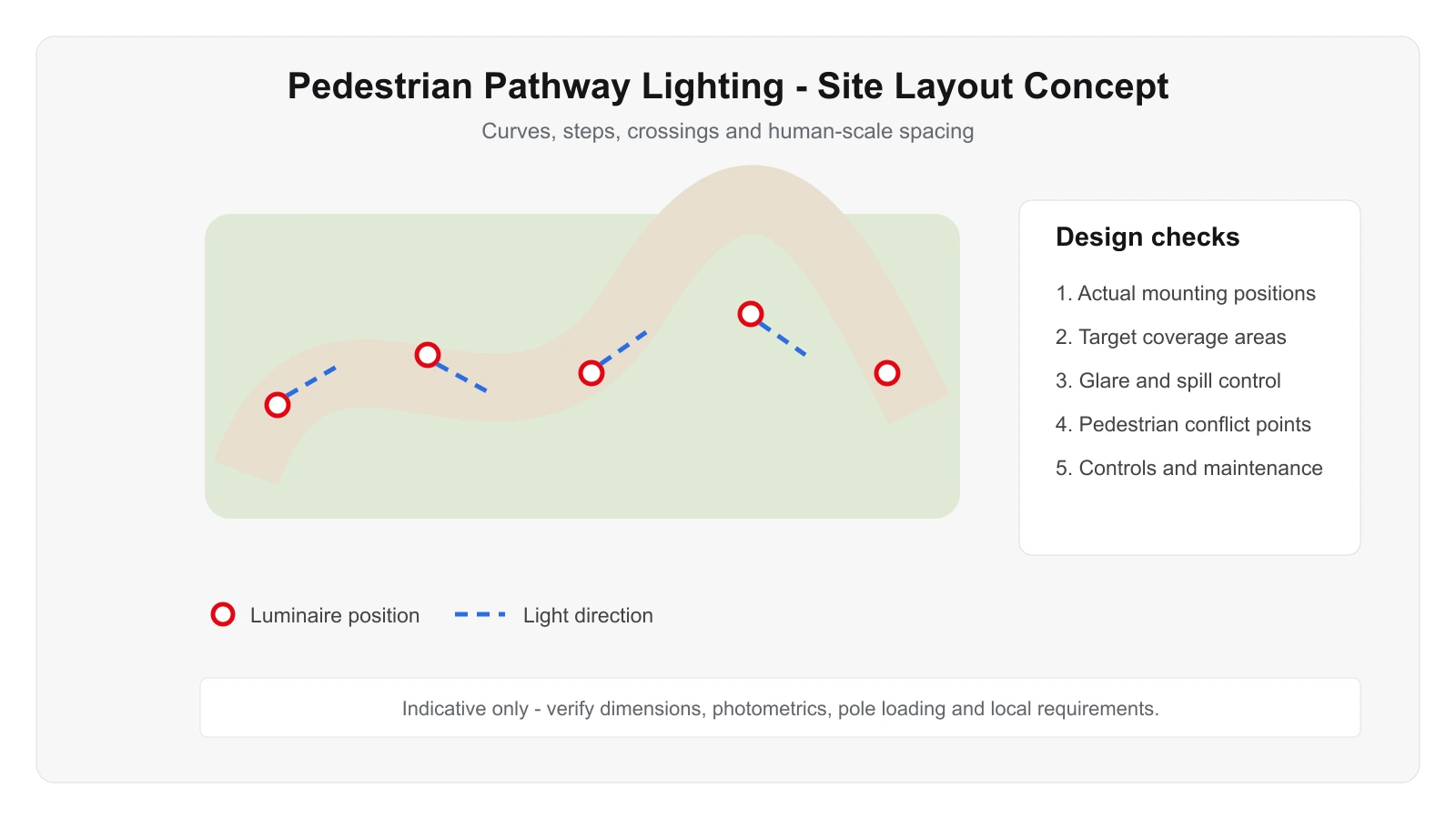

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Review minimum visibility along the walking route, vertical light for people, uniform transitions, glare and spill to nearby windows or habitat.
Primary visual taskReview minimum visibility along the walking
route, vertical light for people, uniform transitions, glare and spill to nearby windows
or habitat.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityConsider tree growth, vandalism,
wheelchair access, CCTV and ecological sensitivity.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Dimming schedules and motion-based increase can be appropriate where local requirements permit, especially in low-traffic parks or campuses.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Consider tree growth, vandalism, wheelchair access, CCTV and ecological sensitivity.
Special project checks
Consider tree growth, vandalism, wheelchair access, CCTV and ecological sensitivity.
New build vs retrofit
Old globes or decorative fixtures may waste light upward; retrofit should improve distribution, not only reduce wattage.
Recommended Products
Products commonly evaluated for this application.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
AL01
Area and parking lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
SL05
Smart street lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Project information
What to send for a faster engineering review.
Provide path width, mounting preference, nearby buildings, trees, steps / crossings and operating hours.
01Site / floor plan with dimensions and operating zones.
02Mounting positions, heights, pole / bracket / roof structure
information.
03Target task, performance requirement and operating
schedule.
04Existing fixture data, photos and environmental conditions for
retrofit projects.
Need a project-specific lighting proposal?
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
Common questions
Before finalizing the application design.
These answers are general engineering guidance. Project-specific requirements should always take priority.
How should the lighting layout for pedestrian pathway lighting be determined?
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Can existing poles, brackets or mounting points be reused?
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Should controls be specified at the same time as the luminaires?
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
What information is most useful for an initial proposal?
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
Are the typical layouts shown on this page fixed designs?
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
