Manufacturing facilities combine production lines, inspection stations, machine tools, walkways, storage and circulation. Lighting therefore has to serve both general orientation and specific visual tasks.
The key inputs are ceiling height, machine height, production-line direction, operator positions, crane or gantry zones, reflective surfaces and areas requiring higher task visibility.
Manufacturing facilities combine production lines, inspection stations, machine tools, walkways, storage and circulation. Lighting therefore has to serve both general orientation and specific visual tasks.
Provide the production layout, ceiling height, operator/task locations, existing mounting grid and any areas with heat, dust or vibration.
Use a regular overhead grid only where the production layout supports it. In process areas, luminaires may need to be shifted around cranes, extraction ducts or machine service zones while maintaining overlapping coverage.
The key inputs are ceiling height, machine height, production-line direction, operator positions, crane or gantry zones, reflective surfaces and areas requiring higher task visibility.

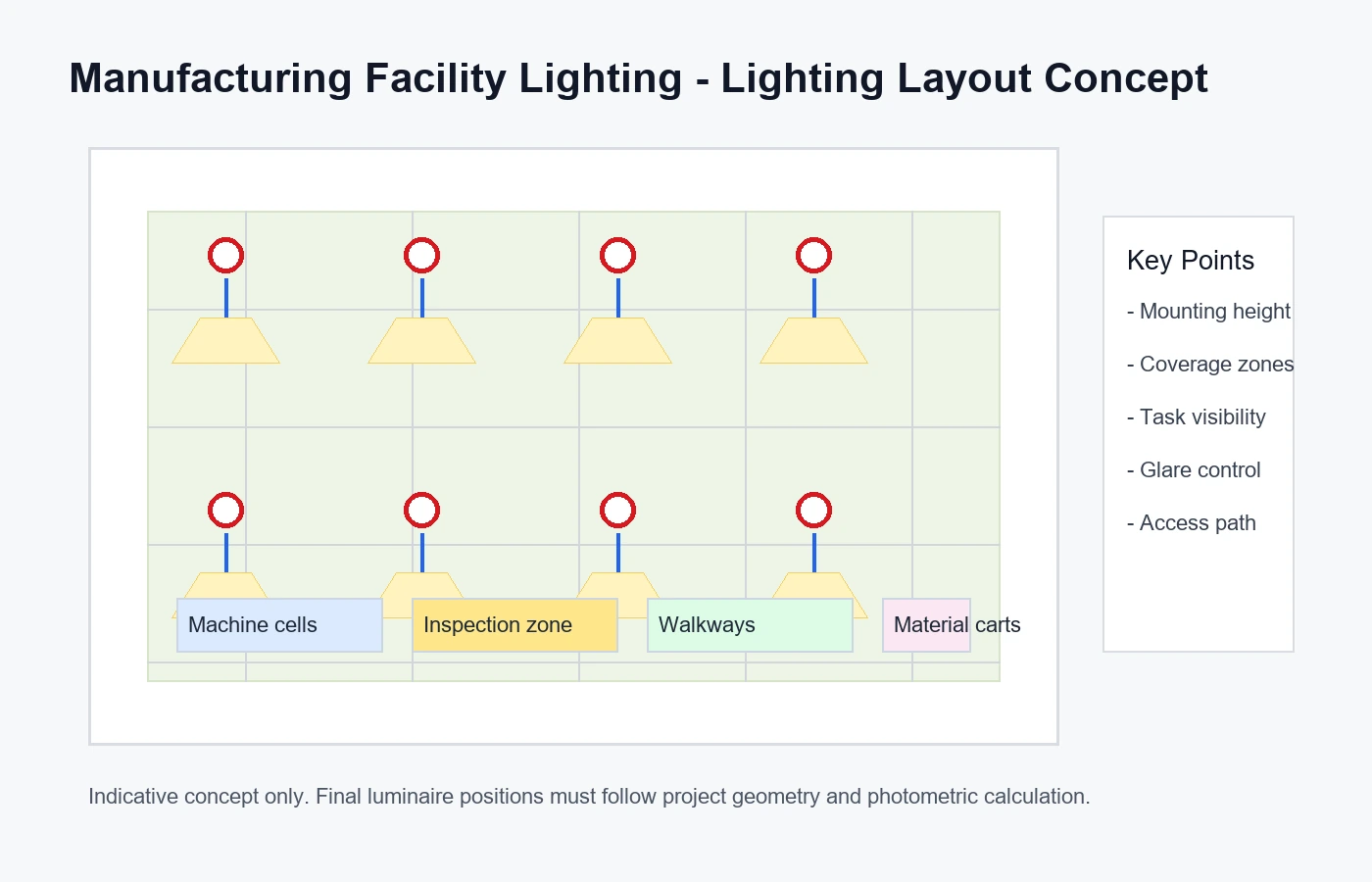

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Review horizontal task light, vertical visibility on machinery and components, glare for seated or standing operators, contrast around moving equipment and uniform transitions between production and circulation zones.
Separate production, inspection, logistics, cleaning and non-production zones. Dimming or occupancy control can be applied where the process permits, but safety-critical areas should not depend on aggressive sensor timeouts.
Consider vibration, oil mist, dust, heat pockets, emergency systems, high-reflectance machinery and the effect of shiny floors or metal surfaces on glare.
Consider vibration, oil mist, dust, heat pockets, emergency systems, high-reflectance machinery and the effect of shiny floors or metal surfaces on glare.
Retrofit decisions should compare the existing grid with the new production layout; do not automatically reuse every old mounting point if the visual task has changed.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.

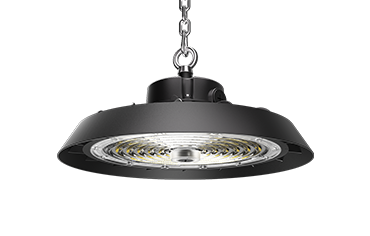

Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Provide the production layout, ceiling height, operator/task locations, existing mounting grid and any areas with heat, dust or vibration.
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
These answers are general engineering guidance. Project-specific requirements should always take priority.
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
Share the site dimensions, mounting height, target lighting level and available drawings. Our team will review the project and recommend a suitable product and optical approach.
