Why this application needs its own lighting approach
Crusher plants are dusty, vibrating environments with conveyors, transfer points, large equipment and outdoor / semi-outdoor exposure.
Harsh & Special Environment Lighting
Crusher Plant Lighting
Crusher plants are dusty, vibrating environments with conveyors, transfer points, large equipment and outdoor / semi-outdoor exposure.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation required
Understand the site
Start with the actual geometry and operating task.
Map crushers, conveyors, transfer towers, products, stockpiles, vehicle routes and maintenance access.
Key project inputs
Send plant layout, crusher / conveyor positions, dust and vibration conditions, mounting points and cleaning practices.
Layout & mounting
Use the real site first, then validate the layout.
Use robust flood or high-bay mounting away from material impact zones. Aim light at products, stairs and transfer points rather than uniformly flooding unused space.
Map crushers, conveyors, transfer towers, products, stockpiles, vehicle routes and maintenance access.

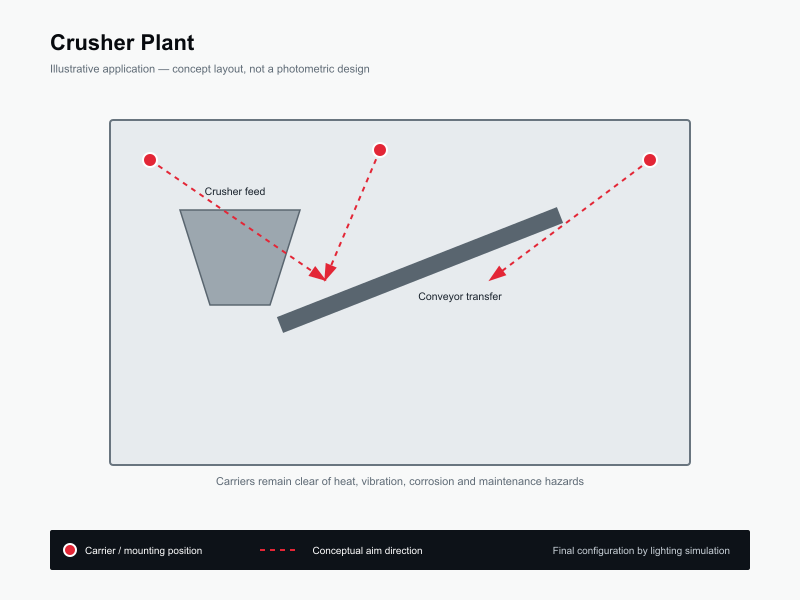

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric calculation and the
applicable project requirements.
Lighting performance
What the completed installation must achieve.
Prioritize stair / product visibility, equipment recognition and shadow control around structures.
Primary visual taskPrioritize stair / product visibility, equipment
recognition and shadow control around structures.
Glare / off-site impactReview visible source brightness, observer positions
and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt changes between
adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks, façades or
structures where recognition is part of the task.
Environmental reliabilityDust ingress, vibration, impact, wind, surge and
difficult cleaning are key considerations.
CommissioningVerify installed aiming, controls, operating scenes and critical
measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone process equipment, maintenance areas and vehicle routes. Keep controls rugged and accessible.
ZoningGroup luminaires by real operating areas rather than arbitrary
circuit boundaries.
DimmingUse reduced-output scenes where the task and local requirements
allow.
SchedulingMatch lighting operation to shifts, traffic, occupancy or curfew
periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or network interfaces
only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Dust ingress, vibration, impact, wind, surge and difficult cleaning are key considerations.
Special project checks
Dust ingress, vibration, impact, wind, surge and difficult cleaning are key considerations.
New build vs retrofit
Review whether existing lights are mounted in areas that accumulate dust or suffer impact; relocation may improve reliability more than a 1:1 replacement.
Recommended Products
Products commonly evaluated for this application.
These are project starting points, not universal specifications. Final wattage, optics, accessories and controls should follow the project calculation and installation conditions.
HM01R
Extreme-environment high-mast lighting
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
HB19
High-output industrial high-bay
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →
HB20
High-temperature industrial high-bay
Evaluate this product against the actual mounting height, optics, environment, controls and maintenance requirements for this application.
View product →Project information
What to send for a faster engineering review.
Send plant layout, crusher / conveyor positions, dust and vibration conditions, mounting points and cleaning practices.
01Site / floor plan with dimensions and operating zones.
02Mounting positions, heights, pole / bracket / roof structure
information.
03Target task, performance requirement and operating schedule.
04Existing fixture data, photos and environmental conditions for retrofit
projects.
Need a project-specific lighting proposal?
Send the project drawing and mounting information so the optical and product selection can be reviewed against the real site.
Common questions
Before finalizing the application design.
These answers are general engineering guidance. Project-specific requirements should always take priority.
How should the lighting layout for crusher plant lighting be determined?
Start from the real geometry, mounting positions, operating zones and target visual tasks. Pole or fixture quantity should then be confirmed by photometric calculation rather than copied from a generic example.
Can existing poles, brackets or mounting points be reused?
Often yes, but structural condition, wind / vibration loading, spacing, electrical condition and compatibility with the new optical strategy should be checked first.
Should controls be specified at the same time as the luminaires?
Yes. Zoning, dimming, sensors and schedules affect driver selection, wiring and commissioning. Controls should fit the site operating policy and maintenance capability.
What information is most useful for an initial proposal?
A site or floor plan, mounting height, existing fixture information, target performance, operating hours, environmental conditions and clear photos of the installation area.
Are the typical layouts shown on this page fixed designs?
No. They are engineering references only. Final mounting positions, fixture quantities, beam distributions and aiming angles should be verified for the actual project.
