Why this application needs its own lighting approach
Quay and berth lighting must support vessel loading, mooring, crane operations and waterside movement while limiting glare toward ship bridges and adjacent navigation routes.
Airport, Port & Transport Infrastructure
Quay & Berth Lighting
Quay and berth lighting must support vessel loading, mooring, crane operations and waterside movement while limiting glare toward ship bridges and adjacent navigation routes.
ApplicationProject-specific engineering
MountingVerify actual geometry
ControlsZone / dim / schedule as needed
SelectionPhotometric calculation
required
Understand the site
Start with the actual geometry and operating task.
Map berth length, quay edge, cranes, bollards, service roads, vessel positions and nearby water areas.
Key project inputs
Send berth dimensions, crane positions, mast locations / heights, vessel types and marine conditions.
Layout & mounting
Use the real site first, then validate the layout.
Use high-mast or structure-mounted floodlights positioned landward of operations where possible. Aim down and across the working apron while limiting light beyond the quay edge.
Map berth length, quay edge, cranes, bollards, service roads, vessel positions and nearby water areas.

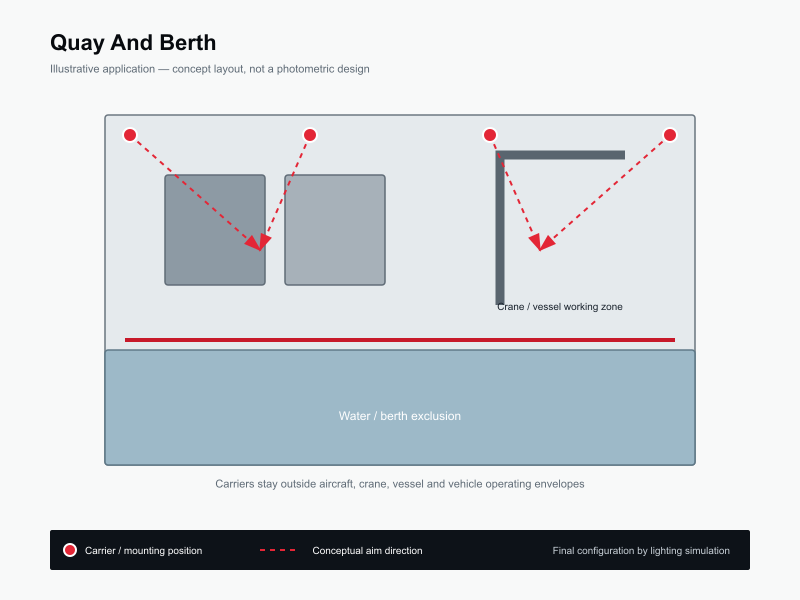

Use this only as a visual reference for mounting and coverage logic. The final design must follow the real project.
Typical reference only. Final mounting positions, pole or fixture quantity, beam
distribution, aiming, controls and structural loading should be confirmed by photometric
calculation and the applicable project requirements.
Lighting performance
What the completed installation must achieve.
Review vertical visibility on cargo / personnel, quay-edge recognition, crane working light and glare toward vessels.
Primary visual taskReview vertical visibility on cargo /
personnel, quay-edge recognition, crane working light and glare toward vessels.
Glare / off-site impactReview visible source brightness, observer
positions and light outside the intended work or traffic area.
Uniformity / transitionsAvoid isolated hotspots and abrupt
changes between adjacent operating zones.
Vertical visibilityCheck people, equipment, vehicles, racks,
façades or structures where recognition is part of the task.
Environmental reliabilityMarine corrosion, wind, salt, spray,
surge, maintenance access and falling-object risk are important.
CommissioningVerify installed aiming, controls, operating scenes
and critical measurement points after installation.
Controls & operation
Design the operating scenes before wiring is finalized.
Zone berths according to vessel occupancy and cargo operations. Inactive berth sections can operate at reduced output.
ZoningGroup luminaires by real operating areas rather than
arbitrary circuit boundaries.
DimmingUse reduced-output scenes where the task and local
requirements allow.
SchedulingMatch lighting operation to shifts, traffic,
occupancy or curfew periods.
InterfacesSelect 0-10V, DALI, DMX, photocell, sensor or
network interfaces only where compatible with the project architecture.
Accessories, environment & maintenance
Reliability depends on more than the LED package.
Marine corrosion, wind, salt, spray, surge, maintenance access and falling-object risk are important.
Special project checks
Marine corrosion, wind, salt, spray, surge, maintenance access and falling-object risk are important.
New build vs retrofit
Legacy high-mast systems may be suitable for LED retrofit after corrosion and structural inspection.
